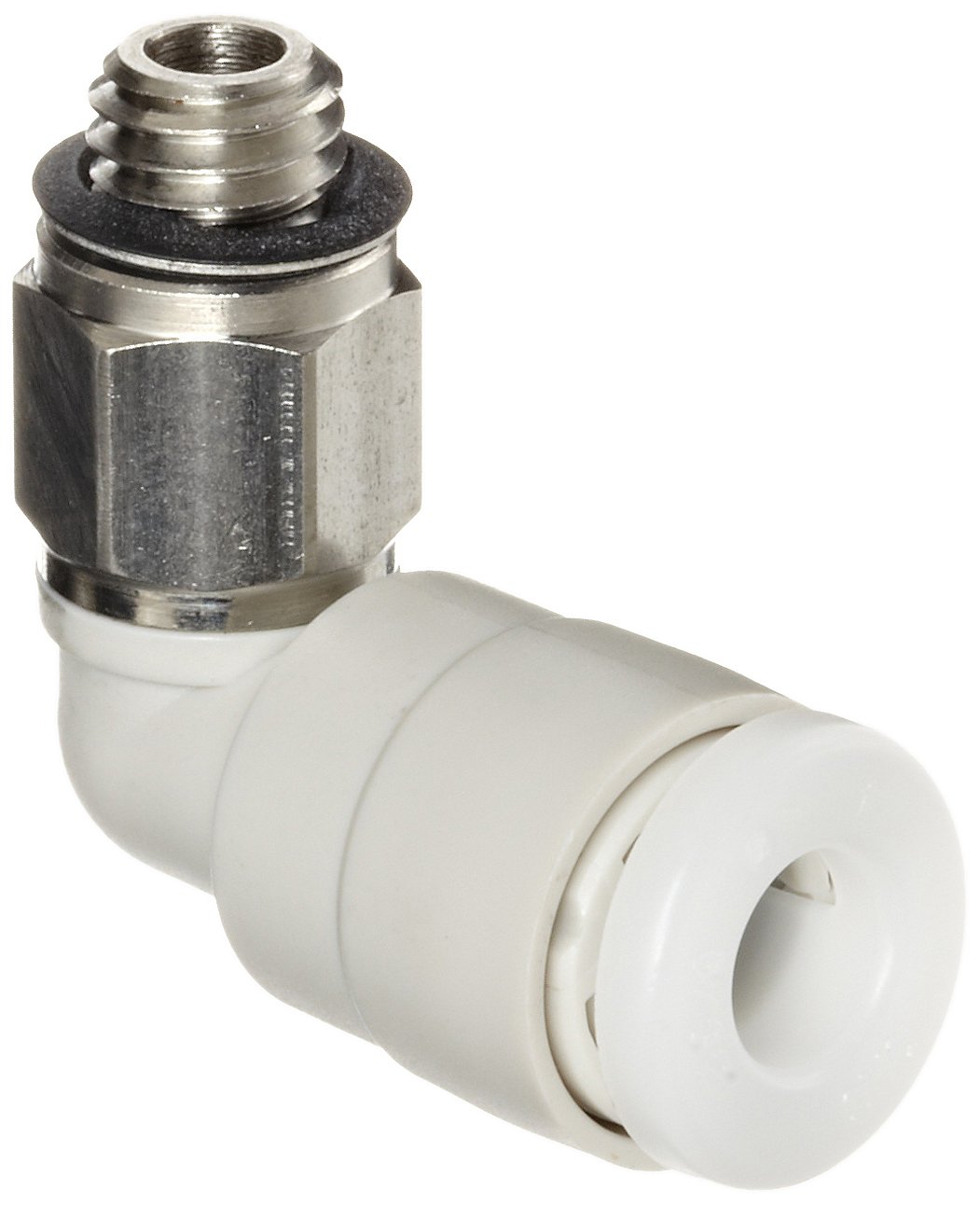

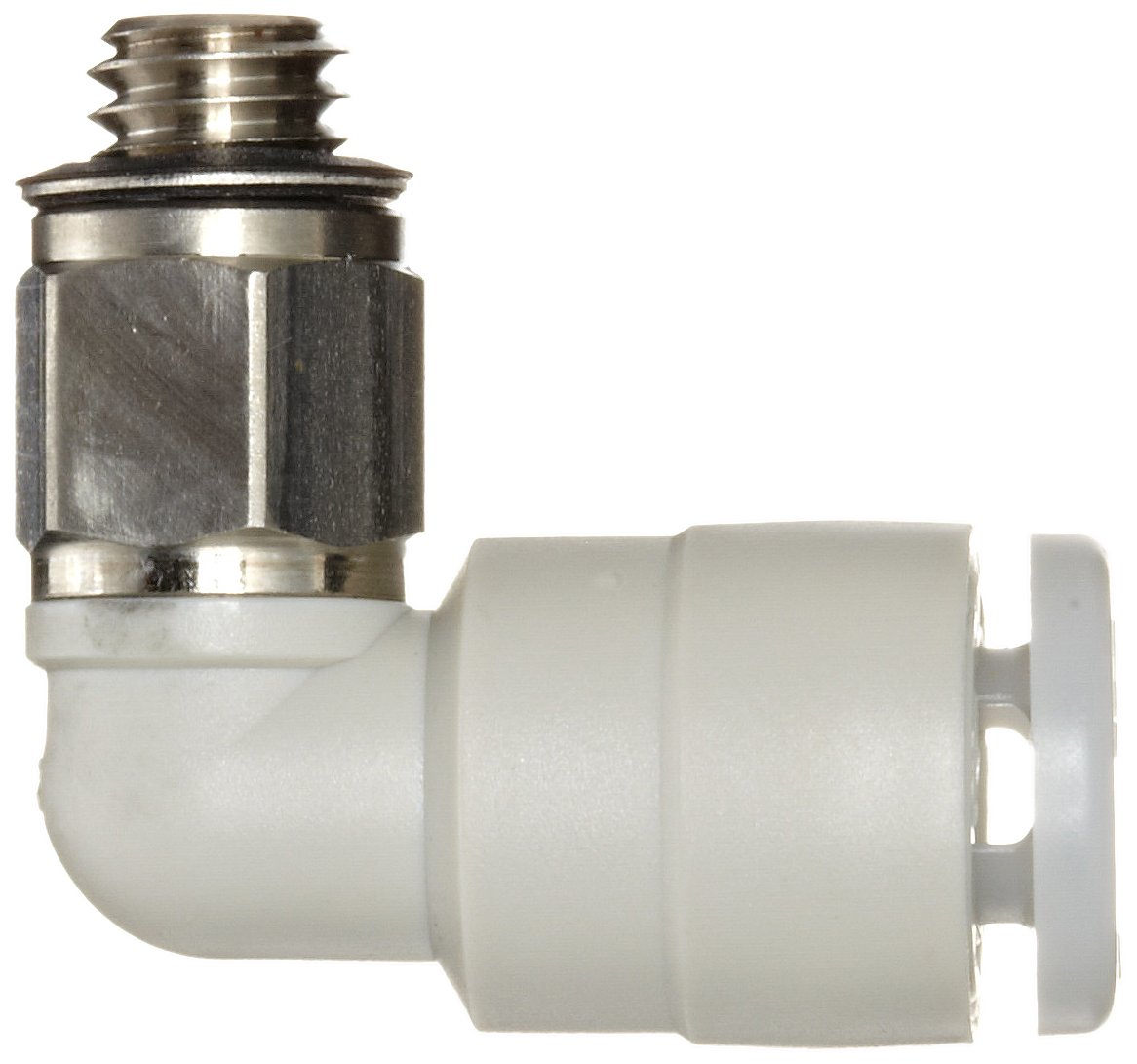

SMC KG Series Stainless Steel 303 and PBT Push-to-Connect Tube Fitting, 90 Degree Elbow, 4mm Tube OD x M5x0.8 Male

Be the first to review this item

ASIN B0065RQ556

Specifications for this item
Item Shape
90 Degree Elbow
Part Number
KGL04-M5
Brand Name
SMC Corporation
Grade
303
Style Name
push-to-connect
Number of Items
1
Material Type
Stainless Steel
Color Name
White
Size Name
4mm x M5x0.8
Manufacturer Series Number
KGL
Upper Temperature Range
60  Degrees Celsius
Maximum Pressure
145  PSI
Connector Type
Tube OD x M5
UNSPSC Code
40183100
System of Measurement
Metric
LowerTemperature Range
-5  Degrees Celsius

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Oct 23? Order in-stock items in the next 16 hrs 40 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Joins M5 male thread to 4 mm OD nylon, soft nylon or polyurethane tubing at a 90-degree angle
  • Push-to-connect mechanism provides reliable retaining force on tube
  • 303 stainless steel and PBT for corrosion resistance
  • For use with vacuum up to -100 kPa and pressure up to 145 psi
  • Operating temperature range of -5 to +60 degrees C

Package Details

Shipping Weight: 0.25 pounds
Package Size: 3 x 0.8 x 0.3 inches

Product Description

This SMC KGL04-M5 elbow tube fitting adapts M5 metric male thread to a push-to-connect fitting for 4 mm OD tubing at a 90-degree angle. The fitting has M5x0.8 thread on one end and a collet and chuck-type mechanism for tubing on the other end. It is made of 303 stainless steel and polybutylene terephthalate (PBT) for resistance to corrosion and is suitable for use with nylon, soft nylon, and polyurethane tubing. The connector has a maximum operating pressure of 145 pounds per square inch (psi), a maximum operating vacuum of -100 kilopascals (kPa), and an operating temperature range of -5 to +60 degrees C. This KG series elbow tube fitting is suitable for use with air and water in both vacuum and pressure applications, such as food processing in a wash down environment.

Tube fittings are components used for connecting, branching, terminating, and changing the direction of tubing in pneumatic and hydraulic systems. They are made of brass, stainless steel, polybutylene terephthalate (PBT), and other materials that resist corrosion and wear. Tube fittings have various types of connections, including threaded, welded, barbed, and push-to-connect (also called one-touch). Push-to-connect connections do not require tools or sealants. Tube fittings are used in various applications, including machine tools, airplane and truck controls, and automated production lines, among others.

SMC Corporation manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) standards 9000:2000 and 9001:2008.
