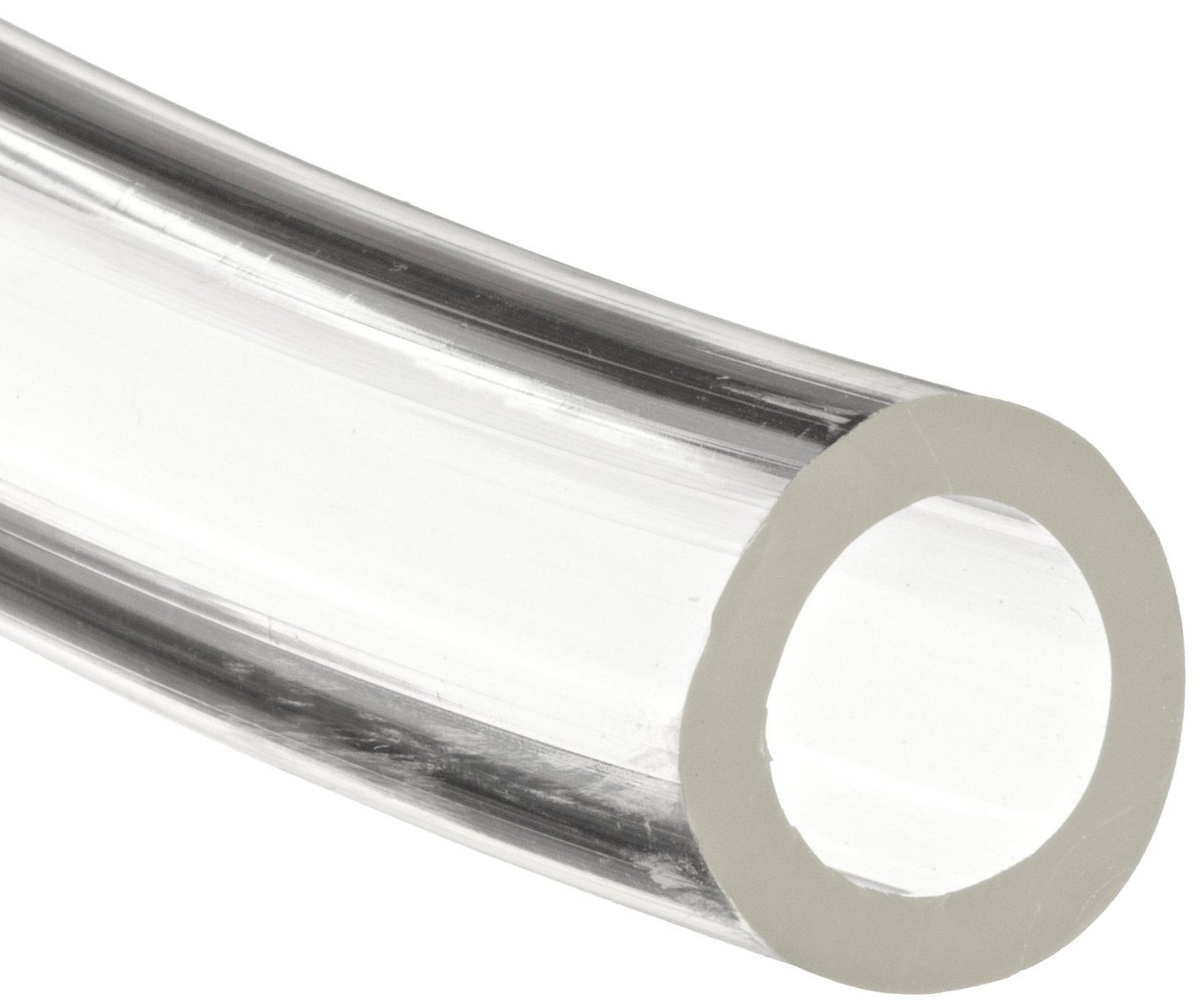

SMC TU Series Clear Polyurethane Tubing

Be the first to review this item

Product Specifications
Color Name
Clear
Material Type
Polyurethane
Structure Description
Flexible
Brand Name
SMC Corporation
Manufacturer Series Number
TU
Hardness
95 A
Maximum Pressure
115  PSI
UNSPSC Code
40183000
System of Measurement
Metric

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Aug 29? Order in-stock items in the next 23 hrs 32 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-9 of 9
Number of items ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-9 of 9
1 B0065RLCOU yes $207.24 Buy Options
1 B0065RLDTO yes $72.69 Buy Options
1 B0065RQMJK yes $53.96 Buy Options
1 B0065RQMV8 yes $72.58 Buy Options
1 B0065RQN58 Usually ships in 4 to 7 weeks $21.36 Buy Options
1 B0065RUUSY yes $86.45 Buy Options
1 B0065RUVN8 yes $28.35 Buy Options
1 B0065S1V40 yes $138.51 Buy Options
1 B0065S1W3A yes $53.86 Buy Options

Key Features

  • Flexible tubing for water or compressed air applications
  • Polyurethane for resistance to chemicals, oil, weather, and abrasion
  • Ether-based material for immunity to hydrolysis and resistance to fungus and microorganisms
  • Compatible with one-touch, insert, self-align, and miniature fittings
  • Operating temperature range of -4 to +140 degrees F for air or 40 to 105 degrees F for water

Product Description

This SMC clear, flexible polyurethane tubing for water or compressed air applications has a low compression set and low gas permeability. It is made of polyurethane for resistance to chemicals, oil, weather, and abrasion. This material is ether-based for its immunity to hydrolysis and resistance to fungus and microorganisms. It has a Shore A Hardness rating of 95 for resistance to kinking and puncture and is compatible with one-touch, insert, self-align, and miniature fittings. It has an operating temperature range of -4 to +140 degrees F for air or 40 to 105 degrees F for water. This metric-sized polyurethane tubing is suitable for use in automotive, food and beverage, material handling, medical and pharmaceutical, and packaging applications, among others.

Plastic tubing is used to transfer liquids, air, or solids, and it is characterized by a round, rectangular, or square shape and a hollow center. Plastic tubing is crimp-resistant and varies in bend radius (flexibility), chemical resistance, wall thickness, durometer hardness, and temperature and pressure handling abilities. The clarity of plastic tubing may be transparent (clear), translucent (semi-clear), or opaque (solid), and the tubing's coloring may indicate suitable applications. Barbed fittings are used to connect tubing or redirect flow in a fluid handling system. Plastic tubing is used in a wide variety of industries, such as agriculture, automotive, laboratory, and medicine. Applications for plastic tubing include blood and fluid handling, peristaltic pumps, electrical and thermal insulation, analytical systems, and food and beverage handling, among others.

SMC Corporation manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) standards 9000:2000 and 9001:2008.
