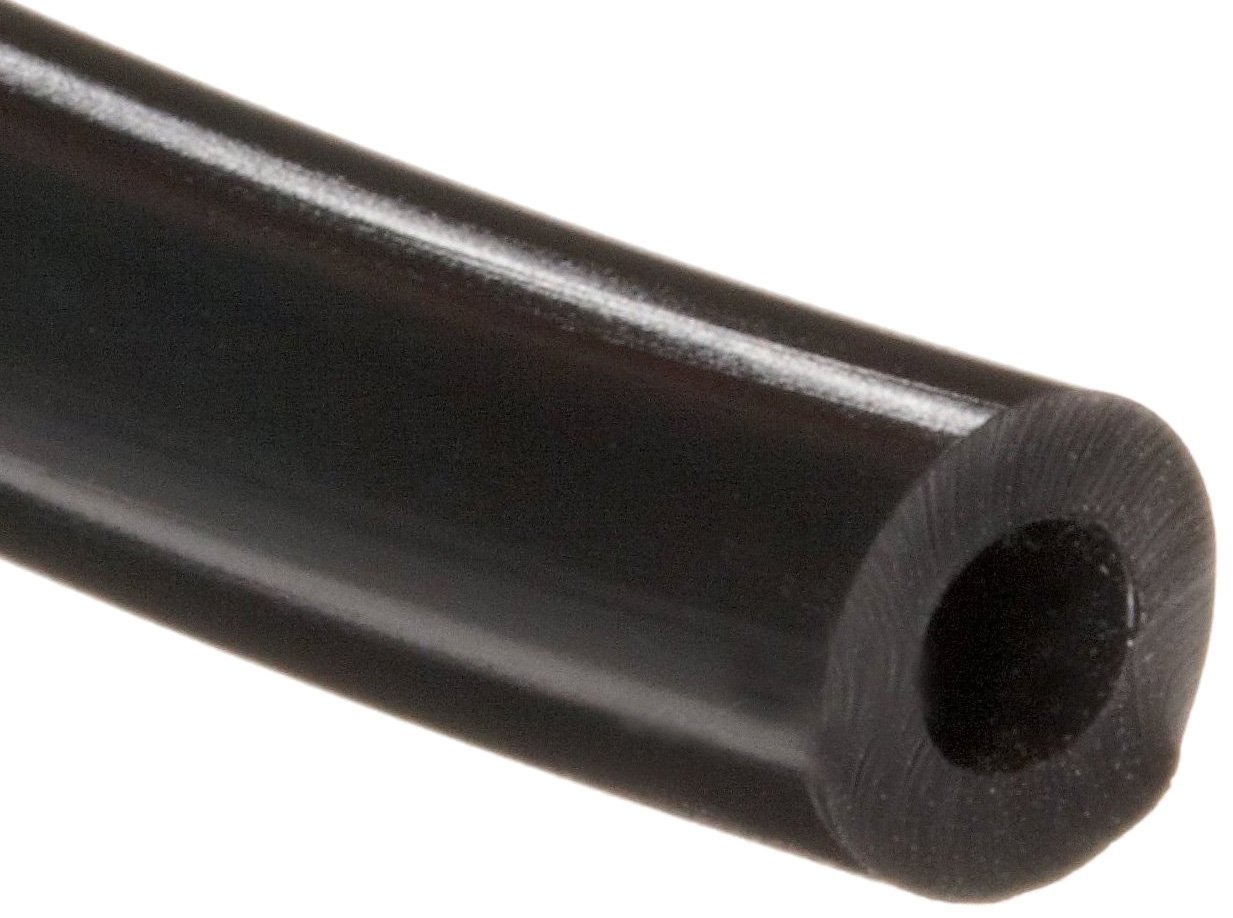

SMC TIUB Series Black Polyurethane Tubing, 1/4" OD, 5/32" ID, 66' Length

Be the first to review this item


Product Specifications
Part Number
Inside Diameter
5/32  inches
Outside Diameter
1/4  inches
Wall Thickness
3/64  inches
66  feet
LowerTemperature Range
-20  Degrees Celsius
Upper Temperature Range
60  Degrees Celsius
Pkg Qty
Size Name
1/4" x 5/32"
Specification for this product family (See all  products)
Manufacturer Series Number
95 A
Material Type
Color Name
Max Pressure
115  PSI
Structure Description
Brand Name
System of Measurement

In Stock (7)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 22? Order in-stock items in the next 8 hrs 17 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Black polyurethane tubing
  • Applicable for one-touch, insert, self-align and miniature fittings
  • Operating temperature -20 to +60 degree C and for water 0 to 40 degree C
  • Measures 1/4" OD by 5/32" ID by 3/64" wall thick by 66' length
  • Maximum operating pressure 418psi at 20 degree C

Package Details

Shipping Weight: 1.15 pounds
Package Size: 12 x 12 x 2.3 inches

Product Description

TIUB Series of polyurethane tubing is manufactured from polyether resin, insuring the longest possible tube life due to its immunity to hydrolysis. 23mm Minimum bending radius. Black color. Air and water fluid. 66' Length.
