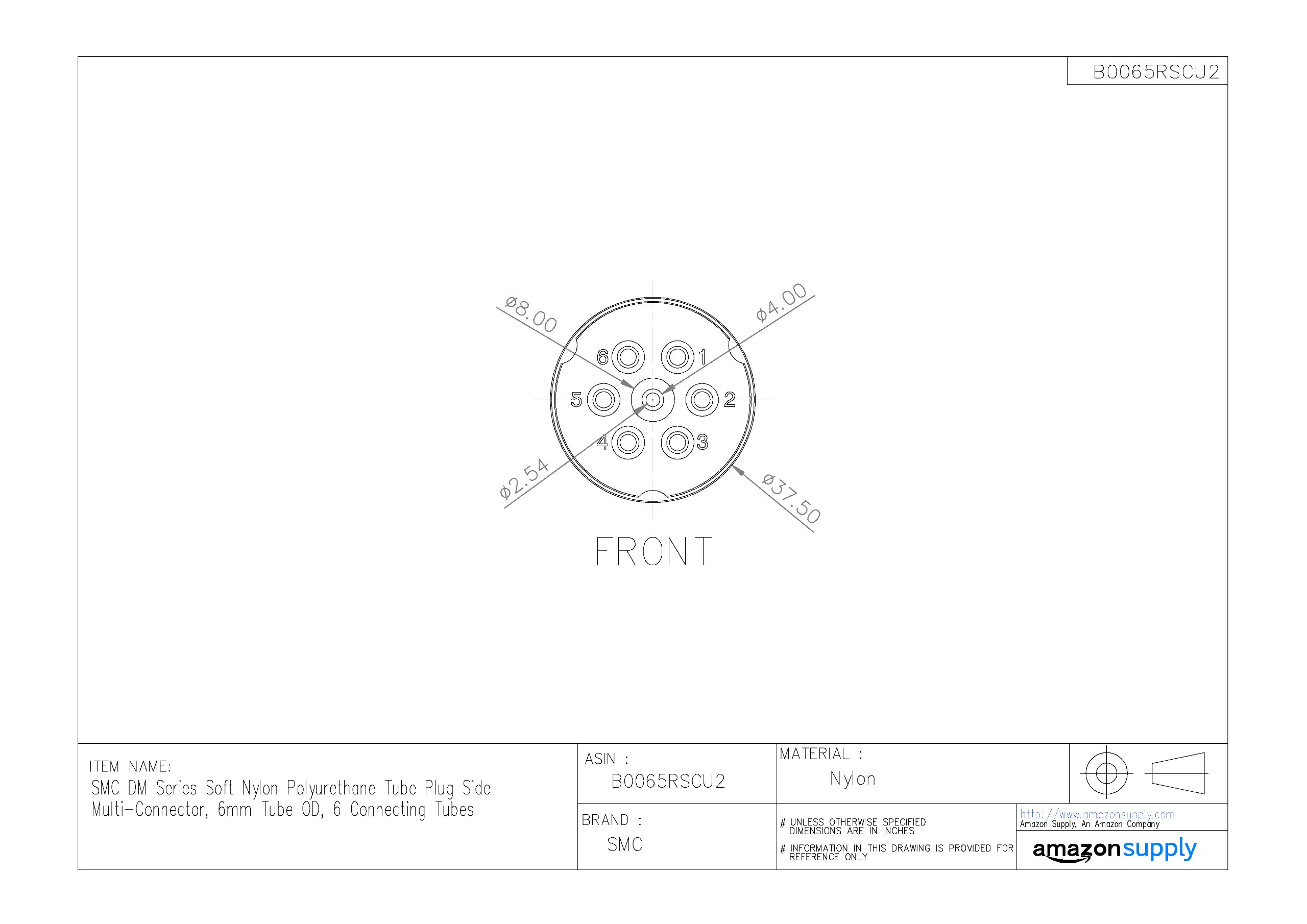

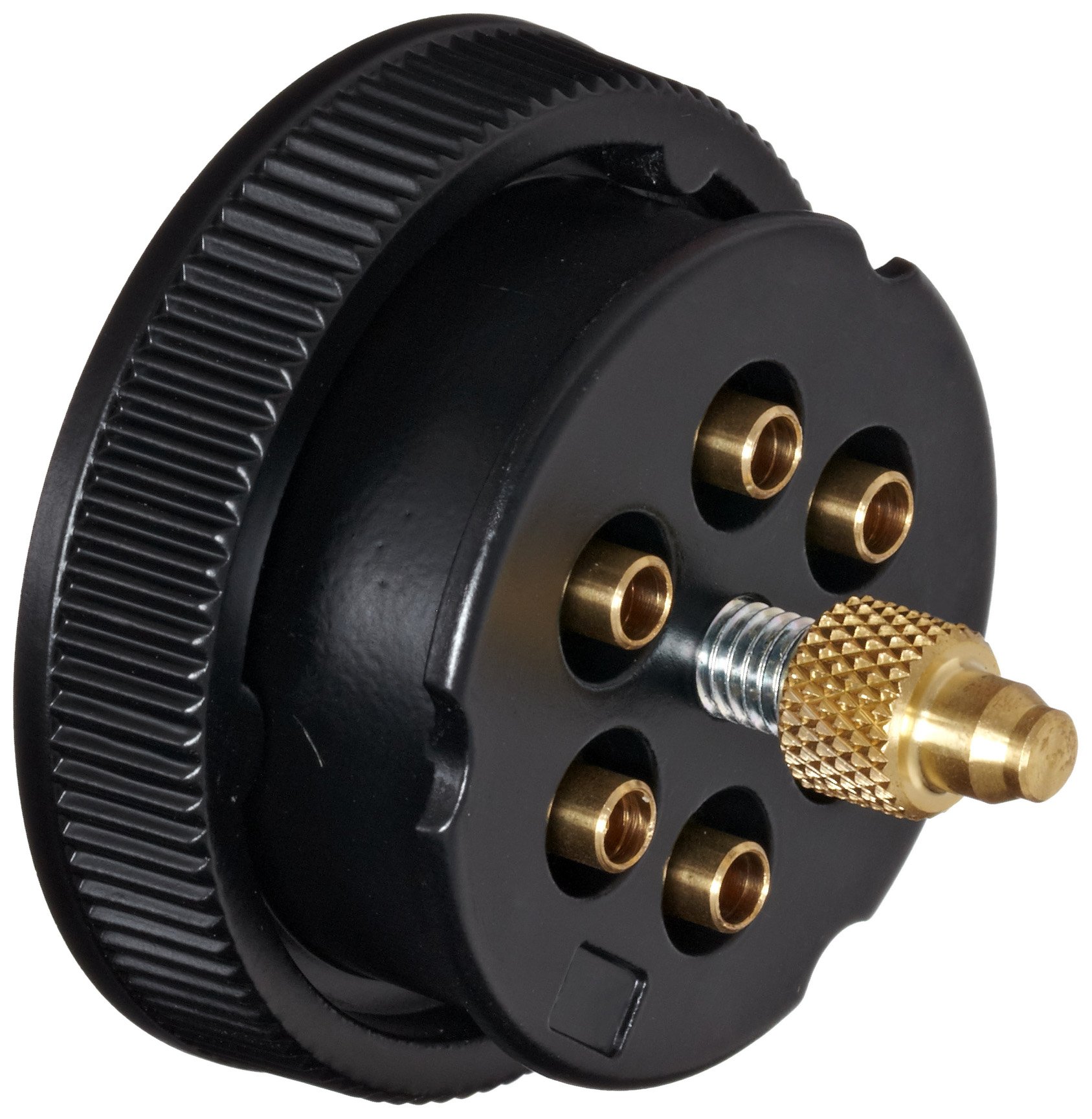

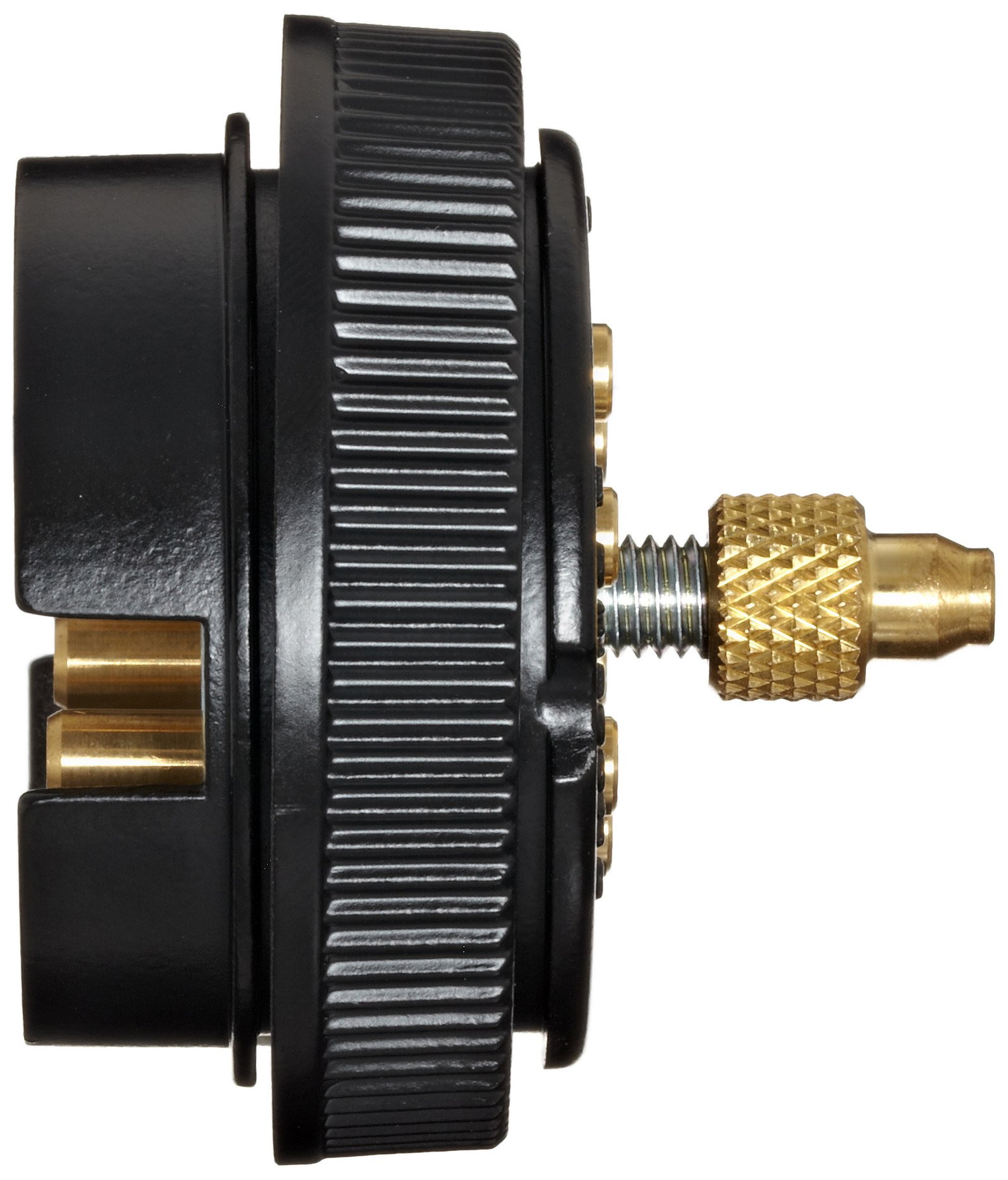

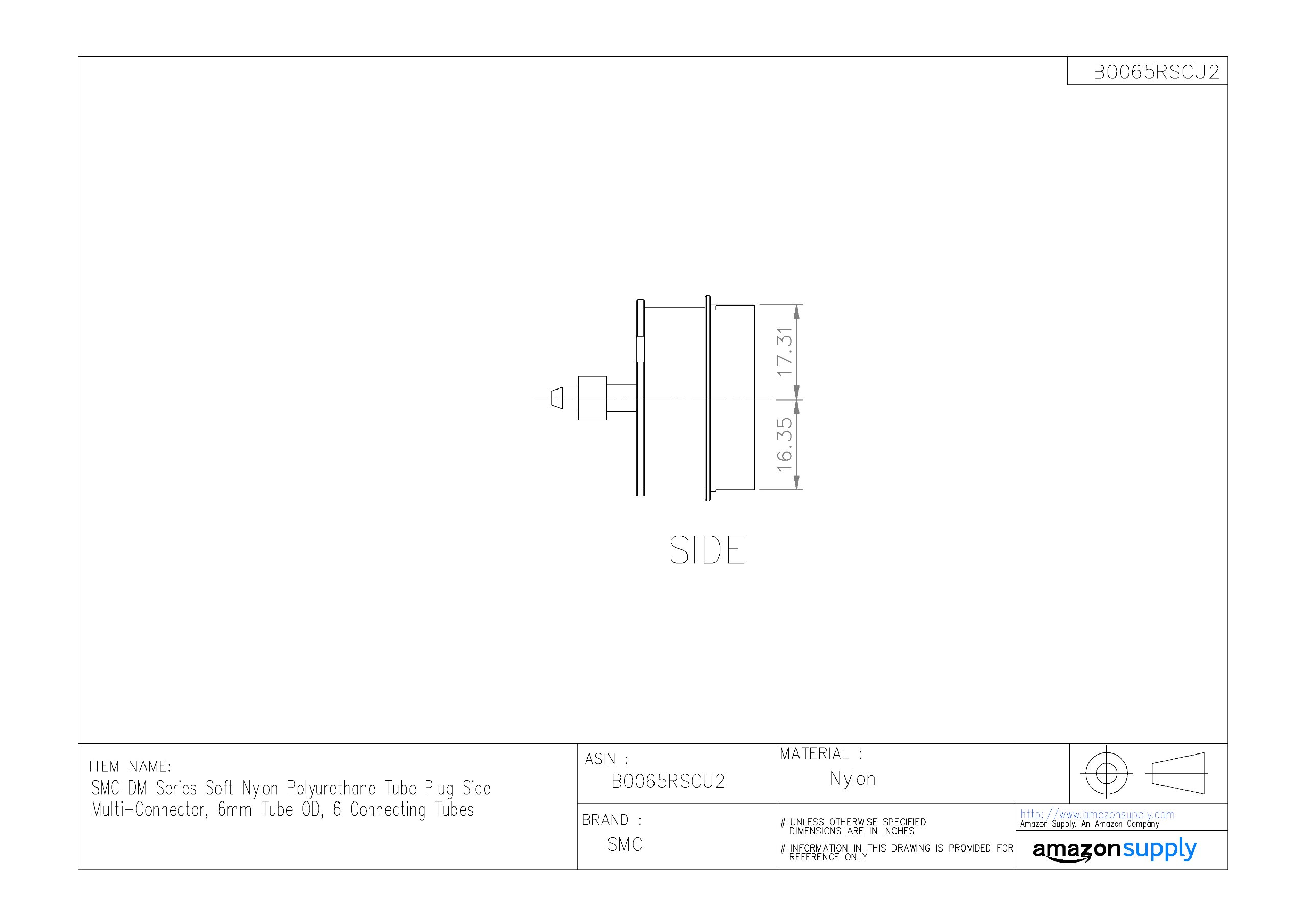

SMC DM Series Soft Nylon Polyurethane Tube Plug Side Multi-Connector, 6mm Tube OD, 6 Connecting Tubes
Be the first to review this item
ASIN B0065RSCU2
Specifications for this item
- Brand Name
- SMC
- Item Shape
- Plug
- LowerTemperature Range
- -5 Degrees Celsius
- Material Type
- Nylon
- Maximum Pressure
- 145 PSI
- Part Number
- DM6P-06NU
- Pkg Qty
- 1
- Tube Size
- 6mm
- Upper Temperature Range
- 60 Degrees Celsius
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Wednesday, May 22? Order in-stock items in the next 10 hours 6 minutes and choose One-Day Shipping at checkout.
Key Features
- One-touch installation and removal
- Reduced installation time
- Reliable tube retaining force
- 6mm Tube OD
- 6 Connecting tube
Package Details
Shipping Weight:
0.15 pounds
Package Size:
2.9 x 2.5 x 2.2 inches
Product Description
The use of the DM series, multi-connector, enables panel mount connections with other apparatus and can provide the reliability of one-touch installation and removal of multi-tubes (nylon, polyurethane). As a result, separate transportation of panel and machinery equipment and backup unit exchange is made possible. Air fluid.
