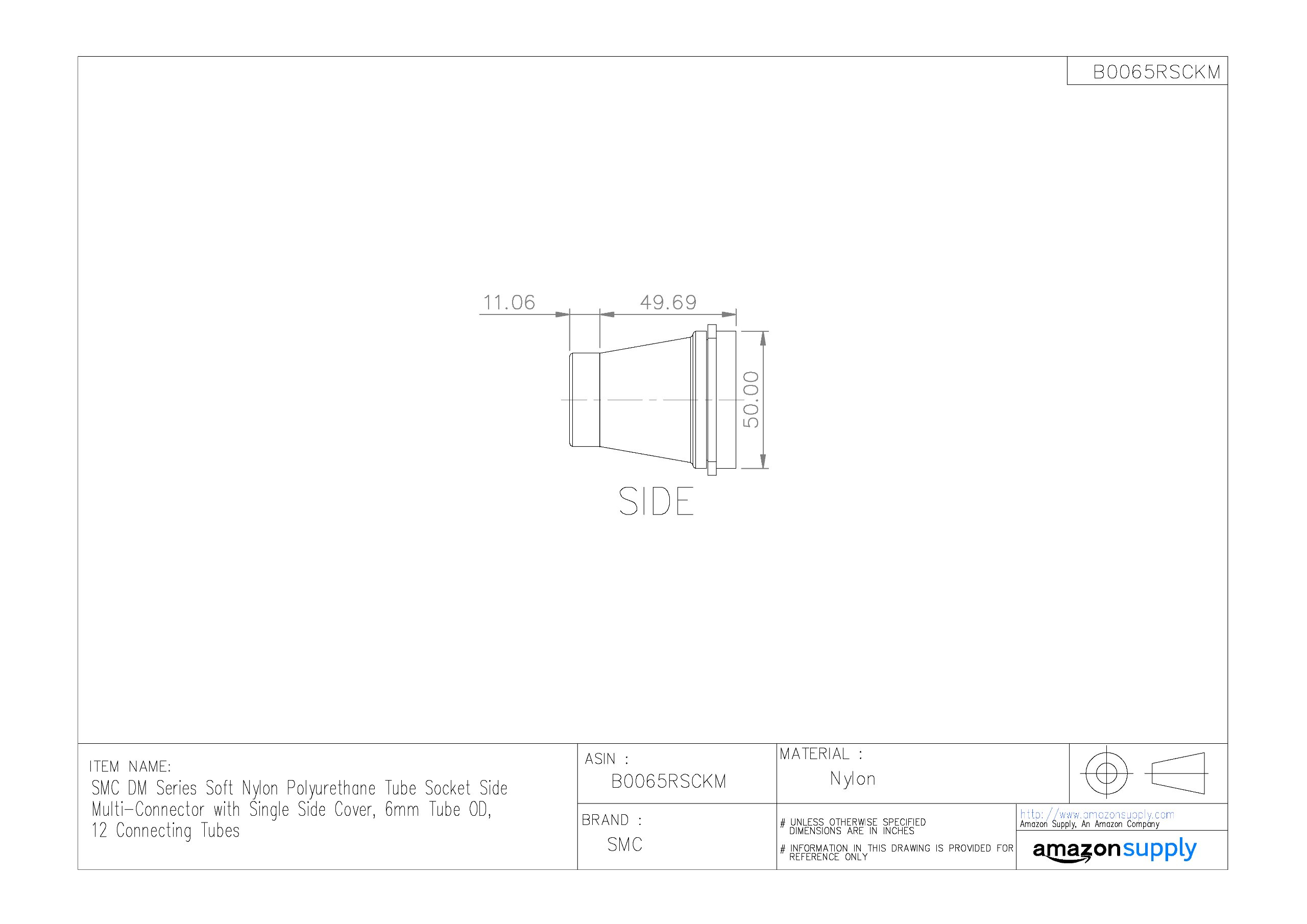

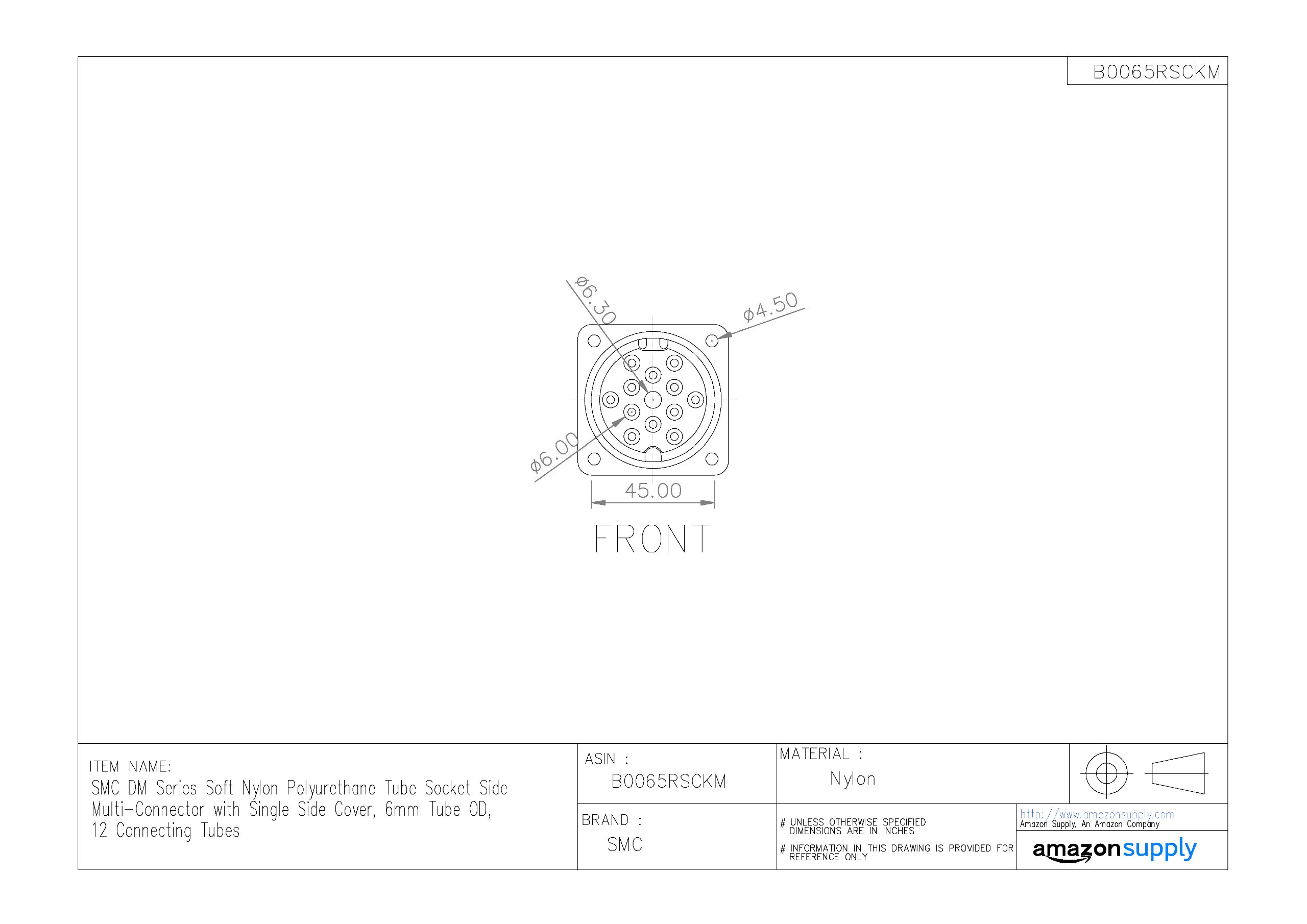

SMC DM12S-06NU-C1 Socket-Side-Only of Multi-Connector for Soft Nylon and Polyurethane Tubing, 6mm Tube OD, 12 Connecting Tubes, Single Cover

Be the first to review this item


Specifications for this item
Number of Items
Material Type
Part Number
Brand Name
SMC Corporation
Size Name
Upper Temperature Range
60  Degrees Celsius
Maximum Pressure
145  PSI
LowerTemperature Range
-5  Degrees Celsius

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 28? Order in-stock items in the next 2 days 7 hrs 40 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Socket side only of a plug and socket-type connector for securely joining tubes through a panel
  • For use in joining up to 12 soft nylon or polyurethane tubes, 6 mm OD
  • Keyed, single-action connection and disconnection of tubes for reduced installation time
  • Operating temperature range of -5 to +60 degrees C
  • Maximum operating pressure of 145 psi

Package Details

Shipping Weight: 0.05 pounds
Package Size: 3.1 x 3 x 3 inches

Product Description

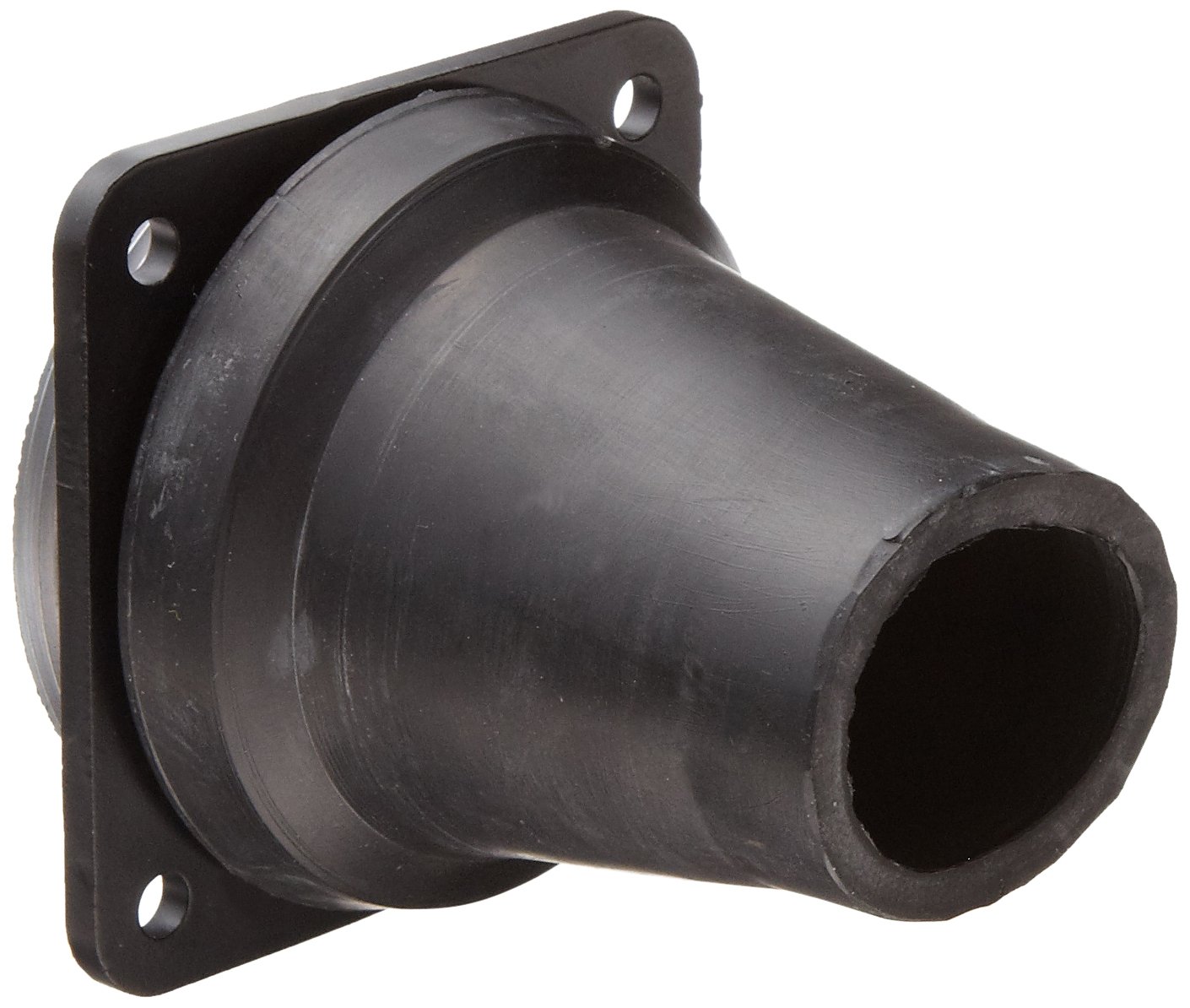

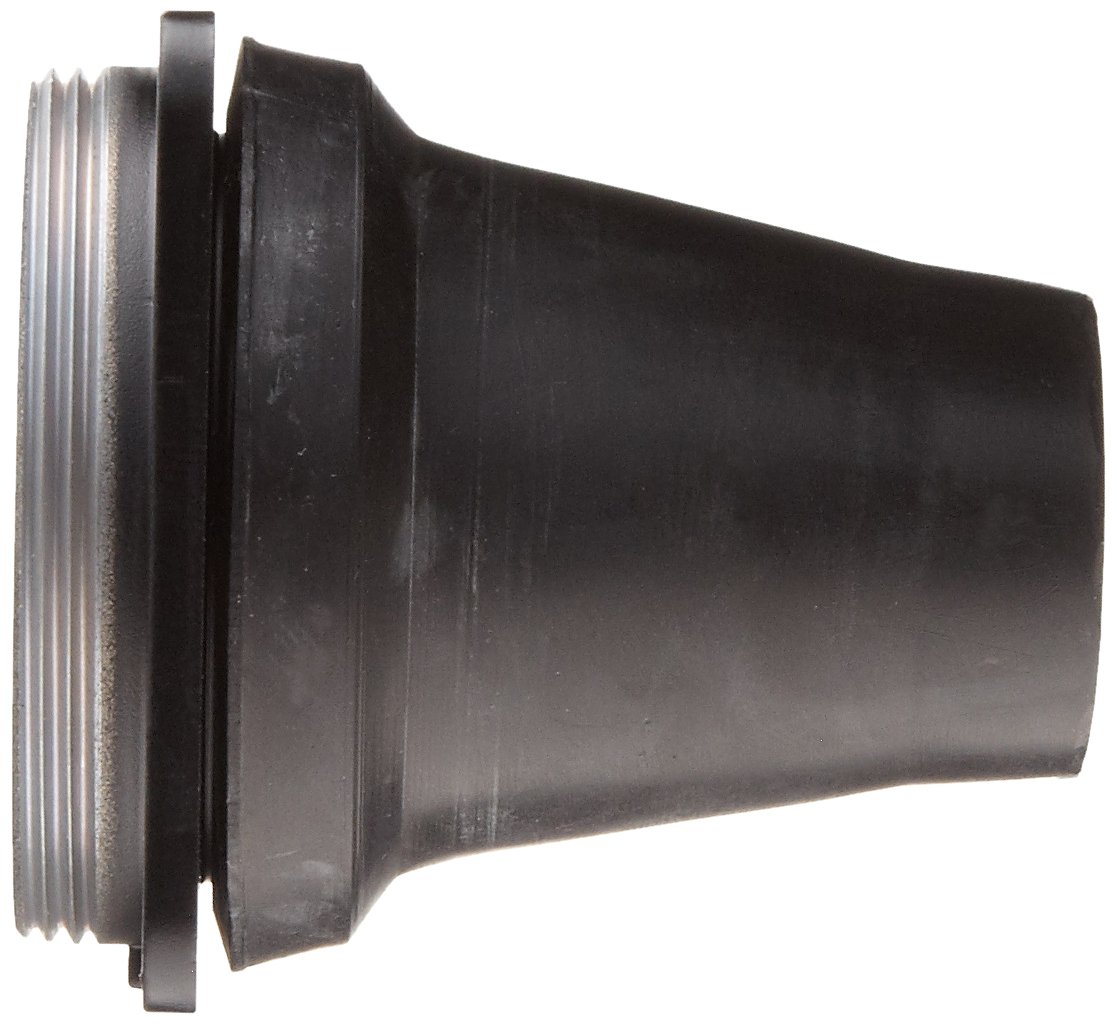

This SMC DM12S-06NU-C1 socket side of a multi-connector is one half of a plug and socket-type connector for securely joining up to 12 tubes through a panel. It is intended for use with 6 mm outside diameter (OD) soft nylon or polyurethane tubing. The plug and socket halves of the connector are keyed for alignment and allow connection and disconnection of the tubes in a single action for reduced installation time. The halves are held securely together by a clamping ring and knurled nut, and a rubber cover protects the tube connections from dirt. The aluminum-alloy case and plated metal parts resist corrosion, and the connector has a maximum operating pressure of 145 pounds per square inch (psi) and an operating temperature range of -5 to +60 degrees C. This multi-connector socket is suitable for use in joining tubes through a panel for quick disconnection, such as with pneumatic test equipment and a test panel.

Tube fittings are components used for connecting, branching, terminating, and changing the direction of tubing in pneumatic and hydraulic systems. They are made of brass, stainless steel, polybutylene terephthalate (PBT), and other materials that resist corrosion and wear. Tube fittings have various types of connections, including threaded, welded, barbed, and push-to-connect (also called one-touch). Push-to-connect connections do not require tools or sealants. Tube fittings are used in various applications, including machine tools, airplane and truck controls, and automated production lines, among others.

SMC Corporation manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) standards 9000:2000 and 9001:2008.

What's in the Box?

  • DM12S-06NU-C1 Multi-connector socket
  • Cover
