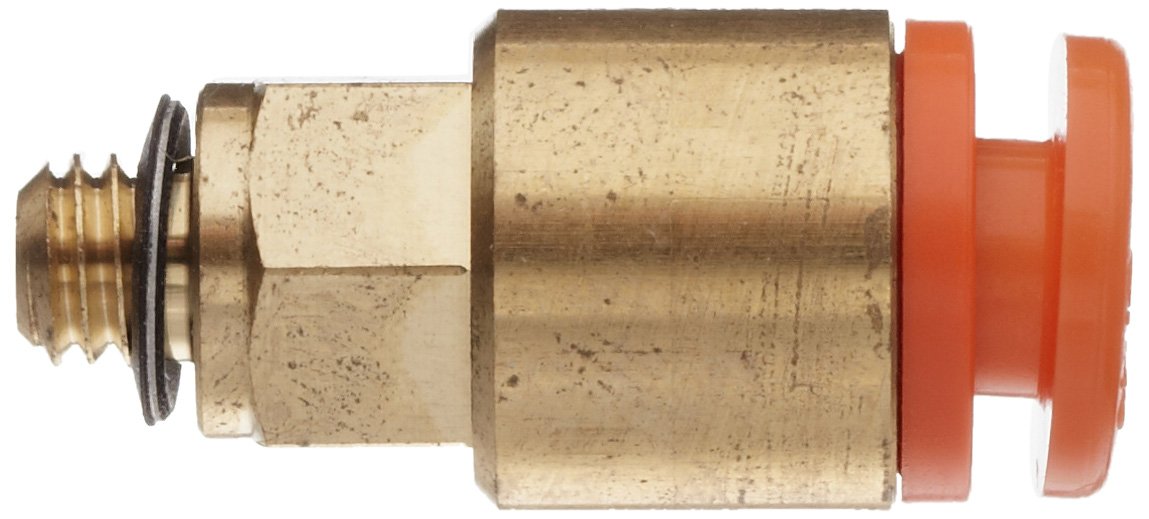

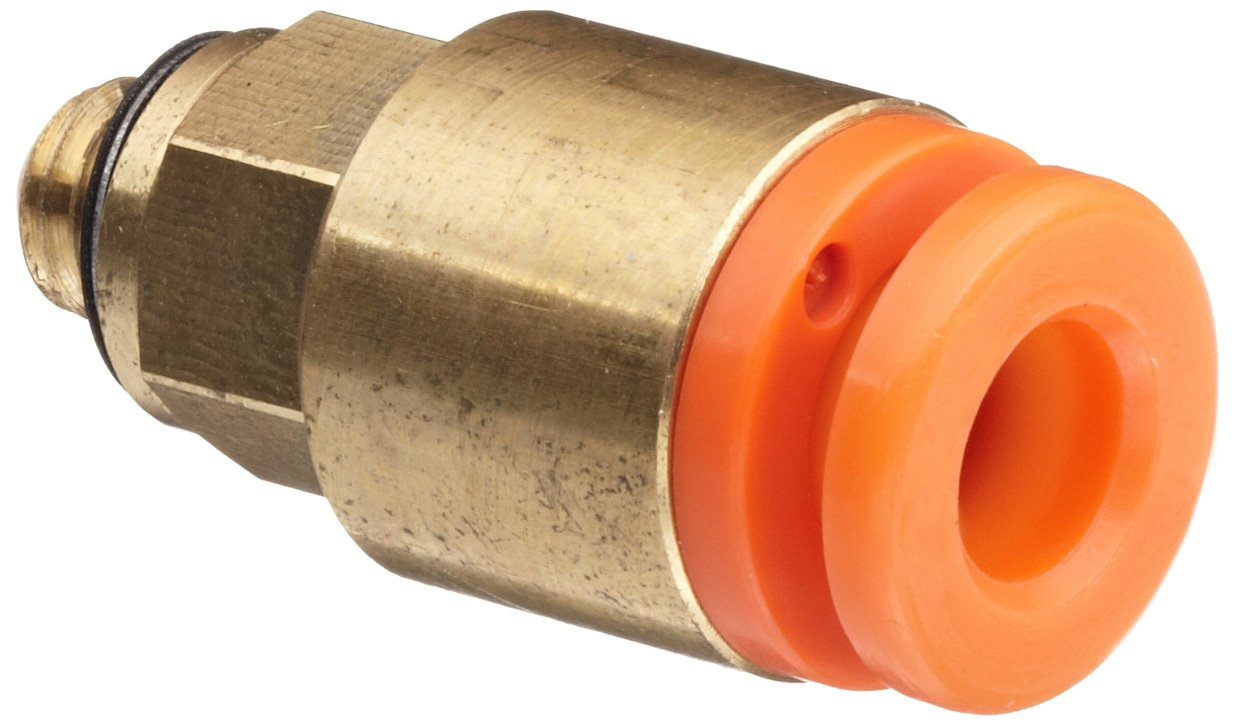

Click for larger image and other views Image is representative of the product family.

How can we improve our images or Product Specifications?

SMC KQ2H05-32A Brass Push-to-Connect Tube Fitting, Adapter, 3/16" Tube OD x 10-32 UNF Male

Be the first to review this item

ASIN B0065RNUPY

Product Specifications
Part Number
KQ2H05-32A
Number of Items
1
Size Name
3/16" Tube OD x 10-32 UNF Male
Specification for this product family (See all  products)
Item Shape
Adapter
Material Type
Brass
Brand Name
SMC Corporation
Manufacturer Series Number
KQ2H
Upper Temperature Range
140  Degrees Fahrenheit
Maximum Pressure
145  PSI
Connector Type
Tube OD x UNF Male
UNSPSC Code
40183100
Style Name
Push-to-connect
LowerTemperature Range
23  Degrees Fahrenheit
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Oct 2? Order in-stock items in the next 4 hrs 47 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Male adapter to connect a tube to a female thread
  • Push-to-connect inch tube connection on one end and male UNF threads with a gasket seal on the other end
  • Brass body and threads for resistance to corrosion
  • Operating pressure range of -14.5 to 145 psi (-100 kPa to 1 MPa)
  • Operating temperature ranges of 23 to 140 degrees F (-5 to 60 degrees C) (ambient) and 32 to 104 degrees F (0 to 40 degrees C) (fluid)

Package Details

Shipping Weight: 0.02 pounds
Package Size: 2.6 x 1 x 0.5 inches

Product Description

This SMC KQ2H male adapter (also called connector) is a brass tube fitting for connecting a tube to a female thread. It has a push-to-connect inch tube connection on one end and male Unified Fine (UNF) threads with a gasket seal on the other end. The body and threads are made of Japanese Industrial Standard (JIS) C3604 brass for corrosion resistance, and the tube seal is made of nitrile butadiene rubber (NBR) for resistance to oils and extreme temperatures. The fitting is sealed with an NBR laminated stainless steel 304 gasket. A chuck and collet provide secure retention of tubing, and the release button allows tubing to be removed with little force. The fitting can be used with nylon, soft nylon, polyurethane, fluorinated ethylene propylene (FEP), and perfluoroalkoxy (PFA) tubing. It has an operating pressure range of -14.5 to 145 pounds per square inch (psi) (-100 kPa to 1 MPa), an ambient temperature range of 23 to 140 degrees F (-5 to 60 degrees C), and a fluid temperature range of 32 to 104 degrees F (0 to 40 degrees C). This brass tube fitting is Restriction of Hazardous Substances (RoHS) compliant, and can be used in a broad range of fluid power applications, including temperature control, compressed air equipment, medical instrumentation, and motor vehicle controls, among others.

Specifications

Connection thread Male UNF
Thread material JIS C3604 brass
Thread sealing method Gasket
Compatible tubing materials Nylon, soft nylon, polyurethane, FEP, PFA
Fluid Air or water
Operating pressure range 14.5 to 145 psi (-100 kPa to 1 MPa)
Operating temperature range (ambient) 23 to 140 degrees F (-5 to 60 degrees C)
Operating temperature range (fluid)) 32 to 104 degrees F (0 to 40 degrees C)

Tube fittings are components used for connecting, branching, terminating, and changing the direction of tubing in pneumatic and hydraulic systems. They are made of brass, stainless steel, polybutylene terephthalate (PBT), and other materials that resist corrosion and wear. Tube fittings have various types of connections, including threaded, welded, barbed, and push-to-connect (also called one-touch). Push-to-connect connections do not require tools or sealants. Tube fittings are used in various applications, including machine tools, airplane and truck controls, and automated production lines, among others.

SMC Corporation manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) standard 9001:2008.

What’s in the Box?
  • SMC KQ2H male adapter
  • Gasket
