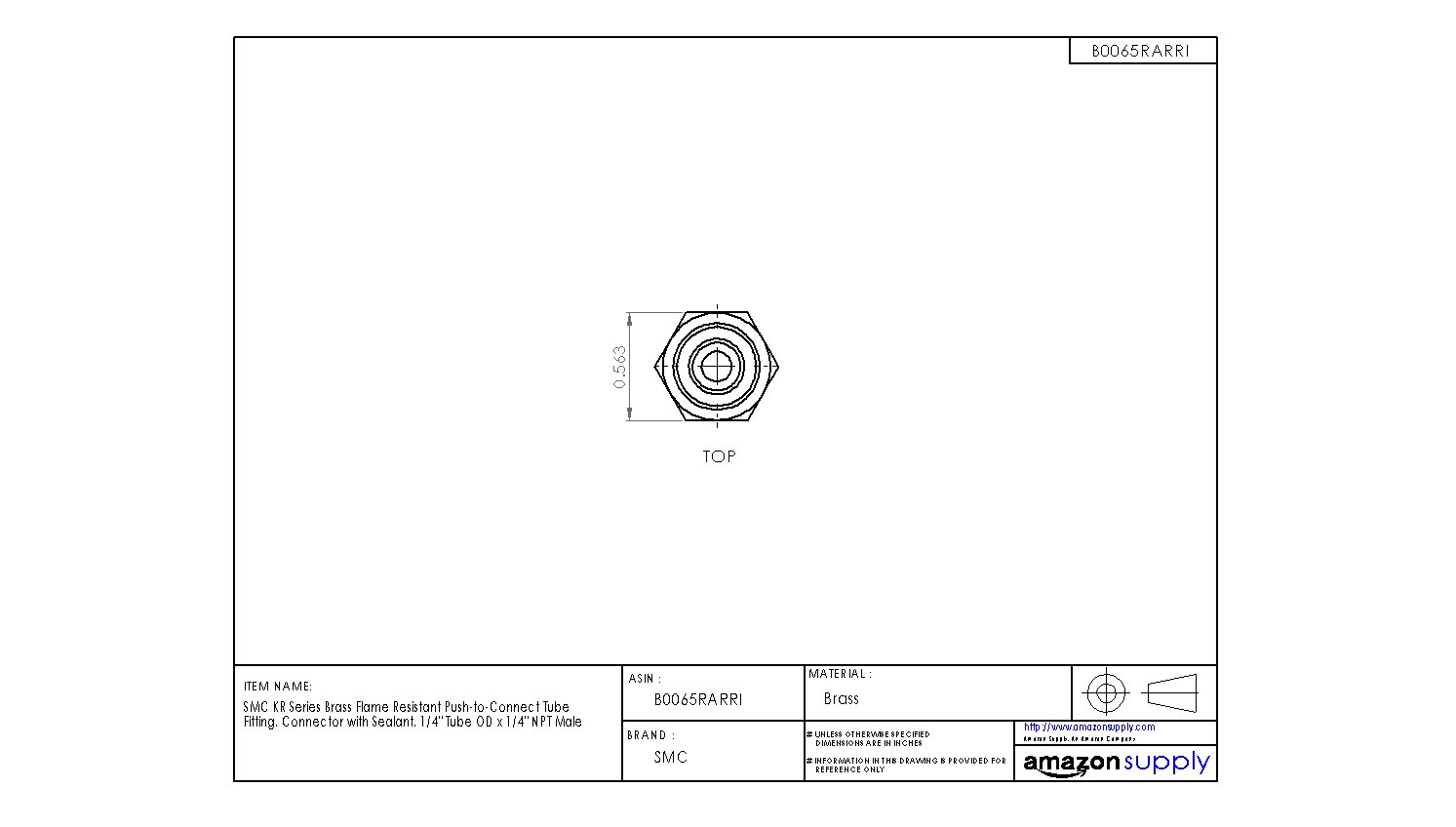

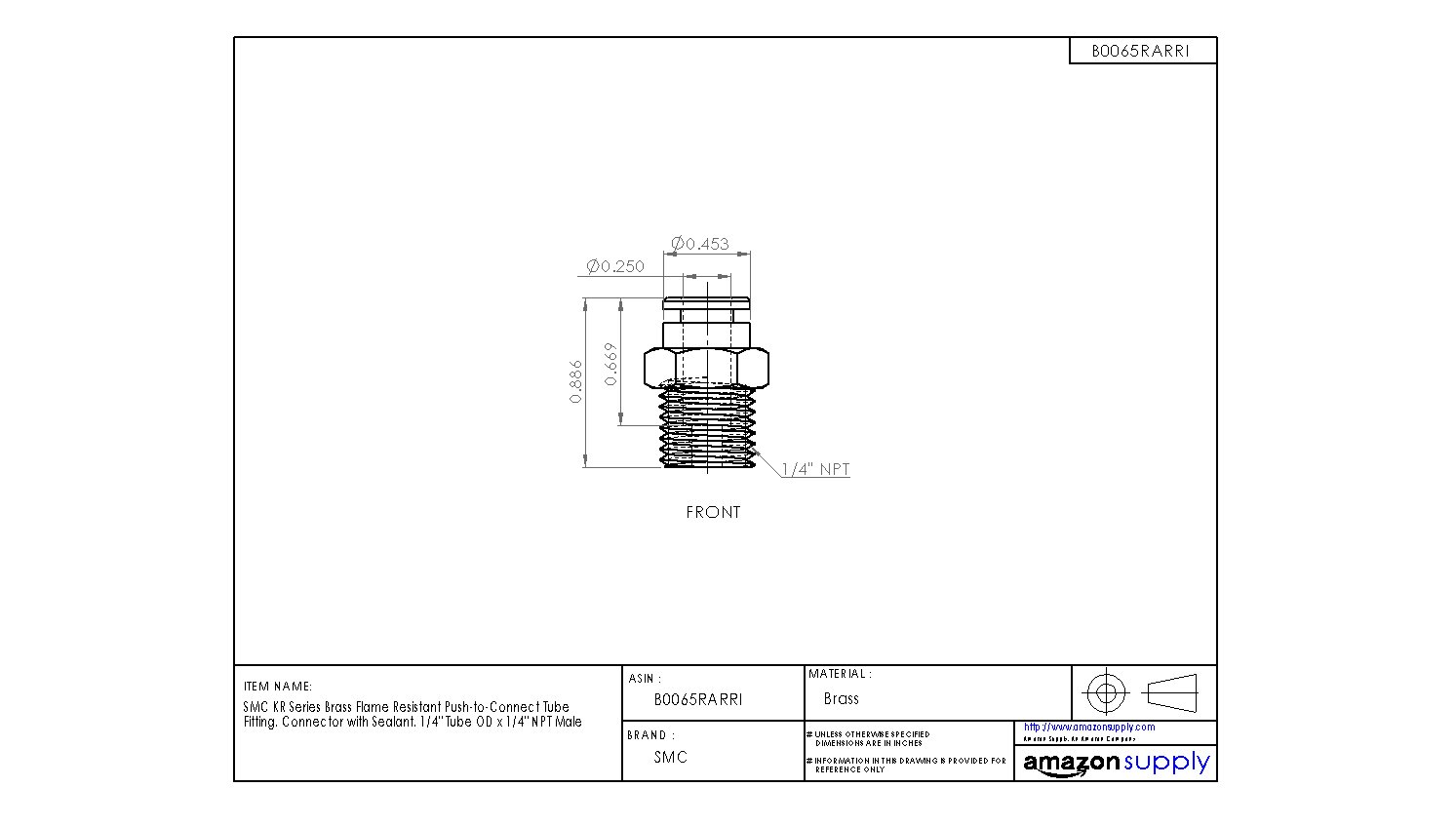

2D CAD Diagrams (Which File Type?)

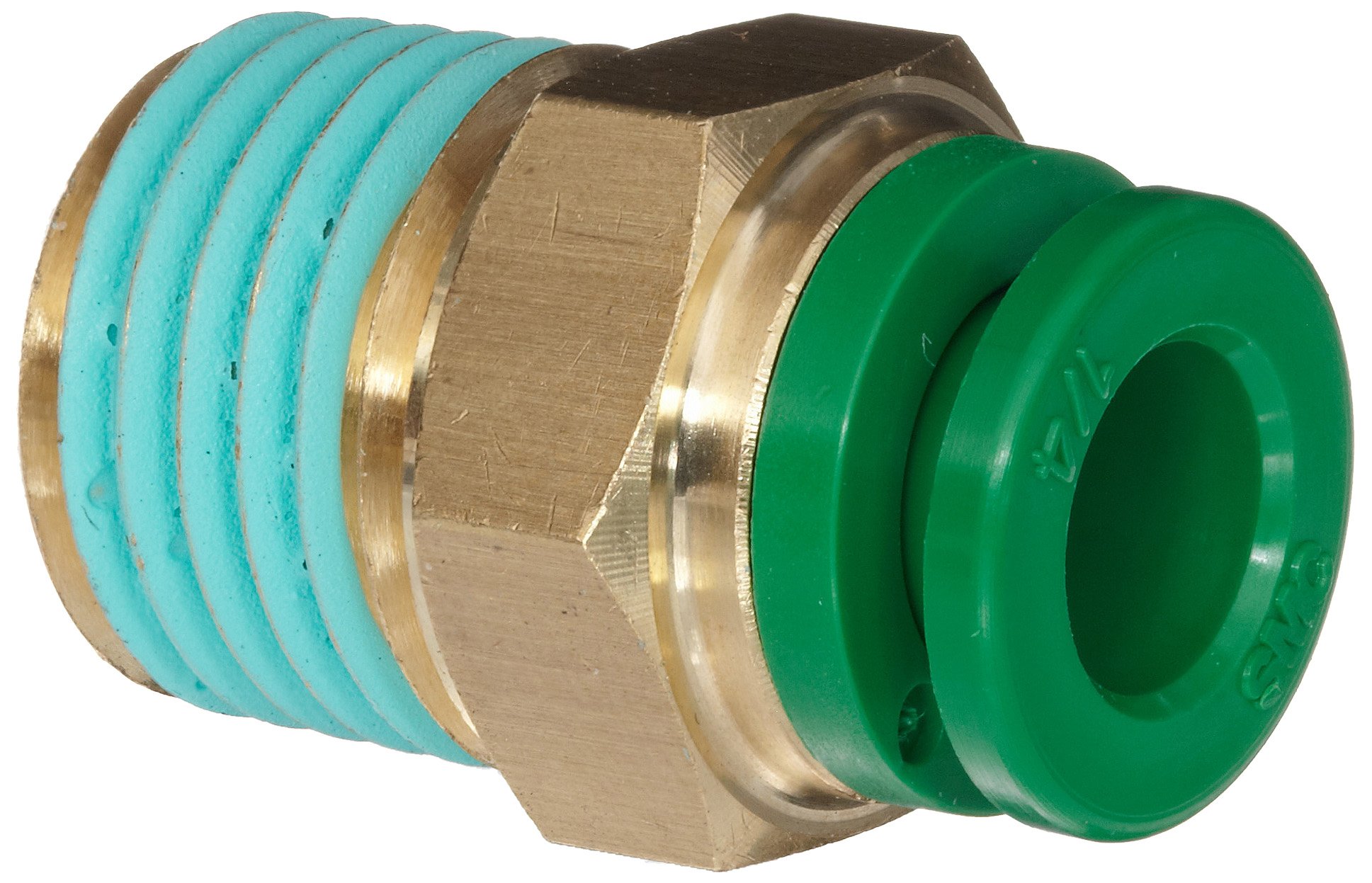

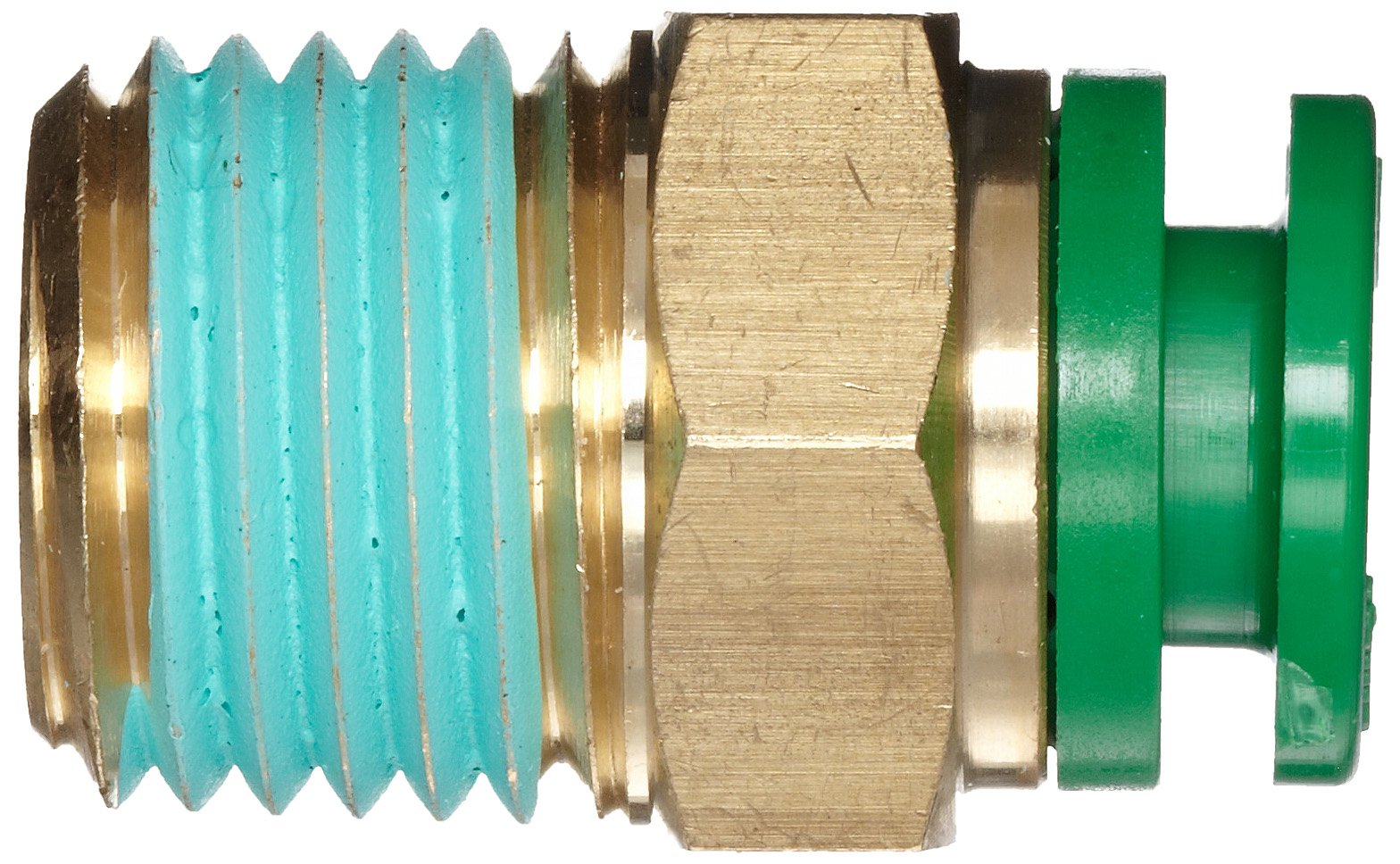

SMC KR Series Brass Flame Resistant Push-to-Connect Tube Fitting, Connector with Sealant, 1/4" Tube OD x 1/4" NPT Male

Be the first to review this item

ASIN B0065RARRI

Specifications for this item
Number of Items
1
Item Shape
Connector
Material Type
Brass
Part Number
KRH07-35S
Brand Name
SMC Corporation
Size Name
1/4" x 1/4" NPT Male
Manufacturer Series Number
KRH
Upper Temperature Range
60  Degrees Celsius
Maximum Pressure
145  PSI
Connector Type
Tube OD x NPT Male
UNSPSC Code
40183100
Style Name
push-to-connect
System of Measurement
Inch
LowerTemperature Range
-5  Degrees Celsius

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 22 hrs 42 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Joins 1/4" NPT male thread to 1/4" OD soft nylon tubing
  • Push-to-connect mechanism provides reliable retaining force on tube
  • C3604 brass, stainless steel, PBT, and POM for flame-resistance to UL 94 V-0 standard
  • For use with low vacuum and pressure up to 145 psi
  • Operating temperature range of -5 to +60 degrees C

Package Details

Shipping Weight: 0.05 pounds
Package Size: 1 x 1 x 0.2 inches

Product Description

This SMC KRH07-35S flame-resistant tube fitting adapts 1/4" NPT male thread to a push-to-connect fitting for 1/4" OD tubing. Its National Pipe Taper (NPT) thread has a sealant applied to ensure an air- and water-tight seal, and a collet and chuck mechanism securely holds the tubing. The fitting consists of parts made of C3604 brass, stainless steel, polybutylene terephthalate (PBT), and polyacetal (POM), and is flame-resistant to Underwriters Laboratories (UL) 94 V-0 standard. It is suitable for use with soft nylon tubing at a maximum operating pressure of 145 pounds per square inch (psi) and an operating temperature range of -5 to +60 degrees C. This KR series push-to-connect tube fitting resists damage from weld splatter and is suitable for use with air and water in low-vacuum and in pressure applications, such as in metal fabrication.

Tube fittings are components used for connecting, branching, terminating, and changing the direction of tubing in pneumatic and hydraulic systems. They are made of brass, stainless steel, polybutylene terephthalate (PBT), and other materials that resist corrosion and wear. Tube fittings have various types of connections, including threaded, welded, barbed, and push-to-connect (also called one-touch). Push-to-connect connections do not require tools or sealants. Tube fittings are used in various applications, including machine tools, airplane and truck controls, and automated production lines, among others.

SMC Corporation manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) standards 9000:2000 and 9001:2008.
