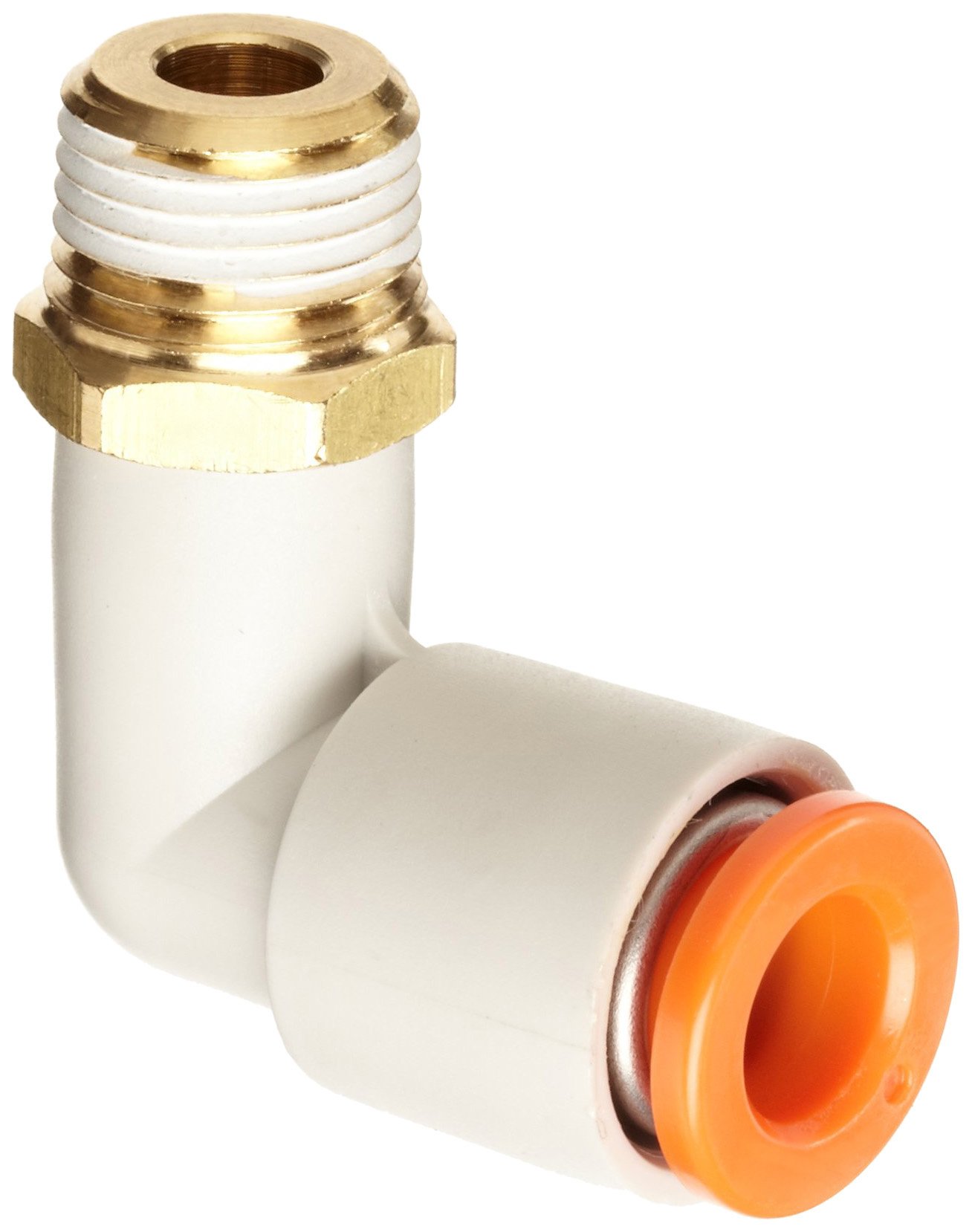

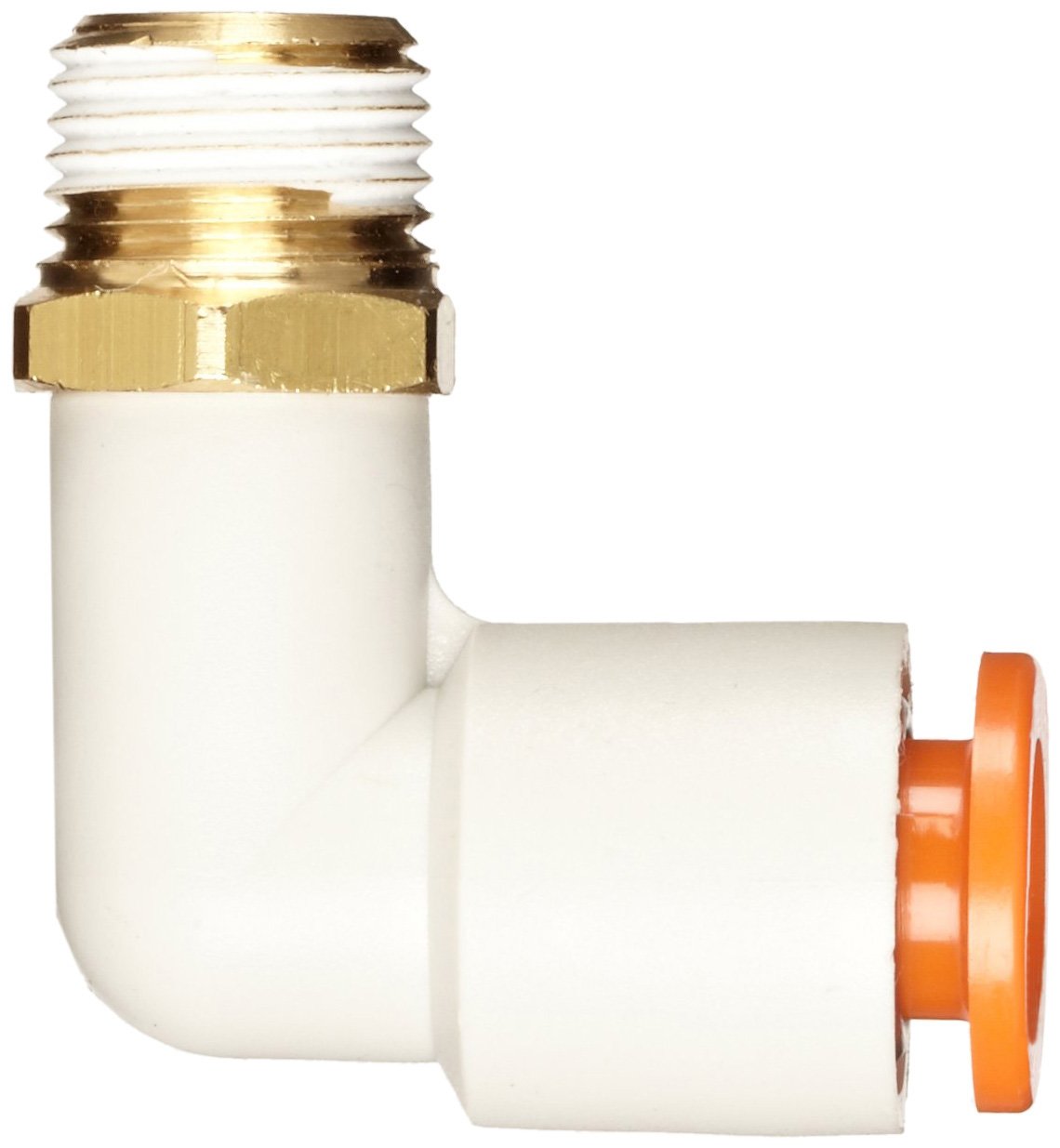

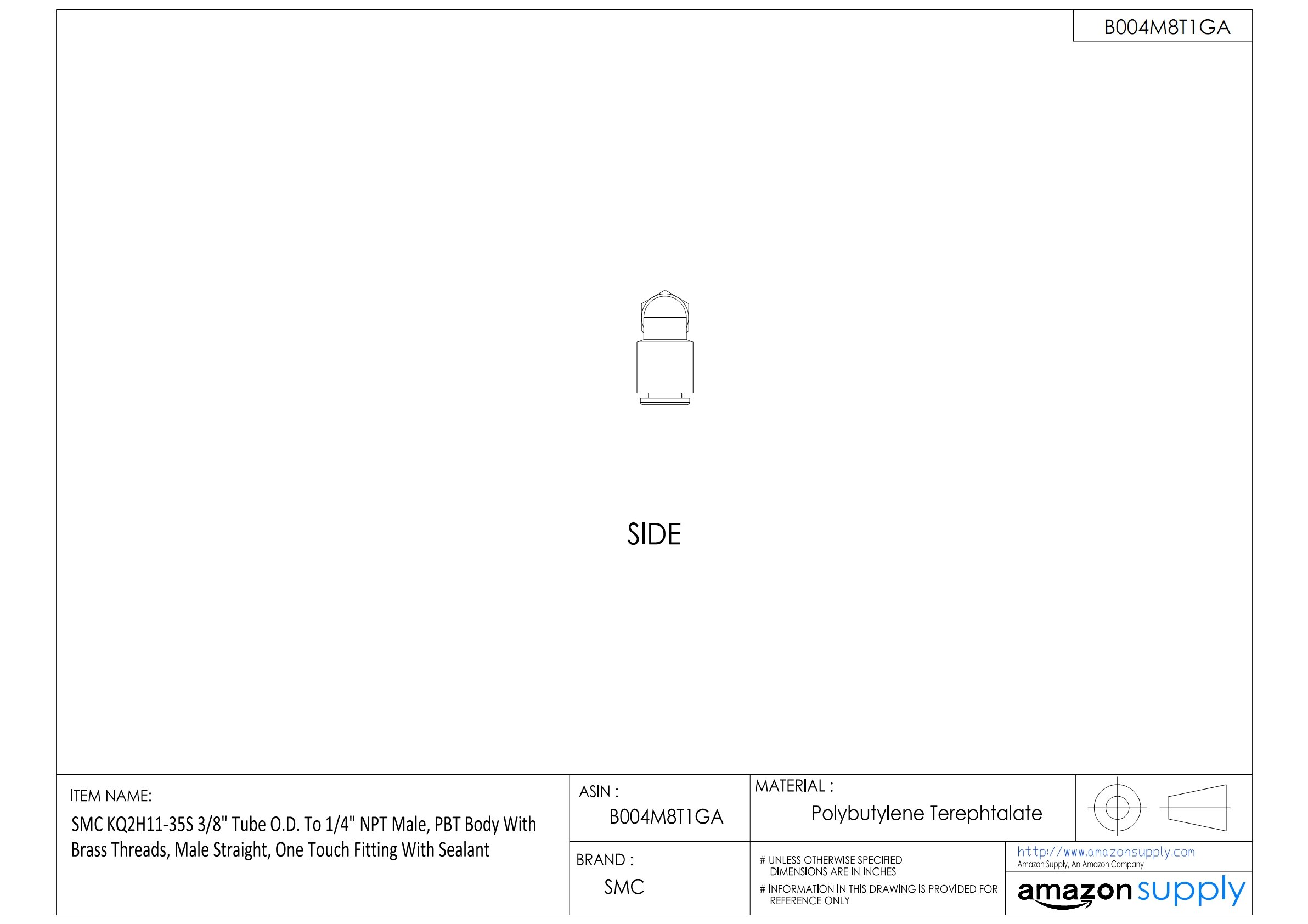

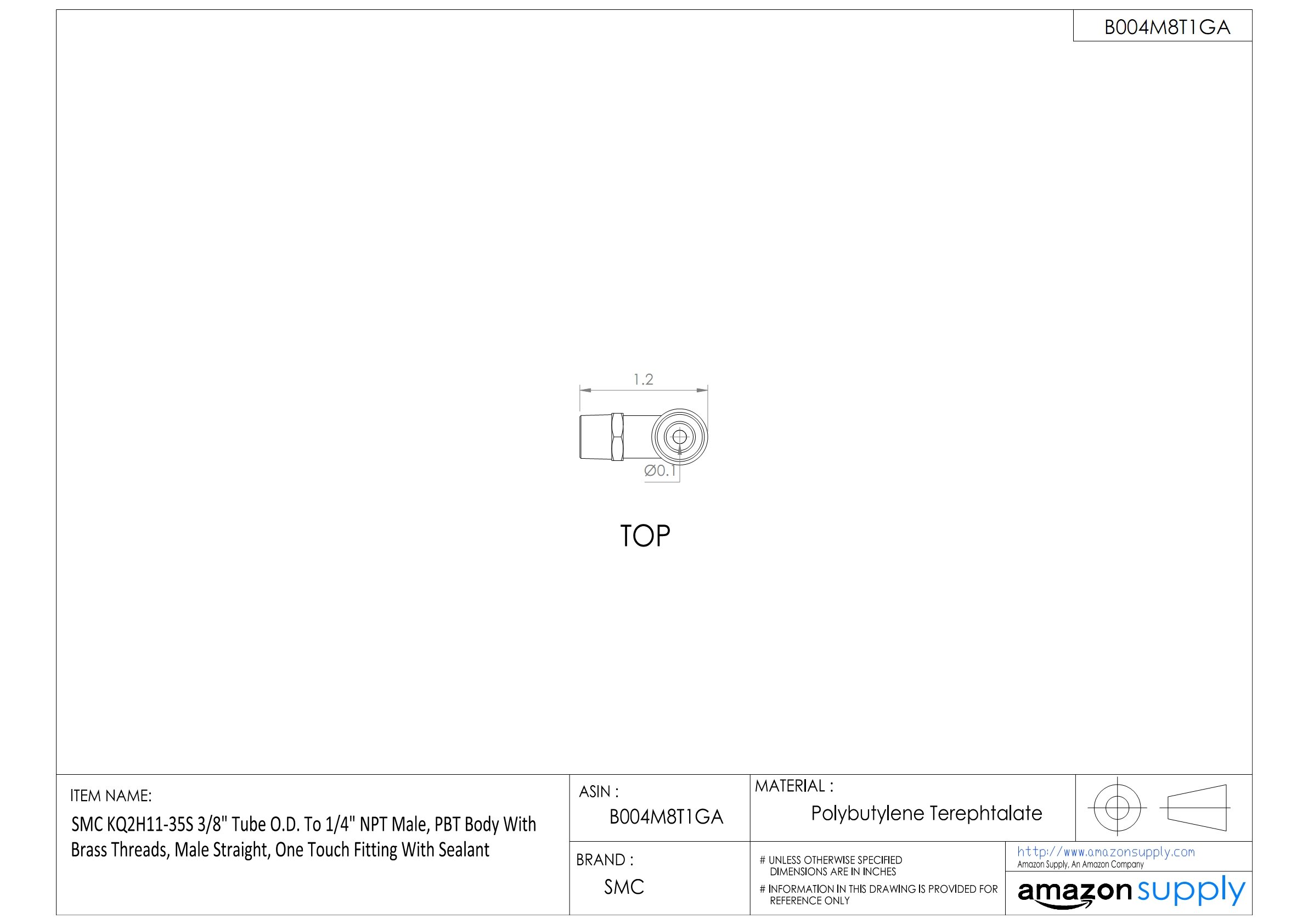

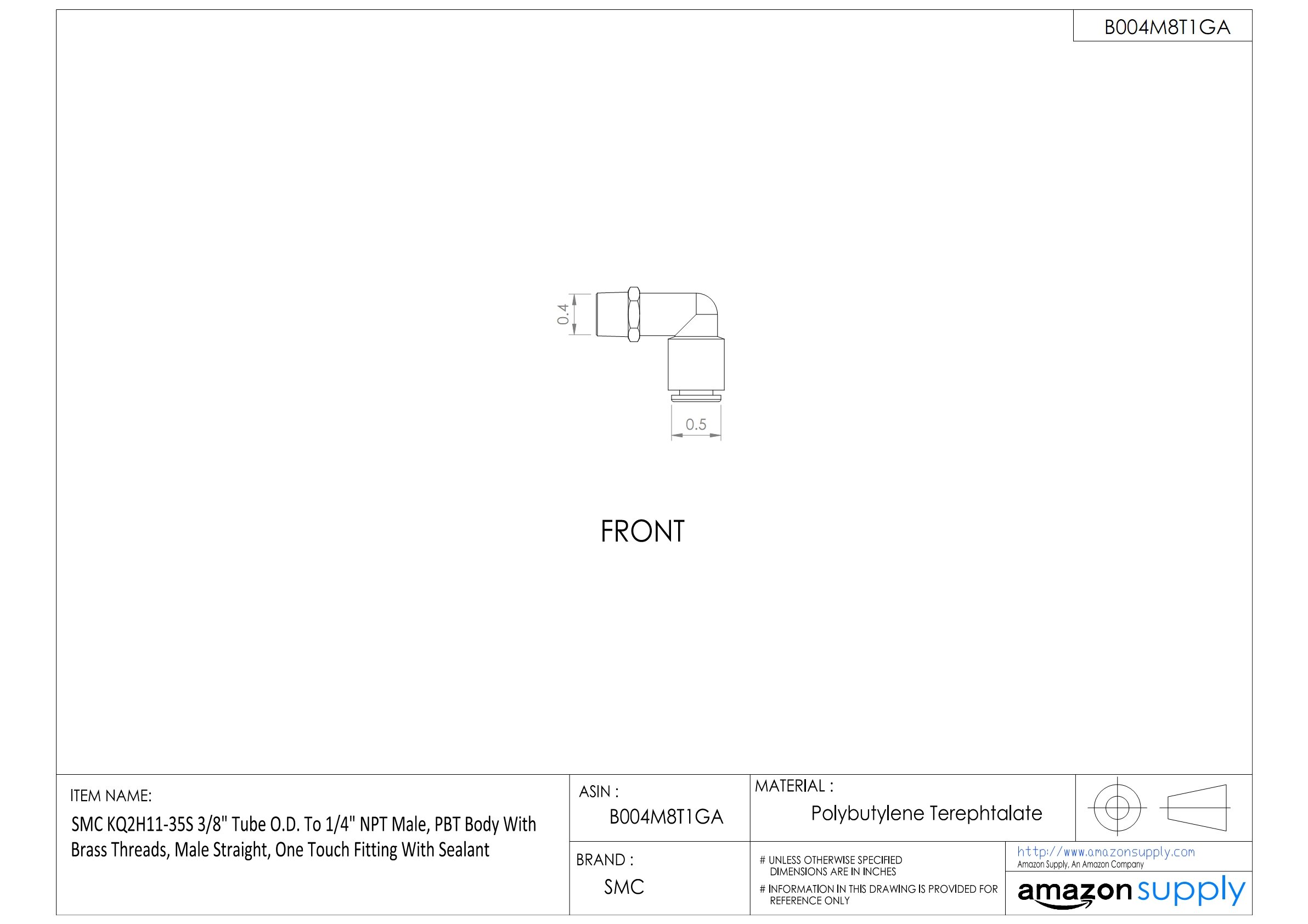

SMC KQ2L07-34AS PBT & Brass Push-to-Connect Tube Fitting with Sealant, 90 Degree Elbow, 1/4" Tube OD x 1/8" NPT Male

Be the first to review this item

ASIN B004M8T1GA

Product Specifications
Part Number
KQ2L07-34AS
Pkg Qty
1
Material Type
Brass , PBT (Polybutylene Terephthalate)
Tube Size
1/4" Tube OD x 1/8" NPT Male
Maximum Pressure
145  PSI
LowerTemperature Range
23  Degrees Fahrenheit
Upper Temperature Range
140  Degrees Fahrenheit
Specification Met
ANSI , ASME B1.20.1-1983
Color Name
White
Item Shape
90 Degree Elbow
Manufacturer Series Number
KQ2L
Style Name
push-to-connect
Specification for this product family (See all  products)
UNSPSC Code
40183100
Brand Name
SMC Corporation

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Aug 25? Order in-stock items in the next 10 hrs 9 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 90-degree male elbow to connect a tube to a female thread at a 90-degree angle
  • Push-to-connect inch tube connection on one end and male NPT threads with sealant on the other end
  • PBT and brass body and brass threads for resistance to corrosion
  • Operating pressure range of -14.5 to 145 psi (-100 kPa to 1 MPa)
  • Operating temperature ranges of 23 to 140 degrees F (-5 to 60 degrees C) (ambient) and 32 to 104 degrees F (0 to 40 degrees C) (fluid)

Package Details

Shipping Weight: 0.02 pounds
Package Size: 3 x 2.9 x 0.4 inches

Product Description

This SMC KQ2L 90 degree elbow is a PBT and brass tube fitting for connecting a tube to a female thread at a 90-degree angle. It has a push-to-connect inch tube connection on one end and male National Pipe Thread Taper (NPT) threads with fluororesin sealant on the other end. The body is made of polybutylene terephthalate (PBT) and Japanese Industrial Standard (JIS) C3604 brass for corrosion resistance, the threads are made of C3604 brass, and the tube seal is made of nitrile butadiene rubber (NBR) for resistance to oils and extreme temperatures. An NBR O-ring allows the body to rotate in the threaded stud for positioning. A chuck and collet provide secure retention of tubing, and the release button allows tubing to be removed with little force. The fitting can be used with nylon, soft nylon, polyurethane, fluorinated ethylene propylene (FEP), and perfluoroalkoxy (PFA) tubing. It has an operating pressure range of -14.5 to 145 pounds per square inch (psi) (-100 kPa to 1 MPa), an ambient temperature range of 23 to 140 degrees F (-5 to 60 degrees C), and a fluid temperature range of 32 to 104 degrees F (0 to 40 degrees C). This PBT and brass tube fitting is Restriction of Hazardous Substances (RoHS) compliant, and can be used in a broad range of fluid power applications, including temperature control, compressed air equipment, medical instrumentation, and motor vehicle controls, among others.

Specifications

Connection thread Male NPT
Thread material JIS C3604 brass
Thread sealing method Fluororesin sealant
Compatible tubing materials Nylon, soft nylon, polyurethane, FEP, PFA
Fluid Air or water
Operating pressure range 14.5 to 145 psi (-100 kPa to 1 MPa)
Operating temperature range (ambient) 23 to 140 degrees F (-5 to 60 degrees C)
Operating temperature range (fluid)) 32 to 104 degrees F (0 to 40 degrees C)

Tube fittings are components used for connecting, branching, terminating, and changing the direction of tubing in pneumatic and hydraulic systems. They are made of brass, stainless steel, polybutylene terephthalate (PBT), and other materials that resist corrosion and wear. Tube fittings have various types of connections, including threaded, welded, barbed, and push-to-connect (also called one-touch). Push-to-connect connections do not require tools or sealants. Tube fittings are used in various applications, including machine tools, airplane and truck controls, and automated production lines, among others.

SMC Corporation manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) standard 9001:2008.
