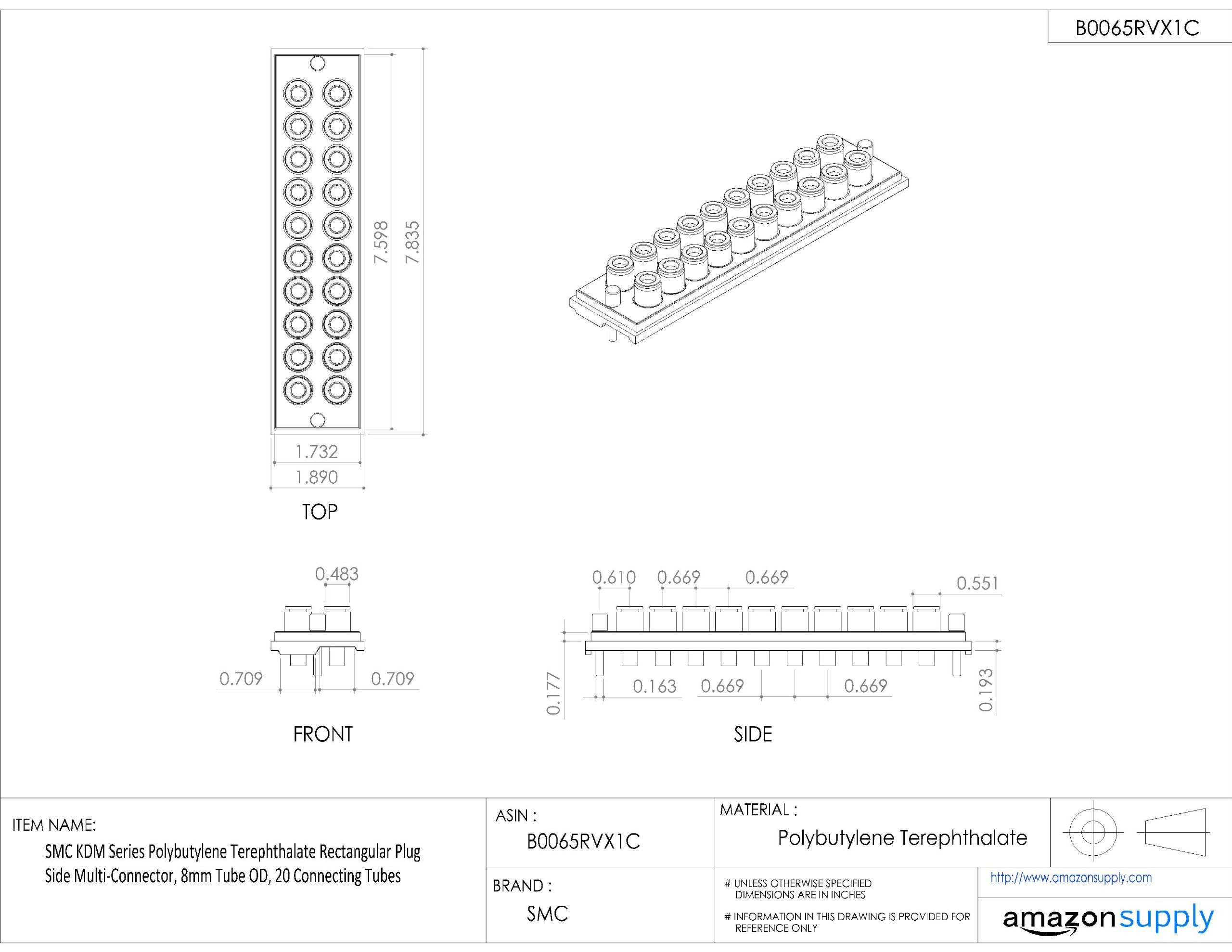

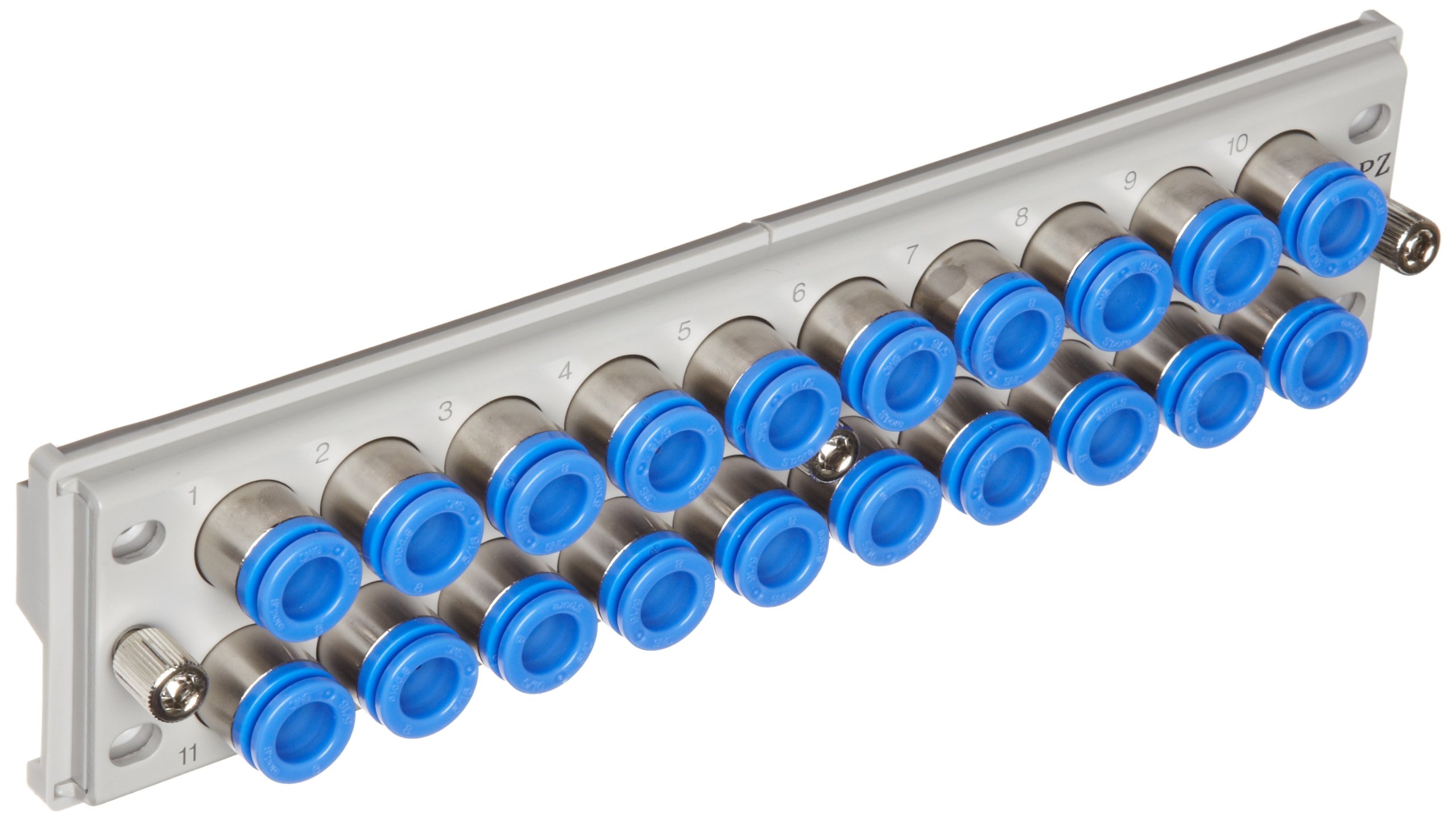

SMC KDM Series Polybutylene Terephthalate Rectangular Plug Side Multi-Connector, 8mm Tube OD, 20 Connecting Tubes
Be the first to review this item
ASIN B0065RVX1C
Specifications for this item
- Brand Name
- SMC
- Item Shape
- Plug
- LowerTemperature Range
- -5 Degrees Celsius
- Material Type
- PBT (Polybutylene Terephthalate)
- Maximum Pressure
- 145 PSI
- Part Number
- KDM20P-08
- Pkg Qty
- 1
- Tube Size
- 8mm
- Upper Temperature Range
- 60 Degrees Celsius
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Friday, May 24? Order in-stock items in the next 3 hours 33 minutes and choose One-Day Shipping at checkout.
Key Features
- Polybutylene terephthalate rectangular plug side multi-connector
- Applicable tubing material includes nylon, soft nylon and polyurethane
- Substantial reduction in mounting space
- 8mm Tube OD
- 145psi Maximum operating pressure
Package Details
Shipping Weight:
0.95 pounds
Package Size:
8.7 x 2.7 x 1.7 inches
Product Description
Rectangular multi-connector series KDM has substantial reduction in mounting space in comparison with a model requiring many union joints for panels and partitions, this model needs only a small space. KDM is suitable for use with positive pressure and vacuum. It is possible to create a multi-connector with mixed tube sizes. -14.5psi Vacuum rating. 218psi Proof pressure. Air fluid. Blue release button color.
