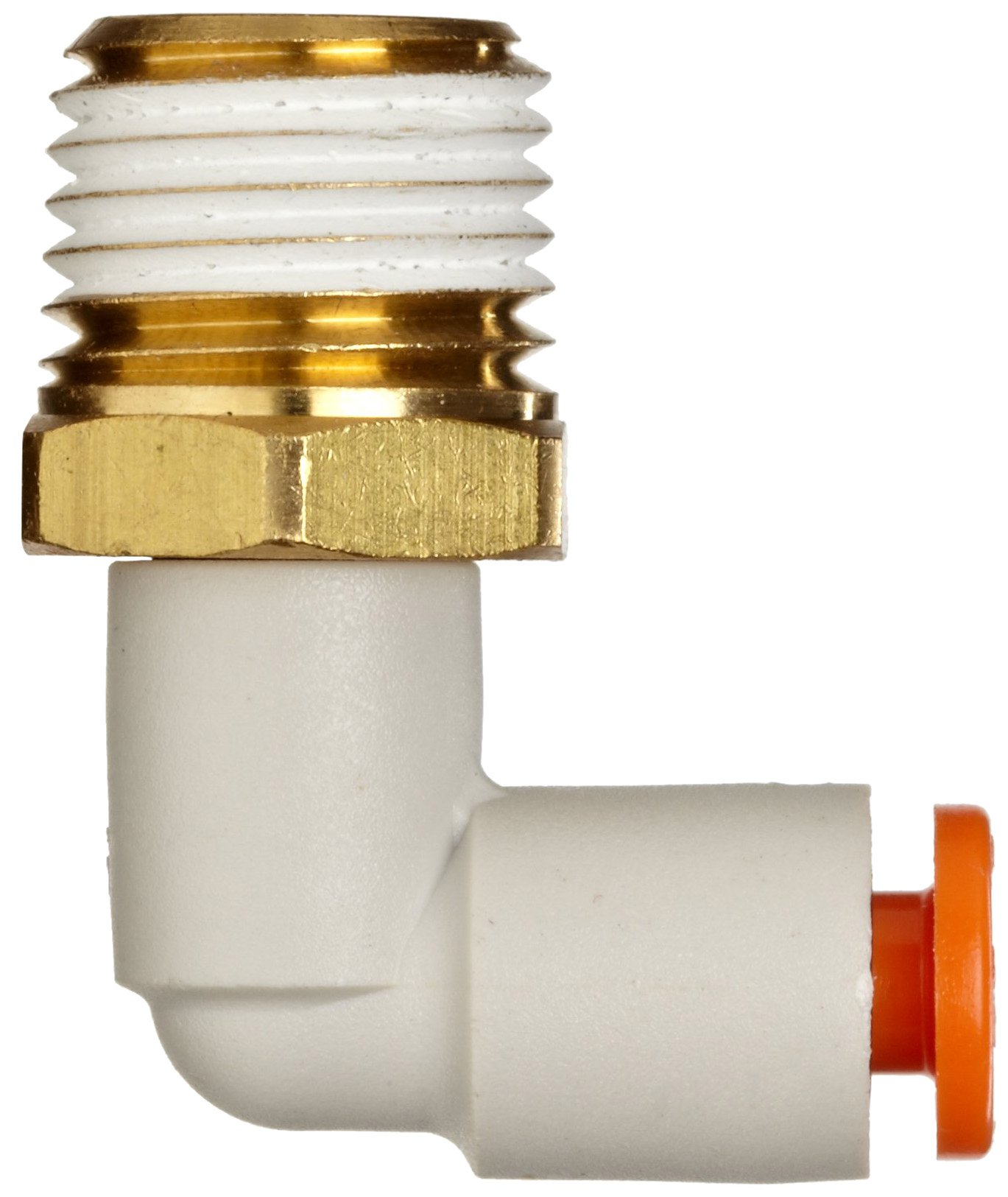

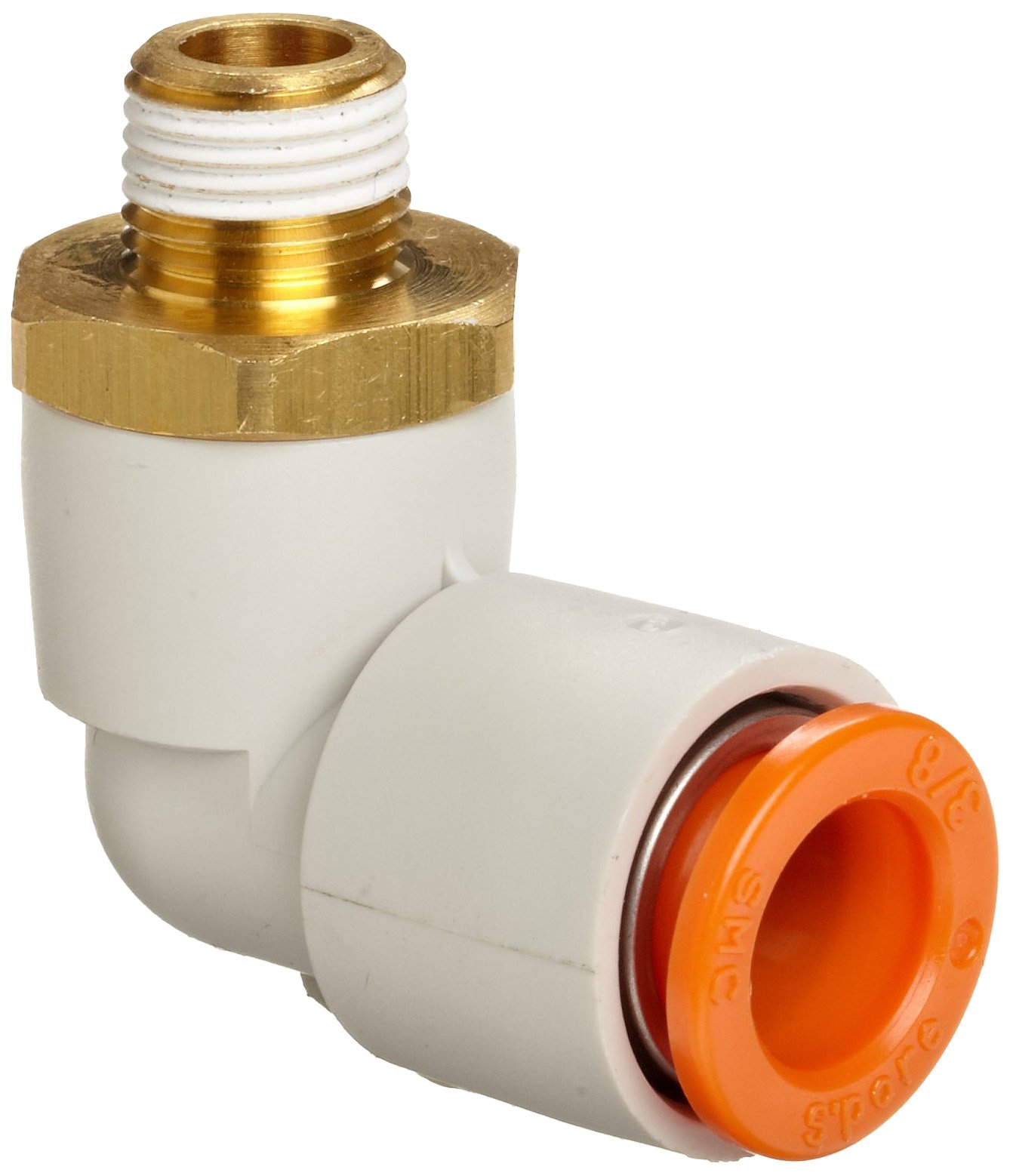

SMC KQ2L-S PBT One-Touch Tube Fitting with Sealant, 90 Degree Elbow, Tube OD x NPT Male with Brass Threads

Be the first to review this item

ASIN B005D82Q2E

Specifications for this item
Item Shape
90 Degree Elbow
Material Type
PBT (Polybutylene Terephthalate)
Color Name
White
Brand Name
SMC
Manufacturer Series Number
KQ2L-S
Upper Temperature Range
104  Degrees Fahrenheit
Specification Met
ANSI , ASME B1.20.1-1983
Maximum Pressure
150  PSI
Style Name
One-Touch
LowerTemperature Range
23  Degrees Fahrenheit
System of Measurement
Inch

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 90-degree elbow for connecting two pipes or fittings at an angle
  • Push-to-connect fitting connects to pipes or tubing on one end and has an NPT male connector with brass threads on the other
  • Made of polybutylene terephthalate (PBT) for resistance to solvents, shrinkage, heat, and impact
  • Working pressure of up to 145 psi
  • Operating temperature ranges from -5 to 60 degrees C

Product Description

The SMC KQ2L-S 90-degree elbow fitting with sealant is made of polybutylene terephthalate (PBT) and has a tube connector and NPT male connector with brass threads. This 90-degree elbow fitting, or "ell," connects two pipes at a 90-degree angle to change the direction of flow between pipes. It is a push-to-connect fitting that connects to pipes or tubing on one end and has a National Pipe Taper (NPT) male connector with brass threads on the other. The fitting is made of polybutylene terephthalate (PBT), which is a polymer resistant to solvents, shrinkage, heat, and impact, and it can be treated to increase resistance to UV and flammability. The working pressure for this fitting is up to 145 pounds per square inch (psi), and its operating temperature ranges from -5 to 60 degrees C.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. Push-to-connect compression fittings do not require tools or sealants, and are useful in installations where a heat source, such as a soldering torch, is prohibited. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

SMC Corporation manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) 9000:2000 standards.
