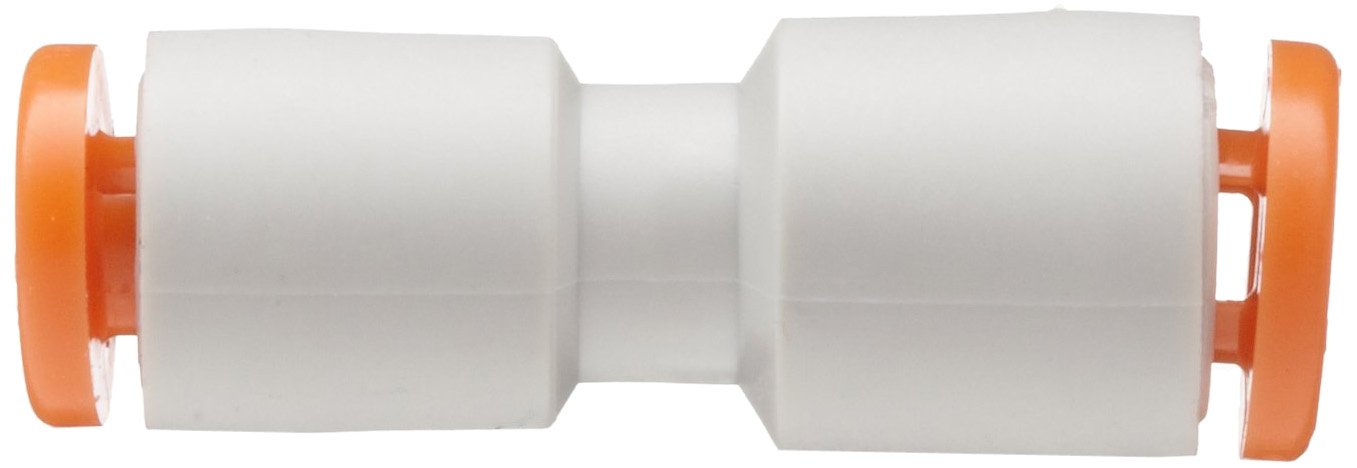

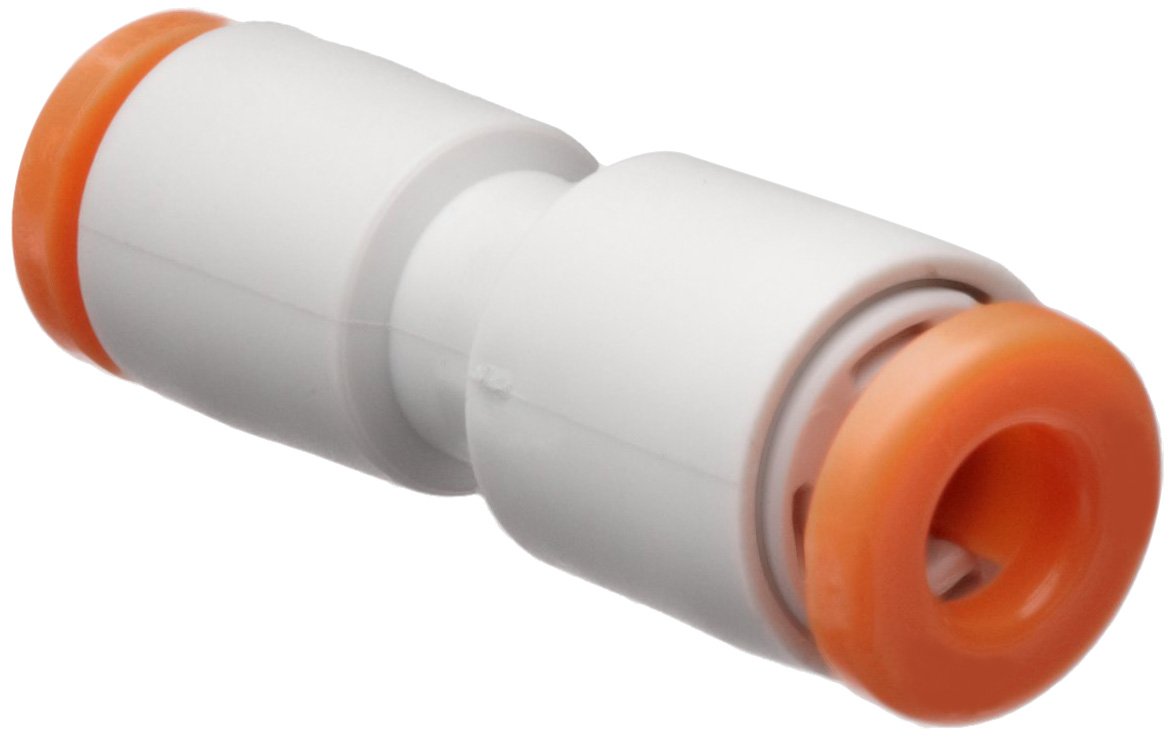

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

SMC KJH PBT One-Touch Tube Fitting, Reducing Coupler, Tube OD x Tube OD

Be the first to review this item

Product Specifications
Item Shape
Coupler
Material Type
PBT (Polybutylene Terephthalate)
Color Name
White
Brand Name
SMC
Manufacturer Series Number
KJH
Upper Temperature Range
60  Degrees Celsius
Specification Met
JIS B 0203
Maximum Pressure
150  PSI
Style Name
One-Touch
LowerTemperature Range
-5  Degrees Celsius
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 28? Order in-stock items in the next 1 day 20 hrs 53 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-2 of 2
Tube Size ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-2 of 2
5/32" x 1/8" B0054LXJF8 10 $7.49 Buy Options
1/4" x 1/8" B0054LXJJE 8 $3.48 Buy Options

Key Features

  • Reducing coupler for connecting two pipes with different diameters
  • Push-to-connect fitting connects to pipes or tubing on both ends
  • Made of polybutylene terephthalate (PBT) for resistance to solvents, shrinkage, heat, and impact
  • Working pressure of up to 150 psi
  • Operating temperature ranges from -5 to 60 degrees C

Product Description

The SMC KJH reducing coupler fitting is made of polybutylene terephthalate (PBT) and has tube connectors. This reducing coupler has one end smaller than the other for connecting two pipes with different diameters. It is a push-to-connect fitting that connects to pipes or tubing on both ends. The fitting is made of polybutylene terephthalate (PBT), which is a polymer resistant to solvents, shrinkage, heat, and impact, and it can be treated to increase resistance to UV and flammability. The working pressure for this fitting is up to 150 pounds per square inch (psi), and its operating temperature ranges from -5 to 60 degrees C.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. Push-to-connect compression fittings do not require tools or sealants, and are useful in installations where a heat source, such as a soldering torch, is prohibited. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

SMC Corporation manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) 9000:2000 standards.
