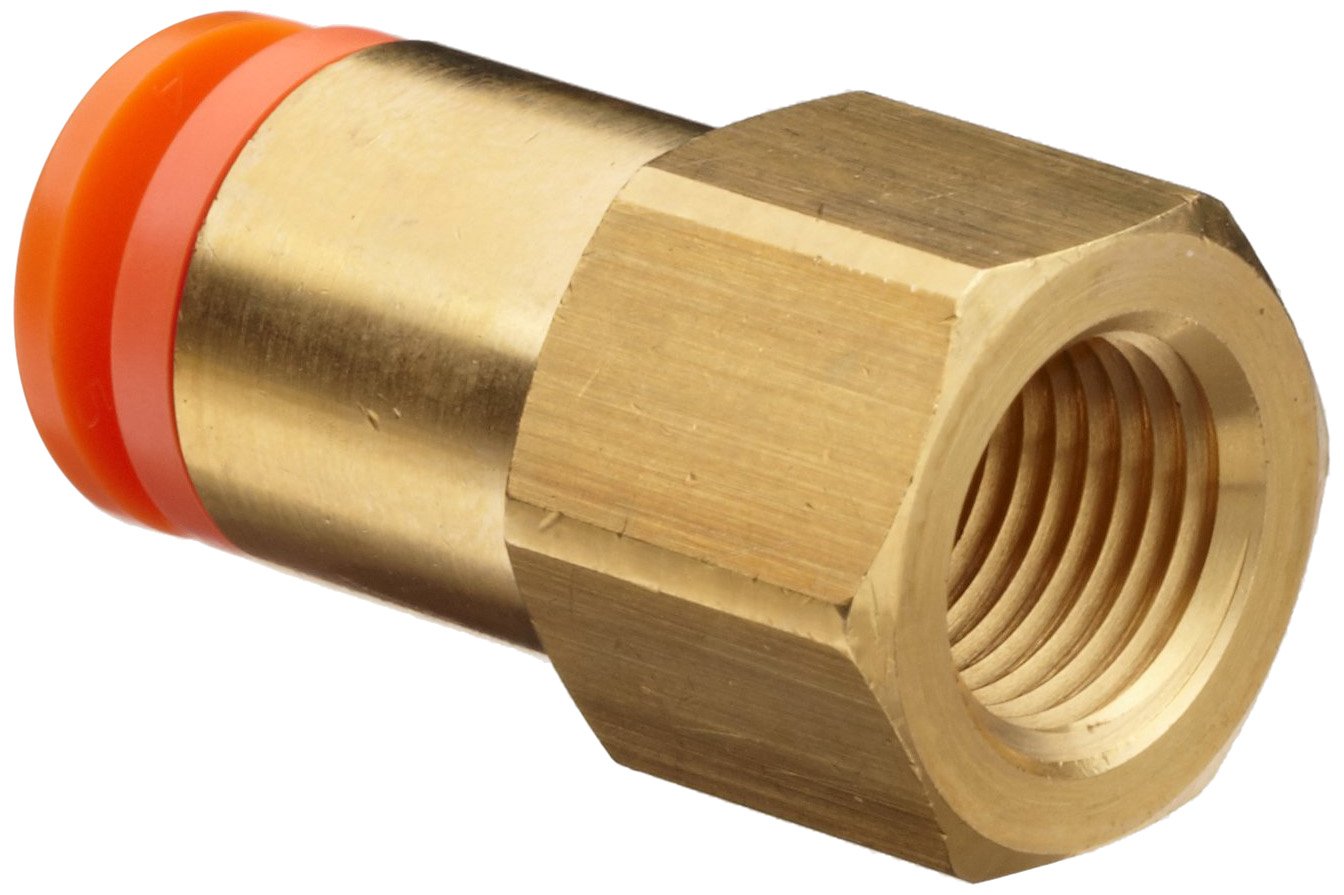

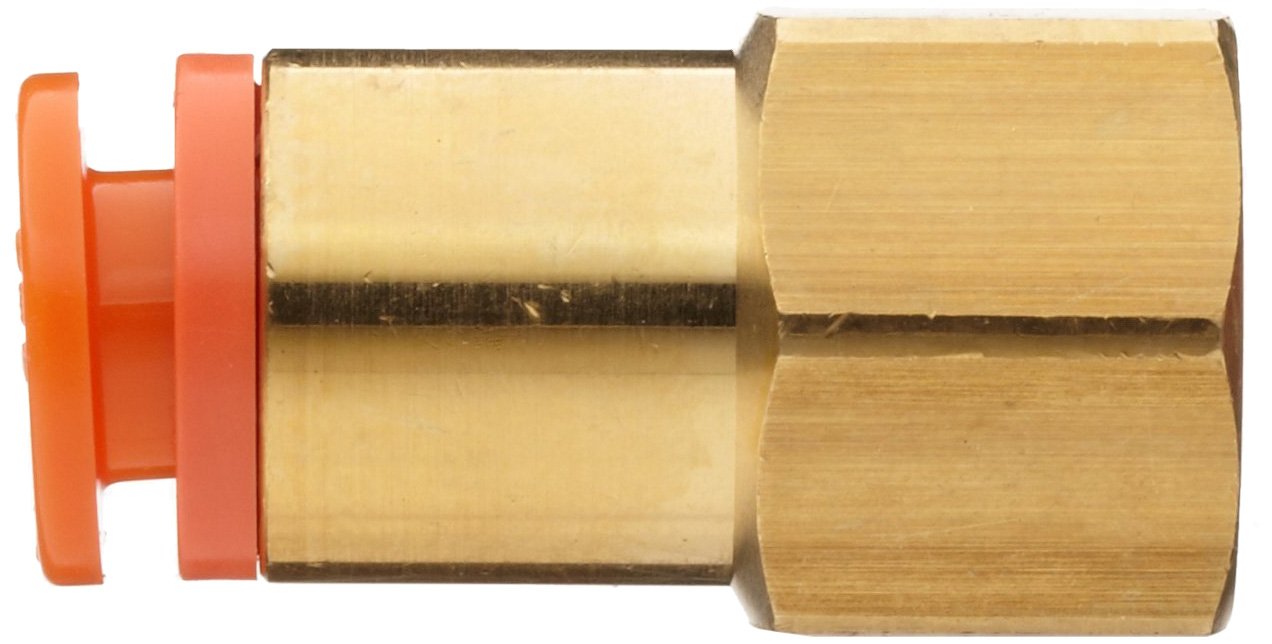

SMC KQ2F PBT One-Touch Tube Fitting, Adapter, Tube OD x NPT Female with Brass Threads

Be the first to review this item

ASIN B005D82M0U

Specifications for this item
Item Shape
Adapter
Material Type
PBT (Polybutylene Terephthalate)
Color Name
White
Brand Name
SMC Corporation
Manufacturer Series Number
KQ2F
Upper Temperature Range
104  Degrees Fahrenheit
Specification Met
ANSI , ASME B1.20.1-1983
Maximum Pressure
150  PSI
Style Name
One-Touch
UNSPSC Code
40183100
LowerTemperature Range
23  Degrees Fahrenheit
System of Measurement
Inch

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Adapter for connecting pipes or fittings of different types
  • Push-to-connect fitting connects to pipes or tubing on one end and has an NPT female connector with brass threads on the other
  • Made of polybutylene terephthalate (PBT) for resistance to solvents, shrinkage, heat, and impact
  • Working pressure of up to 145 psi
  • Operating temperature ranges from -5 to 60 degrees C

Product Description

The SMC KQ2F adapter fitting is made of polybutylene terephthalate (PBT) and has a tube connector and NPT female connector with brass threads. This adapter fitting connects pipes or fittings with different end types, diameters, or materials. It is a push-to-connect fitting that connects to pipes or tubing on one end and has a National Pipe Taper (NPT) female connector with brass threads on the other. The fitting is made of polybutylene terephthalate (PBT), which is a polymer resistant to solvents, shrinkage, heat, and impact, and it can be treated to increase resistance to UV and flammability. The working pressure for this fitting is up to 145 pounds per square inch (psi), and its operating temperature ranges from -5 to 60 degrees C.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. Push-to-connect compression fittings do not require tools or sealants, and are useful in installations where a heat source, such as a soldering torch, is prohibited. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

SMC Corporation manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) 9000:2000 standards.
