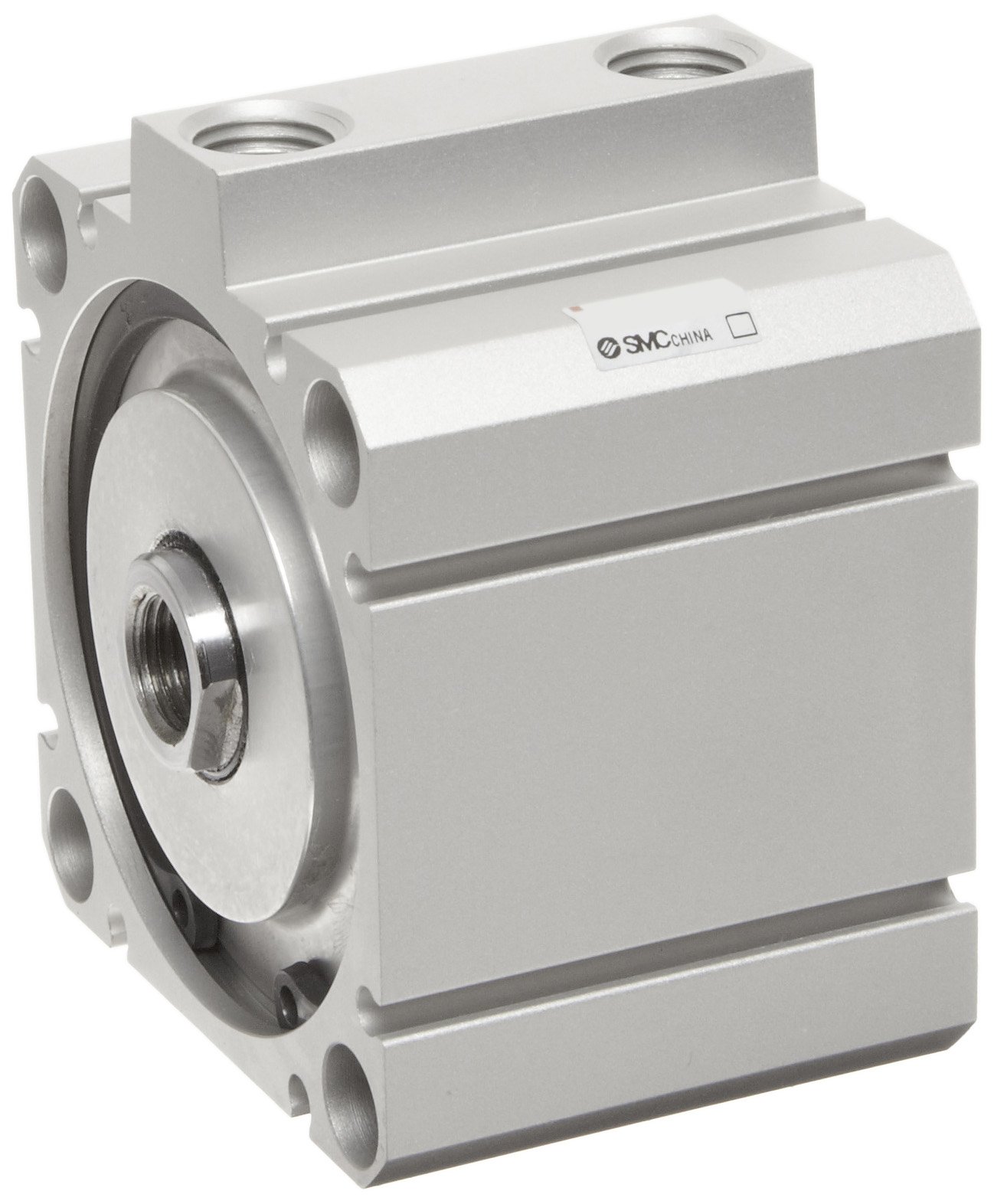

SMC NCQ8 Series Aluminum Air Cylinder, Compact, Double Acting, Through Hole Mounting, Not Switch Ready, No Cushion

Be the first to review this item

Product Specifications
Item Shape
Compact
Seal Material Type
NBR
Cushion Material Type
No
Switch Type
Not Switch Ready
Construction Type
Single Rod
Material Type
Aluminum
Brand Name
SMC
Maximum Temperature
150  Degrees Fahrenheit
Manufacturer Series Number
NCQ8
Upper Temperature Range
150  Degrees Fahrenheit
Mounting Type
Through Hole
Maximum Working Pressure
200  PSI
System of Measurement
Inch
LowerTemperature Range
15  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 28? Order in-stock items in the next 10 hrs 4 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-11 of 11
Bore Size Stroke Length Rod Diameter Rod Thread Length Port Size Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-11 of 11
3/4" 1/4" 0.31" 0.46" 10-32 UNF 1 NCQ8B075-025 B005JGS9T4 1 $37.37 Buy Options
1-1/16" 1/4" 0.5" 0.52" 1/8" NPT 1 NCQ8B106-025 B005JGSA7A 1 $45.86 Buy Options
1-1/16" 1" 0.5" 0.7" 1/8" NPT 1 NCQ8B106-100 B005JGSAYI 1 $46.46 Buy Options
1-1/16" 1/2" 0.5" 0.7" 1/8" NPT 1 NCQ8B106-050 B005JGSAG6 1 $40.62 Buy Options
3" 1/2" 0.88" 0.73" 1/4" NPT 1 NCQ8B300-050 B005JGSDTU 2 $80.75 Buy Options
1-1/2" 2" 0.63" 0.7" 1/8" NPT 1 NCQ8B150-200 B005JGSC7I 2 $48.24 Buy Options
1-1/2" 1/4" 0.63" 0.5" 1/8" NPT 1 NCQ8B150-025 B005JGSBGK 2 $43.48 Buy Options
1-1/2" 1/2" 0.63" 0.7" 1/8" NPT 1 NCQ8B150-050 B005JGSBTW 2 $52.16 Buy Options
2" 1" 0.75" 0.7" 1/8" NPT 1 NCQ8B200-100 B005JGSCVY 2 $53.34 Buy Options
2-1/2" 1" 0.75" 0.7" 1/4" NPT 1 NCQ8B250-100 B005JGSDEA 2 $80.93 Buy Options
2" 1/2" 0.75" 0.7" 1/8" NPT 1 NCQ8B200-050 B005JGSCIW 1 $61.12 Buy Options

Key Features

  • Double-acting air (pneumatic) cylinder with two air ports for pushing and pulling the piston rod in both directions
  • Compact body with single piston rod for linear movement in limited spaces
  • Anodized aluminum body for resistance to corrosion and tarnishing
  • Through-hole mounting for secure installation on rigid surfaces
  • 200 pounds per square inch (psi) maximum working pressure

Product Description

This SMC double-acting NCQ8 Series air cylinder has a compact aluminum body and through-hole mounting for securing to rigid surfaces. The double-acting air cylinder (also known as a pneumatic cylinder) uses airflow through two air ports on opposite ends of the cylinder barrel to push out and retract the piston rod to produce continued movement. The air cylinder has an anodized aluminum body to help resist corrosion and tarnishing, and it comes with a single piston rod. It has nitrile butadiene rubber (NBR) seals to contain air and help protect the barrel and piston rod. The air cylinder has through-hole mounting for secure installation on rigid surfaces. The maximum pressure of the pneumatic cylinder is 200 pounds per square inch (psi), and it has a temperature range of 15 to 150 degrees F. This non-repairable air cylinder is suitable for compact linear applications.

Pneumatic actuators fall into two classes: linear and rotary. Linear actuators move objects in straight lines, while rotary actuators turn objects, or rotate them in varying directions. Air cylinders (also called pneumatic cylinders), the most common type of linear actuators, use pressurized air to pull and push piston rods in and out of cylinder barrels. This motion moves mechanisms connected to the rods, or (for detached items) directs or blocks travel using rod-attached plates. Air cylinders execute pushing, pulling, lifting, lowering, pressing, and stopping functions, and they come in several different body types, including round, compact, tie-rod, guided, slide, and clamp. Pneumatic cylinders can be either single acting, with one compressed air port to push the rod in a single direction and a spring to return the rod, or double acting, with two compressed air ports on opposite ends of the cylinder to both extend and retract the rod. For quieter piston operation, air cylinders can come with cushioning in one or both ends of their barrels. Several mounting styles are available both for attaching the air cylinder ends to moving components in a pneumatic system and for mounting to rigid surfaces. Air cylinders are used in industrialized automation tasks in automotive, food processing, material handling, and robotics applications, among others.

SMC Corporation manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) 9000:2000 standards.
