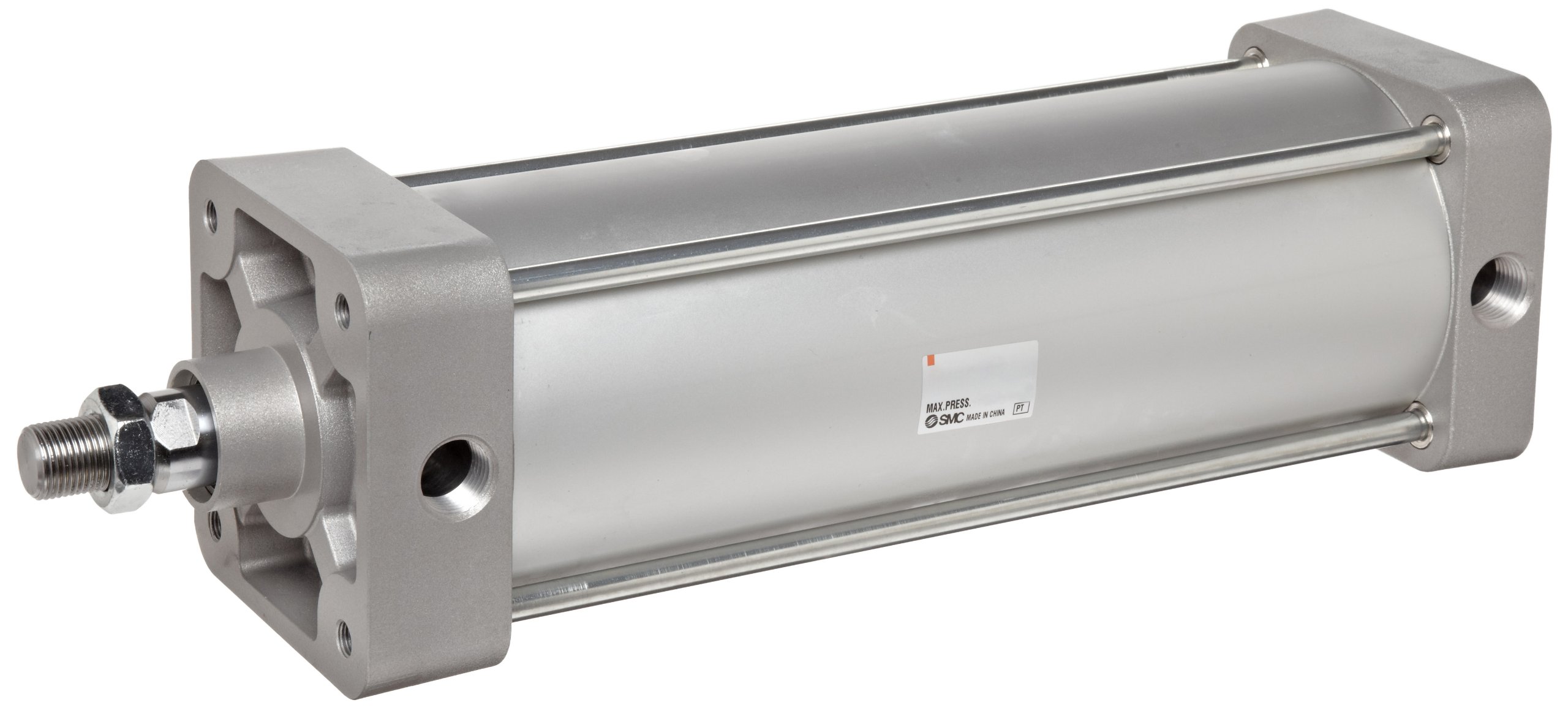

SMC NCA1 Series Aluminum Air Cylinder, Tie-Rod, Double Acting, Basic Style Mounting, Not Switch Ready, Cushioned

Be the first to review this item

Product Specifications
Item Shape
Tie-Rod
Seal Material Type
NBR
Cushion Material Type
Air
Switch Type
Not Switch Ready
Material Type
Aluminum
Construction Type
Single Rod
Brand Name
SMC Corporation
Maximum Temperature
60  Degrees Celsius
Manufacturer Series Number
NCA1
Upper Temperature Range
140  Degrees Fahrenheit
Actuator Material Type
Carbon
Mounting Type
Basic Style
UNSPSC Code
24111802
Maximum Working Pressure
250  PSI
System of Measurement
Inch
LowerTemperature Range
41  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 24? Order in-stock items in the next 9 hrs 16 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-17 of 17
Bore Size Stroke Length Rod Diameter Rod Thread Length Port Size Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-17 of 17
2" 3" 5/8" 3/4" 3/8" NPT 1 NCA1B200-0300 B005JGQ5VS yes $97.11 Buy Options
1.5" 12" 5/8" 3/4" 3/8" NPT 1 NCA1B150-1200 B005JGQ5EA yes $38.95 Buy Options
3-1/4" 14" 1" 1-1/8" 1/2" NPT 1 NCA1B325-1400 B005JGQ81U yes $213.80 Buy Options
3-1/4" 12" 1" 1-1/8" 1/2" NPT 1 NCA1B325-1200 B005JGQ7RA yes $205.90 Buy Options
2" 2" 5/8" 3/4" 3/8" NPT 1 NCA1B200-0200 B005JGQ5QI yes $40.94 Buy Options
4" 10" 1" 1-1/8" 1/2" NPT 1 NCA1B400-1000 B005JGQ856 yes $142.17 Buy Options
2.5" 2" 5/8" 3/4" 3/8" NPT 1 NCA1B250-0200 B005JGQ6DK yes $116.13 Buy Options
2.5" 6" 5/8" 3/4" 3/8" NPT 1 NCA1B250-0600 B005JGQ6TE yes $111.25 Buy Options
2.5" 3" 5/8" 3/4" 3/8" NPT 1 NCA1B250-0300 B005JGQ6KS yes $102.10 Buy Options
3-1/4" 8" 1" 1-1/8" 1/2" NPT 1 NCA1B325-0800 B005JGQ7FM yes $71.97 Buy Options
3-1/4" 6" 1" 1-1/8" 1/2" NPT 1 NCA1B325-0600 B005JGQ79S yes $182.20 Buy Options
3-1/4" 2" 1" 1-1/8" 1/2" NPT 1 NCA1B325-0200 B005JGQ6YE yes $166.40 Buy Options
3-1/4" 10" 1" 1-1/8" 1/2" NPT 1 NCA1B325-1000 B005JGQ7JS yes $198.00 Buy Options
2" 6" 5/8" 3/4" 3/8" NPT 1 NCA1B200-0600 B005JGQ69E yes $119.15 Buy Options
3-1/4" 4" 1" 1-1/8" 1/2" NPT 1 NCA1B325-0400 B005JGQ770 yes $174.30 Buy Options
2" 4" 5/8" 3/4" 3/8" NPT 1 NCA1B200-0400 B005JGQ5ZE yes $82.72 Buy Options
1.5" 6" 5/8" 3/4" 3/8" NPT 1 NCA1B150-0600 B005JGQ572 yes $97.46 Buy Options

Key Features

  • Double-acting air (pneumatic) cylinder with two air ports for pushing and pulling the piston rod in both directions
  • Tie-rod body with single piston rod and four exterior rods to secure end caps on cylinder barrel
  • Anodized aluminum for resistance to corrosion and tarnishing with a carbon-steel piston rod for strength and durability
  • Basic-style mounting with rod jam nut for added brackets (sold separately)
  • Air cushioning to dampen the sound of the piston striking the end caps

Product Description

This SMC double-acting NCA1 Series air cylinder has a tie-rod body, basic-style mounting, and air cushioning to absorb kinetic energy and reduce noise during operation. The air cylinder (also called a pneumatic cylinder) has an anodized aluminum body to help resist corrosion and tarnishing, and it has a single piston rod made of carbon steel for strength and durability. The double-acting air cylinder uses airflow through two air ports on opposite ends of the cylinder barrel to push out and retract the piston rod to produce continued movement. The air cylinder’s tie-rod body design uses four exterior rods to hold the end caps securely on the cylinder barrel. Air cushioning is standard to this series to absorb kinetic energy and to dampen the sound of the piston striking the air cylinder’s end caps, and nitrile butadiene rubber (NBR) seals contain air and protect the barrel and piston rod. The non-repairable air cylinder has basic-style mounting and includes a rod jam nut to hold brackets (sold separately) in place for rigid surface installation. The maximum pressure of the pneumatic cylinder is 250 pounds per square inch (psi), and it has a temperature range of 40 to 140 degrees F. The tie-rod air cylinder's square head meets ANSI (NFPA) T3.6.6 Re-1996 mounting standards for quality assurance. This air cylinder is suitable for medium-duty clamping, pressing, and lifting applications.

Pneumatic actuators fall into two classes: linear and rotary. Linear actuators move objects in straight lines, while rotary actuators turn objects, or rotate them in varying directions. Air cylinders (also called pneumatic cylinders), the most common type of linear actuators, use pressurized air to pull and push piston rods in and out of cylinder barrels. This motion moves mechanisms connected to the rods, or (for detached items) directs or blocks travel using rod-attached plates. Air cylinders execute pushing, pulling, lifting, lowering, pressing, and stopping functions, and they come in several different body types, including round, compact, tie-rod, guided, slide, and clamp. Pneumatic cylinders can be either single acting, with one compressed air port to push the rod in a single direction and a spring to return the rod, or double acting, with two compressed air ports on opposite ends of the cylinder to both extend and retract the rod. For quieter piston operation, air cylinders can come with cushioning in one or both ends of their barrels. Several mounting styles are available both for attaching the air cylinder ends to moving components in a pneumatic system and for mounting to rigid surfaces. Air cylinders are used in industrialized automation tasks in automotive, food processing, material handling, and robotics applications, among others.

SMC Corporation manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) 9000:2000 standards.
