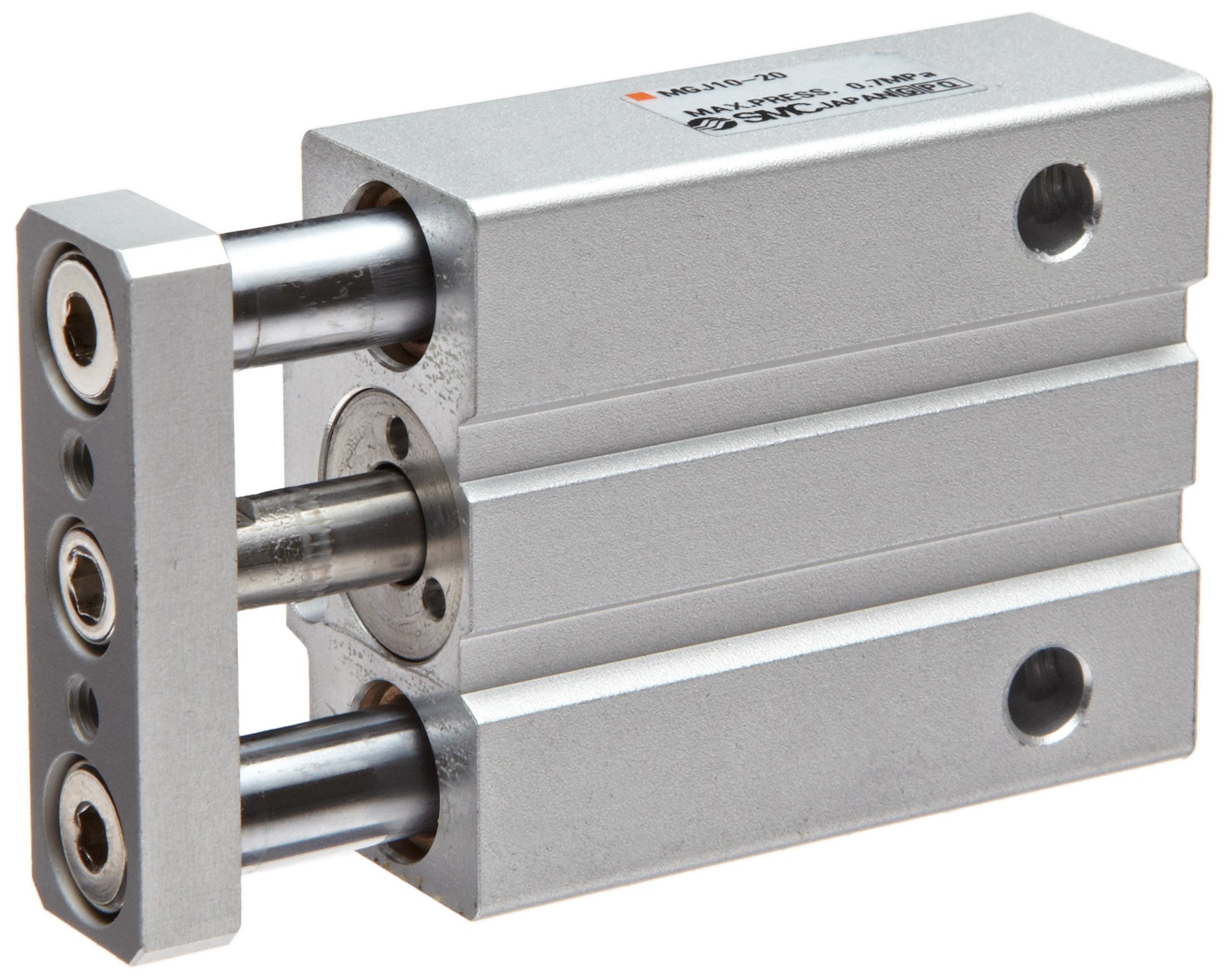

SMC MGJ Series Miniture Air Cylinder with Guide Rod Plate, Compact, Double Acting, Switch Ready, Cushioned

Be the first to review this item

Product Specifications
Item Shape
Bore Diameter
Not Listed  inches
Seal Material Type
Seat Material Type
Switch Type
Switch Ready
Brand Name
SMC Corporation
Maximum Temperature
60  Degrees Celsius
Manufacturer Series Number
Upper Temperature Range
140  Degrees Fahrenheit
Maximum Working Pressure
102  PSI
System of Measurement
LowerTemperature Range
14  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 28? Order in-stock items in the next 11 hrs 33 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-3 of 3
Cushion style Piston stroke length Rod outside diameter maximum string Thread size Thread length string Port size Number of items Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All All All All All All
Currently showing 1-3 of 3
Rubber 10 millimeters 5 millimeters Not Listed Not Listed inches 3 millimeters 1 MGJ10-10 B005JGOSJE yes $91.11 Buy Options
Rubber 15 millimeters 5 millimeters Not Listed Not Listed inches 3 millimeters 1 MGJ10-15 B005JGOTGQ yes $138.17 Buy Options
Rubber 20 millimeters 5 millimeters Not Listed Not Listed inches 3 millimeters 1 MGJ10-20 B005JGOTS4 yes $150.05 Buy Options

Key Features

  • Double-acting air (pneumatic) cylinder with two air ports for pushing and pulling the piston rod in both directions
  • Miniature compact body with one piston rod, dual guide rods, and guide plate for non-rotating stability
  • Aluminum for resistance to corrosion and tarnishing with a stainless-steel piston rod
  • Top- or bottom-mounting options for attaching cylinder body to rigid surfaces
  • Switch ready with two magnet sensors installed for connecting to electrical circuits for automation

Product Description

This SMC double-acting MGJ Series air cylinder has a miniature compact body and comes "switch ready" for connecting to mechanical proximity and limit switches for precise timing in automated applications. The air cylinder (also called a pneumatic cylinder) has two guide rods that run parallel to the single piston rod for non-rotating accuracy of +/-0.1 degree, and an attached plate enables direct mounting of loads for lifting and lowering. Constructed in aluminum to resist corrosion and tarnishing, the double-acting air cylinder uses airflow through two air ports on opposite ends of the cylinder tube to push out and retract the piston rod to produce continued movement. The pneumatic cylinder comes standard with rubber bumper cushioning inside the cylinder barrel to absorb kinetic energy and to dampen the sound of the piston striking the end caps, and it has nitrile butadiene rubber (NBR) seals to contain air and protect the barrel and piston rod. This non-repairable air cylinder is "switch ready" with two magnet sensors installed for connecting to electrical circuits for pneumatic automation. It has both top and bottom mounting for attaching to rigid surfaces with screws (not included), a maximum pressure of 102 pounds per square inch (psi), and an operating temperature range of 14 to 140 degrees F. This miniature air cylinder is suitable for linear applications in tight spaces, and it is capable of handling high side loads.

Pneumatic actuators fall into two classes: linear and rotary. Linear actuators move objects in straight lines, while rotary actuators turn objects, or rotate them in varying directions. Air cylinders (also called pneumatic cylinders), the most common type of linear actuators, use pressurized air to pull and push piston rods in and out of cylinder barrels. This motion moves mechanisms connected to the rods, or (for detached items) directs or blocks travel using rod-attached plates. Air cylinders execute pushing, pulling, lifting, lowering, pressing, and stopping functions, and they come in several different body types, including round, compact, tie-rod, guided, slide, and clamp. Pneumatic cylinders can be either single acting, with one compressed air port to push the rod in a single direction and a spring to return the rod, or double acting, with two compressed air ports on opposite ends of the cylinder to both extend and retract the rod. For quieter piston operation, air cylinders can come with cushioning in one or both ends of their barrels. Several mounting styles are available both for attaching the air cylinder ends to moving components in a pneumatic system and for mounting to rigid surfaces. Air cylinders are used in industrialized automation tasks in automotive, food processing, material handling, and robotics applications, among others.

SMC Corporation manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) 9000:2000 standards.
