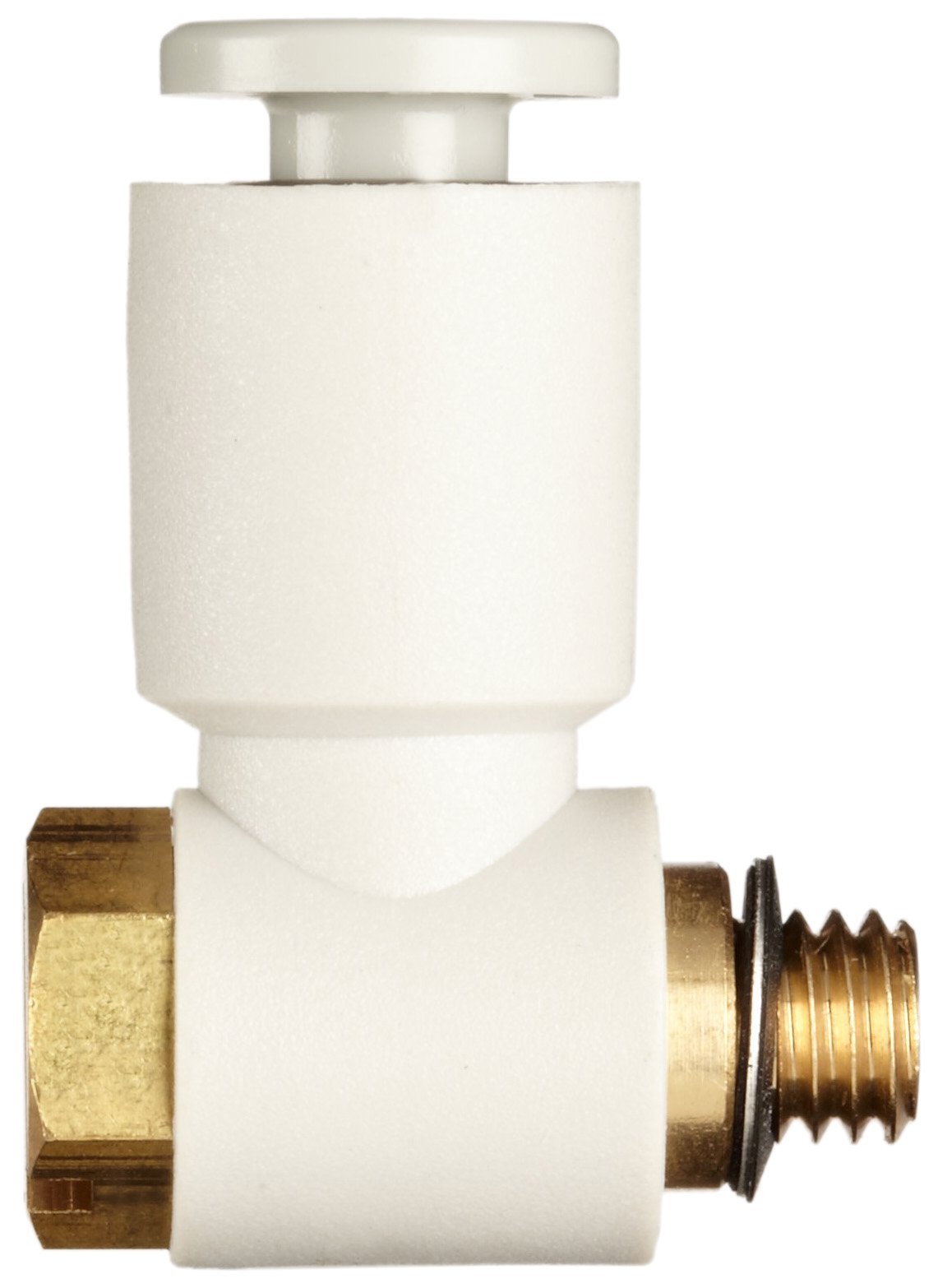

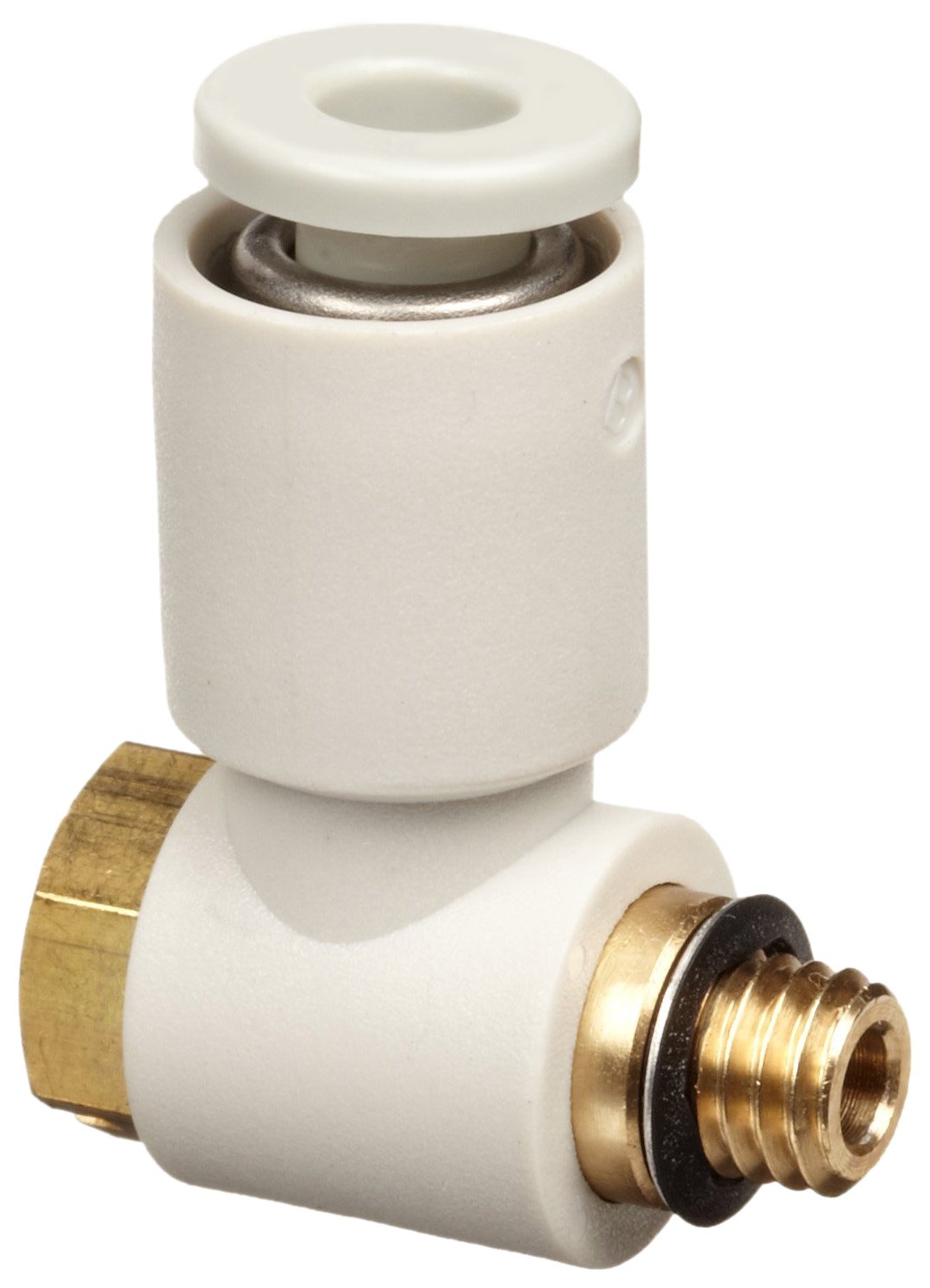

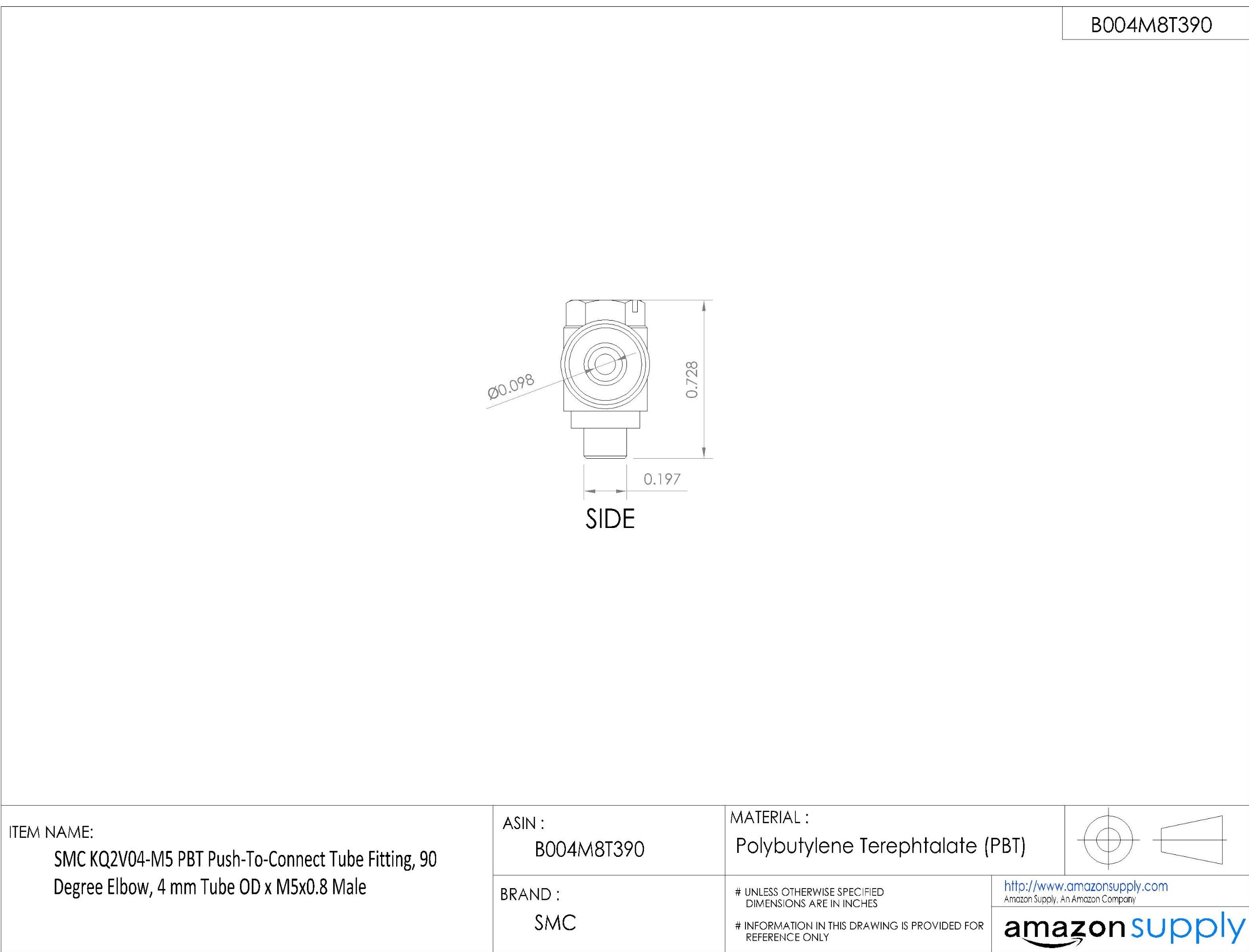

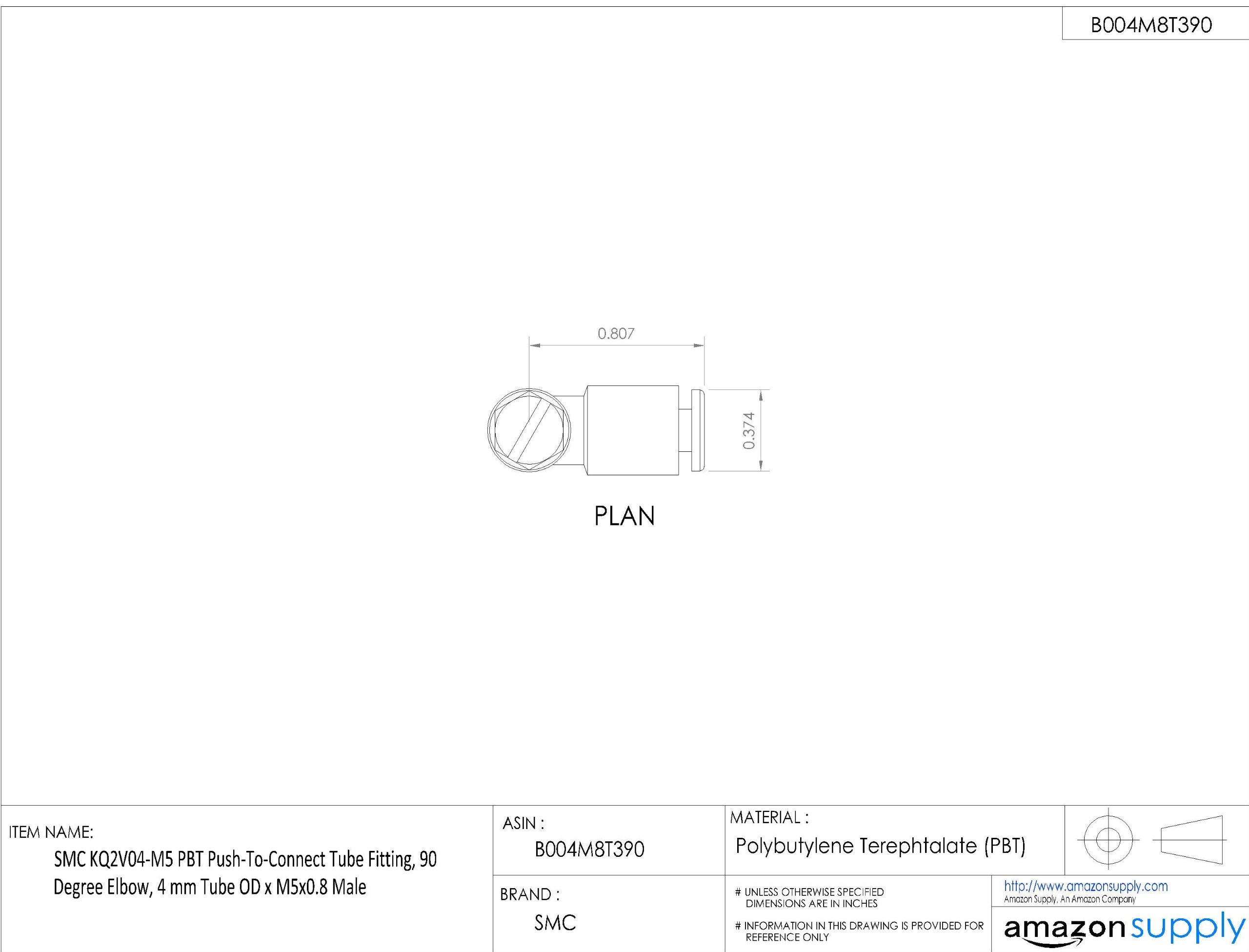

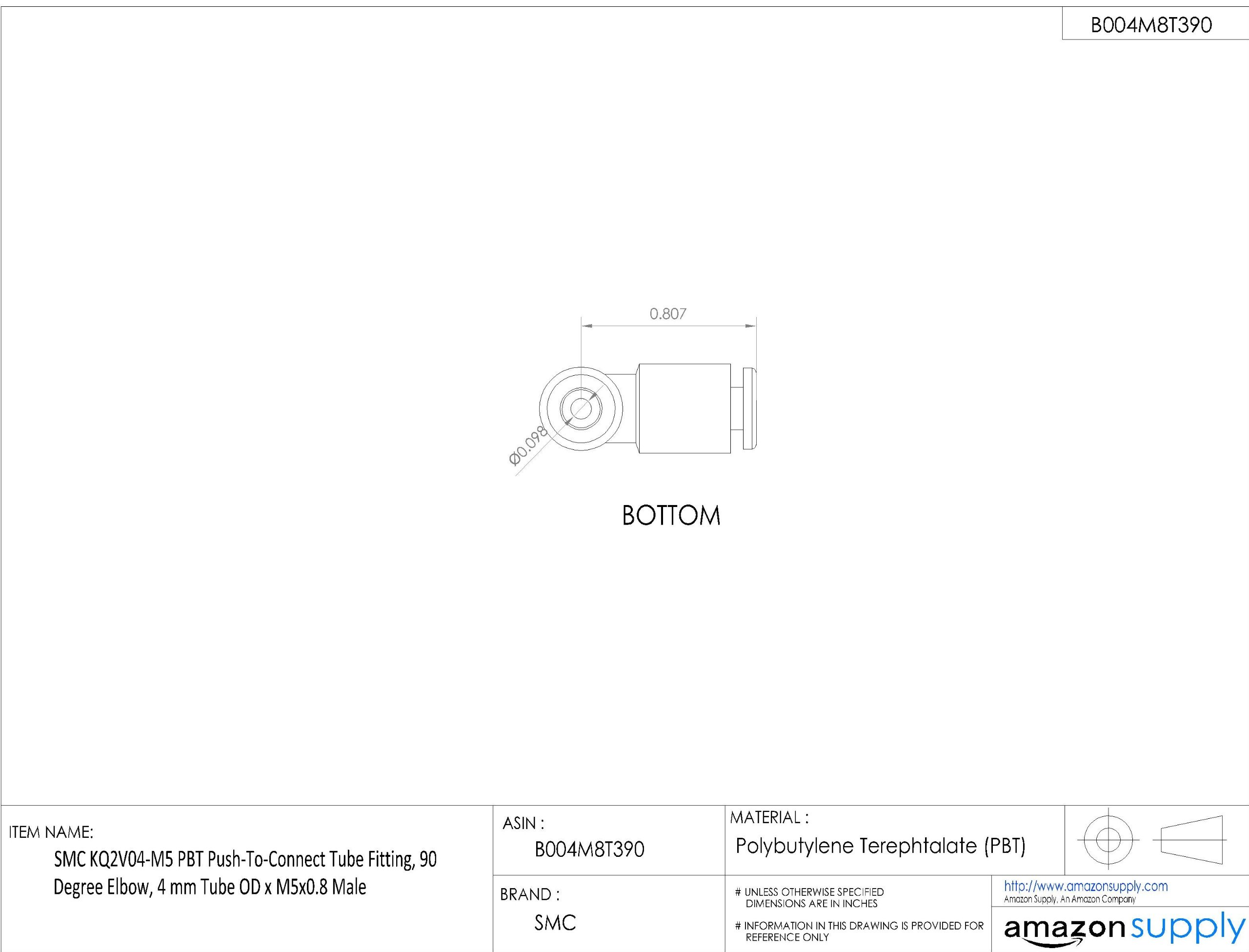

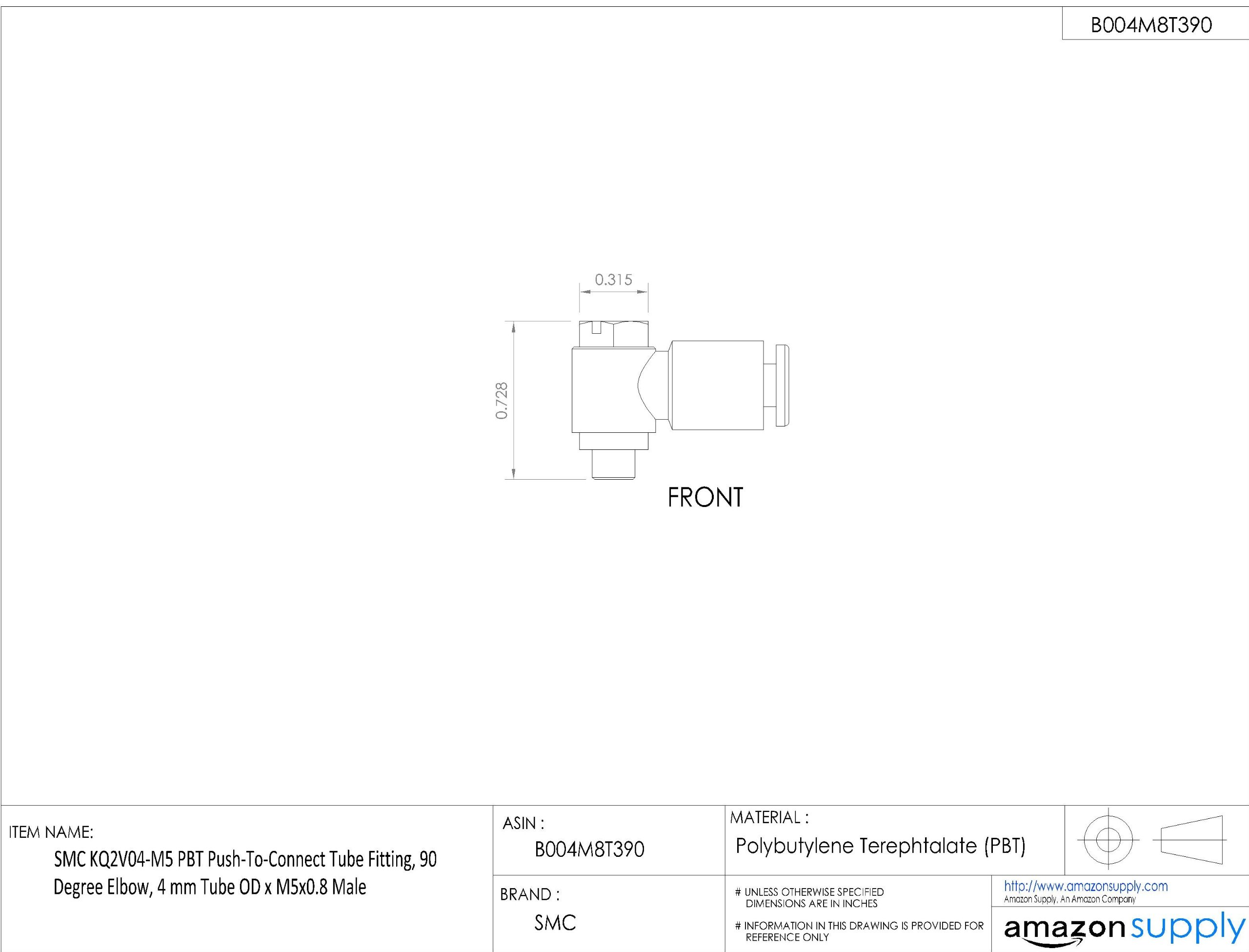

SMC KQ2V04-M5A PBT & Brass Push-to-Connect Tube Fitting, Universal Elbow, 4 mm Tube OD x M5x0.8 Male

Be the first to review this item

ASIN B004M8T390

Specifications for this item
Item Shape
Universal Elbow
Part Number
Brand Name
SMC Corporation
Style Name
Number of Items
Material Type
Brass , PBT (Polybutylene Terephthalate)
Color Name
Size Name
4 mm Tube OD x M5x0.8 Male
Manufacturer Series Number
Upper Temperature Range
140  Degrees Fahrenheit
Maximum Pressure
145  PSI
System of Measurement
LowerTemperature Range
23  Degrees Fahrenheit

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Joins M5 male thread to 4 mm OD nylon, soft nylon, and polyurethane tubing at a 90-degree angle
  • Push-to-connect mechanism provides reliable retaining force on tube
  • Brass and polybutylene terephthalate (PBT) for corrosion resistance
  • For use with vacuum up to -100 kPa and pressure up to 145 psi
  • Operating temperature range of -5 to +60 degrees C (23 to 140 degrees F)

Package Details

Shipping Weight: 0.02 pounds
Package Size: 1 x 1 x 0.2 inches

Product Description

This SMC KQ2V04-M5A swivel elbow tube fitting adapts M5 metric male thread to push-to-connect fittings for 4 mm OD nylon, soft nylon, and polyurethane tubing at a 90-degree angle. The M5x0.8 thread and a rubber-coated stainless steel gasket ensure an air- and water-tight seal. The brass fitting resists corrosion and has a polybutylene terephthalate (PBT) collet and chuck-type mechanism for single-action connection and disconnection of tubing. The connector has a maximum operating pressure of 145 pounds per square inch (psi), a maximum operating vacuum of -100 kilopascals (kPa), and an operating temperature range of -5 to +60 degrees C. This KQ2 series swivel elbow tube fitting is suitable for use with air and water in both vacuum and pressure applications, such as in food processing.

Tube fittings are components used for connecting, branching, terminating, and changing the direction of tubing in pneumatic and hydraulic systems. They are made of brass, stainless steel, polybutylene terephthalate (PBT), and other materials that resist corrosion and wear. Tube fittings have various types of connections, including threaded, welded, barbed, and push-to-connect (also called one-touch). Push-to-connect connections do not require tools or sealants. Tube fittings are used in various applications, including machine tools, airplane and truck controls, and automated production lines, among others.

SMC Corporation manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) standards 9000:2000 and 9001:2008.
