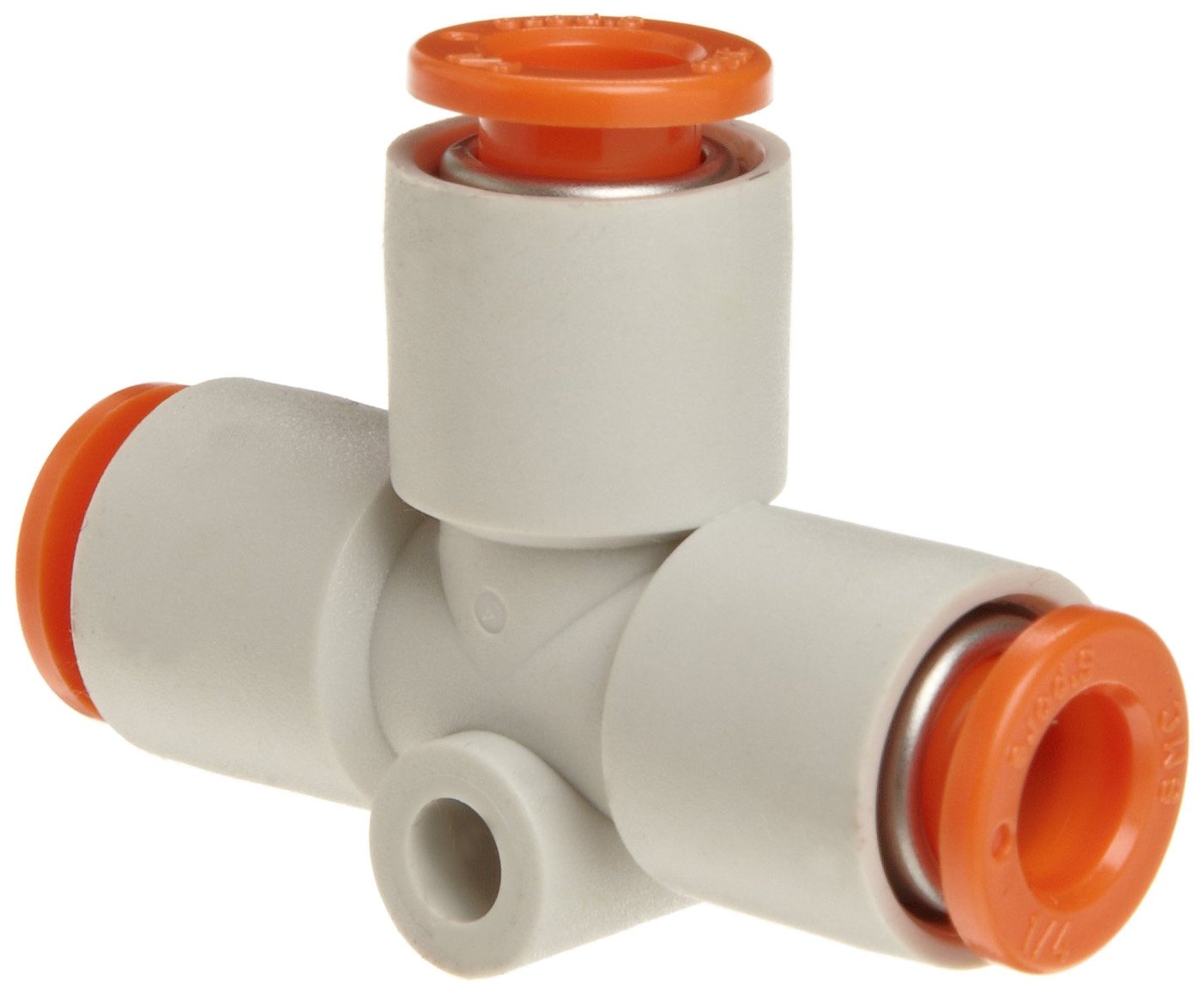

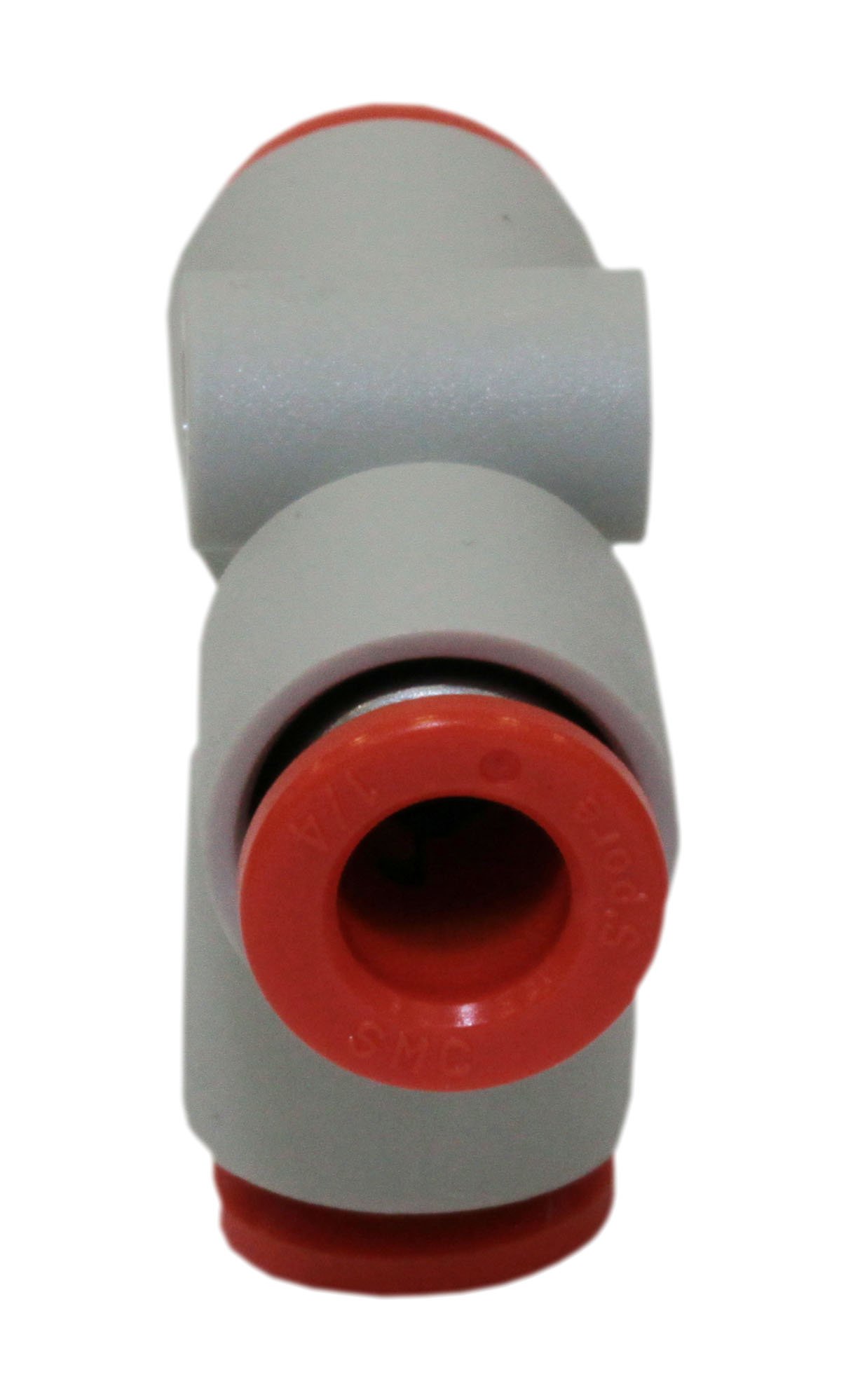

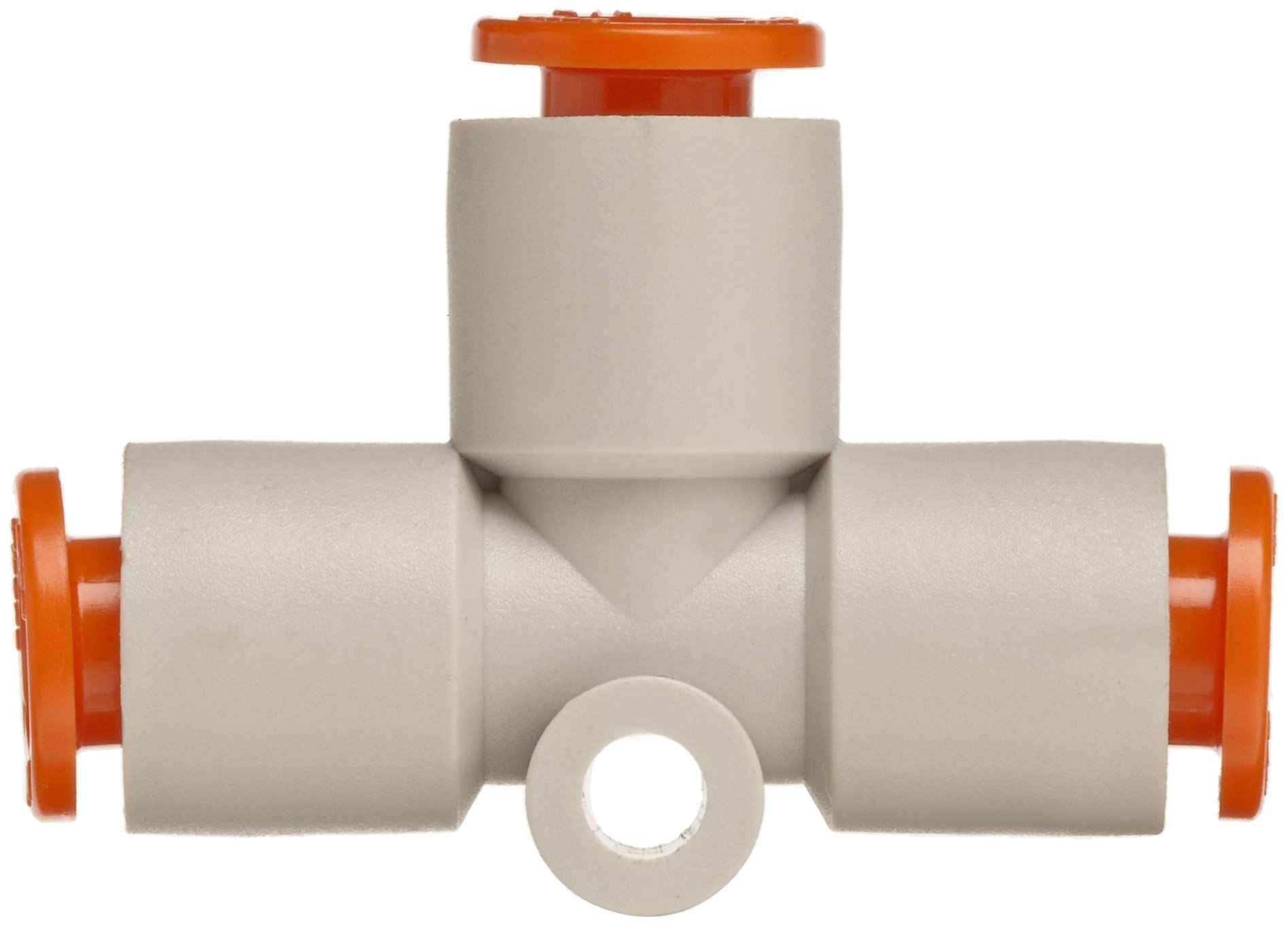

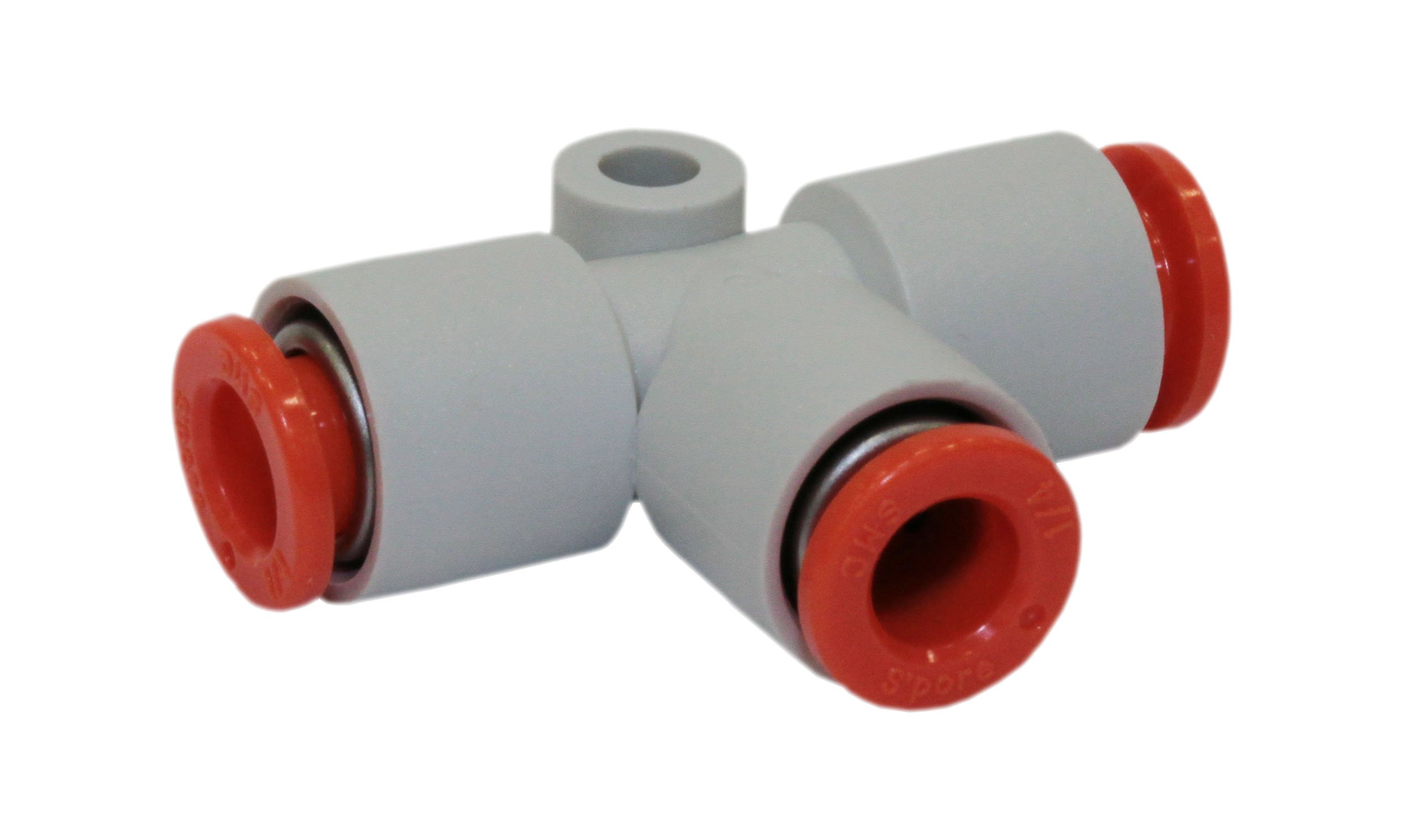

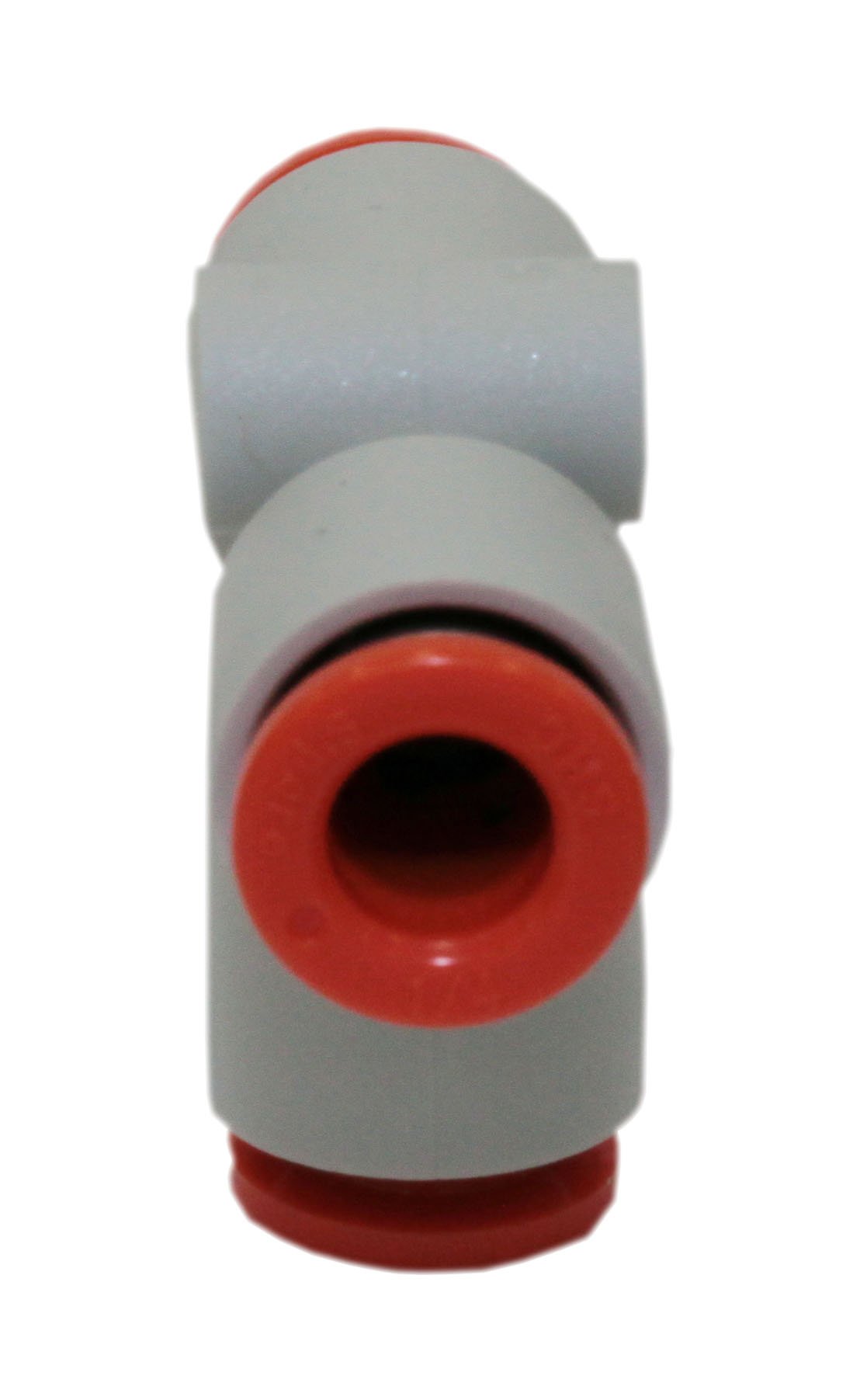

SMC KQ2T07-00A PBT Push-to-Connect Tube Fitting, Union Tee, 1/4" Tube OD

Be the first to review this item

ASIN B004M8T1H4

Product Specifications
Part Number
KQ2T07-00A
Pkg Qty
1
Material Type
PBT (Polybutylene Terephthalate)
Tube Size
1/4"
Maximum Pressure
145  PSI
LowerTemperature Range
23  Degrees Fahrenheit
Upper Temperature Range
140  Degrees Fahrenheit
Color Name
White
Item Shape
Union Tee
Manufacturer Series Number
KQ2T
Style Name
push-to-connect
Specification for this product family (See all  products)
UNSPSC Code
40183100
Brand Name
SMC Corporation

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Tee with three openings for connecting and branching three pipes
  • Accepts nylon and polyurethane tube fittings
  • Made of polybutylene terephthalate (PBT) for resistance to solvents, shrinkage, heat, and impact
  • Working pressure of up to 145 psi
  • Operating temperature ranges from -5 to 60 degrees C

Package Details

Shipping Weight: 0.02 pounds
Package Size: 1 x 1 x 0.5 inches

Product Description

The SMC KQ2T-00 tee fitting is made of polybutylene terephthalate (PBT) and has tube connectors. This tee fitting is T-shaped and has three openings to connect and branch three pipes, two on the main run and one branch at a 90-degree angle from the middle of the tee. Pipe dimensions for tees are represented as A x B x C. "A" and "B" indicate the main run on the fitting, and "C" indicates the branch. It is a push-to-connect fitting that accepts the insertion of nylon, soft nylon and polyurethane tube fittings. The fitting is made of polybutylene terephthalate (PBT), which is a polymer resistant to solvents, shrinkage, heat, and impact, and it can be treated to increase resistance to UV and flammability. The working pressure for this fitting is up to 145 pounds per square inch (psi), and its operating temperature ranges from -5 to 60 degrees C.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. Push-to-connect compression fittings do not require tools or sealants, and are useful in installations where a heat source, such as a soldering torch, is prohibited. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

SMC Corporation manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) 9000:2000 standards.
