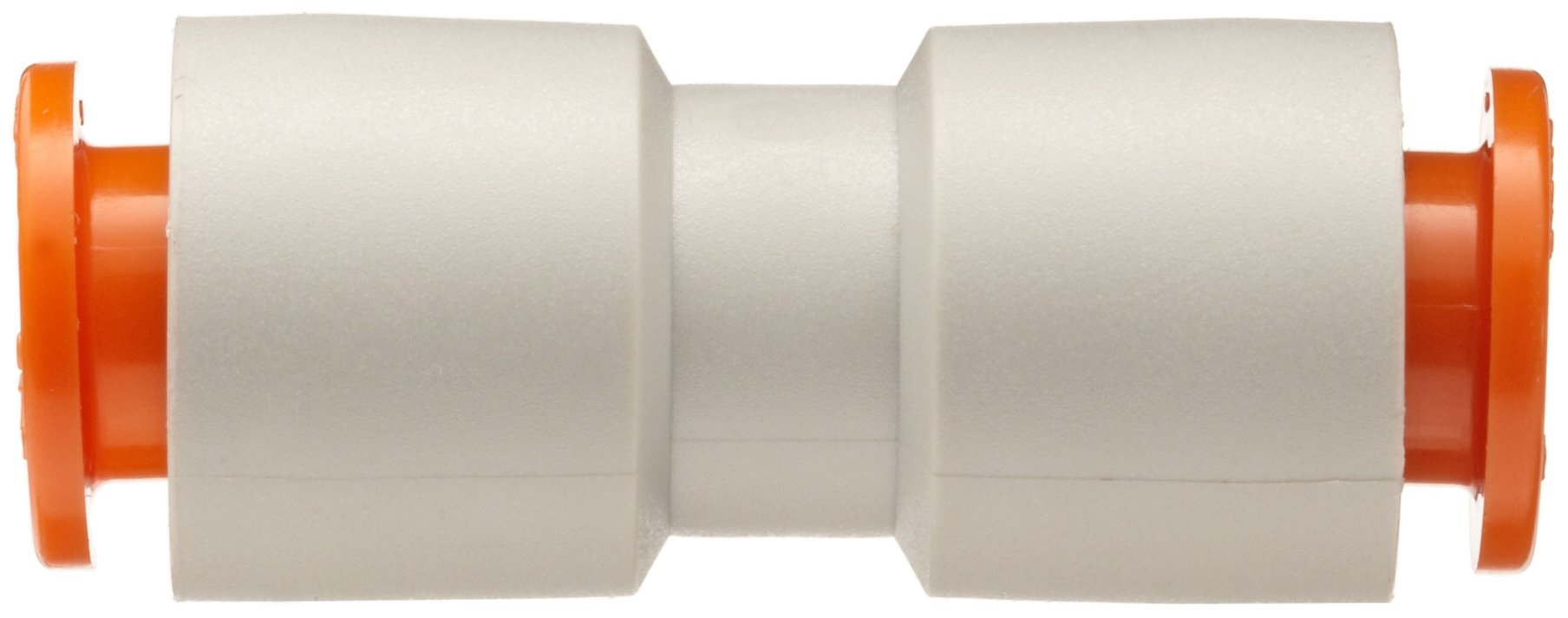

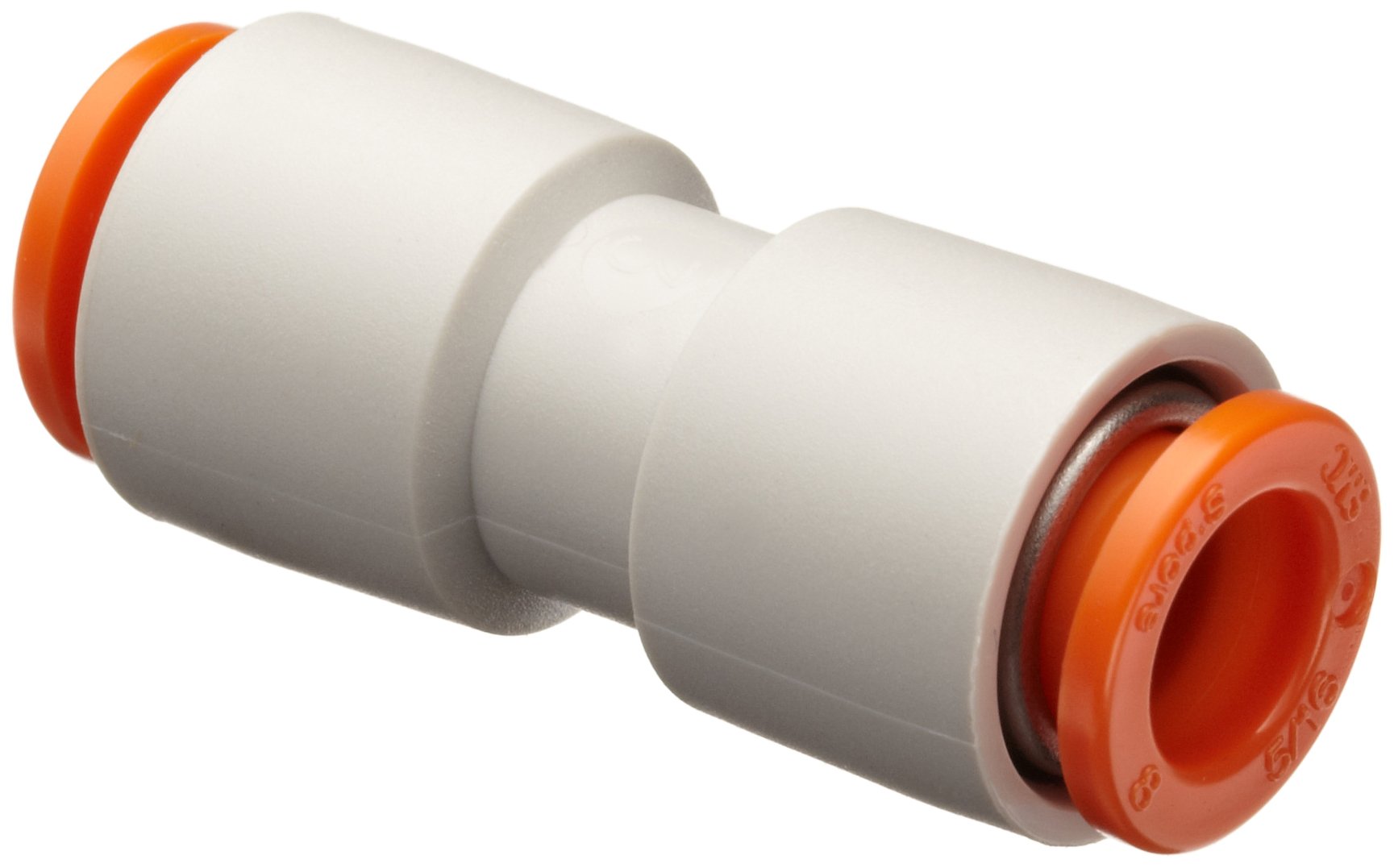

Click for larger image and other views Image is representative of the product family.

How can we improve our images or Product Specifications?

SMC KQ2H09-00A PBT Push-to-Connect Tube Fitting, Straight Union, 5/16" Tube OD

Be the first to review this item

ASIN B004M8T2RS

Product Specifications
Part Number
KQ2H09-00A
Number of Items
1
Material Type
PBT (Polybutylene Terephthalate)
Size Name
5/16"
Maximum Pressure
145  PSI
LowerTemperature Range
23  Degrees Fahrenheit
Upper Temperature Range
140  Degrees Fahrenheit
System of Measurement
Inch
UPC
094712917909
Color Name
White
Connector Type
Tube OD
EAN
0094712917909
Item Shape
Straight Union
Manufacturer Series Number
KQ2H
Style Name
push-to-connect
Specification for this product family (See all  products)
UNSPSC Code
40183100
Brand Name
SMC Corporation

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Straight union to connect two tubes
  • Push-to-connect inch tube connections on both ends
  • PBT body for resistance to corrosion
  • Operating pressure range of -14.5 to 145 psi (-100 kPa to 1 MPa)
  • Operating temperature ranges of 23 to 140 degrees F (-5 to 60 degrees C) (ambient) and 32 to 104 degrees F (0 to 40 degrees C) (fluid)

Package Details

Shipping Weight: 0.01 pounds
Package Size: 1.3 x 0.6 x 0.6 inches

Product Description

This SMC KQ2H straight union is a PBT tube fitting for connecting two tubes. It has push-to-connect inch tube connections on both ends. The body is made of for resistance to corrosion, and the tube seal is made of nitrile butadiene rubber (NBR) for resistance to oils and extreme temperatures. A chuck and collet provide secure retention of tubing, and the release button allows tube removal with little force. The fitting can be used with nylon, soft nylon, polyurethane, fluorinated ethylene propylene (FEP), and perfluoroalkoxy (PFA) tubing. It has an operating pressure range of -14.5 to 145 pounds per square inch (psi) (-100 kPa to 1 MPa), an ambient temperature range of 23 to 140 degrees F (-5 to 60 degrees C), and a fluid temperature range of 32 to 104 degrees F (0 to 40 degrees C). This PBT tube fitting is Restriction of Hazardous Substances (RoHS) compliant, and can be used in a broad range of fluid power applications, including temperature control, compressed air equipment, medical instrumentation, and motor vehicle controls, among others.

Specifications

Compatible tubing materials Nylon, soft nylon, polyurethane, FEP, PFA
Fluid Air or water
Operating pressure range 14.5 to 145 psi (-100 kPa to 1 MPa)
Operating temperature range (ambient) 23 to 140 degrees F (-5 to 60 degrees C)
Operating temperature range (fluid)) 32 to 104 degrees F (0 to 40 degrees C)

Tube fittings are components used for connecting, branching, terminating, and changing the direction of tubing in pneumatic and hydraulic systems. They are made of brass, stainless steel, polybutylene terephthalate (PBT), and other materials that resist corrosion and wear. Tube fittings have various types of connections, including threaded, welded, barbed, and push-to-connect (also called one-touch). Push-to-connect connections do not require tools or sealants. Tube fittings are used in various applications, including machine tools, airplane and truck controls, and automated production lines, among others.

SMC Corporation manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) standard 9001:2008.
