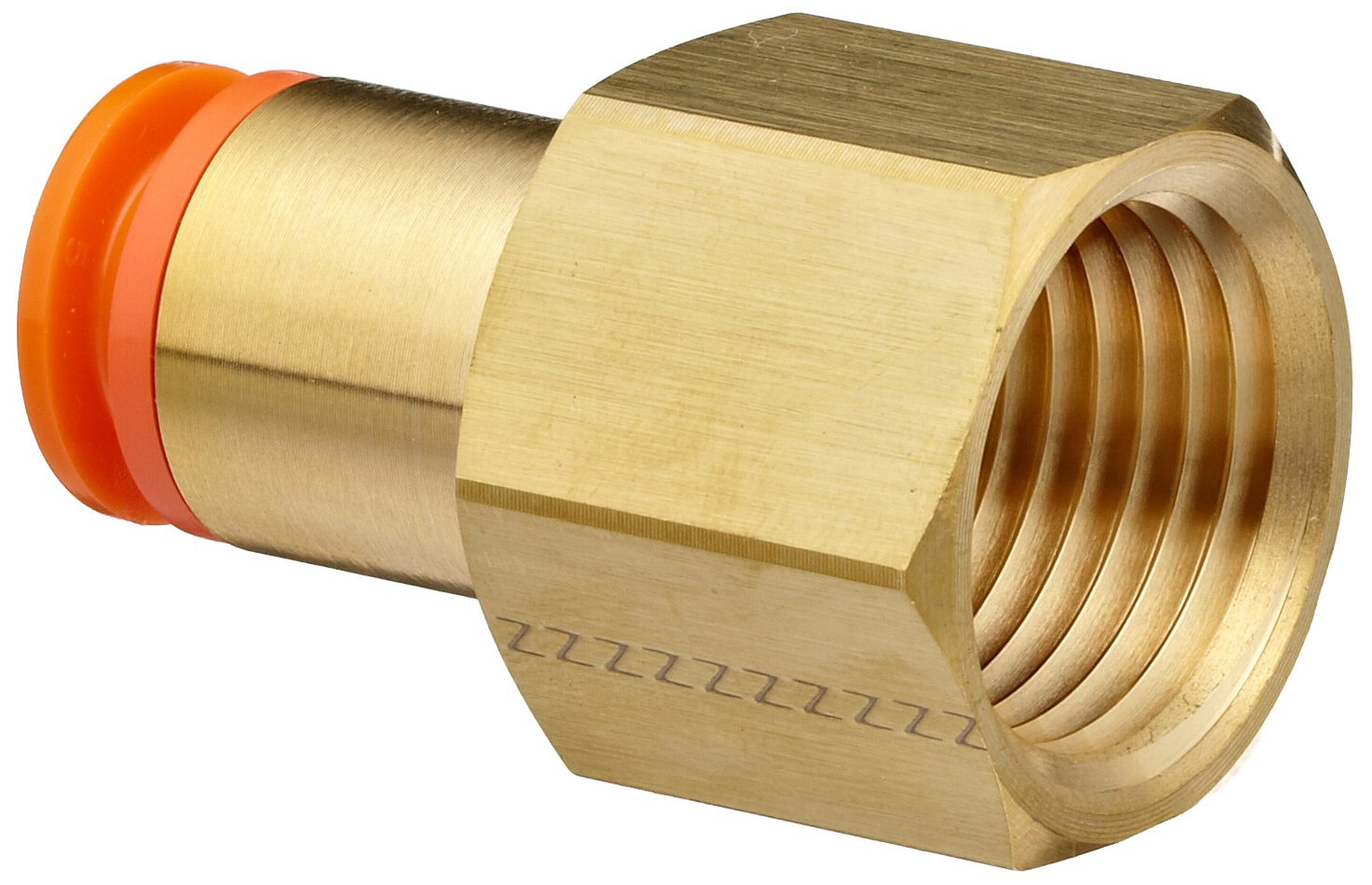

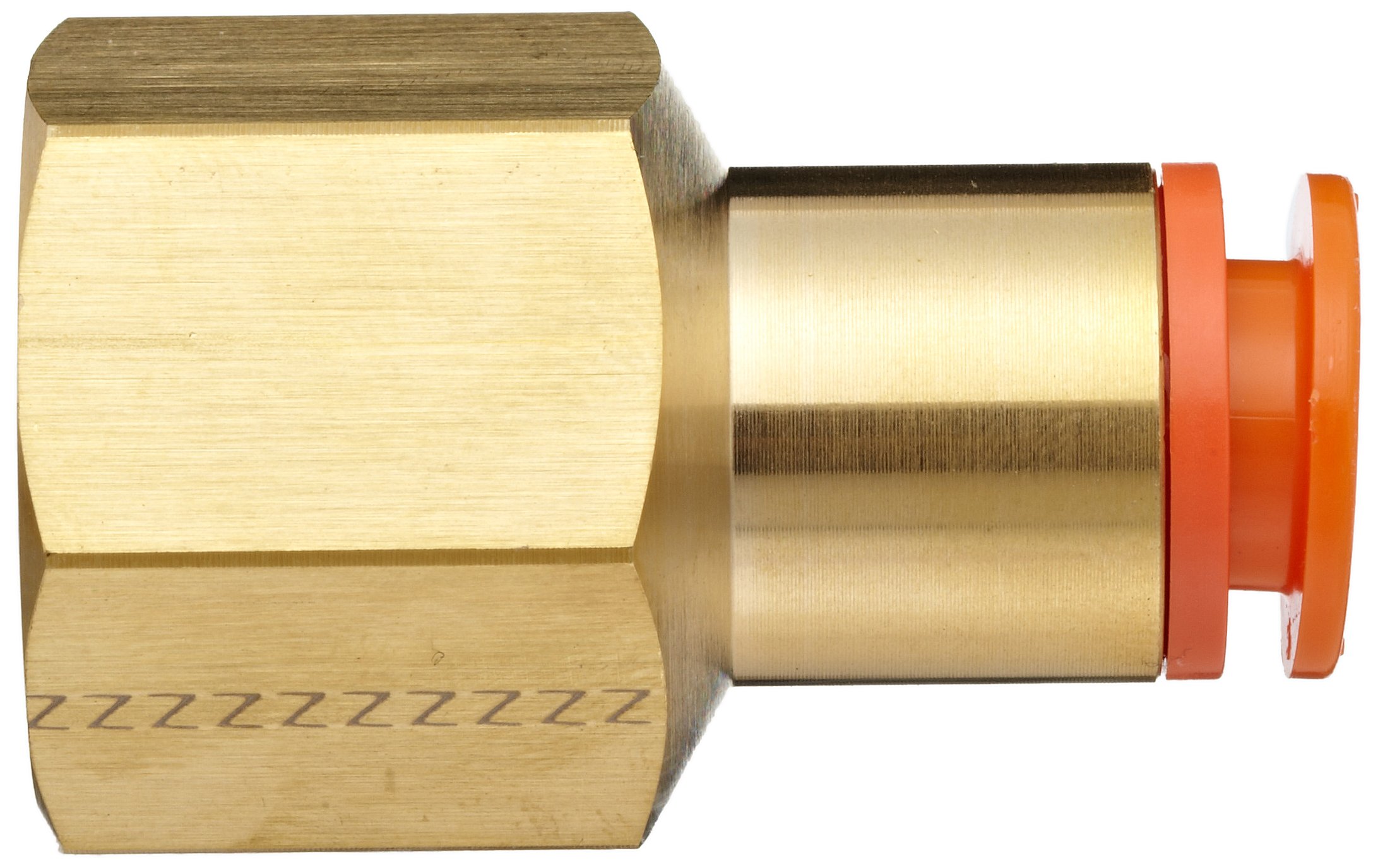

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

SMC KQ2F Push-to-Connect Tube Fitting, Adapter, Brass Body, Tube OD x NPT Female, Inch

Be the first to review this item

Product Specifications
Item Shape
Adapter
Material Type
Brass
Brand Name
SMC
Manufacturer Series Number
KQ2F
Upper Temperature Range
140  Degrees Fahrenheit
Maximum Pressure
145  PSI
Style Name
Push-to-connect
Connector Type
Tube OD x NPT Female
LowerTemperature Range
23  Degrees Fahrenheit
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 21? Order in-stock items in the next 1 day 19 hrs 15 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-9 of 9
Tube Size Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-9 of 9
1/8" Tube OD x 1/8" NPT Female 1 B004M8T2VO 10 $3.59 Buy Options
5/32" Tube OD x 1/8" NPT Female 1 B004M8T2ZU 6 $3.38 Buy Options
1/4" Tube OD x 1/4" NPT Female 1 B004M8T278 102 $3.77 Buy Options
5/16" Tube OD x 1/8" NPT Female 1 B004M8T21Y 13 $4.89 Buy Options
3/8" Tube OD x 1/4" NPT Female 1 B004M8T2BO 30 $5.09 Buy Options
3/8" Tube OD x 3/8" NPT Female 1 B004M8T1VK 35 $6.15 Buy Options
3/8" Tube OD x 1/2" NPT Female 1 B0065RO0PS 37 $7.73 Buy Options
1/2" Tube OD x 3/8" NPT Female 1 B0065R6KC4 4 $7.57 Buy Options
1/2" Tube OD x 1/2" NPT Female 1 B0065R64MK 9 $7.00 Buy Options

Key Features

  • Female adapter to connect a tube to a male thread
  • Push-to-connect inch tube connection on one end and female NPT threads on the other end
  • Brass body and threads for resistance to corrosion
  • Operating pressure range of -14.5 to 145 psi (-100 kPa to 1 MPa)
  • Operating temperature ranges of 23 to 140 degrees F (-5 to 60 degrees C) (ambient) and 32 to 104 degrees F (0 to 40 degrees C) (fluid)

Product Description

This SMC KQ2F female adapter (also called connector) is a brass tube fitting for connecting a tube to a male thread. It has a push-to-connect inch tube connection on one end and female National Pipe Thread Taper (NPT) threads on the other end. The body and threads are made of Japanese Industrial Standard (JIS) C3604 brass for corrosion resistance, and the tube seal is made of nitrile butadiene rubber (NBR) for resistance to oils and extreme temperatures. A chuck and collet provide secure retention of tubing, and the release button allows tubing to be removed with little force. The fitting can be used with nylon, soft nylon, polyurethane, fluorinated ethylene propylene (FEP), and perfluoroalkoxy (PFA) tubing. It has an operating pressure range of -14.5 to 145 pounds per square inch (psi) (-100 kPa to 1 MPa), an ambient temperature range of 23 to 140 degrees F (-5 to 60 degrees C), and a fluid temperature range of 32 to 104 degrees F (0 to 40 degrees C). This brass tube fitting is Restriction of Hazardous Substances (RoHS) compliant, and can be used in a broad range of fluid power applications, including temperature control, compressed air equipment, medical instrumentation, and motor vehicle controls, among others.

Specifications

Connection thread Female NPT
Thread material JIS C3604 brass
Compatible tubing materials Nylon, soft nylon, polyurethane, FEP, PFA
Fluid Air or water
Operating pressure range 14.5 to 145 psi (-100 kPa to 1 MPa)
Operating temperature range (ambient) 23 to 140 degrees F (-5 to 60 degrees C)
Operating temperature range (fluid)) 32 to 104 degrees F (0 to 40 degrees C)

Tube fittings are components used for connecting, branching, terminating, and changing the direction of tubing in pneumatic and hydraulic systems. They are made of brass, stainless steel, polybutylene terephthalate (PBT), and other materials that resist corrosion and wear. Tube fittings have various types of connections, including threaded, welded, barbed, and push-to-connect (also called one-touch). Push-to-connect connections do not require tools or sealants. Tube fittings are used in various applications, including machine tools, airplane and truck controls, and automated production lines, among others.

SMC Corporation manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) standard 9001:2008.
