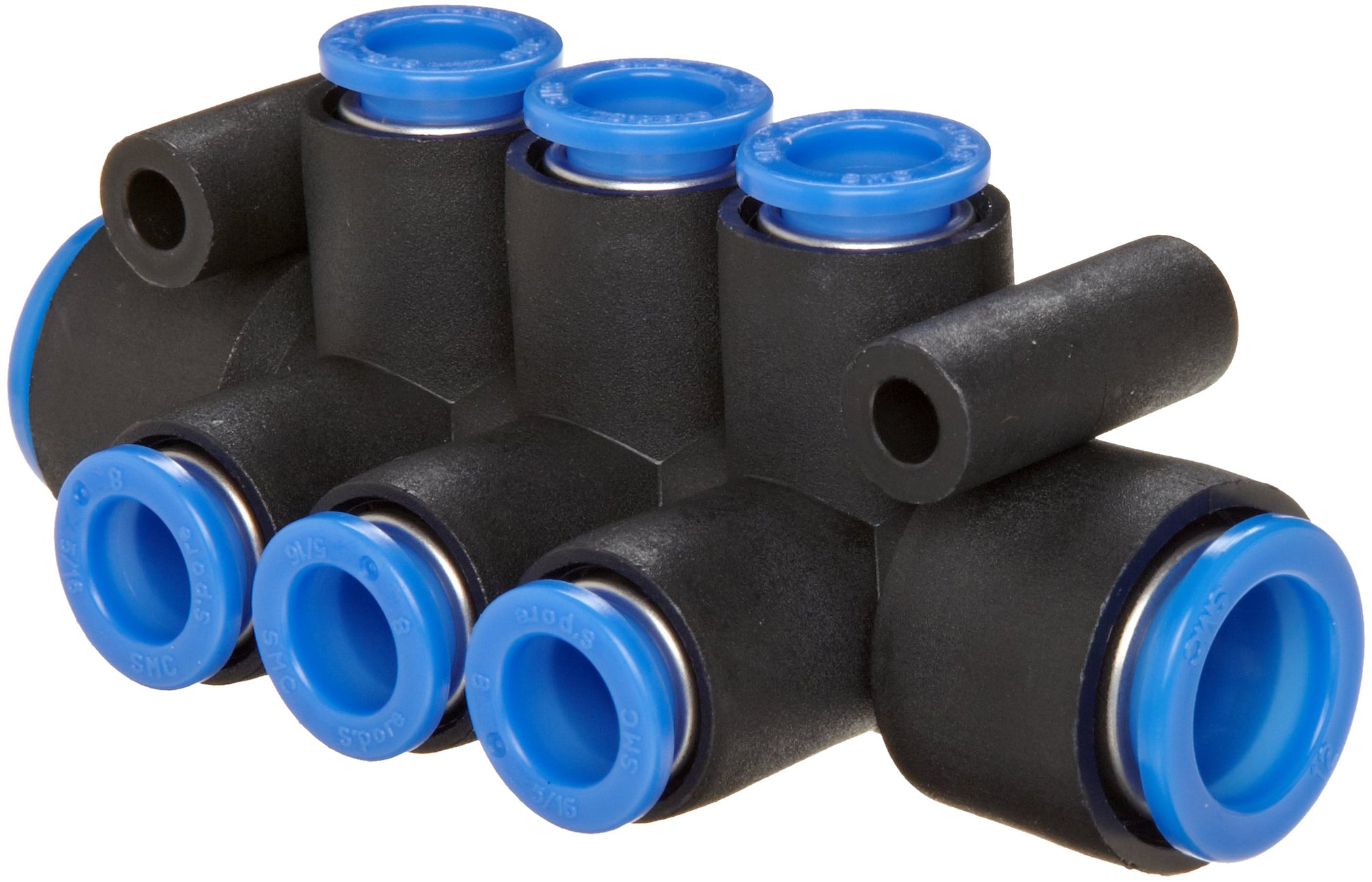

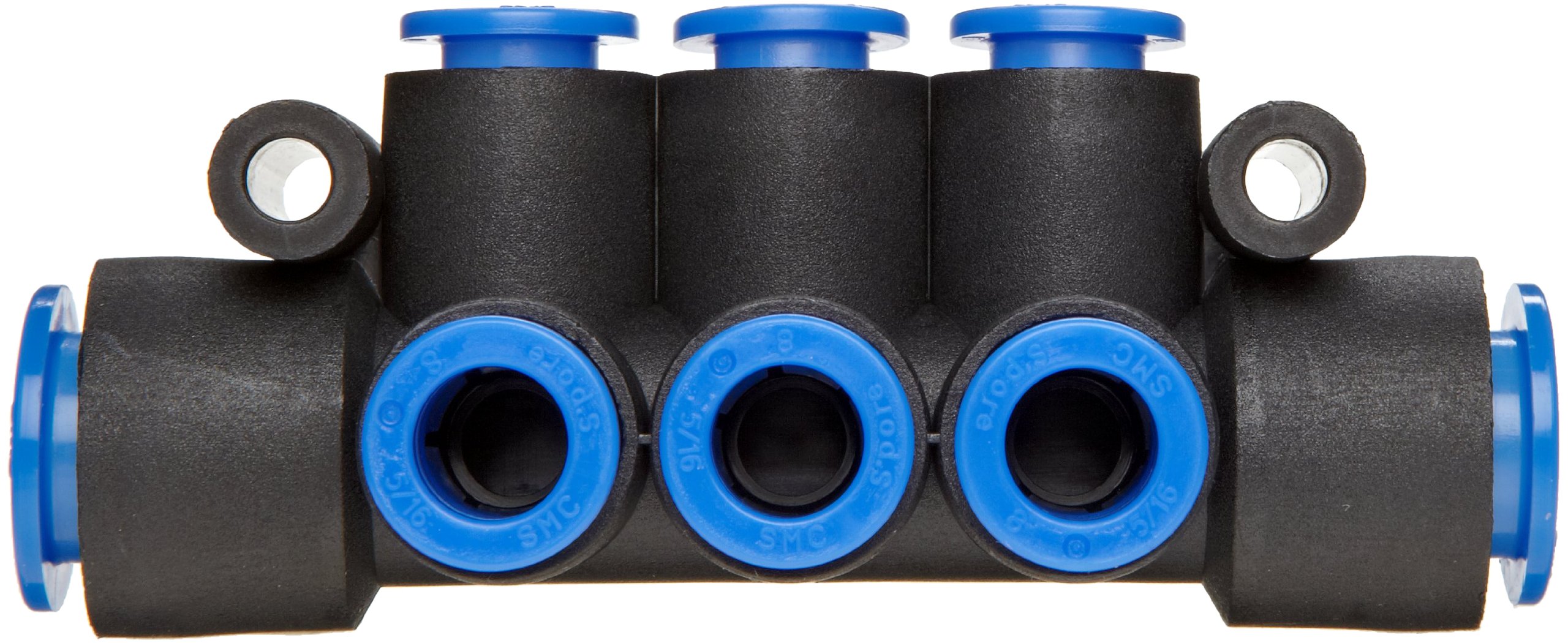

SMC KM11-08-12-6 PBT Push-To-Connect Tubing Manifold, 2 Inlets-12 mm, 6 Outlets-8 mm Tube OD

Be the first to review this item

ASIN B0055DP0J8

Product Specifications
Brand Name
SMC Corporation
Part Number
KM11-08-12-6
Tube Size
12 mm Inlets (2) x 8 mm Outlets (6)
Maximum Pressure
145  PSI
System of Measurement
Metric
Item Shape
Manifold
Manufacturer Series Number
KM11
Style Name
push-to-connect
Specification for this product family (See all  products)
Upper Temperature Range
60  Degrees Celsius
Specification Met
JIS B 0203
Color Name
Black
Material Type
PBT (Polybutylene Terephthalate)
LowerTemperature Range
-5  Degrees Celsius
Price:
$13.90
Quantity:

In Stock (3)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 25? Order in-stock items in the next 8 hrs 33 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Model: 11 , Number of Ports: 6
  • Port A One-touch Fitting, Port B One-touch Fitting
  • KM, One-touch Fittings Manifold Series
  • One-touch fittings give the most efficient operation
  • Compact and Manifold piping possible

Package Details

Shipping Weight: 0.1 pounds
Package Size: 4.7 x 2.4 x 1.6 inches

Product Description

This fitting is made with an easy one-touch, low force, push-to-connect fitting design from SMC, the world leader in pneumatic product design. Simple installation--push the tubing in, and the connection is complete. To release the tubing, press the circular release ring on the fitting, and you can easily pull the tube out. The compact design of this fitting allows easy installation in confined spaces. The swivel capability lets you re-position for the best access. Excellent quality including Buna-N o-rings and factory applied sealant ensure an air tight installation. Release collar allows easy removal of tubing without damaging the tube. Built-in sealant helps prevent leaks, and saves time, making installation easier. Can be used in both positive pressure and vacuum pressure environments from -15 (vacuum) to 150 psi. Stud allows rotation of the body for ease of installation in confined spaces. Can be used with air or water.
