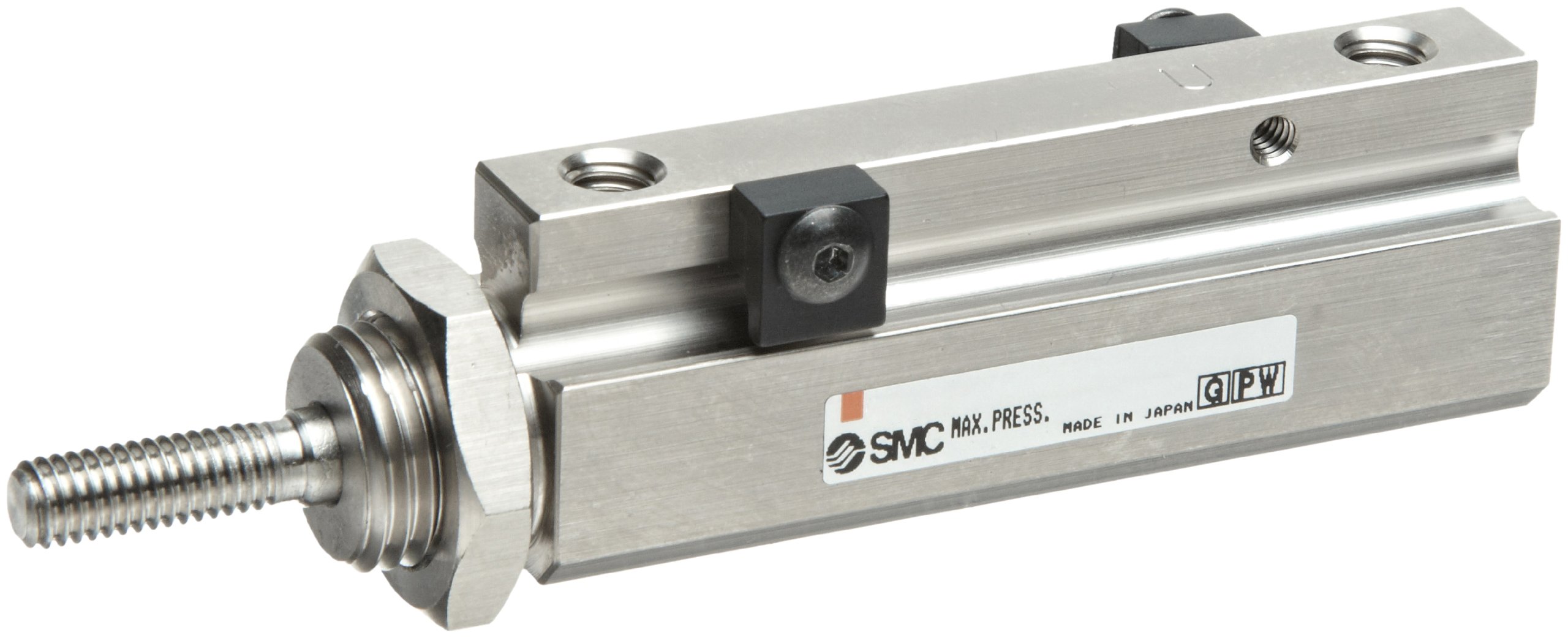

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

SMC NCJP Series Pin Air Cylinder, Compact, Double Acting, Basic Style Mounting, Switch Ready, Cushioned

Be the first to review this item

Product Specifications
Item Shape
Compact
Cushion Material Type
Rubber
Switch Type
Switch Ready
Construction Type
Single Rod
Brand Name
SMC Corporation
Maximum Temperature
60  Degrees Celsius
Manufacturer Series Number
NCJP
Upper Temperature Range
140  Degrees Fahrenheit
Mounting Type
Basic Style
UNSPSC Code
24111802
Maximum Working Pressure
102  PSI
System of Measurement
Inch
LowerTemperature Range
41  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Sep 4? Order in-stock items in the next 14 hrs 57 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-14 of 14
Bore Size Stroke Length Rod Diameter Rod Thread Length Port Size Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-14 of 14
5/8" 1" 0.236" 0.50" 10-32 UNF 1 NCDJPB15-100D B005JGQJ9G yes $45.07 Buy Options
3/8" 1/4" 0.197" 0.50" 10-32 UNF 1 NCDJPB10-025D B005JGQILU yes $32.05 Buy Options
3/8" 1/2" 0.197" 0.50" 10-32 UNF 1 NCDJPB10-050D B005JGQIQK yes $31.70 Buy Options
3/8" 1-1/4" 0.197" 0.50" 10-32 UNF 1 NCDJPB10-125D B005JGQIYC yes $38.58 Buy Options
5/8" 3/8" 0.236" 0.50" 10-32 UNF 1 NCDJPB15-037D B005JGQJ28 yes $37.50 Buy Options
1/4" 1/4" 0.125" 0.38" 10-32 UNF 1 NCDJPB6-025D B005JGQJEG yes $15.89 Buy Options
5/8" 1-1/4" 0.236" 0.50" 10-32 UNF 1 NCDJPB15-125D B005JGQJBY yes $41.31 Buy Options
5/8" 1/4" 0.236" 0.50" 10-32 UNF 1 NCDJPB15-025D B005JGQJ0U yes $36.65 Buy Options
1/4" 1/2" 0.125" 0.38" 10-32 UNF 1 NCDJPB6-050D B005JGQJHS yes $30.52 Buy Options
1/4" 3/8" 0.125" 0.38" 10-32 UNF 1 NCDJPB6-037D B005JGQJG4 yes $9.98 Buy Options
5/8" 1/2" 0.236" 0.50" 10-32 UNF 1 NCDJPB15-050D B005JGQJ46 yes $39.07 Buy Options
5/8" 3/4" 0.236" 0.50" 10-32 UNF 1 NCDJPB15-075D B005JGQJ78 yes $39.72 Buy Options
1/4" 3/4" 0.125" 0.38" 10-32 UNF 1 NCDJPB6-075D B005JGQJKA yes $31.63 Buy Options
3/8" 1" 0.197" 0.50" 10-32 UNF 1 NCDJPB10-100D B005JGQIU6 yes $32.23 Buy Options

Key Features

  • Double-acting air (pneumatic) cylinder with two air ports for pushing and pulling the piston rod in both directions
  • Compact pin-style body with single threaded piston rod for linear movement in limited spaces
  • Brass body for resistance to corrosion with a stainless-steel piston rod
  • Basic-style mounting with rod end and mounting nuts for attaching brackets (sold separately)
  • Switch ready with magnet sensor installed for connecting to electrical circuits for automation

Product Description

This SMC double-acting NCJP Series air cylinder has a compact pin-style body, basic-style mounting, and comes "switch ready" for connecting to mechanical proximity and limit switches for precise timing in automated applications. The air cylinder (also called a pneumatic cylinder) has a brass body for high corrosion resistance, and it comes with a single piston rod made of stainless steel. The double-acting air cylinder uses airflow through two air ports on opposite ends of the cylinder barrel to push out and retract the piston rod to produce continued movement. The pin cylinder has rubber bumpers (cushions) inside the cylinder barrel to absorb kinetic energy and to dampen the sound of the piston striking the end caps. This air cylinder is "switch ready" with a magnet sensor installed for connecting to an electrical circuit for pneumatic automation. The air cylinder has basic-style mounting and includes a mounting nut to hold any added brackets (sold separately) in place. The maximum pressure of the pneumatic cylinder is 100 pounds per square inch (psi), and it has a temperature range of 14 to 140 degrees F. This non-repairable air cylinder, with its minimal mounting space needs and short stroke length, is suitable for use in linear applications in cramped spaces.

Pneumatic actuators fall into two classes: linear and rotary. Linear actuators move objects in straight lines, while rotary actuators turn objects, or rotate them in varying directions. Air cylinders (also called pneumatic cylinders), the most common type of linear actuators, use pressurized air to pull and push piston rods in and out of cylinder barrels. This motion moves mechanisms connected to the rods, or (for detached items) directs or blocks travel using rod-attached plates. Air cylinders execute pushing, pulling, lifting, lowering, pressing, and stopping functions, and they come in several different body types, including round, compact, tie-rod, guided, slide, and clamp. Pneumatic cylinders can be either single acting, with one compressed air port to push the rod in a single direction and a spring to return the rod, or double acting, with two compressed air ports on opposite ends of the cylinder to both extend and retract the rod. For quieter piston operation, air cylinders can come with cushioning in one or both ends of their barrels. Several mounting styles are available both for attaching the air cylinder ends to moving components in a pneumatic system and for mounting to rigid surfaces. Air cylinders are used in industrialized automation tasks in automotive, food processing, material handling, and robotics applications, among others.

SMC Corporation manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) 9000:2000 standards.
