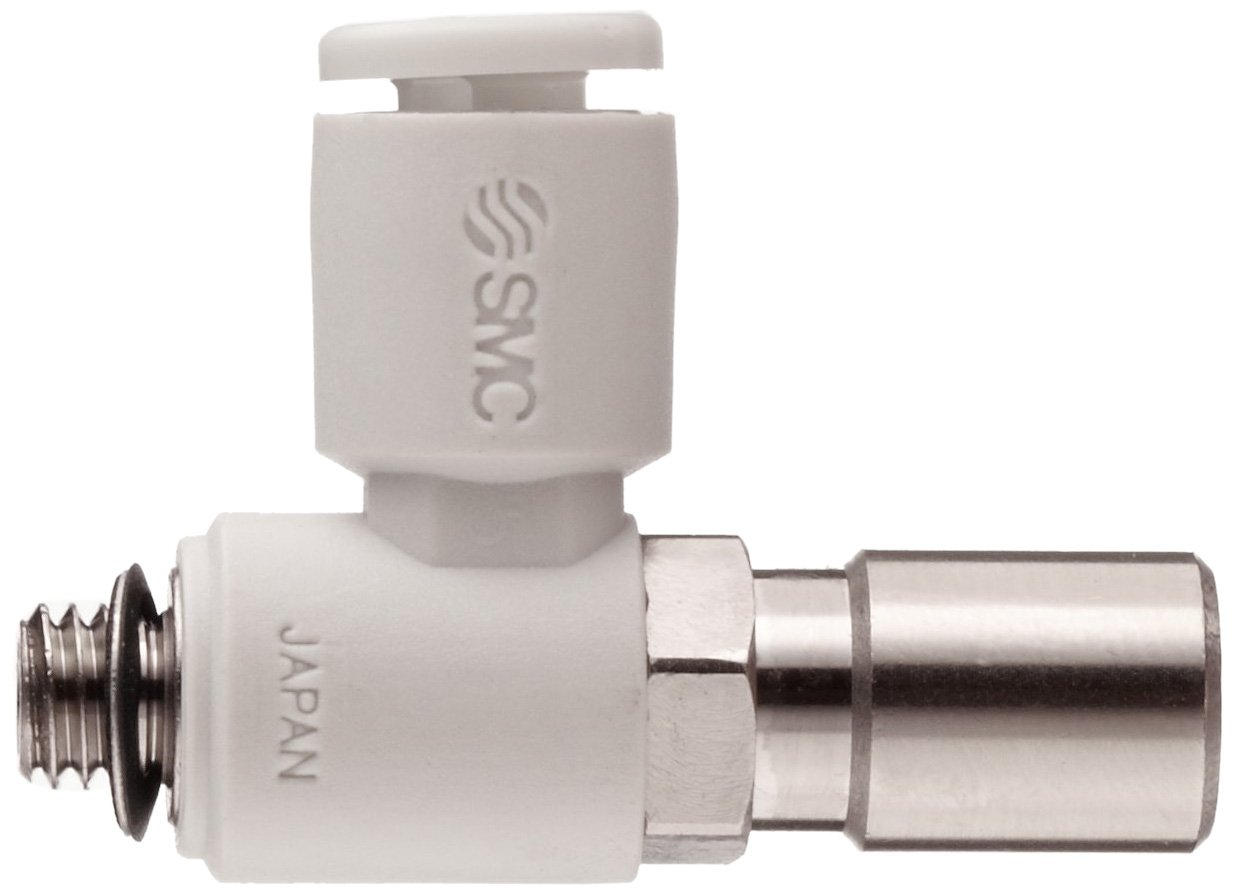

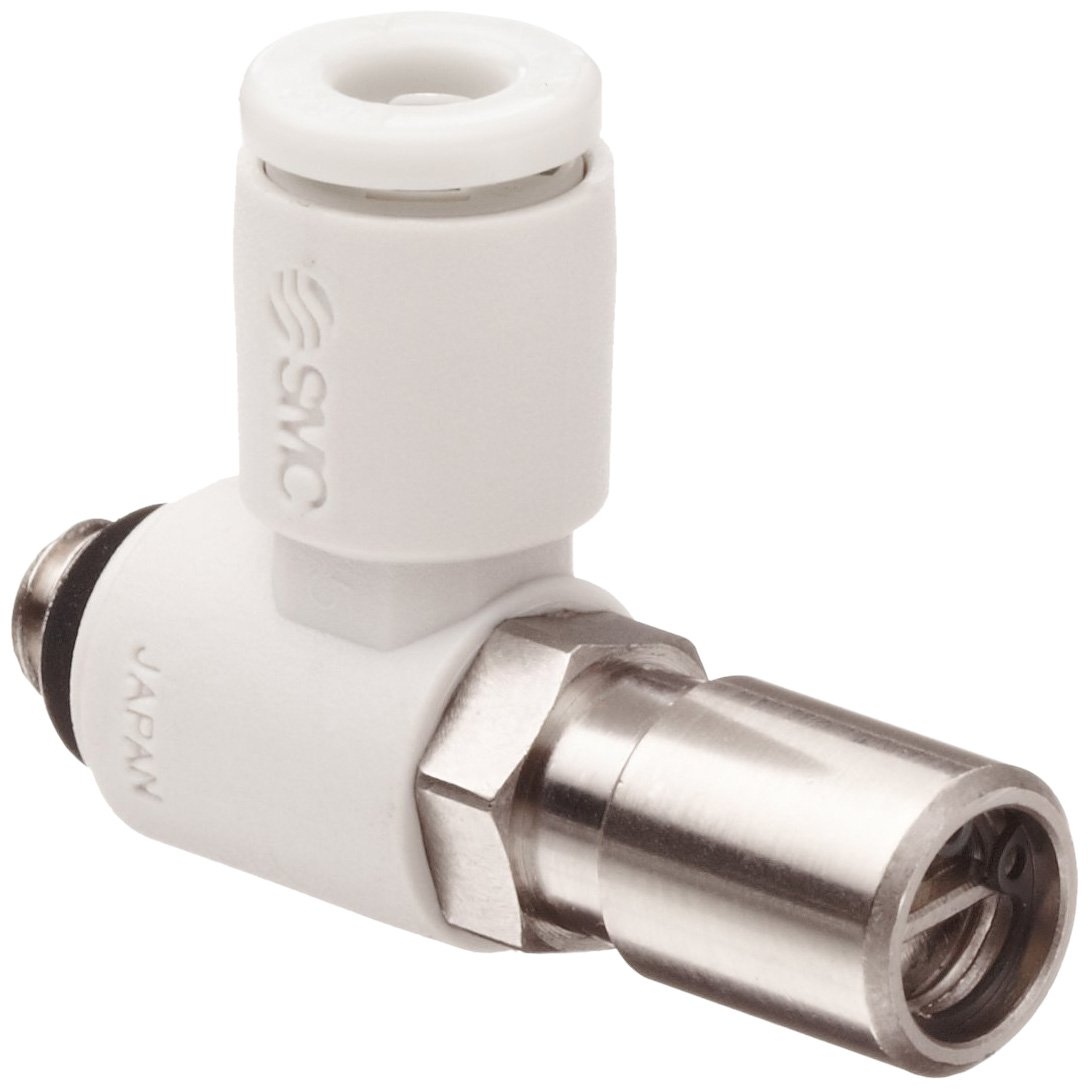

SMC AS Air Flow Control Valve, PBT & Nickel Plated Brass, Elbow, Screwdriver Adjusting, Metric Thread Male X Push-to-Connect Fitting

Be the first to review this item

Product Specifications
Inlet Connection Type
Metric Thread
Outlet Connection Type
Push-to-Connect
Item Shape
Elbow
Material Type
Polybutylene Terephthalate (PBT) & Nickel Plated Brass
Outlet Location
Outlet on side
Temperature Range
23 - 140  Degrees Fahrenheit
UNSPSC Code
40141609
Brand Name
SMC Corporation

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 28? Order in-stock items in the next 1 day 18 hrs 1 min and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-1 of 1
Compatible with pipe size string Compatible tube outside diameter string Pressure flow rate Number of items Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-1 of 1
M5 millimeters 4 26.42 gallons_per_minute 1 AS1201F-M5-04D B004YWS4JE yes $3.75 Buy Options

Key Features

  • Elbow type air flow control valve for controlling the speed of pneumatic cylinders
  • Polybutylene terephthalate (PBT) body for strength and light weight, internal metal parts of nickel-plated brass for corrosion resistance
  • Meter-out configuration with male metric threads on the inlet port and a push-to-connect fitting on the outlet port
  • Screwdriver adjustment of flow with eight needle rotations for precise manual control
  • Temperature range of 23 to 140 degrees F (-5 to 60 degrees C)

Product Description

The SMC AS elbow air flow control valve with screwdriver adjusting is made of polybutylene terephthalate (PBT) plastic and nickel-plated brass with male metric threads on the inlet port and a push-to-connect tube fitting on the outlet port. The valve body is made of PBT for strength and light weight, and the internal metal parts are made of nickel-plated brass for resistance to corrosion. This valve is designed to be located downstream of the cylinder for meter-out control. Air flow is set with a flat head screwdriver and there are eight needle rotations for precise manual control of the flow rate. The push-to-connect outlet fitting allows a one-touch connection to nylon, soft nylon, or polyurethane tubing. The maximum operating pressure is 145 pounds per square inch (psi), and the ambient and fluid temperature range is 23 to 140 degrees F (-5 to 60 degrees C).

Air flow control valves (also called speed controllers) regulate the flow of compressed air into or out of pneumatic cylinders to control the speed of motion of the piston in the cylinder. The valves have an adjustable metering needle and a check valve to control the flow in only one direction. Air entering the valve is blocked by the check valve and forced to pass through the needle valve, and the position of the needle is adjusted to determine the rate of flow. Pneumatic systems with cylinders are used for applications such as truck and train air brakes, air compressors, and tools for mining, manufacturing, and construction.

SMC Corporation of America, a U.S. subsidiary of SMC Corporation in Japan, was founded in 1959 in Tokyo. SMC manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and a broad range of related accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) 9000:2000 standards.
