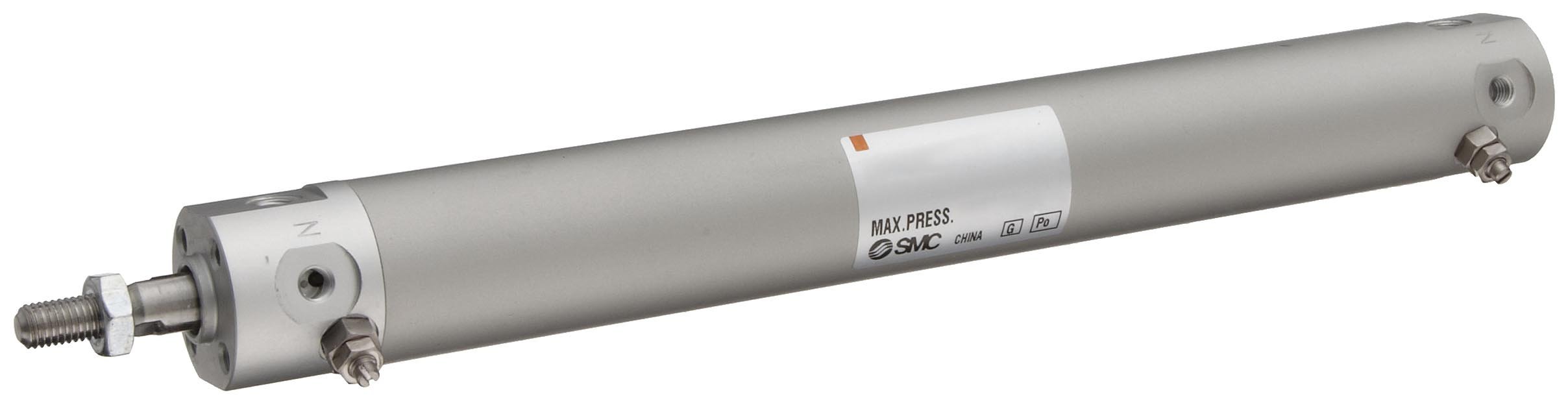

SMC NCG Series Aluminum Air Cylinder, Round Body, Double Acting, Basic Style Mounting, Switch Ready, Cushioned

Be the first to review this item

Product Specifications
Item Shape
Round Body
Seal Material Type
Low Nitrile Rubber
Cushion Material Type
Cushioned
Switch Type
Switch Ready
Material Type
Aluminum
Construction Type
Single Rod
Brand Name
SMC Corporation
Maximum Temperature
60  Degrees Celsius
Manufacturer Series Number
NCG
Upper Temperature Range
140  Degrees Fahrenheit
Mounting Type
Basic Style
UNSPSC Code
24111802
Maximum Working Pressure
145  PSI
System of Measurement
Inch
LowerTemperature Range
50  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 11 hrs 15 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 51 Next 20 »
Bore Size Stroke Length Rod Diameter Rod Thread Length Port Size Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-20 of 51 Next 20 »
1" 5" 0.394" 0.55" 1/8" NPT 1 NCDGBA25-0500 B005JGQBV2 yes $52.50 Buy Options
3/4" 6" 0.315" 0.55" 10-32 UNF 1 NCDGBA20-0600 B005JGQBEE yes $49.60 Buy Options
1-1/2" 1" 0.630"   1/8" NPT 1 NCDGBA40-0100 B005JGQCK2 yes $63.55 Buy Options
1-1/4" 4" 0.472" 0.83" 1/8" NPT 1 NCDGBA32-0400 B005JGQC7A yes $56.45 Buy Options
1-1/2" 5" 0.630"   1/8" NPT 1 NCDGBA40-0500 B005JGQCZW yes $71.35 Buy Options
1-1/2" 4" 0.630"   1/8" NPT 1 NCDGBA40-0400 B005JGQCXY yes $69.40 Buy Options
2" 3" 0.787"   1/4" NPT 1 NCDGBA50-0300 B005JGQD9C yes $84.20 Buy Options
3/4" 8" 0.315" 0.55" 10-32 UNF 1 NCDGBA20-0800 B005JGQBIA yes $52.50 Buy Options
1-1/4" 6" 0.472" 0.83" 1/8" NPT 1 NCDGBA32-0600 B005JGQCH0 yes $59.35 Buy Options
1" 1" 0.394" 0.55" 1/8" NPT 1 NCDGBA25-0100 B005JGQBOO yes $46.70 Buy Options
1-1/4" 2" 0.472" 0.83" 1/8" NPT 1 NCDGBA32-0200 B005JGQC1G yes $53.55 Buy Options
1-1/2" 3" 0.630"   1/8" NPT 1 NCDGBA40-0300 B005JGQCUC yes $35.38 Buy Options
1-1/4" 3" 0.472" 0.83" 1/8" NPT 1 NCDGBA32-0300 B005JGQC3Y yes $55.00 Buy Options
1-1/2" 8" 0.630"   1/8" NPT 1 NCDGBA40-0800 B005JGQD5Q yes $77.20 Buy Options
1" 3" 0.394" 0.55" 1/8" NPT 1 NCDGBA25-0300 B005JGQBSU yes $49.60 Buy Options
1" 2" 0.394" 0.55" 1/8" NPT 1 NCDGBA25-0200 B005JGQBQC yes $20.07 Buy Options
1-1/2" 2" 0.630"   1/8" NPT 1 NCDGBA40-0200 B005JGQCOI yes $65.50 Buy Options
2-1/2" 5" 0.787"   1/4" NPT 1 NCDGBA63-0500 B005JGQDCO yes $109.10 Buy Options
1-1/4" 5" 0.472" 0.83" 1/8" NPT 1 NCDGBA32-0500 B005JGQC9I yes $57.90 Buy Options
1-1/4" 1" 0.472" 0.83" 1/8" NPT 1 NCDGBA32-0100 B005JGQBXA yes $52.10 Buy Options

Key Features

  • Double-acting air (pneumatic) cylinder with two air ports for pushing and pulling the piston rod in both directions
  • Repairable round body with a single piston rod for use in linear applications
  • Anodized aluminum body for resistance to corrosion and tarnishing
  • Basic-style mounting with rod end nut for use with added brackets (sold separately)
  • Switch ready with magnet sensor installed for connecting to electrical circuits for automation

Product Description

This SMC double-acting NCG Series air cylinder has a repairable round body, basic-style mounting, and comes "switch ready" for connecting to mechanical proximity and limit switches for precise timing in automated applications. The air cylinder (also called a pneumatic cylinder) has an anodized aluminum body to help resist corrosion and tarnishing, and it comes with a single piston rod. The double-acting air cylinder uses airflow through two air ports on opposite ends of the cylinder barrel to push out and retract the piston rod to produce continued movement. The pneumatic cylinder has air cushioning inside the cylinder barrel to absorb kinetic energy and to dampen the sound of the piston striking the end caps. Low nitrile rubber seals that contain air help protect the barrel and piston rod. This air cylinder is "switch ready" with a magnet sensor installed for connecting to electrical circuits for pneumatic automation. The air cylinder has basic-style mounting and includes a rod end nut to hold brackets (sold separately) in place. The maximum pressure of the air cylinder is 145 pounds per square inch (psi), and it has a temperature range of 14 to 140 degrees F. This repairable air cylinder is suitable for use in high speed operations and in tight spaces.

Pneumatic actuators fall into two classes: linear and rotary. Linear actuators move objects in straight lines, while rotary actuators turn objects, or rotate them in varying directions. Air cylinders (also called pneumatic cylinders), the most common type of linear actuators, use pressurized air to pull and push piston rods in and out of cylinder barrels. This motion moves mechanisms connected to the rods, or (for detached items) directs or blocks travel using rod-attached plates. Air cylinders execute pushing, pulling, lifting, lowering, pressing, and stopping functions, and they come in several different body types, including round, compact, tie-rod, guided, slide, and clamp. Pneumatic cylinders can be either single acting, with one compressed air port to push the rod in a single direction and a spring to return the rod, or double acting, with two compressed air ports on opposite ends of the cylinder to both extend and retract the rod. For quieter piston operation, air cylinders can come with cushioning in one or both ends of their barrels. Several mounting styles are available both for attaching the air cylinder ends to moving components in a pneumatic system and for mounting to rigid surfaces. Air cylinders are used in industrialized automation tasks in automotive, food processing, material handling, and robotics applications, among others.

SMC Corporation manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) 9000:2000 standards.
