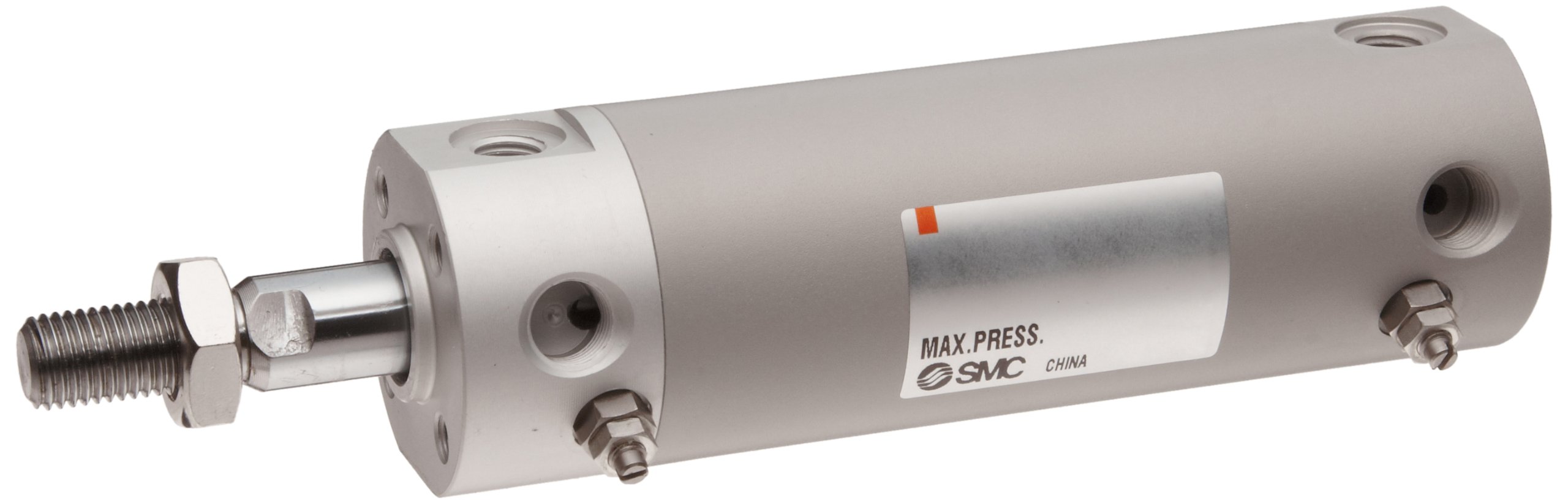

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

SMC CG1 Series Aluminum Air Cylinder, Round body, Double Acting, Basic Style Mounting, Switch Ready, Cushioned

Be the first to review this item

Product Specifications
Item Shape
Round body
Bore Size
Not Listed  inches
Seal Material Type
NBR
Cushion Material Type
Cushioned
Switch Type
Switch Ready
Material Type
Aluminum
Construction Type
Single Rod
Brand Name
SMC Corporation
Maximum Temperature
70  Degrees Celsius
Manufacturer Series Number
CG1
Upper Temperature Range
158  Degrees Fahrenheit
Mounting Type
Basic Style
UNSPSC Code
24111802
Maximum Working Pressure
145  PSI
System of Measurement
Metric
LowerTemperature Range
14  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 22? Order in-stock items in the next 9 hrs 5 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Stroke Length Rod Diameter Rod Thread Length Port Size Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-8 of 8
50 mm 10 mm 19.5 mm 1/8" BSPT 1 CDG1BA32-50 B005JGKBRM yes $64.80 Buy Options
100 mm 10 mm 19.5 mm 1/8" BSPT 1 CDG1BN32-100 B005JGKGFO yes $53.30 Buy Options
100 mm 18 mm 32 mm 1/4" BSPT 1 CDG1BN50-100 B005JGKIIE yes $105.15 Buy Options
125 mm 14 mm 27 mm 1/8" BSPT 1 CDG1BN40-125 B005JGKH94 yes $97.84 Buy Options
25 mm 6 mm 15.5 mm 1/8" BSPT 1 CDG1BN20-25 B005JGKCNU yes $42.65 Buy Options
50 mm 6 mm 15.5 mm 1/8" BSPT 1 CDG1BN20-50 B005JGKE1A yes $44.64 Buy Options
50 mm 8 mm 19.5 mm 1/8" BSPT 1 CDG1BN25-50 B005JGKEL0 yes $43.20 Buy Options
75 mm 8 mm 19.5 mm 1/8" BSPT 1 CDG1BN25-75 B005JGKFOG yes $66.12 Buy Options

Key Features

  • Double-acting air (pneumatic) cylinder with two air ports for pushing and pulling the piston rod in both directions
  • Round body with a single piston rod for linear applications
  • Anodized aluminum for resistance to corrosion and tarnishing
  • Basic-style mounting with rod end nut for mounting/attaching brackets (sold separately)
  • Switch ready with magnet sensor installed for connecting to electrical circuits for automation

Product Description

This SMC double-acting CG1 Series air cylinder has a round body, basic-style mounting, and comes "switch ready" for connecting to mechanical proximity and limit switches for precise timing in automated applications. The air cylinder (also called a pneumatic cylinder) has an anodized aluminum body to help resist corrosion and tarnishing, and it has a single piston rod. The double-acting air cylinder uses airflow through two air ports on opposite ends of the cylinder barrel to push out and retract the piston rod to produce continued movement. This air cylinder comes with either rubber or air cushioning inside the cylinder barrel to absorb kinetic energy and to dampen the sound of the piston striking the end caps, and it has nitrile butadiene rubber (NBR) seals to contain air and protect the barrel and piston rod. This air cylinder is "switch ready" with a magnet sensor installed for connecting to electrical circuits for pneumatic automation. The air cylinder has basic-style mounting and includes a rod-end nut to hold in place bracket additions, like foot brackets (sold separately). The maximum pressure of the pneumatic cylinder is 145 pounds per square inch (psi), and it has a temperature range of 14 to 140 degrees F. This repairable air cylinder is suitable for a wide variety of linear applications.

Pneumatic actuators fall into two classes: linear and rotary. Linear actuators move objects in straight lines, while rotary actuators turn objects, or rotate them in varying directions. Air cylinders (also called pneumatic cylinders), the most common type of linear actuators, use pressurized air to pull and push piston rods in and out of cylinder barrels. This motion moves mechanisms connected to the rods, or (for detached items) directs or blocks travel using rod-attached plates. Air cylinders execute pushing, pulling, lifting, lowering, pressing, and stopping functions, and they come in several different body types, including round, compact, tie-rod, guided, slide, and clamp. Pneumatic cylinders can be either single acting, with one compressed air port to push the rod in a single direction and a spring to return the rod, or double acting, with two compressed air ports on opposite ends of the cylinder to both extend and retract the rod. For quieter piston operation, air cylinders can come with cushioning in one or both ends of their barrels. Several mounting styles are available both for attaching the air cylinder ends to moving components in a pneumatic system and for mounting to rigid surfaces. Air cylinders are used in industrialized automation tasks in automotive, food processing, material handling, and robotics applications, among others.

SMC Corporation manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) 9000:2000 standards.
