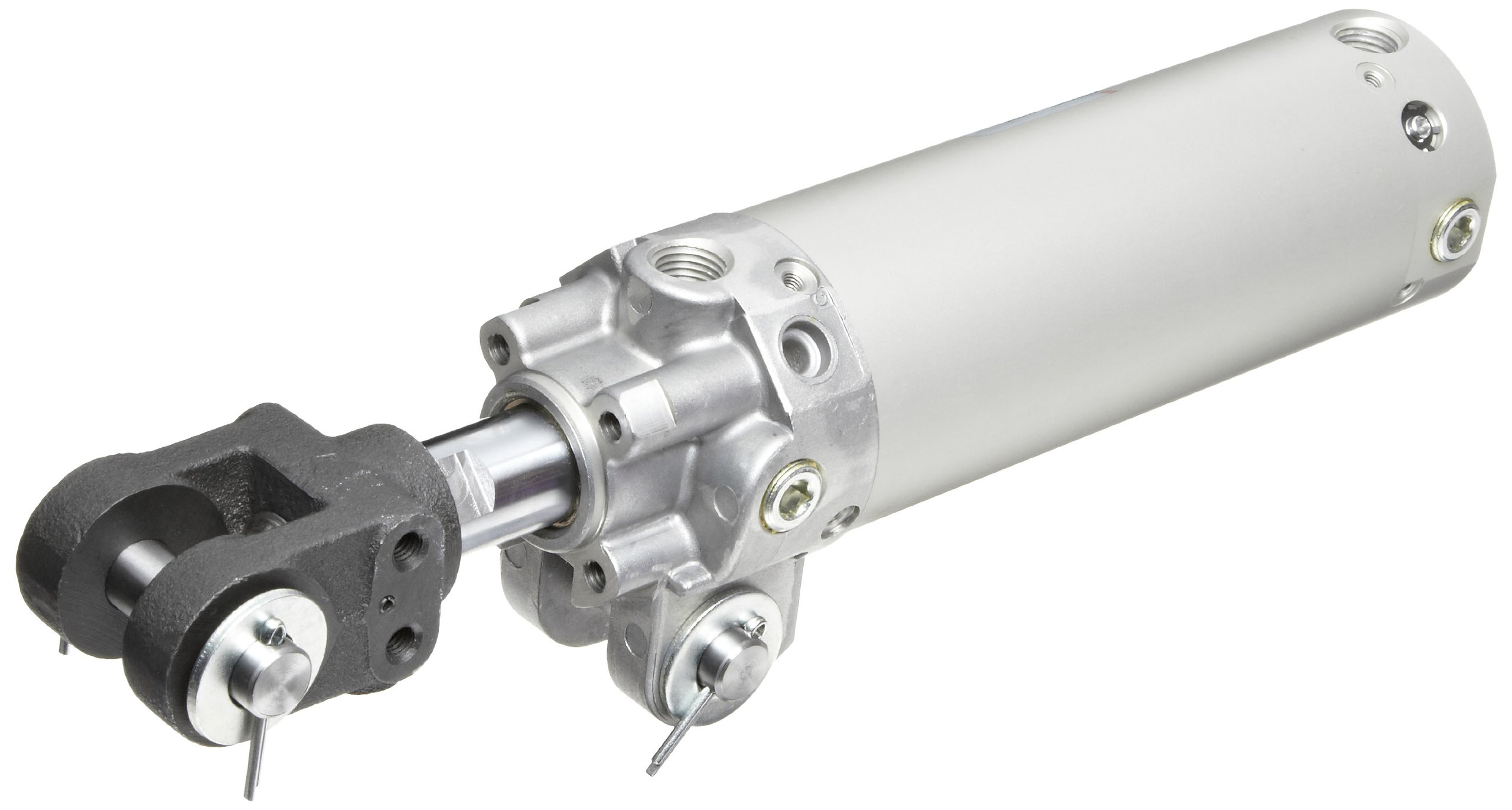

SMC CK Series Aluminum Clamp Air Cylinder, Round body, Clevis Mounting, Switch Ready, Cushioned

Be the first to review this item

Product Specifications
Item Shape
Round body
Bore Diameter
Not Listed  inches
Seal Material Type
Seat Material Type
Switch Type
Switch Ready
Material Type
Brand Name
SMC Corporation
Maximum Temperature
60  Degrees Celsius
Manufacturer Series Number
Upper Temperature Range
140  Degrees Fahrenheit
Exterior Finish
Hard chrome plated
Actuator Material Type
Mounting Type
Maximum Working Pressure
145  PSI
System of Measurement
LowerTemperature Range
14  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 21? Order in-stock items in the next 1 day 8 hrs 3 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-2 of 2
Cushion style Piston stroke length Rod outside diameter maximum string Thread size Thread length string Port size Number of items Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All All All All All All
Currently showing 1-2 of 2
Air 100 millimeters 20 millimeters M16 x 1.5 14 millimeters 0.25 inches 1 CKG1A50-100YA B005JGMXQO yes $164.81 Buy Options
Air 75 millimeters 20 millimeters M16 x 1.5 14 millimeters 0.25 inches 1 CKG1A50-75YA B005JGMYFO yes $165.51 Buy Options

Key Features

  • Double-acting air (pneumatic) clamp cylinder for use with clamping attachments (sold separately) to hold work pieces during welding
  • Rod-end clevis bracket connects to attachments for clamping and unclamping activation
  • Anodized aluminum body with a single carbon-steel piston rod for resistance to corrosion and tarnishing
  • Switch ready with magnet sensor for connecting to electrical circuits for automation
  • Clevis mounting with a preinstalled bracket and pins for securing cylinder to stationary surfaces

Product Description

This SMC double-acting CK series air clamp cylinder has a round anodized aluminum body and a rod-end clevis bracket that connects to clamping attachments (sold separately) for holding together and releasing work pieces in welding lines and assembly applications. The air cylinder (also called a pneumatic cylinder) uses airflow through air ports in the cylinder barrel to extend and retract the piston rod to produce continued movement. The piston rod connects to an arm or pedestal clamping attachment (sold separately) with a rod-end clevis bracket. When the piston rod extends, the clamping attachment rotates down to clamp two or more work pieces together and hold them steady. When the piston rod retracts back into the cylinder barrel, the attachment unclamps by rotating in the opposite direction. The clamp cylinder's anodized aluminum body resists corrosion and tarnishing, and it has a single carbon-steel piston rod for strength and durability. Air cushioning in the barrel absorbs kinetic energy and dampens the sound of the piston striking the end cap, and nitrile butadiene rubber (NBR) seals contain air and help to protect the tube and piston rod. This air cylinder comes "switch ready" with a magnet sensor installed for connecting to electrical circuits for pneumatic automation. The clamp cylinder has clevis mounting with a preinstalled clevis pin and cotter pin to secure its body to stationary surfaces. The maximum pressure of the pneumatic cylinder is 145 pounds per square inch (psi), and it has a temperature range of 14 to 140 degrees F. This non-repairable air cylinder is suitable for welding pieces of sheet metal together for use in automotive manufacturing.

Pneumatic actuators fall into two classes: linear and rotary. Linear actuators move objects in straight lines, while rotary actuators turn objects, or rotate them in varying directions. Air cylinders (also called pneumatic cylinders), the most common type of linear actuators, use pressurized air to pull and push piston rods in and out of cylinder barrels. This motion moves mechanisms connected to the rods, or (for detached items) directs or blocks travel using rod-attached plates. Air cylinders execute pushing, pulling, lifting, lowering, pressing, and stopping functions, and they come in several different body types, including round, compact, tie-rod, guided, slide, and clamp. Pneumatic cylinders can be either single acting, with one compressed air port to push the rod in a single direction and a spring to return the rod, or double acting, with two compressed air ports on opposite ends of the cylinder to both extend and retract the rod. For quieter piston operation, air cylinders can come with cushioning in one or both ends of their barrels. Several mounting styles are available both for attaching the air cylinder ends to moving components in a pneumatic system and for mounting to rigid surfaces. Air cylinders are used in industrialized automation tasks in automotive, food processing, material handling, and robotics applications, among others.

SMC Corporation manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) 9000:2000 standards.
