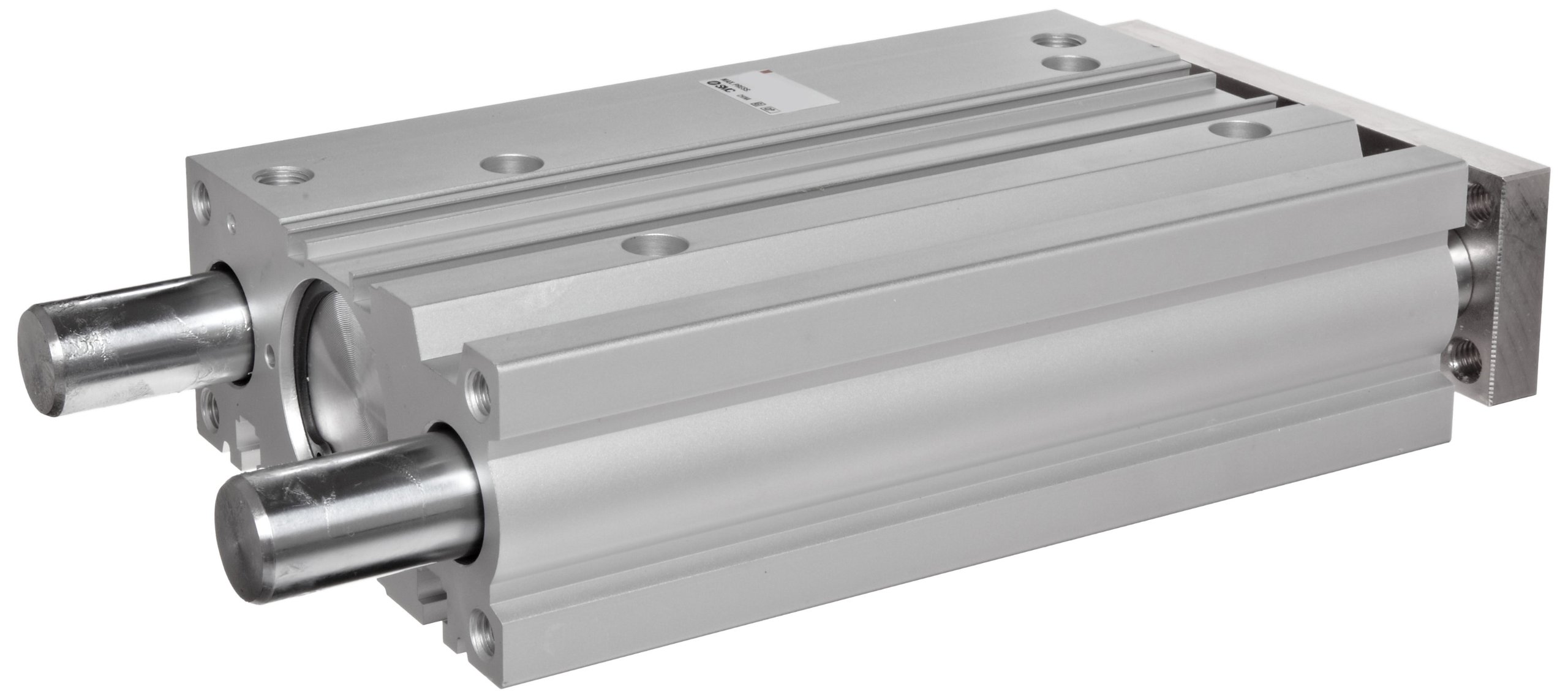

SMC MGP Series Aluminum Air Cylinder with Guide Rod Plate, Slide Bearing, Compact, Double Acting, Switch Ready, Cushioned

Be the first to review this item

Product Specifications
Item Shape
Cushion Material Type
Seal Material Type
Construction Type
Dual Rod
Material Type
Switch Type
Switch Ready
Brand Name
SMC Corporation
Manufacturer Series Number
Maximum Temperature
60  Degrees Celsius
Upper Temperature Range
140  Degrees Fahrenheit
Bearing Type
Slide Bearing
Maximum Working Pressure
145  PSI
LowerTemperature Range
14  Degrees Fahrenheit
System of Measurement

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Jul 31? Order in-stock items in the next 9 hrs 37 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 74 Next 20 »
Bore Size Stroke Length Rod Diameter Port Size Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All All All All
Currently showing 1-20 of 74 Next 20 »
20 mm 50 mm 10 mm 1/8" NPT 1 MGPM20N-50A B005JGPBQ8 1 $230.40 Buy Options
20 mm 20 mm 10 mm 1/8" BSPT 1 MGPM20-20 B005JGP86G 1 $231.50 Buy Options
40 mm 75 mm 16 mm 1/8" BSPT 1 MGPM40-75 B005JGPK3C Usually ships in 5 to 7 weeks $408.47 Buy Options
25 mm 40 mm 12 mm 1/8" NPT 1 MGPM25N-40 B005JGPEQK Usually ships in 5 to 7 weeks $239.31 Buy Options
16 mm 75 mm 8 mm M5 x 0.8 1 MGPM16-75 B005JGP6K4 2 $184.22 Buy Options
80 mm 50 mm 25 mm 3/8" NPT 1 MGPM80N-50 B005JGPPBY 1 $541.07 Buy Options
16 mm 50 mm 8 mm M5 x 0.8 1 MGPM16-50 B005JGP67W 2 $177.64 Buy Options
16 mm 30 mm 8 mm M5 x 0.8 1 MGPM16-30 B005JGP5GE 1 $203.57 Buy Options
25 mm 75 mm 12 mm 1/8" Straight Thread 1 MGPM25TF-75 B005JGPFM8 1 $258.27 Buy Options
25 mm 200 mm 12 mm 1/8" NPT 1 MGPM25N-200 B005JGPE8S 1 $341.90 Buy Options
32 mm 100 mm 16 mm 1/8" NPT 1 MGPM32N-100 B005JGPHJO 1 $364.64 Buy Options
32 mm 75 mm 16 mm 1/8" BSPT 1 MGPM32-75 B005JGPHAS 1 $341.38 Buy Options
25 mm 30 mm 12 mm 1/8" BSPT 1 MGPM25-30 B005JGPD3Y 1 $267.84 Buy Options
16 mm 20 mm 8 mm M5 x 0.8 1 MGPM16-20 B005JGP4W4 4 $180.66 Buy Options
25 mm 30 mm 12 mm 1/8" NPT 1 MGPM25N-30 B005JGPEKQ 1 $268.54 Buy Options
40 mm 75 mm 16 mm 1/8" NPT 1 MGPM40N-75 B005JGPL68 Usually ships in 5 to 7 weeks $353.64 Buy Options
32 mm 175 mm 16 mm 1/8" BSPT 1 MGPM32-175 B005JGPGOA 1 $433.26 Buy Options
50 mm 100 mm 20 mm 1/4" BSPT 1 MGPM50-100 B005JGPLWW 1 $435.31 Buy Options
25 mm 20 mm 12 mm 1/8" NPT 1 MGPM25N-20 B005JGPDXY 1 $229.03 Buy Options
20 mm 25 mm 10 mm 1/8" BSPT 1 MGPM20-25 B005JGP8OI 1 $231.85 Buy Options

Key Features

  • Double-acting air (pneumatic) cylinder with two air ports for pushing and pulling the piston rod in both directions
  • Compact body with single piston rod and dual guide rods with slide bearing for non-rotating stability and stopper strength
  • Anodized aluminum for resistance to corrosion and tarnishing with carbon-steel guide rods
  • Top, bottom, side, and T-slot mounting styles for attaching to flat, rigid surfaces
  • Switch ready with magnet sensor installed for connecting to electrical circuits for automation

Product Description

This SMC double-acting MGP Series air cylinder has a compact body, top, bottom, side, and T-side mounting, and comes "switch ready" for connecting to mechanical proximity and limit switches for precise timing in automated applications. The air cylinder (also called a pneumatic cylinder) has an anodized aluminum body to help resist corrosion and tarnishing, and it comes with a single piston rod. The double-acting air cylinder uses airflow through two air ports on opposite ends of the cylinder barrel to push out and retract the piston rod to produce continued movement. Dual carbon-steel guide rods run parallel alongside the air cylinder's piston rod for non-rotating stability, and slide bearings provide strength for withstanding side loads in stopper applications. The air cylinder comes with either rubber or air cushioning inside the cylinder barrel to absorb kinetic energy and to dampen the sound of the piston striking the end caps, and it has nitrile butadiene rubber (NBR) seals to contain air and protect the barrel and piston rod. This air cylinder is "switch ready" with a magnet sensor installed for connecting to electrical circuits for pneumatic automation. The non-repairable air cylinder is equipped for top, bottom, and side mounting for installation on a flat, rigid surface, and also for T-side mounting for work piece attachment. The maximum pressure of the pneumatic cylinder is 145 pounds per square inch (psi), and it has a temperature range of 14 to 140 degrees F. This air cylinder is suitable for applications in tight spaces and in high-load linear applications, including pushing, lifting, and stopping in conveyance lines.

Pneumatic actuators fall into two classes: linear and rotary. Linear actuators move objects in straight lines, while rotary actuators turn objects, or rotate them in varying directions. Air cylinders (also called pneumatic cylinders), the most common type of linear actuators, use pressurized air to pull and push piston rods in and out of cylinder barrels. This motion moves mechanisms connected to the rods, or (for detached items) directs or blocks travel using rod-attached plates. Air cylinders execute pushing, pulling, lifting, lowering, pressing, and stopping functions, and they come in several different body types, including round, compact, tie-rod, guided, slide, and clamp. Pneumatic cylinders can be either single acting, with one compressed air port to push the rod in a single direction and a spring to return the rod, or double acting, with two compressed air ports on opposite ends of the cylinder to both extend and retract the rod. For quieter piston operation, air cylinders can come with cushioning in one or both ends of their barrels. Several mounting styles are available both for attaching the air cylinder ends to moving components in a pneumatic system and for mounting to rigid surfaces. Air cylinders are used in industrialized automation tasks in automotive, food processing, material handling, and robotics applications, among others.

SMC Corporation manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) 9000:2000 standards.
