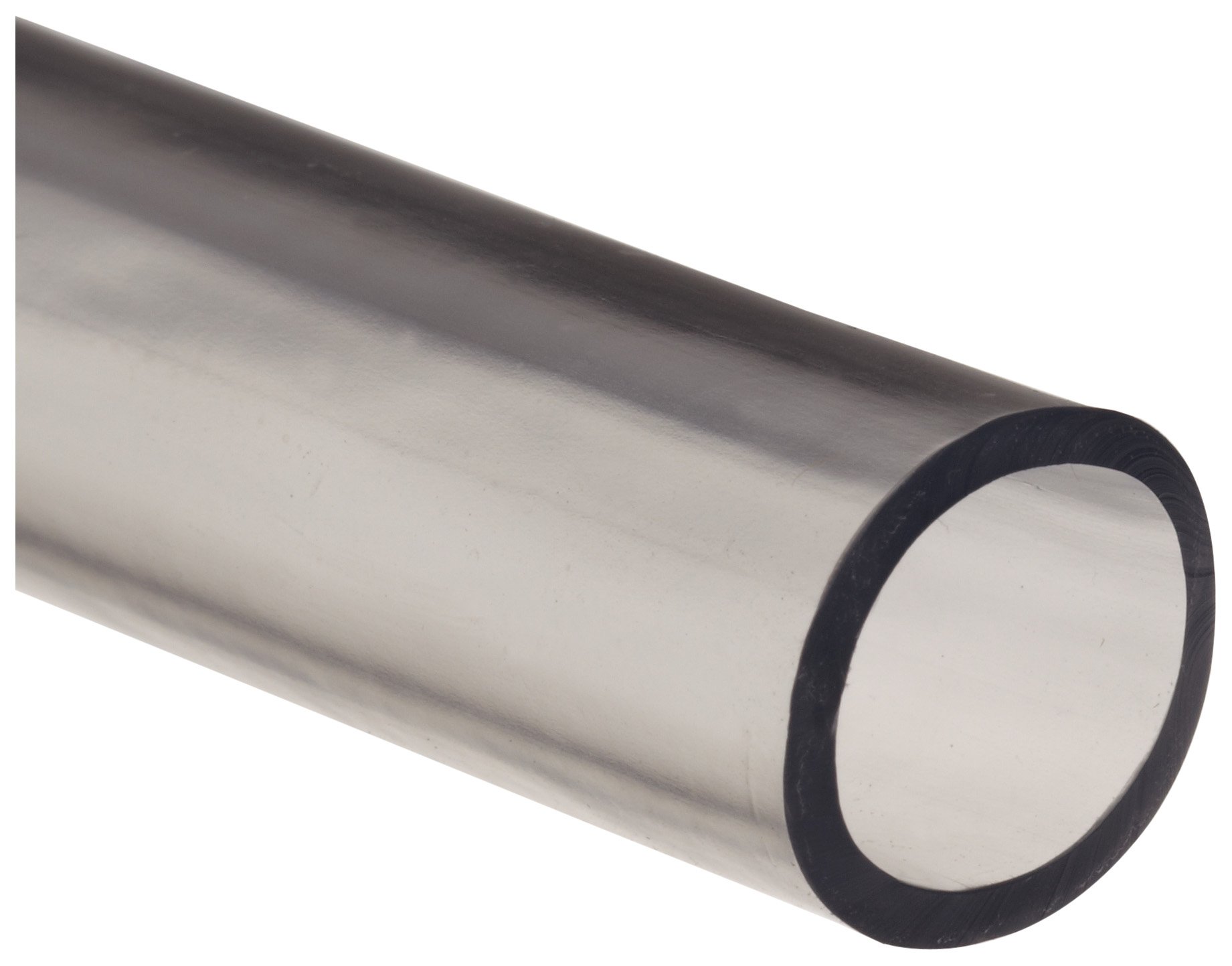

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Clear PVC Tubing

Be the first to review this item

Product Specifications
Item Shape
Round
Durometer
68A
Material Type
PVC (Polyvinyl Chloride)
Color Name
Clear
Structure Description
Very Flexible
Brand Name
Small Parts
Maximum Temperature
175  Degrees Fahrenheit
Upper Temperature Range
175  Degrees Fahrenheit
Hardness
68A
Specification Met
USP Class VI
UNSPSC Code
40183000
LowerTemperature Range
-41  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 22? Order in-stock items in the next 1 day 11 hrs 11 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 32 Next 12 »
Item diameter string Inside diameter string Item length string ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-20 of 32 Next 12 »
1/2 inches 1/4 inches 10 feet B000FMWG2S yes $10.03 Buy Options
1/2 inches 3/8 inches 100 feet B000FMWGCI yes $40.67 Buy Options
1/2 inches 5/16 inches 100 feet B000FMULGQ Usually ships in 1 to 2 months $50.74 Buy Options
1/2 inches 5/16 inches 25 feet B000FN0OMQ yes $23.95 Buy Options
1/4 inches 1/8 inches 100 feet B000FMYHVG yes $20.65 Buy Options
1/4 inches 3/16 inches 100 feet B000FN0OXA yes $21.79 Buy Options
11/16 inches 1/2 inches 10 feet B000FMWGLO yes $16.13 Buy Options
11/16 inches 1/2 inches 25 feet B000FMUMHY yes $24.05 Buy Options
11/16 inches 7/16 inches 10 feet B000FMUMD8 yes $13.43 Buy Options
11/16 inches 7/16 inches 25 feet B000FMYJ14 yes $38.48 Buy Options
3/16 inches 1/8 inches 100 feet B000FN0OHQ yes $25.83 Buy Options
3/4 inches 1/2 inches 10 feet B000FMWFOM yes $20.14 Buy Options
3/4 inches 1/2 inches 100 feet B000FMYI7O yes $100.51 Buy Options
3/4 inches 1/2 inches 25 feet B000FN0OSK yes $41.00 Buy Options
3/8 inches 1/4 inches 100 feet B000FMULTI yes $31.06 Buy Options
3/8 inches 3/16 inches 100 feet B000FMULQQ yes $42.78 Buy Options
3/8 inches 3/16 inches 25 feet B000FMWFV0 yes $14.08 Buy Options
5/16 inches 3/16 inches 100 feet B000FMYHX4 yes $26.78 Buy Options
5/32 inches 3/32 inches 10 feet B000FMW8US yes $5.72 Buy Options
5/32 inches 3/32 inches 100 feet B000FN0I36 yes $13.44 Buy Options

Key Features

  • General purpose tubing for transfer of fluids, gases, and powdered foods
  • PVC for strength, light weight, and resistance to corrosion
  • Tensile strength of 2000 psi and elongation at break rating of 400%
  • Operating temperature range of -41 to +175 degrees F
  • Meets USP Class VI standards for biocompatibility

Product Description

This flexible, general purpose tubing is suitable for the transfer of fluids, gases, and powdered foods. It is made of PVC (polyvinyl chloride) for strength, light weight, and resistance to corrosion, and it has a smooth bore for resistance to collection or blockage. It has a Shore A Hardness rating of 68 for resistance to abrasion. It has a tensile strength of 2000 pounds per square inch (psi) and an elongation at break rating of 400%. It has an operating temperature range of -41 to +175 degrees F. This clear tubing is made from non-toxic ingredients and meets United States Pharmocopeia (USP) Class VI standards for biocompatibility.

Plastic tubing is used to transfer liquids, air, or solids, and it is characterized by a round, rectangular, or square shape and a hollow center. Plastic tubing is crimp-resistant and varies in bend radius (flexibility), chemical resistance, wall thickness, durometer hardness, and temperature and pressure handling abilities. The clarity of plastic tubing may be transparent (clear), translucent (semi-clear), or opaque (solid), and the tubing's coloring may indicate suitable applications. Barbed fittings are used to connect tubing or redirect flow in a fluid handling system. Plastic tubing is used in a wide variety of industries, such as agriculture, automotive, laboratory, and medicine. Applications for plastic tubing include blood and fluid handling, peristaltic pumps, electrical and thermal insulation, analytical systems, and food and beverage handling, among others.
