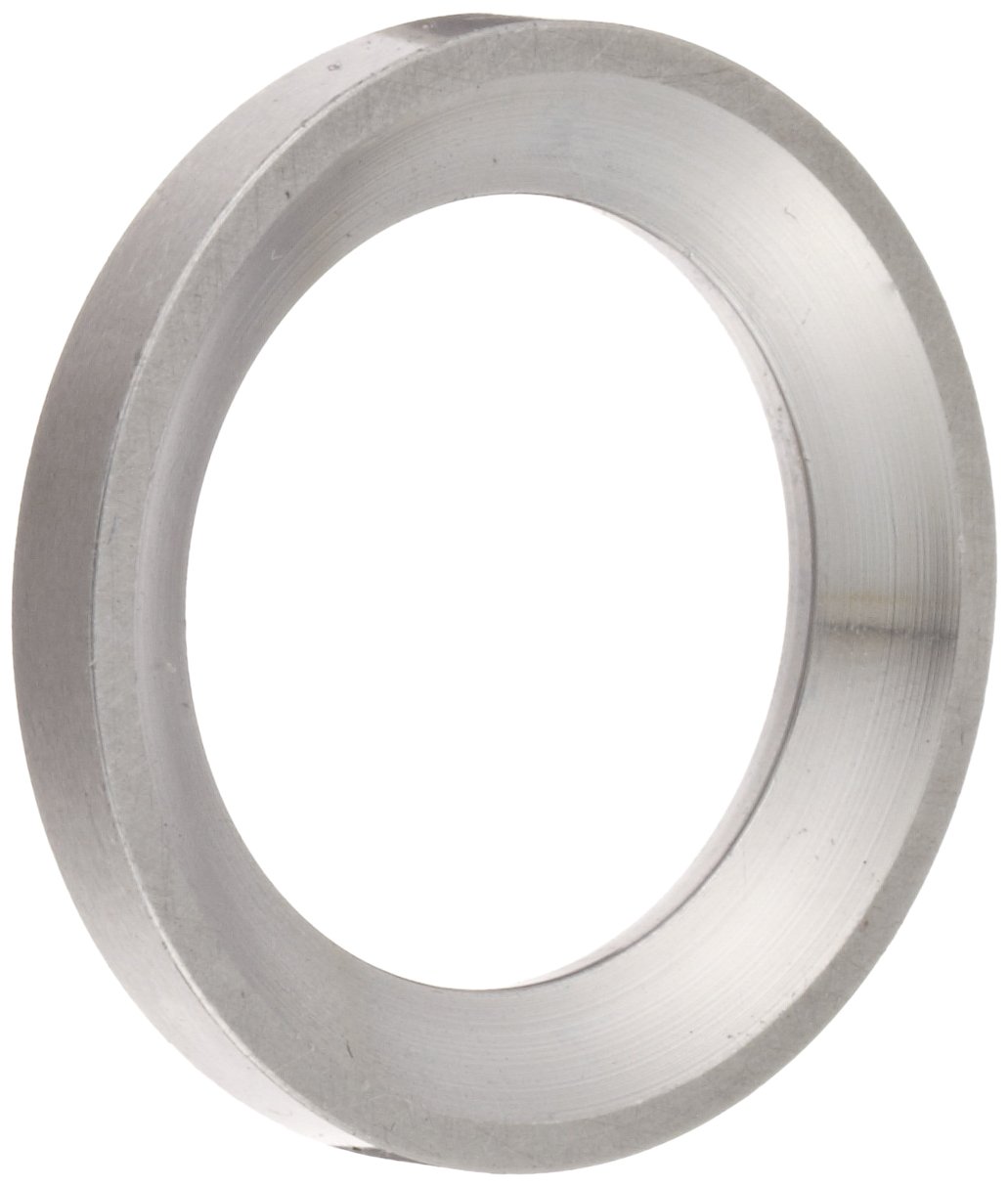

SKF U2 Series Thrust Ball Bearing Seating Washer, Metric

Be the first to review this item

Product Specifications
UNSPSC Code
31171552
Brand Name
SKF

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Aug 4? Order in-stock items in the next 1 day 9 hrs 29 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-9 of 9
Mfr Part # Bore Diameter Outside Diameter Bearing Width ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-9 of 9
U 202 24 mm 35 mm 4 mm B007VHS4E4 1 $35.74 Buy Options
U 205 36 mm 50 mm 5.5 mm B007VHS4VM 2 $27.77 Buy Options
U 206 42 mm 55 mm 5.5 mm B007VHS4ZI 2 $32.73 Buy Options
U 207 48 mm 65 mm 7 mm B007VHS55C 1 $36.39 Buy Options
U 208 55 mm 72 mm 7 mm B007VHS5E8 1 $48.53 Buy Options
U 209 60 mm 78 mm 7.5 mm B007VHS5J8 1 $37.78 Buy Options
U 210 62 mm 82 mm 7.5 mm B007VHS5Q6 2 $45.13 Buy Options
U 214 88 mm 110 mm 9 mm B007VHS6K6 1 $84.04 Buy Options
U 228 170 mm 210 mm 17 mm B007VHS8XG Usually ships in 2 to 4 weeks $506.05 Buy Options

Key Features

  • Seating washer for use with SKF 532- and 542-series thrust ball bearings in applications subject to shaft deflections or misalignments
  • Through-hardened carbon-chromium steel for durability and resistance to deformity under heavy loads
  • PN (normal) tolerance class for dimensional accuracy

Product Description

This SKF U2-series thrust ball bearing seating washer is designed for use with SKF 532-and 542-series thrust ball bearings with sphered housing washers. The seating washer, in conjunction with the sphered housing washer, compensates for initial static angular misalignments between the support surfaces on the shaft and in the housing in applications subject to shaft deflections or misalignments. The washer is made of through-hardened carbon-chromium steel for durability, heat tolerance, and resistance to deformity under heavy loads. This seating washer is manufactured to PN (normal) tolerances in accordance with International Organization for Standardization (ISO) 199:1997, and it is suitable for use in various applications including machine tool drive shafts, automotive steering gears and clutches, rotary tables, outboard motor propellers, and household appliances.

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

SKF Group manufactures bearings and units, seals, mechatronics, and lubrication systems that meet International Organization for Standardization (ISO) 14001 and 9001, and Occupational Health and Safety Assessment Series (OHSAS) 18001 standards for quality assurance. The company, founded in 1907, is headquartered in Göteborg, Sweden.
