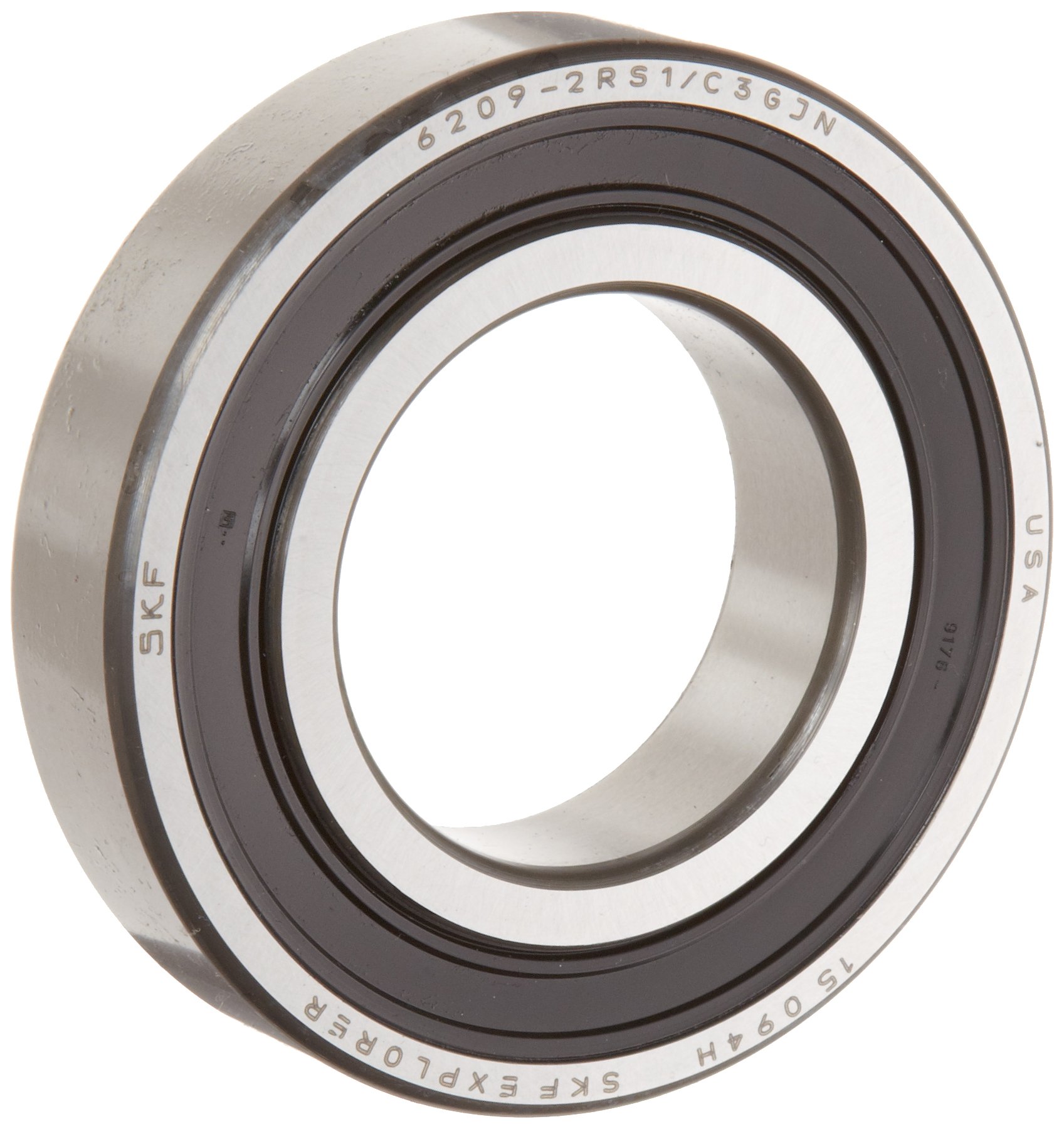

SKF Light 6200 Series Deep Groove Ball Bearing, ABEC 1 Precision, Double Sealed, Steel Cage, C3 Clearance

Be the first to review this item

Product Specifications
Manufacturer Series Number
6200
Number of Items
1
Material Type
Steel
UNSPSC Code
31171504
Brand Name
SKF
System of Measurement
Metric

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Sep 23? Order in-stock items in the next 1 day 1 hr 21 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 22 Next 2 »
Mfr Part # Bore Diameter Outside Diameter Bearing Width Static Load Capacity Dynamic Load Capacity ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 22 Next 2 »
6200 2RSJEM 10 mm 30 mm 9 mm 531 lbs 1140 lbs B0071ARSIE yes $11.59 Buy Options
6201 2RSJEM 12 mm 32 mm 10 mm 697 lbs 1550 lbs B0071ARSSO yes $12.96 Buy Options
6202 2RSJEM 15 mm 35 mm 11 mm 843 lbs 1750 lbs B0071ART24 yes $12.38 Buy Options
6203 2RSJEM 17 mm 40 mm 12 mm 1070 lbs 2150 lbs B0071ARTEM yes $11.74 Buy Options
6204 2RSJEM 20 mm 47 mm 14 mm 1470 lbs 2860 lbs B0071ARTNS yes $14.64 Buy Options
6205 2RSJEM 25 mm 52 mm 15 mm 1750 lbs 3150 lbs B0071ARU1Y yes $19.44 Buy Options
6206 2RSJEM 30 mm 62 mm 16 mm 2520 lbs 4380 lbs B0071ARUAA yes $17.59 Buy Options
6207 2RSJEM 35 mm 72 mm 17 mm 3440 lbs 5730 lbs B0071ARUO6 yes $24.57 Buy Options
6208 2RSJEM 40 mm 80 mm 18 mm 4270 lbs 6900 lbs B0071ARUWI yes $39.84 Buy Options
6209 2RSJEM 45 mm 85 mm 19 mm 4860 lbs 7460 lbs B0071ARVCC yes $42.82 Buy Options
6210 2RSJEM 50 mm 90 mm 20 mm 5220 lbs 7890 lbs B0071ARVKE yes $53.01 Buy Options
6211 2RSJEM 55 mm 100 mm 21 mm 6520 lbs 9800 lbs B0071ARVWW yes $62.17 Buy Options
6212 2RSJEM 60 mm 110 mm 22 mm 7310 lbs 10700 lbs B0071ARW5I yes $76.18 Buy Options
6213 2RSJEM 65 mm 120 mm 23 mm 9110 lbs 12600 lbs B0071ARWOY yes $77.15 Buy Options
6214 2RSJEM 70 mm 125 mm 24 mm 10100 lbs 13600 lbs B0071ARX16 yes $90.86 Buy Options
6215 2RSJEM 75 mm 130 mm 25 mm 11000 lbs 14900 lbs B0071ARXDY yes $124.54 Buy Options
6216 2RSJEM 80 mm 140 mm 26 mm 12400 lbs 15800 lbs B0071ARXS4 yes $165.33 Buy Options
6217 2RSJEM 85 mm 150 mm 28 mm 14400 lbs 18700 lbs B0071ARY42 yes $236.15 Buy Options
6220 2RSJEM 100 mm 180 mm 34 mm 20900 lbs 27900 lbs B0071ARZ2I yes $259.60 Buy Options
626 2RSJEM 6 mm 19 mm 6 mm 139 lbs 387 lbs B0071ARROY yes $18.43 Buy Options

Key Features

  • Deep-groove geometry for high speeds and supporting both radial and axial loads
  • Single-row bearing for supporting radial loads
  • "Light" bearing structure for use in limited space applications or for average loads
  • C3 radial internal clearance for radial slack between the inner and outer rings that is greater than CN (normal) to compensate for thermal expansion
  • Conforms to ABEC 1 precision standard for performance within a narrow range of variation

Product Description

The SKF Light 6200 series deep groove ball bearing is a double-sealed ball bearing with Annular Bearing Engineering Committee (ABEC) 1 precision and C3 clearance and has a deep-groove geometry for high speeds and supporting both radial and axial loads. It has a light bearing structure for use in limited space applications or for average loads. This bearing conforms to the precision standard ABEC 1 for performance within a narrow range of variation and has C3 radial internal clearance for radial slack between the inner and outer rings that is greater than CN (normal) to compensate for thermal expansion. The steel cage evenly spaces the balls for even load distribution and prevents contact to reduce friction, vibrations, and noise. Seals on both sides of the bearing fasten to the outside ring and extend over the rolling elements to make contact with the inside ring, keeping out contaminants such as dirt and grime. The seals also hold in a high-quality lubricant applied at manufacture that will last the entire lifetime of the bearing, making it maintenance free. This Light 6200 series deep groove ball bearing is for use in applications that involve combined radial and axial loads and a need for high running accuracy and stiffness at high rotational speeds. Such applications include clutches, drives, gearboxes, compressors, pumps, turbines, and printing and textile machines, among others.

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

SKF Group manufactures bearings and units, seals, mechatronics, and lubrication systems that meet International Organization for Standardization (ISO) 14001 and 9001, and Occupational Health and Safety Assessment Series (OHSAS) 18001 standards for quality assurance. The company, founded in 1907, is headquartered in Göteborg, Sweden.
