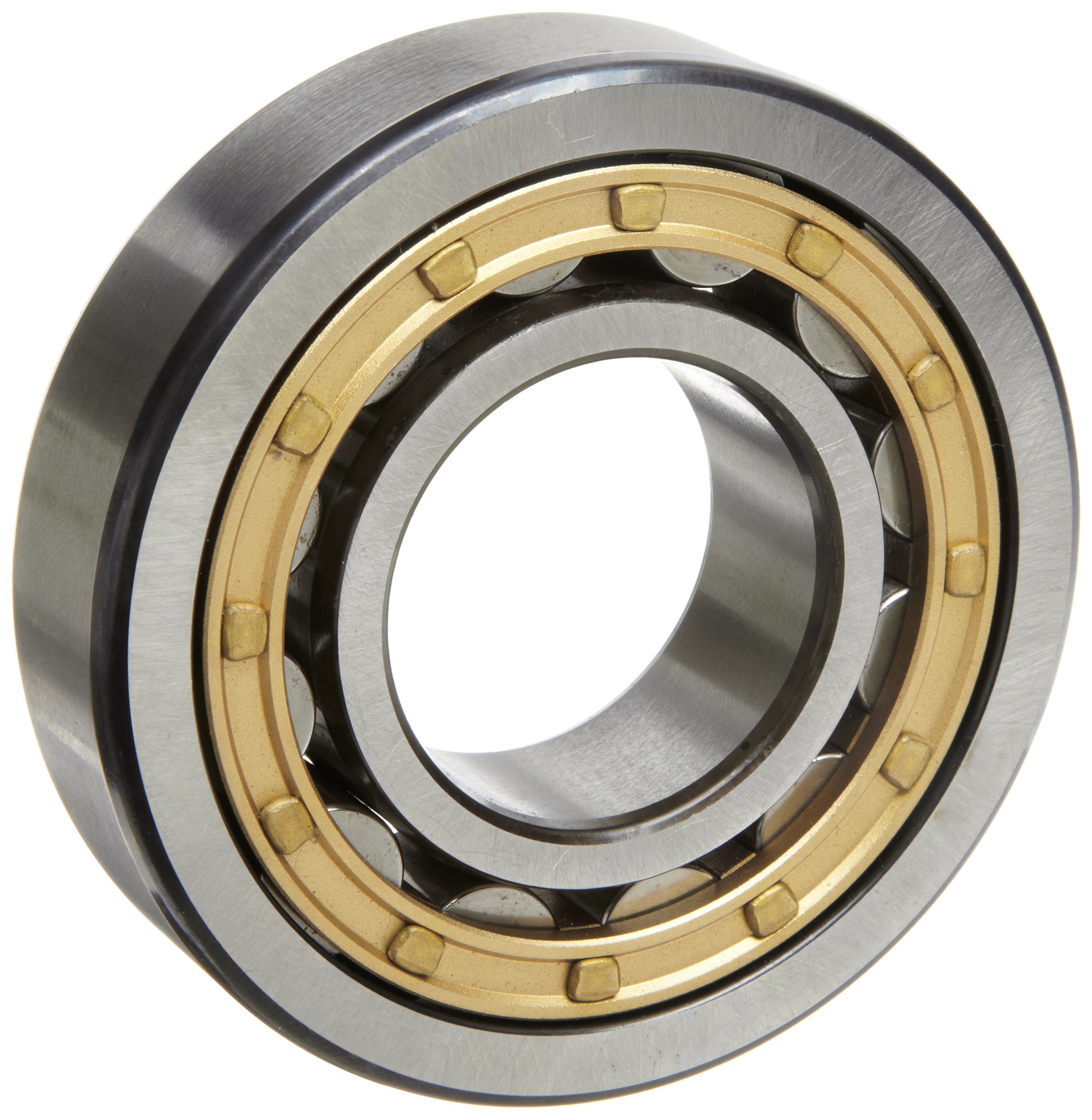

SKF Cylindrical Roller Bearing, Single Row, Removable Inner Ring, Straight Bore, High Capacity, Normal Clearance, Brass Cage, Metric

Be the first to review this item

Product Specifications
UNSPSC Code
31171547
Brand Name
SKF

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share
Currently showing 1-20 of 32 Next 12 »
Part number Bore diameter string Outside diameter Bearing width string Dynamic load capacity Static load capacity Maximum rotational speed ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-20 of 32 Next 12 »
NU 208 ECM 40 millimeters 80 millimeters 18 millimeters 12100 pounds 11900 pounds 9000 rpm B006KSUS6M Usually ships in 3 to 6 weeks $167.69 Buy Options
NU 209 ECM 45 millimeters 85 millimeters 19 millimeters 13600 pounds 14400 pounds 8000 rpm B006KSUSDK Usually ships in 3 to 6 weeks $202.29 Buy Options
NU 210 ECM 50 millimeters 90 millimeters 20 millimeters 14500 pounds 15600 pounds 7500 rpm B006KSUT34 Usually ships in 3 to 6 weeks $270.54 Buy Options
NU 211 ECM 55 millimeters 100 millimeters 21 millimeters 18900 pounds 21400 pounds 7000 rpm B006KSUTD4 yes $183.89 Buy Options
NU 212 ECM 60 millimeters 110 millimeters 22 millimeters 21000 pounds 22900 pounds 6300 rpm B006KSUTMU yes $210.37 Buy Options
NU 213 ECM 65 millimeters 120 millimeters 23 millimeters 23800 pounds 26500 pounds 5600 rpm B006KSUU1A Usually ships in 3 to 6 weeks $215.44 Buy Options
NU 215 ECM 75 millimeters 130 millimeters 25 millimeters 29200 pounds 35100 pounds 5300 rpm B006KSUUHO Usually ships in 3 to 6 weeks $259.44 Buy Options
NU 216 ECM 80 millimeters 140 millimeters 26 millimeters 31000 pounds 37300 pounds 4800 rpm B006KSUUQK yes $95.50 Buy Options
NU 217 ECM 85 millimeters 150 millimeters 28 millimeters 37100 pounds 45000 pounds 4500 rpm B006KSV60E yes $564.34 Buy Options
NU 218 ECM 90 millimeters 160 millimeters 30 millimeters 41100 pounds 49500 pounds 4300 rpm B006KSV6FE yes $125.40 Buy Options
NU 219 ECM 95 millimeters 170 millimeters 32 millimeters 49500 pounds 59600 pounds 4000 rpm B006KSV6VS yes $452.66 Buy Options
NU 226 ECM 130 millimeters 230 millimeters 40 millimeters 80500 pounds 102000 pounds 2800 rpm B006KSV96K yes $1,018.34 Buy Options
NU 228 ECML 140 millimeters 250 millimeters 42 millimeters 87900 pounds 115000 pounds 2600 rpm B006KSV9K6 Usually ships in 3 to 6 weeks $1,779.12 Buy Options
NU 308 ECM 40 millimeters 90 millimeters 23 millimeters 18200 pounds 17500 pounds 8000 rpm B006KSUSAS yes $56.44 Buy Options
NU 309 ECM 45 millimeters 100 millimeters 25 millimeters 22300 pounds 22500 pounds 7500 rpm B006KSUSHG Usually ships in 3 to 6 weeks $271.32 Buy Options
NU 310 ECM 50 millimeters 110 millimeters 27 millimeters 24700 pounds 25200 pounds 6000 rpm B006KSUT98 Usually ships in 3 to 6 weeks $198.85 Buy Options
NU 311 ECM 55 millimeters 120 millimeters 29 millimeters 31000 pounds 32200 pounds 5600 rpm B006KSUTIO Usually ships in 3 to 6 weeks $232.49 Buy Options
NU 312 ECM 60 millimeters 130 millimeters 31 millimeters 34000 pounds 36000 pounds 5000 rpm B006KSUTUC Usually ships in 3 to 6 weeks $291.14 Buy Options
NU 313 ECM 65 millimeters 140 millimeters 33 millimeters 41100 pounds 44100 pounds 4800 rpm B006KSUU6K Usually ships in 3 to 6 weeks $299.46 Buy Options
NU 314 ECM 70 millimeters 150 millimeters 35 millimeters 46100 pounds 51300 pounds 4300 rpm B006KSUUE2 Usually ships in 3 to 6 weeks $332.70 Buy Options

Key Features

  • SKF cylindrical roller bearing with brass cage and removable inner ring suitable for high radial loads
  • CN (normal) radial clearance for applications where thermal expansion is not a factor
  • Single row roller bearing for high radial loads with low friction
  • Removable inner ring in open bearing allows for lubrication in place
  • Brass cage evenly spaces rollers for reduced friction, vibration, and noise

Product Description

This SKF cylindrical roller bearing with a brass cage and removable inner ring is suitable for applications that support high radial loads. This roller bearing has a CN (normal) radial clearance for applications and operating conditions with normal shaft and housing tolerances where thermal expansion is not a factor. This is a single row roller bearing that supports high radial loads with low friction. A removable inner ring in the open bearing allows application of lubrication. The brass cage prevents the rollers from coming into contact with each other during use, reducing friction, vibration, and noise.

Cylindrical roller bearings are used in applications where high radial loads are present such as in conveyer belts, traction motors, railway car axle boxes, and oilfield mud pumps, among others.

Roller or rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. They are usually composed of two rings, rolling bodies (such as bearings or cylinders), and a cage to house the parts. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. Rolling bearings can be open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

SKF manufactures bearings, seals, and lubrication systems for automotive, OEM, energy, and other and industrial applications. The company, founded in 1907, is headquartered in Gothenburg, Sweden, and meets International Organization for Standardization (ISO) TS 16949 and 9001 standards for quality assurance.
