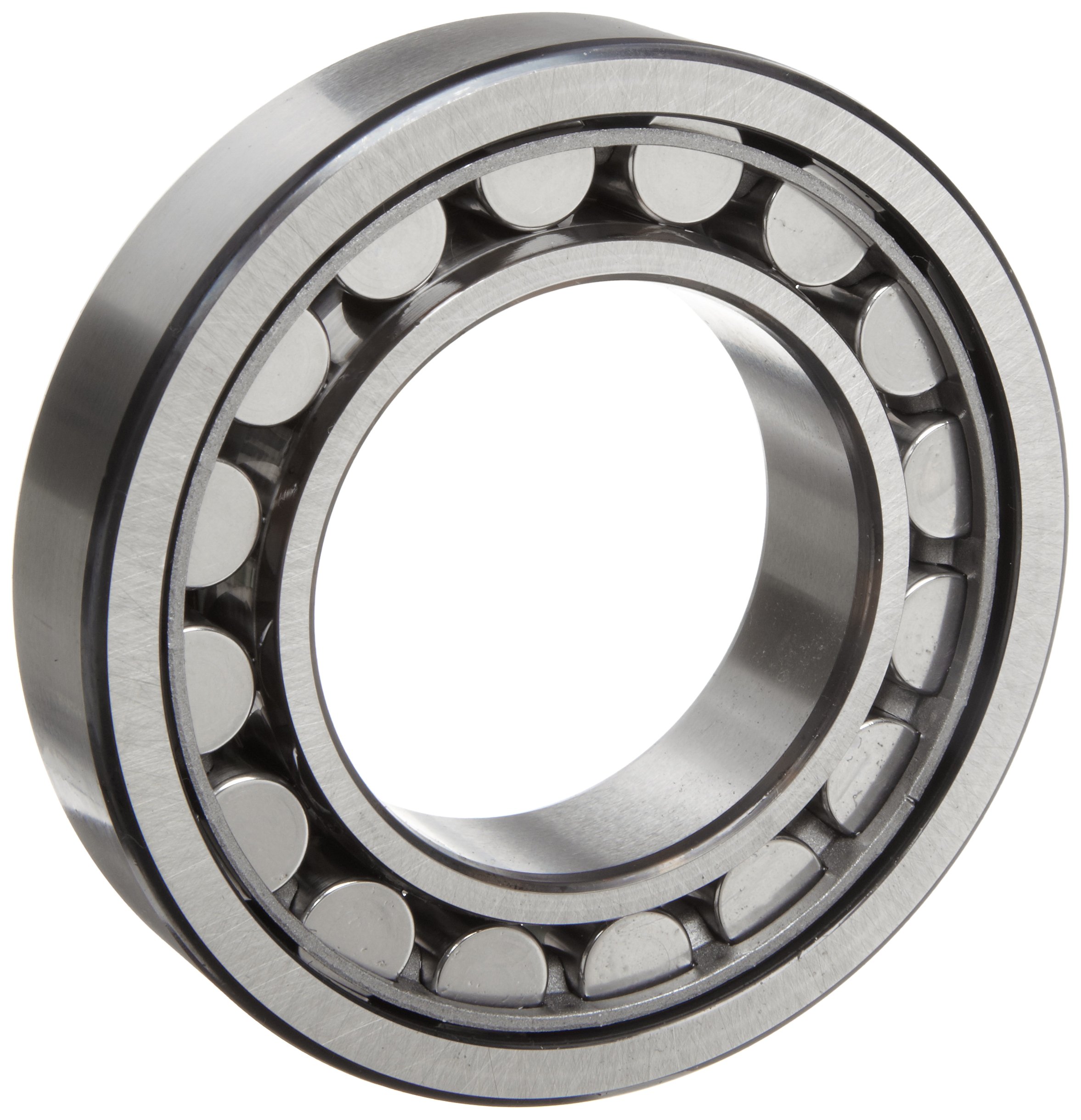

SKF Cylindrical Roller Bearing, Removable Inner Ring, Flanged, High Capacity, Steel Cage, Metric

Be the first to review this item

Product Specifications
Manufacturer Series Number
EC
UNSPSC Code
31171547
Brand Name
SKF

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share
Currently showing 1-20 of 28 Next 8 »
Part number Bore diameter string Outside diameter Bearing width string Dynamic load capacity Static load capacity Maximum rotational speed ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-20 of 28 Next 8 »
NJ 220 ECJ 100 millimeters 180 millimeters 34 millimeters 56400 pounds 68600 pounds 3800 rpm B006KSWKDQ yes $608.71 Buy Options
NJ 222 ECJ 110 millimeters 200 millimeters 38 millimeters 65700 pounds 82100 pounds 3400 rpm B006KSWLH6 yes $649.35 Buy Options
NJ 224 ECJ 120 millimeters 215 millimeters 40 millimeters 76700 pounds 96700 pounds 3000 rpm B006KSWMIY yes $432.47 Buy Options
NJ 226 ECJ 130 millimeters 230 millimeters 40 millimeters 80500 pounds 102000 pounds 2800 rpm B006KSWNHY Usually ships in 1 to 2 months $1,345.26 Buy Options
NJ 228 ECJ 140 millimeters 250 millimeters 42 millimeters 87900 pounds 115000 pounds 2600 rpm B006KSWOPA Usually ships in 1 to 2 months $1,204.75 Buy Options
NJ 230 ECJ 150 millimeters 270 millimeters 45 millimeters 100000 pounds 135000 pounds 2400 rpm B006KSWPPY Usually ships in 1 to 2 months $1,062.00 Buy Options
NJ 314 ECJ 70 millimeters 150 millimeters 35 millimeters 46100 pounds 51300 pounds 4300 rpm B006KSWGCG yes $316.43 Buy Options
NJ 316 ECJ 80 millimeters 170 millimeters 39 millimeters 58500 pounds 65200 pounds 3800 rpm B006KSWI06 yes $493.25 Buy Options
NJ 320 ECJ 100 millimeters 215 millimeters 47 millimeters 87900 pounds 98900 pounds 3000 rpm B006KSWKPE Usually ships in 1 to 2 months $1,204.04 Buy Options
NJ 321 ECJ 105 millimeters 225 millimeters 49 millimeters 98900 pounds 112000 pounds 2800 rpm B006KSWL1C Usually ships in 1 to 2 months $1,308.29 Buy Options
NJ 322 ECJ 110 millimeters 240 millimeters 50 millimeters 105000 pounds 121000 pounds 2600 rpm B006KSWM2K Usually ships in 1 to 2 months $857.26 Buy Options
NJ 324 ECJ 120 millimeters 260 millimeters 55 millimeters 121000 pounds 139000 pounds 2400 rpm B006KSWMZ2 Usually ships in 1 to 2 months $1,246.46 Buy Options
NJ 326 ECJ 130 millimeters 280 millimeters 58 millimeters 141000 pounds 169000 pounds 2200 rpm B006KSWNVK Usually ships in 1 to 2 months $2,067.79 Buy Options
NJ 328 ECJ 140 millimeters 300 millimeters 62 millimeters 153000 pounds 187000 pounds 2200 rpm B006KSWP7W Usually ships in 1 to 2 months $2,890.28 Buy Options
NJ206ECJ 30 millimeters 62 millimeters 16 millimeters 8540 pounds 8210 pounds 12000 rpm B006KSW55O yes $66.21 Buy Options
NJ207ECJ 35 millimeters 72 millimeters 17 millimeters 10900 pounds 10800 pounds 10000 rpm B006KSW7IO yes $23.60 Buy Options
NJ208ECJ 40 millimeters 80 millimeters 18 millimeters 12100 pounds 11900 pounds 9000 rpm B006KSW8TC yes $31.86 Buy Options
NJ209ECJ/C3 45 millimeters 85 millimeters 19 millimeters 13600 pounds 14400 pounds 8000 rpm B006KSW9HI yes $28.69 Buy Options
NJ210ECJ 50 millimeters 90 millimeters 20 millimeters 14500 pounds 15600 pounds 7500 rpm B006KSWANG yes $83.99 Buy Options
NJ211ECJ 55 millimeters 100 millimeters 21 millimeters 18900 pounds 21400 pounds 7000 rpm B006KSWBYE yes $34.76 Buy Options

Key Features

  • SKF cylindrical roller bearing with steel cage and removable inner ring suitable for high radial loads
  • Metric unit measurements for industry consistency
  • Single row roller bearing for high radial loads with low friction
  • Removable inner ring in open bearing allows for lubrication in place
  • Steel construction for high load rating

Product Description

This SKF cylindrical roller bearing with a steel cage and removable inner ring is suitable for applications that support high radial loads. This roller bearing is measured in metric units for industry cross-matching and parts consistency. This is a single row roller bearing that supports high radial loads with low friction. A removable inner ring in the open bearing allows application of lubrication. The cage is constructed of steel and provides a high load rating for its intended applications.

Cylindrical roller bearings are used in applications where high radial loads are present such as in conveyer belts, traction motors, railway car axle boxes, and oilfield mud pumps, among others.

Roller or rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. They are usually composed of two rings, rolling bodies (such as bearings or cylinders), and a cage to house the parts. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. Rolling bearings can be open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

SKF manufactures bearings, seals, and lubrication systems for automotive, OEM, energy, and other and industrial applications. The company, founded in 1907, is headquartered in Gothenburg, Sweden, and meets International Organization for Standardization (ISO) TS 16949 and 9001 standards for quality assurance.
