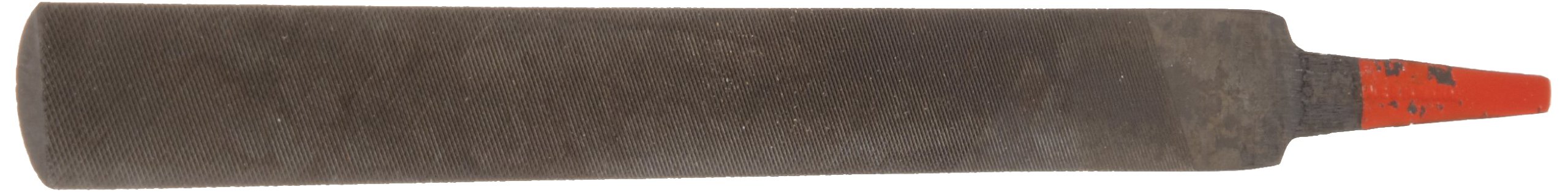

Simonds Hand File, American Pattern, Double Cut, Half-Round, Black Oxide Coating

Be the first to review this item

Product Specifications
Exterior Finish
Black Oxide Coating
Pattern Name
American Pattern
Item Shape
Half-Round
Cut Type
Double Cut
Style Name
Hand File
UNSPSC Code
27111929
Brand Name
Simonds

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Aug 4? Order in-stock items in the next 1 day 19 hrs 41 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Length Width Thickness Coarseness Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-8 of 8
6" 19/32" 5/32" Fine 78318100 B0002FU8Q4 9 $14.74 Buy Options
6" 19/32" 5/32" Coarse 78317100 B00018AG5U 11 $13.85 Buy Options
8" 3/4" 7/32" Fine 78320100 B00018AG6E 11 $15.99 Buy Options
8" 3/4" 7/32" Coarse 78319100 B00018AG64 7 $14.86 Buy Options
10" 15/16" 9/32" Fine 78322100 B00018AG6Y 10 $17.75 Buy Options
10" 15/16" 9/32" Coarse 78321100 B00018AG6O 10 $16.32 Buy Options
12" 1-1/8" 11/32" Coarse 78323100 B0002FU8R8 1 $19.00 Buy Options
14" 1-9/32" 13/32" Coarse 78325100 B002KUYDTM 4 $22.26 Buy Options

Key Features

  • Half-round shape has one round side and one flat side for use on curved and flat surfaces
  • American pattern file for non-precision material removal
  • Spiral-cut teeth on round side for fast cutting action with a smooth finish, and double-cut, variable-pitch teeth on flat side for rapid removal of material
  • Black oxide coating helps provide greater resistance to loading and rust than uncoated files
  • Tang for use with an optional handle (sold separately)

Product Description

The Simonds half-round hand file has a black oxide coating, one flat side with double-cut, variable-pitch American pattern teeth for use on flat surfaces, and one curved side with spiral-cut teeth for use on curved surfaces. The double-cut American pattern teeth on the flat side are for rapid material removal, and the teeth are variably pitched to help reduce chattering and prolong tool life. The spiral-cut teeth on the round side are for fast cutting action with a smooth finish on concave surfaces. The file's black oxide coating helps provide greater resistance to loading and rust than uncoated files. The tang can be used with an optional handle for secure gripping (sold separately).

Hand files are used to remove material and smooth and shape workpieces. They have forward-facing cutting teeth and cut when pushed over either a stationary or rotating workpiece. Single-cut teeth are single rows cut diagonally across the width of the file. Double-cut teeth have two sets of rows cut in opposite directions. American pattern files have three coarseness grades. Coarse, also known as bastard cut, is suitable for efficient, heavy material removal where finish is not a concern. Medium, also known as second cut, offers average material removal and finish quality. Fine, also known as smooth cut, provides the smoothest finish. Swiss pattern files have eight coarseness grades, from 00 (coarse), 0 (medium), and 1 to 6 (fine to finest), offering a smoother finish than equivalent American pattern files. For Swiss pattern files the length of the tool is the length of the blade, not counting the tang, which is the pointed end fitted for a handle; for American pattern files the length of the tool is its entire length, including the tang.

Simonds International manufactures tools for cutting and finishing. The company, founded in 1832, is headquartered in Fitchburg, MA.
