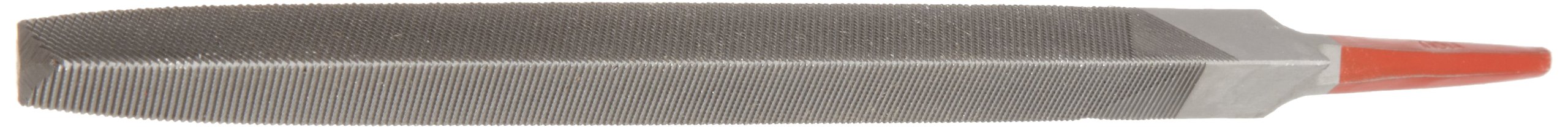

Simonds Hand File, American Pattern, Double Cut, Triangular

Be the first to review this item

Product Specifications
Exterior Finish
Uncoated
Pattern Name
American Pattern
Item Shape
Triangular
Cut Type
Double Cut
Style Name
Hand File
UNSPSC Code
27111929
Brand Name
Simonds

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 22? Order in-stock items in the next 1 day 18 hrs 58 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-14 of 14
Item length string Item width string Item thickness string Coarseness rating Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-14 of 14
10 inches 11/16 inches 11/16 inches Coarse 73519500 B0002FUAR6 yes $14.64 Buy Options
10 inches 11/16 inches 11/16 inches Fine 73520500 B0002FUASK yes $15.44 Buy Options
10 inches 11/16 inches 11/16 inches Medium 73520000 B0050EE5K2 yes $15.10 Buy Options
6 inches 11/32 inches [ N/A ] inches Medium 73540500 B0050EEADO yes $6.23 Buy Options
6 inches 17/64 inches [ N/A ] inches Medium 73553000 B0050EED4K yes $6.40 Buy Options
6 inches 7/16 inches 7/16 inches Coarse 73516500 B00018AGNM yes $10.41 Buy Options
6 inches 7/16 inches 7/16 inches Fine 73517500 B0002FUANU Temporarily out of stock. Order now and we'll deliver when available. $12.37 Buy Options
6 inches 7/16 inches 7/16 inches Medium 73517000 B0002FUALC Temporarily out of stock. Order now and we'll deliver when available. $11.95 Buy Options
6 inches 7/32 inches [ N/A ] inches Fine 73564500 B0050EEGGK yes $6.71 Buy Options
7 inches 17/64 inches [ N/A ] inches Fine 73565000 B0050EEH4Q yes $7.88 Buy Options
7 inches 3/8 inches [ N/A ] inches Medium 73553500 B0050EEDHW yes $7.76 Buy Options
8 inches 5/8 inches 5/8 inches Coarse 73518000 B00018AGNW yes $12.07 Buy Options
8 inches 5/8 inches 5/8 inches Fine 73519000 B00018AGOG yes $14.42 Buy Options
8 inches 5/8 inches 5/8 inches Medium 73518500 B00018AGO6 yes $14.18 Buy Options

Key Features

  • Triangular three-square shape for filing angles, grooves, corners, and dies
  • File tapers in width and thickness to ease access into grooves
  • American pattern file for non-precision material removal
  • Double-cut, variable-pitch teeth for rapid removal of material
  • Tang for use with an optional handle (sold separately)

Product Description

The Simonds triangular hand file, also known as a three square file, has a triangular shape with double-cut, variable-pitch American pattern teeth for filing angles, grooves, corners, and dies. The file tapers slightly toward the point to ease access into grooves. It has double-cut American pattern teeth on all sides for rapid material removal, and the teeth are variably pitched to help reduce chattering and prolong tool life. The tang can be used with an optional handle for secure gripping (sold separately).

Hand files are used to remove material and smooth and shape workpieces. They have forward-facing cutting teeth and cut when pushed over either a stationary or rotating workpiece. Single-cut teeth are single rows cut diagonally across the width of the file. Double-cut teeth have two sets of rows cut in opposite directions. American pattern files have three coarseness grades. Coarse, also known as bastard cut, is suitable for efficient, heavy material removal where finish is not a concern. Medium, also known as second cut, offers average material removal and finish quality. Fine, also known as smooth cut, provides the smoothest finish. Swiss pattern files have eight coarseness grades, from 00 (coarse), 0 (medium), and 1 to 6 (fine to finest), offering a smoother finish than equivalent American pattern files. For Swiss pattern files the length of the tool is the length of the blade, not counting the tang, which is the pointed end fitted for a handle; for American pattern files the length of the tool is its entire length, including the tang.

Simonds International manufactures tools for cutting and finishing. The company, founded in 1832, is headquartered in Fitchburg, MA.
