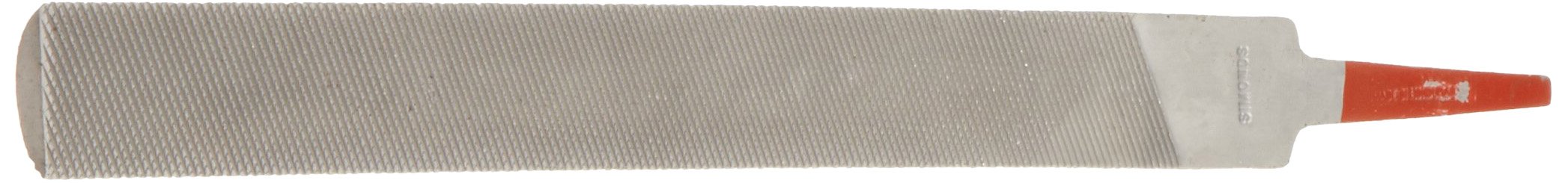

Simonds Hand File, American Pattern, Double Cut, Half-Round

Be the first to review this item

Product Specifications
Exterior Finish
Uncoated
Pattern Name
American Pattern
Item Shape
Half-Round
Cut Type
Double Cut
Style Name
Hand File
UNSPSC Code
27111929
Brand Name
Simonds

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 7 hrs 2 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-17 of 17
Length Width Thickness Coarseness Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-17 of 17
4" 7/16" 1/8" Fine 73316000 B0002FU91S yes $10.81 Buy Options
4" 7/16" 1/8" Medium 73315500 B0002FU91I yes $10.64 Buy Options
4" 7/16" 1/8" Coarse 73315000 B000186HDK yes $8.53 Buy Options
6" 19/32" 5/32" Fine 73318000 B0002FU92M yes $11.93 Buy Options
6" 19/32" 5/32" Medium 73317500 B0002FU92C yes $10.87 Buy Options
6" 19/32" 5/32" Coarse 73317000 B0050ECTU0 yes $10.10 Buy Options
8" 3/4" 7/32" Fine 73320000 B00018AGFU yes $13.93 Buy Options
8" 3/4" 7/32" Medium 73319500 B00018AGFK yes $15.08 Buy Options
8" 3/4" 7/32" Coarse 73319000 B00018AGFA yes $14.50 Buy Options
10" 15/16" 9/32" Fine 73322000 B0002FU8N2 yes $15.53 Buy Options
10" 15/16" 9/32" Medium 73321500 B0050ECYYQ yes $15.43 Buy Options
10" 15/16" 9/32" Coarse 73321000 B00018AGG4 yes $15.78 Buy Options
12" 1-1/8" 11/32" Fine 73324000 B0002FU8NW yes $22.84 Buy Options
12" 1-1/8" 11/32" Medium 73323500 B0002FU8NC yes $18.56 Buy Options
12" 1-1/8" 11/32" Coarse 73323000 B00018AGGO yes $20.62 Buy Options
14" 1-9/32" 13/32" Medium 73325500 B0002FU8OG yes $23.60 Buy Options
14" 1-9/32" 13/32" Coarse 73325000 B0002FU8O6 yes $20.65 Buy Options

Key Features

  • Half-round shape has one round side and one flat side for use on curved and flat surfaces
  • American pattern file for non-precision material removal
  • Double-cut, variable-pitch teeth on flat side for rapid removal of material
  • Spiral-cut teeth on round side for fast cutting action with a smooth finish
  • Tang for use with an optional handle (sold separately)

Product Description

The Simonds half-round hand file has one flat side with double-cut, variable-pitch American pattern teeth for use on flat surfaces and one curved side with spiral-cut teeth for use on curved surfaces. The double-cut American pattern teeth on the flat side are for rapid material removal, and the teeth are variably pitched to help reduce chattering and prolong tool life. The spiral-cut teeth on the round side are for fast cutting action with a smooth finish on concave surfaces. The tang can be used with an optional handle for secure gripping (sold separately).

Hand files are used to remove material and smooth and shape workpieces. They have forward-facing cutting teeth and cut when pushed over either a stationary or rotating workpiece. Single-cut teeth are single rows cut diagonally across the width of the file. Double-cut teeth have two sets of rows cut in opposite directions. American pattern files have three coarseness grades. Coarse, also known as bastard cut, is suitable for efficient, heavy material removal where finish is not a concern. Medium, also known as second cut, offers average material removal and finish quality. Fine, also known as smooth cut, provides the smoothest finish. Swiss pattern files have eight coarseness grades, from 00 (coarse), 0 (medium), and 1 to 6 (fine to finest), offering a smoother finish than equivalent American pattern files. For Swiss pattern files the length of the tool is the length of the blade, not counting the tang, which is the pointed end fitted for a handle; for American pattern files the length of the tool is its entire length, including the tang.

Simonds International manufactures tools for cutting and finishing. The company, founded in 1832, is headquartered in Fitchburg, MA.
