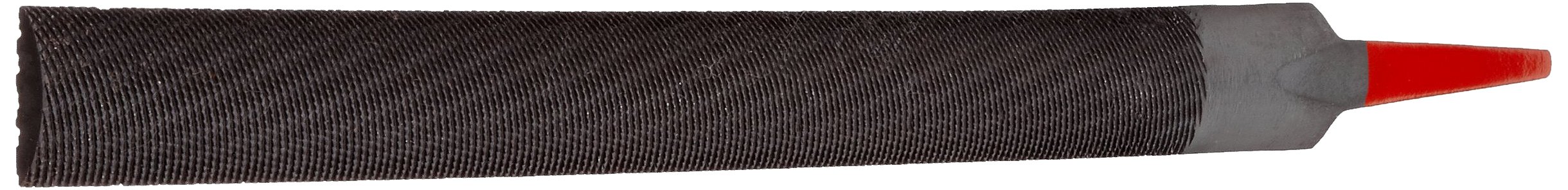

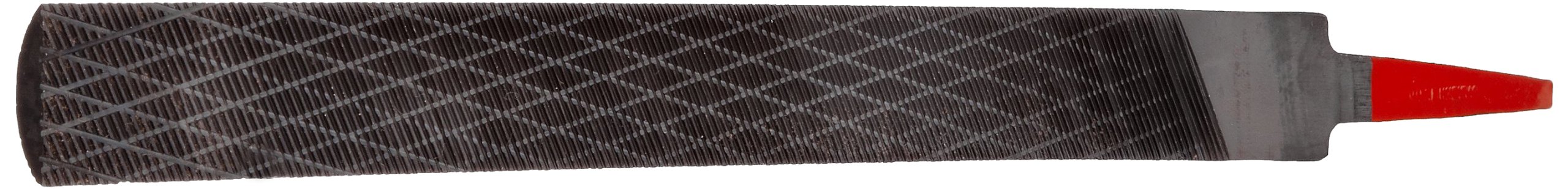

Simonds Hand File, American Pattern, Chip Breaking, Half-Round, Black Oxide Coating, Coarse, 10" Length, 15/16" Width, 9/32" Thickness

Be the first to review this item

ASIN B00018AGGY

Specifications for this item
Overall Width
15/16  inches
Item Shape
Half-Round
Part Number
78328600
Brand Name
Simonds
Cut Type
Chip Breaking
Style Name
Hand File
Number of Items
1
Pattern Name
American Pattern
UPC
726606007334
Thickness
9/32  inches
EAN
0726606007334
Exterior Finish
Black Oxide Coating
UNSPSC Code
27111929
Overall Length
10  inches
Coarseness Rating
Coarse

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 28? Order in-stock items in the next 1 day 20 hrs 1 min and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Half-round shape has one round side and one flat side for use on curved and flat surfaces
  • American pattern file for non-precision material removal
  • Spiral-cut teeth on round side for fast cutting action with a smooth finish, and single-cut teeth with diamond pattern on flat side for good chipbreaking, rapid material removal, and a smooth finish
  • Black oxide coating helps provide greater resistance to loading and rust than uncoated files
  • Tang for use with an optional handle (sold separately)

Package Details

Shipping Weight: 0.6 pounds
Package Size: 13.5 x 1 x 0.2 inches

Product Description

The Simonds coarse cut half-round hand file has a black oxide coating, one flat side with single-cut American pattern chip-breaking teeth for use on flat surfaces, and one curved side with spiral-cut teeth for use on curved surfaces. The single-cut teeth on the flat side have a diamond pattern that break chips for rapid material removal with a smooth finish on flat surfaces. The spiral-cut teeth on the round side are for fast cutting action with a smooth finish on concave surfaces. The file's black oxide coating helps provide greater resistance to loading and rust than uncoated files. The tang can be used with an optional handle for secure gripping (sold separately).

Hand files are used to remove material and smooth and shape workpieces. They have forward-facing cutting teeth and cut when pushed over either a stationary or rotating workpiece. Single-cut teeth are single rows cut diagonally across the width of the file. Double-cut teeth have two sets of rows cut in opposite directions. American pattern files have three coarseness grades. Coarse, also known as bastard cut, is suitable for efficient, heavy material removal where finish is not a concern. Medium, also known as second cut, offers average material removal and finish quality. Fine, also known as smooth cut, provides the smoothest finish. Swiss pattern files have eight coarseness grades, from 00 (coarse), 0 (medium), and 1 to 6 (fine to finest), offering a smoother finish than equivalent American pattern files. For Swiss pattern files the length of the tool is the length of the blade, not counting the tang, which is the pointed end fitted for a handle; for American pattern files the length of the tool is its entire length, including the tang.

Simonds International manufactures tools for cutting and finishing. The company, founded in 1832, is headquartered in Fitchburg, MA.
