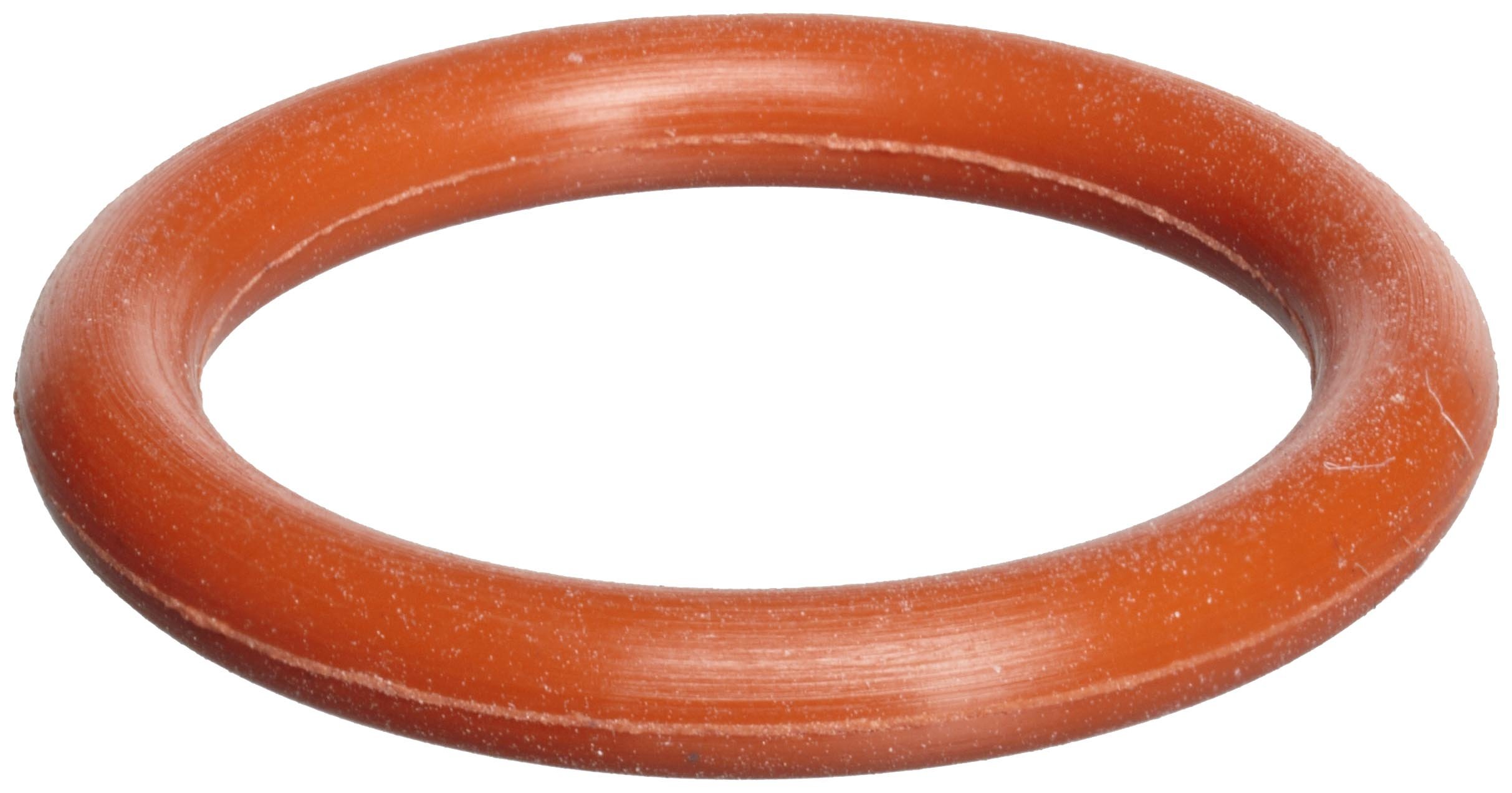

Silicone O-Ring, 70A Durometer, Red

Be the first to review this item

Product Specifications
Material Type
Silicone Rubber
Color Name
Red
Brand Name
Small Parts
Cross Section Shape
Round
Upper Temperature Range
450  Degrees Fahrenheit
Specification Met
AS568A
Hardness
70 A Durometer
UNSPSC Code
31410000
LowerTemperature Range
-65  Degrees Fahrenheit
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 24? Order in-stock items in the next 18 hrs 50 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 505 Next 20 »
Dash Size Nominal ID Nominal OD Nominal Width Actual ID Actual OD Actual Width Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All All
Currently showing 1-20 of 505 Next 20 »
001 1/32" 3/32" 1/32" 0.029"   0.040" 1000 B00M902NTU yes $15.39 Buy Options
001 1/32" 3/32" 1/32" 0.029" 0.109" 0.04" 100 B000FMYEMS yes $7.47 Buy Options
002 3/64" 9/64" 3/64" 0.042"   0.050" 1000 B00M902KAM yes $15.81 Buy Options
002 3/64" 9/64" 3/64" 0.042" 0.142" 0.05" 100 B000FMYEO6 yes $7.42 Buy Options
003 1/16" 3/16" 1/16" 0.056"   0.060" 1000 B00M902K4S Usually ships in 2 to 3 weeks $15.11 Buy Options
003 1/16" 3/16" 1/16" 0.056" 0.176" 0.06" 100 B000FMWNF8 yes $7.04 Buy Options
004 5/64" 13/64" 1/16" 0.070"   0.070" 500 B00M902KPM Usually ships in 2 to 3 weeks $11.62 Buy Options
004 5/64" 13/64" 1/16" 0.07" 0.21" 0.07" 100 B000FMUTJK yes $6.52 Buy Options
005 3/32" 7/32" 1/16" 0.101"   0.070" 1000 B00M902KKC Usually ships in 2 to 3 weeks $13.45 Buy Options
005 3/32" 7/32" 1/16" 0.101" 0.241" 0.07" 100 B000FMYQ94 yes $5.37 Buy Options
006 1/8" 1/4" 1/16" 0.114"   0.070" 1000 B00M902KG6 yes $12.66 Buy Options
006 1/8" 1/4" 1/16" 0.114" 0.254" 0.07" 100 B000FMYQBC yes $3.71 Buy Options
007 5/32" 9/32" 1/16" 0.145"   0.070" 1000 B00M902FFC yes $12.76 Buy Options
007 5/32" 9/32" 1/16" 0.145" 0.285" 0.07" 10 B000FMUTTU yes $1.07 Buy Options
007 5/32" 9/32" 1/16" 0.145" 0.285" 0.07" 100 B000FN0WYG yes $20.45 Buy Options
008 3/16" 5/16" 1/16" 0.176"   0.070" 1000 B00M902FFM yes $15.90 Buy Options
008 3/16" 5/16" 1/16" 0.176" 0.316" 0.07" 100 B000FN0X2M yes $5.17 Buy Options
009 7/32" 11/32" 1/16" 0.208"   0.070" 1000 B00M902FLG Usually ships in 2 to 3 weeks $16.37 Buy Options
009 7/32" 11/32" 1/16" 0.208" 0.348" 0.07" 100 B000FMYQHQ yes $4.48 Buy Options
010 1/4" 3/8" 1/16" 0.239"   0.070" 1000 B00M902FES Usually ships in 2 to 3 weeks $14.40 Buy Options

Key Features

  • Made of silicone for use with a variety of chemicals and fluids
  • Can be used across a wide temperature range from -65 degrees F (-54 degrees C) to 450 degrees F (232 degrees C)
  • Round in cross-section to provide a seal between cylindrical overlapping surfaces
  • Durometer (hardness) of 70A for resistance to penetration
  • Meets standards defined by Aerospace Standard AS568A

Product Description

This silicone O-ring is red in color, round in shape, has a durometer of 7OA, and is designed for use in a wide variety of sealing applications.

Silicone is acceptable for temperature applications between -65 degrees F (-54 degrees C) to 450 degrees F (232 degrees C). It has good resistance to ozone, weather, detergent, salt water, engine and transmission oil, non-petroleum brake fluid, hydraulic fluids that resist fire, vegetable and animal oils, and high molecular weight chlorinated aromatic hydrocarbons. Silicone is vulnerable to mechanical wear and tear, water and steam over 250 degrees F (121 degrees C), aromatic hydrocarbons (benzene), chlorinated hydrocarbons (trichloroethylene), acids and bases, and hydrocarbon fuels.

O-rings commonly provide a pressure and fluid seal between cylindrically shaped, overlapping mating surfaces and are commonly seen in engines, faucets, flanges, valves, and various cylinders. They are circular in shape, with a round cross section and a hole in the center, similar to a doughnut. O-rings are available in a number of sizes, and can be ordered based on required nominal inside diameter (ID), outer diameter (OD), and cross-sectional (CS) diameter.

This silicone O-ring has a shore durometer of 70A. Shore durometer is the hardness of a material, and its resistance to permanent indentation. A higher durometer value indicates greater resistance to indentation on a scale of 0 to 100, with 100 indicating no indentation.

This silicone O-ring meets standards defined by Aerospace Standard AS568A, which is the Aerospace Size Standard for O-rings.
