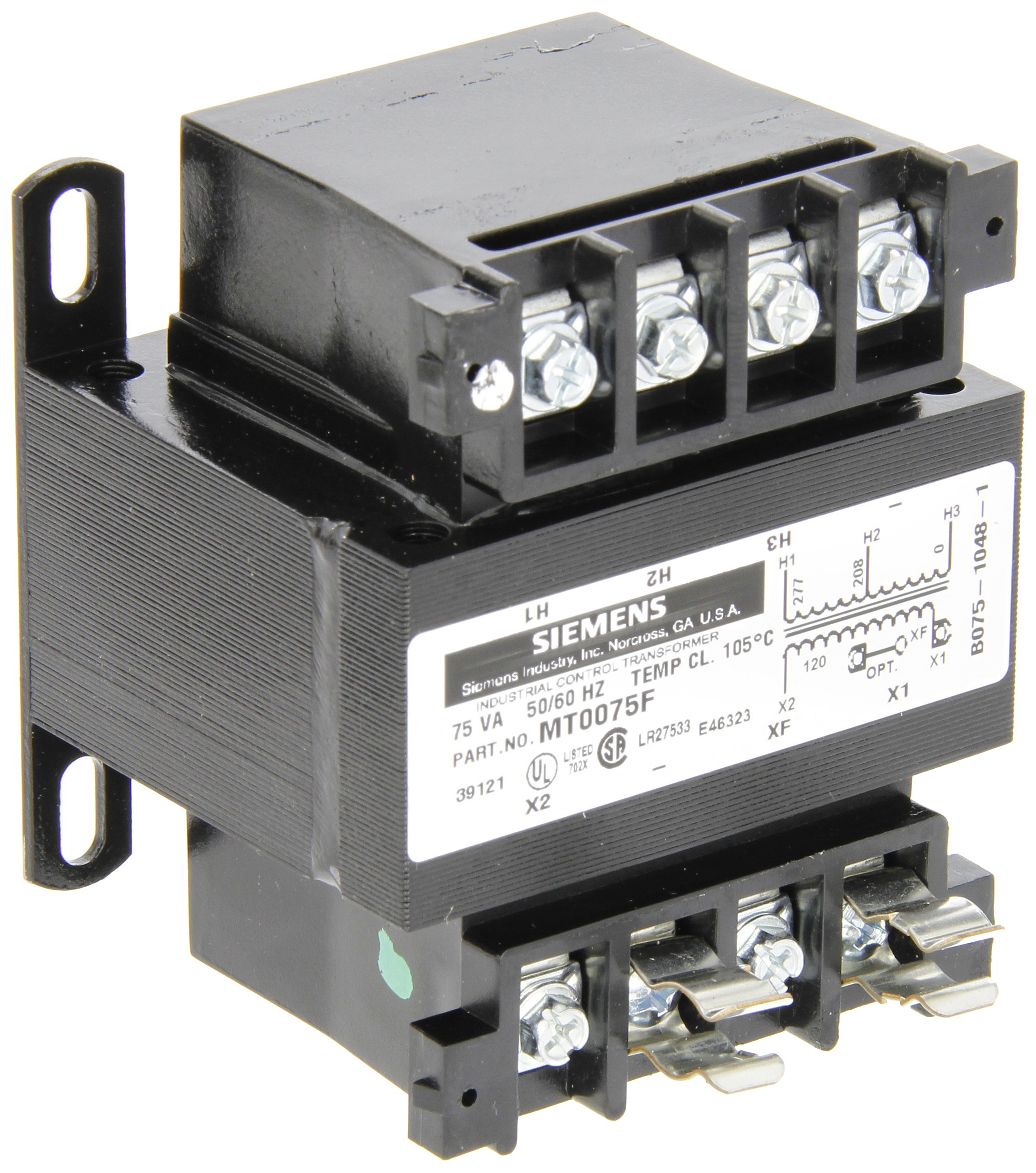

Siemens MT0075F Industrial Power Transformer, Domestic, 208/277 Primary Volts 50/60Hz, 120 Secondary Volts, 75VA Rating
Be the first to review this item
ASIN B0052MYJUI
Specifications for this item
- Brand Name
- Siemens
- Catalog Number
- MT0075F
- EAN
- 0754554026756
- Number of Items
- 1
- Part Number
- MT0075F
- UPC
- 754554026756
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Friday, June 21? Order in-stock items in the next 17 hours 34 minutes and choose One-Day Shipping at checkout.
Key Features
- Reduces 208/277 V (primary voltage) to 120 V (secondary voltage)
- Rated up to 75 VA
- Silicon steel-laminated core and copper magnet wire for increased transformer efficiency
- Epoxy-encapsulated to resist moisture, dust, and industrial contaminants
- Built-in fuse clips on secondary side save panel space and wiring time because they do not have to be manually installed in the field
Package Details
Shipping Weight:
4 pounds
Package Size:
8.9 x 8.5 x 8.3 inches
Product Description
This Siemens MT0075E industrial power transformer has a 75 VA power rating, a voltage letter designation of F, and reduces 208/277 V (primary voltage) to 120 V (secondary voltage). A silicon steel-laminated core and copper magnet wire increase transformer efficiency, which decreases the destabilizing effect of inrush current on secondary voltage. Epoxy-encapsulated transformer coils resist moisture, dust, and industrial contaminants, and built-in terminals and barriers resist breakage. Steel mounting brackets provide stable mounting and slotted mounting feet make installation easier. The thermal insulation class for this transformer is 105 degrees C with a 55 degree C (131 degrees F) temperature rise. This power transformer is Underwriters Laboratories (UL) listed and CSA International certified, and is suitable for use in transforming electrical power for machine tools and industrial control circuits.
Specifications
| Primary voltage | 208/277 V |
| Secondary voltage | 120 V |
| Voltage letter | F |
| Power rating | 75 VA |
| Frequency rating | 50/60 Hz |
| Rating marks | UL, CSA |
| Built-in fuse clips | Secondary side |
| Thermal class | 105 degrees C (221 degrees F) |
Power transformers change voltage from a supplied voltage to a required voltage. They also isolate control circuits from power and lighting circuits, which reduces electronic interference. Transformers accommodate specific primary voltages and currents, and supply specific secondary voltages and currents. Power transformers are used in a wide range of applications, such as home electronics power supplies, machine tools, and the distribution of electricity.
Siemens manufactures electronic products for building automation, industrial drives, lighting, energy generation, medical equipment, and rail transportation. The company, founded in 1847 and headquartered in Munich, Germany, meets International Standards Organization (ISO) standards 14001, 9001 and TS 16949.
