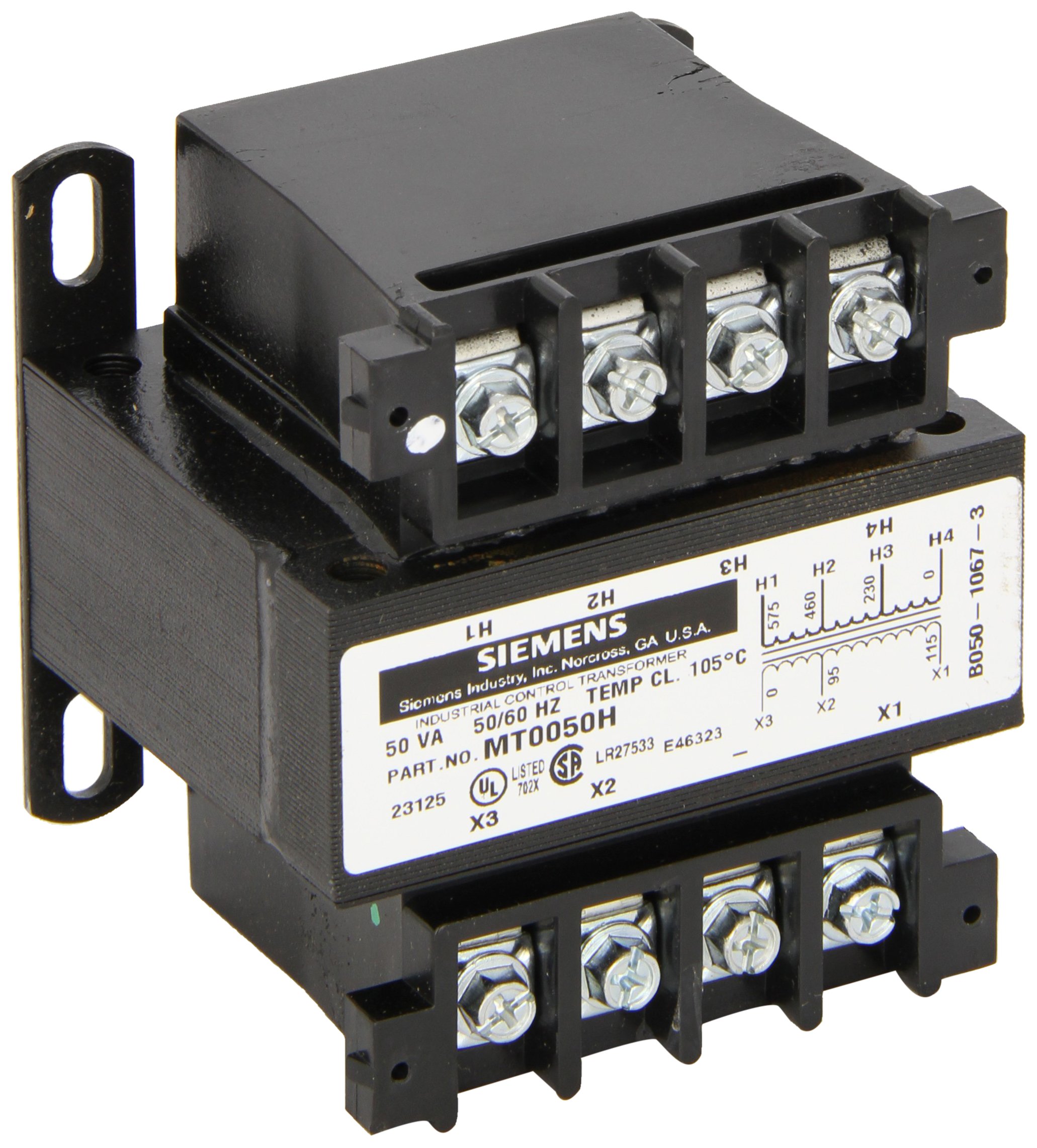

Siemens MT0050H Industrial Power Transformer, Domestic, 230/460/575 Primary Volts 50/60Hz, 95/115 Secondary Volts, 50VA Rating

Be the first to review this item

ASIN B0052N1IOW

Specifications for this item
Number of Items
1
Part Number
MT0050H
UPC
754554026671
Brand Name
Siemens
EAN
0754554026671
UNSPSC Code
39121002

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 5 hrs and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Reduces 230/460/575 V (primary voltage) to 95/115 V (secondary voltage)
  • Rated up to 50 VA
  • Silicon steel-laminated core and copper magnet wire for increased transformer efficiency
  • Epoxy-encapsulated to resist moisture, dust, and industrial contaminants
  • Built-in fuse clips on secondary side save panel space and wiring time because they do not have to be manually installed in the field

Package Details

Shipping Weight: 3.1 pounds
Package Size: 5.5 x 5.1 x 3.5 inches

Product Description

This Siemens MT0050H industrial power transformer has a 50 VA power rating, a voltage letter designation of H, and reduces 230/460/575 V (primary voltage) to 95/115 V (secondary voltage). A silicon steel-laminated core and copper magnet wire increase transformer efficiency, which decreases the destabilizing effect of inrush current on secondary voltage. Epoxy-encapsulated transformer coils resist moisture, dust, and industrial contaminants, and built-in terminals and barriers resist breakage. Steel mounting brackets provide stable mounting and slotted mounting feet make installation easier. The thermal insulation class for this transformer is 105 degrees C with a 55 degree C (131 degrees F) temperature rise. This power transformer is Underwriters Laboratories (UL) listed and CSA International certified, and is suitable for use in transforming electrical power for machine tools and industrial control circuits.

Specifications
Primary voltage230/460/575 V
Secondary voltage95/115 V
Voltage letterH
Power rating50 VA
Frequency rating50/60 Hz
Rating marksUL, CSA
Built-in fuse clipsSecondary side
Thermal class105 degrees C (221 degrees F)

Power transformers change voltage from a supplied voltage to a required voltage. They also isolate control circuits from power and lighting circuits, which reduces electronic interference. Transformers accommodate specific primary voltages and currents, and supply specific secondary voltages and currents. Power transformers are used in a wide range of applications, such as home electronics power supplies, machine tools, and the distribution of electricity.

Siemens manufactures electronic products for building automation, industrial drives, lighting, energy generation, medical equipment, and rail transportation. The company, founded in 1847 and headquartered in Munich, Germany, meets International Standards Organization (ISO) standards 14001, 9001 and TS 16949.
