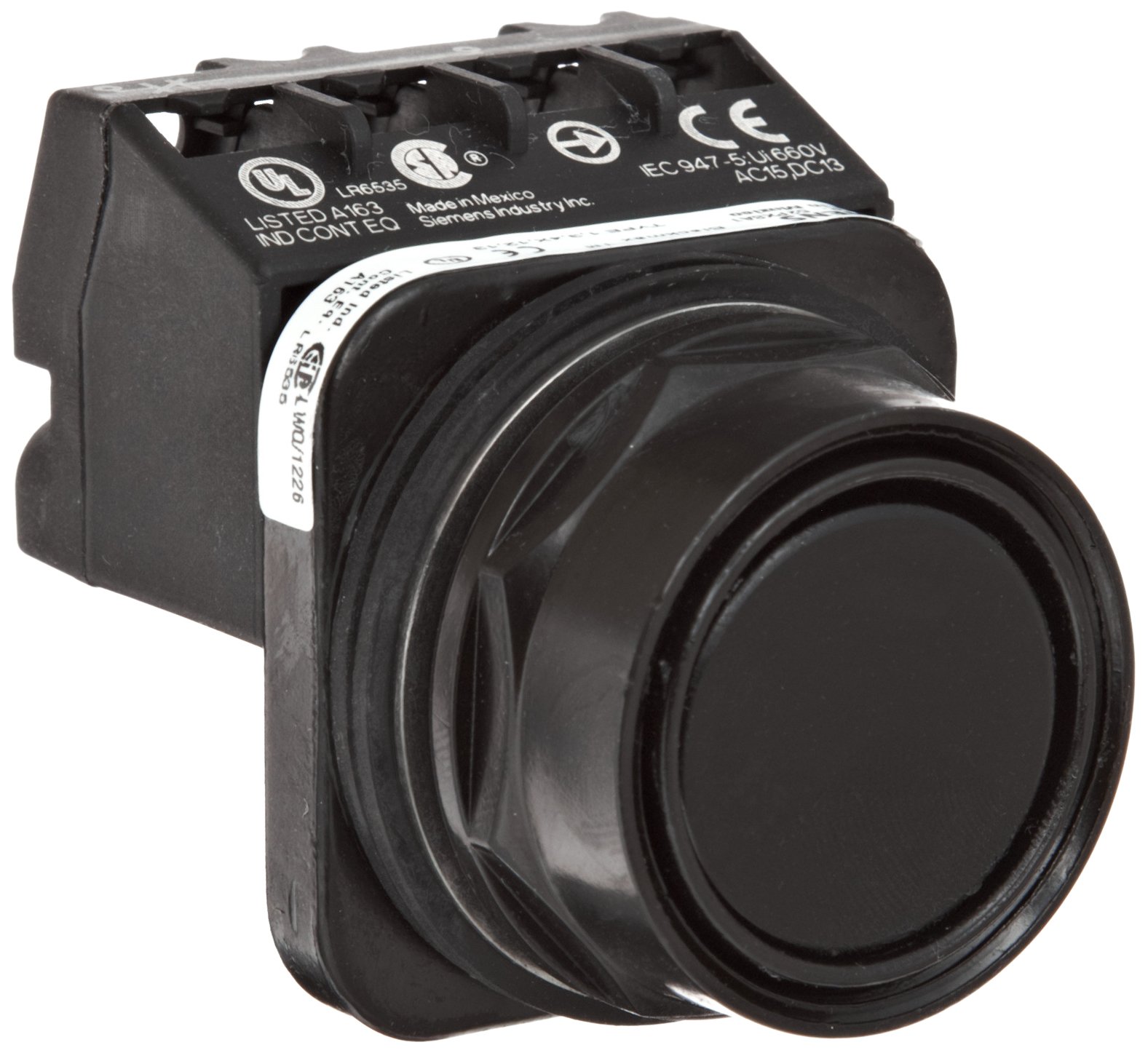

Siemens 52PX8A1J Heavy Duty Pushbutton Unit and Assembled Contact Blocks, Black Max Corrosion Resistant, Flush Cap, Black, 1 NC Contact Type

Be the first to review this item

ASIN B008SHVUBK

Specifications for this item
Number of Items
1
Color Name
Black
Part Number
52PX8A1J
UPC
783087152809
Brand Name
Siemens
EAN
0783087152809
UNSPSC Code
39122216
Contact Type
1 NC

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Oct 2? Order in-stock items in the next 2 hrs 43 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Flush-cap pushbutton unit, black cap
  • 1 NC contact
  • For use in corrosive, wet, and oily locations

Package Details

Shipping Weight: 0.15 pounds
Package Size: 3.1 x 2 x 1.7 inches

Product Description

This Siemens 52PX8A1J pushbutton unit has a black anodized pushbutton actuator with a black plastic cap and an assembled contact block, and is suitable for use in corrosive or oily environments. The flat-surface pushbutton actuates a normally closed (NC) contact for momentary on/off operation. The contact block is rated at up to 600V and up to 7,200W power input. The pushbutton unit has a 30 mm diameter shaft and is intended to mount in a Siemens enclosure (not included). This pushbutton unit is Underwriters Laboratories (UL) Listed and Canadian Standards Association (CSA) certified for quality assurance and is suitable for use in an application such as controlling an electrical circuit in a manufacturing process control system.

Specifications
Pushbutton typeFlat-surface pushbutton and assembled contact block, black anodized, black plastic cap
Operation typePush, momentary contact
Power inputUp to 600V, up to 7,200W power input
Contact type1 NC
Specifications metUL Listed, CSA certified

Pushbutton switches make or break electrical connections as part of a system that controls a process, such as a manufacturing line. Indicator lights with labels or color-coded caps are used to display the current state of a process, such as "completed." The pushbutton unit is composed of a pushbutton actuator for making or breaking electrical connections, a holder for securing the actuator to a control panel and for housing a light, and one or more contact blocks for connection to electrical wiring. Contacts within a contact block can be normally open (NO) or normally closed (NC), so that pressing the button starts or stops a process. Holders accommodate a range of control panel thicknesses and may include lamps to illuminate the button. Pushbutton actuator head types include mushroom, flat-surface, raised-surface, and key-operated, and may be illuminated, color-coded, and labeled. According to the requirements of an application, actuators may operate only as long as the button is held or they may lock into position when pushed and unlock when pulled or twisted. Pushbuttons and indicator lights are used in applications such as manufacturing process controls and as emergency shutoffs in industrial workplaces.

Siemens manufactures electronic products for building automation, industrial drives, lighting, energy generation, medical equipment, and rail transportation. The company, founded in 1847 and headquartered in Munich, Germany, meets International Standards Organization (ISO) standards 14001, 9001 and TS 16949.
