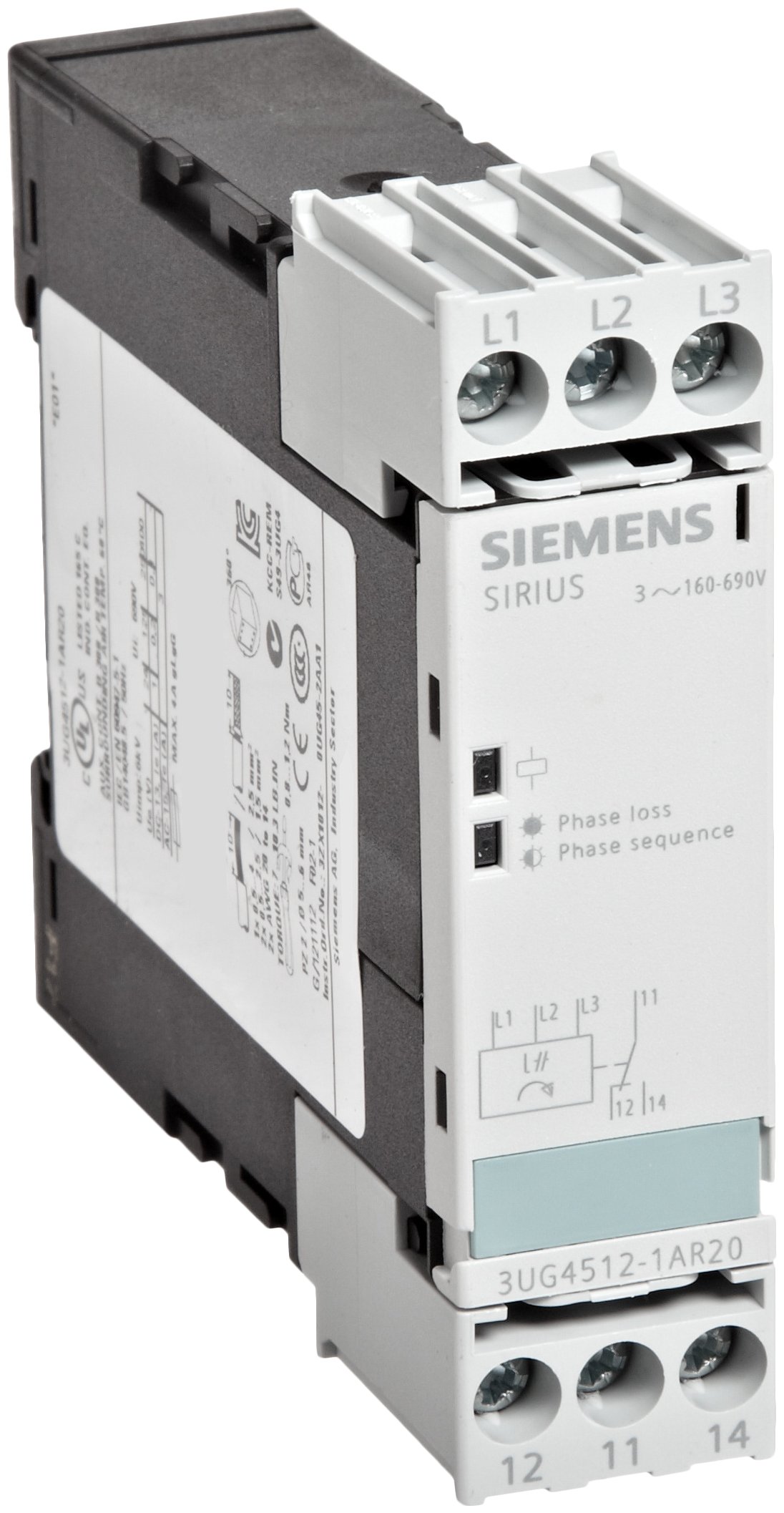

Siemens 3UG4512-1AR20 Monitoring Relay, Three Phase Voltage, Insulation Monitoring, 22.5mm Width, Screw Terminal, 1 CO Contacts, Delay Time, 160-690 Line Supply Voltage

Be the first to review this item

ASIN B0091WE2O8

Specifications for this item
Number of Items
1
Part Number
3UG4512-1AR20
UPC
754554922850
Brand Name
Siemens
EAN
0754554922850
Contact Type
1 CO
UNSPSC Code
39122300

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 1? Order in-stock items in the next 2 days 10 hrs 6 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Package Details

Shipping Weight: 0.25 pounds
Package Size: 4.1 x 3.6 x 1.2 inches

Product Description

The new 3UG4 line monitoring relays permit a maximum degree of protection to be achieved for machines, plants and systems. This means that line and voltage faults can be detected early on and the appropriate response is initiated before far more significant subsequent damage can occur.. Thanks to the wide voltage range, it can be used on all line supplies around the world – from 160 V to 690 V – without an auxiliary voltage. Can be variably set to above range, below range or window monitoring. Freely parameterizable delay times and reset behavior. Reduced width for all versions for line and voltage monitoring. For the digital versions, the actual value and fault type are permanently displayed. Automatic direction of rotation correction by differentiating between line faults and incorrect phase sequence. All versions have removable terminals. All versions have either screw terminals or alternatively innovative Cage Clamp terminals
