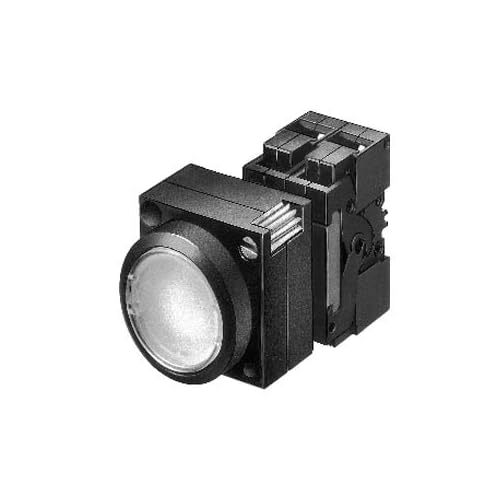

Siemens 3SB3251-0AA61 Pushbutton Unit, Flat Button, Momentary Operation, Illuminated, 110VAC/VDC Integrated LED, 1 NO + 1 NC Contact Type, White

Be the first to review this item

ASIN B004YXXB82

Specifications for this item
Number of Items
1
Color Name
White
Part Number
3SB3251-0AA61
UPC
754554772318
Brand Name
Siemens
EAN
4011209521353 , 0754554772318
Voltage
110  Volts
UNSPSC Code
39122216
Contact Type
1 NO + 1 NC

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 28? Order in-stock items in the next 10 hrs 3 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Pilot device with flat, white illuminated pushbutton actuator with 1 NO and 1 NC contact
  • Plastic for corrosion resistance and non-conductivity
  • Rated up to 130V and up to 10 amp
  • Operating temperature range from -25 to +70 degrees C
  • UL Listed, CSA certified, CE and EAC marked

Package Details

Shipping Weight: 0.5 pounds
Package Size: 2.8 x 2.7 x 2 inches

Product Description

This Siemens 3SB3251-0AA61 pushbutton unit is a pilot device with a flat, white illuminated pushbutton actuator with momentary contact and an integrated LED bulb. It is made of plastic for corrosion resistance and non-conductivity. The pushbutton actuates the normally open (NO) and normally closed (NC) contacts, and the contact blocks are rated up to 130V and up to 10 amp. The unit has an operating temperature range from -25 to +70 degrees C and meets the Ingress Protection (IP) 66 standard for protection against dust and spraying liquids. This pilot device is Underwriters Laboratories (UL) listed, Canadian Standards Association (CSA) certified, and displays the European Conformity (CE) and EurAsian Conformity (EAC) marks.

Specifications
Contact blocks1 NO + 1 NC
LampLED
MountingFront
Switching positions2
ConnectionScrew terminals
Supply voltage of lamp110V AC
Minimum to maximum voltage100 – 130V AC
Maximum current10 amp
Maximum operating cycle1,000/hr
Operating temperature range-25 to +70 degrees C
ProtectionIP66
Specifications metUL listed, CSA certified, CE and EAC marked
Mounting dimensions*8 x 22mm (H x Dia.)
Installation dimensions*28.5 x 63mm (W x D)

*H is height, the vertical distance from the lowest to highest point; Dia. is diameter, the length of a straight line passing through the center of the button; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Pushbutton switches make or break electrical connections as part of a system that controls a process, such as a manufacturing line. Indicator lights with labels or color-coded caps are used to display the current state of a process, such as "completed." The pushbutton unit is composed of a pushbutton actuator for making or breaking electrical connections, a holder for securing the actuator to a control panel and for housing a light, and one or more contact blocks for connection to electrical wiring. Contacts within a contact block can be normally open (NO) or normally closed (NC), so that pressing the button starts or stops a process. Holders accommodate a range of control panel thicknesses and may include lamps to illuminate the button. Pushbutton actuator head types include mushroom, flat-surface, raised-surface, and key-operated, and may be illuminated, color-coded, and labeled. According to the requirements of an application, actuators may operate only as long as the button is held or they may lock into position when pushed and unlock when pulled or twisted. Pushbuttons and indicator lights are used in applications such as manufacturing process controls and as emergency shutoffs in industrial workplaces.

Siemens manufactures electronic products for building automation, industrial drives, lighting, energy generation, medical equipment, and rail transportation. The company, founded in 1847 and headquartered in Munich, Germany, meets International Standards Organization (ISO) standards 14001, 9001 and TS 16949.
