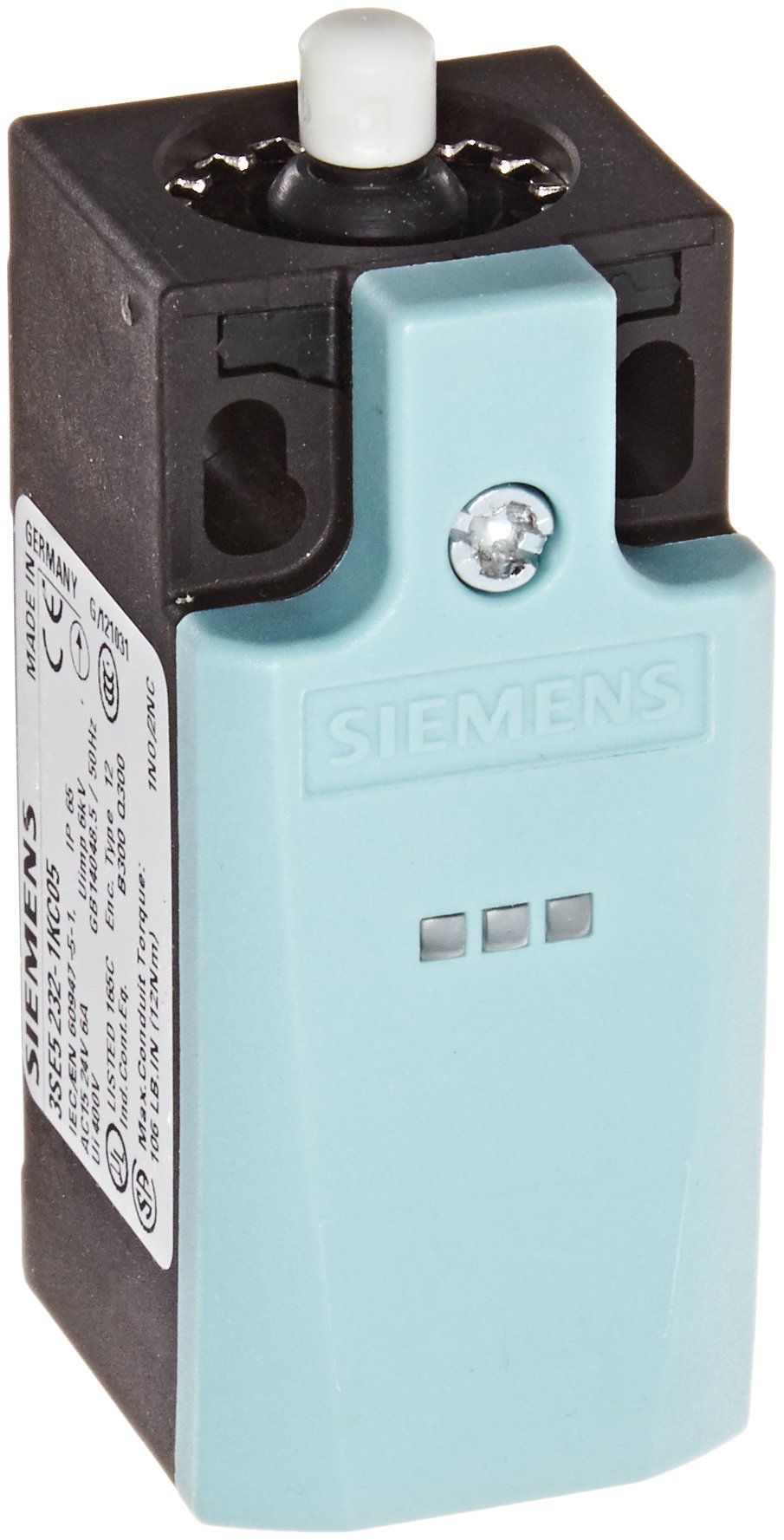

Siemens 3SE5 232-1KC05 International Limit Switch Complete Unit, Plastic Enclosure, 31mm Width, Rounded Plunger, 1 Yellow LED, 1 Green LED, Slow Action Contacts, 1 NO + 2 NC Contacts, 24VDC LED Voltage

Be the first to review this item

ASIN B009B1HYKI

Specifications for this item
Number of Items
1
Part Number
3SE52321KC05
UPC
754554955476
Brand Name
Siemens
EAN
0754554955476
Contact Type
1 NO + 2 NC
UNSPSC Code
39122213

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Sep 23? Order in-stock items in the next 22 hrs 46 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Rounded plunger actuator for push-type operation
  • Plastic enclosure provides IP67 protection against dust and liquids
  • 1 NO + 2 NC slow-action "break-before-make" contacts for NC contact opening before NO contact closure
  • LED signaling indicators alert users to issues
  • Meets IEC 60 947-5-1 standard for positive opening of NC contacts

Package Details

Shipping Weight: 0.15 pounds
Package Size: 3.8 x 1.8 x 1.5 inches

Product Description

This Siemens 3SE5 232-1KC05 mechanical limit switch comes as a complete unit with a 31 mm wide plastic enclosure, one NO and two NC slow action contacts, and a rounded plunger actuator, and is suitable for use in plant and building automation systems. The slow action "break-before-make” operation ensures the normally-closed (NC) contact opens before the normally-open (NO) contact closes, with the actuator forcibly opening the NC contacts for use in safety circuits. The 24VDC LED indicates switch status and alerts users to issues. This mechanical limit switch conforms to the European Committee for Electrotechnical Standardization (CENELEC) EN 50047 standard for dimensions and mechanical data and the EN 50041 standard for quality assurance, and is suitable for use in applications in which there is push-type operation.

Specifications

Positive opening of NC contactsIEC 60 947-5-1
Quality assuranceEN 50041
Dimensions and mechanical dataEN 50047
Degree of protectionIP67
LED voltage24VDC

Mechanical limit switches are used to make or break electrical circuit connections as part of a facility automation system. The switch is composed of a contact block with one or more electrical contacts, wiring connections, an enclosure for protection, and an actuator head for tracking object movement. Switch contacts can be normally open or normally closed, and switch connections can be either quick or slow, depending on the switch design, and they can include status LEDs and connector sockets. Actuator head types include rounded and roller plungers, roller and angular roller levers, spring rods, twist levers and rod actuators with a twist actuator, and fork levers with a twist actuator. Mechanical limit switches are used in many applications such as elevators, conveyors, doors, water tanks, railroad crossings, emergency exits, and as emergency shutoffs in industrial workplaces.

Siemens manufactures electronic products for building automation, industrial drives, lighting, energy generation, medical equipment, and rail transportation. The company, founded in 1847 and headquartered in Germany, meets International Standards Organization (ISO) standards 14001, 9001 and TS 16949.
