SHOP FOX W1804 11-Inch Dovetail Machine

Be the first to review this item


Specifications for this item
Part Number
Item Weight
366 pounds
Brand Name
Shop Fox

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Precision milled cast iron table frame
  • Cast aluminum carriage
  • Steel stand
  • Hardened and ground chrome steel slide ways
  • Ball bearing linear guides

Package Details

Shipping Weight: 397 pounds
Package Size: 64 x 29.3 x 25.3 inches

Product Description

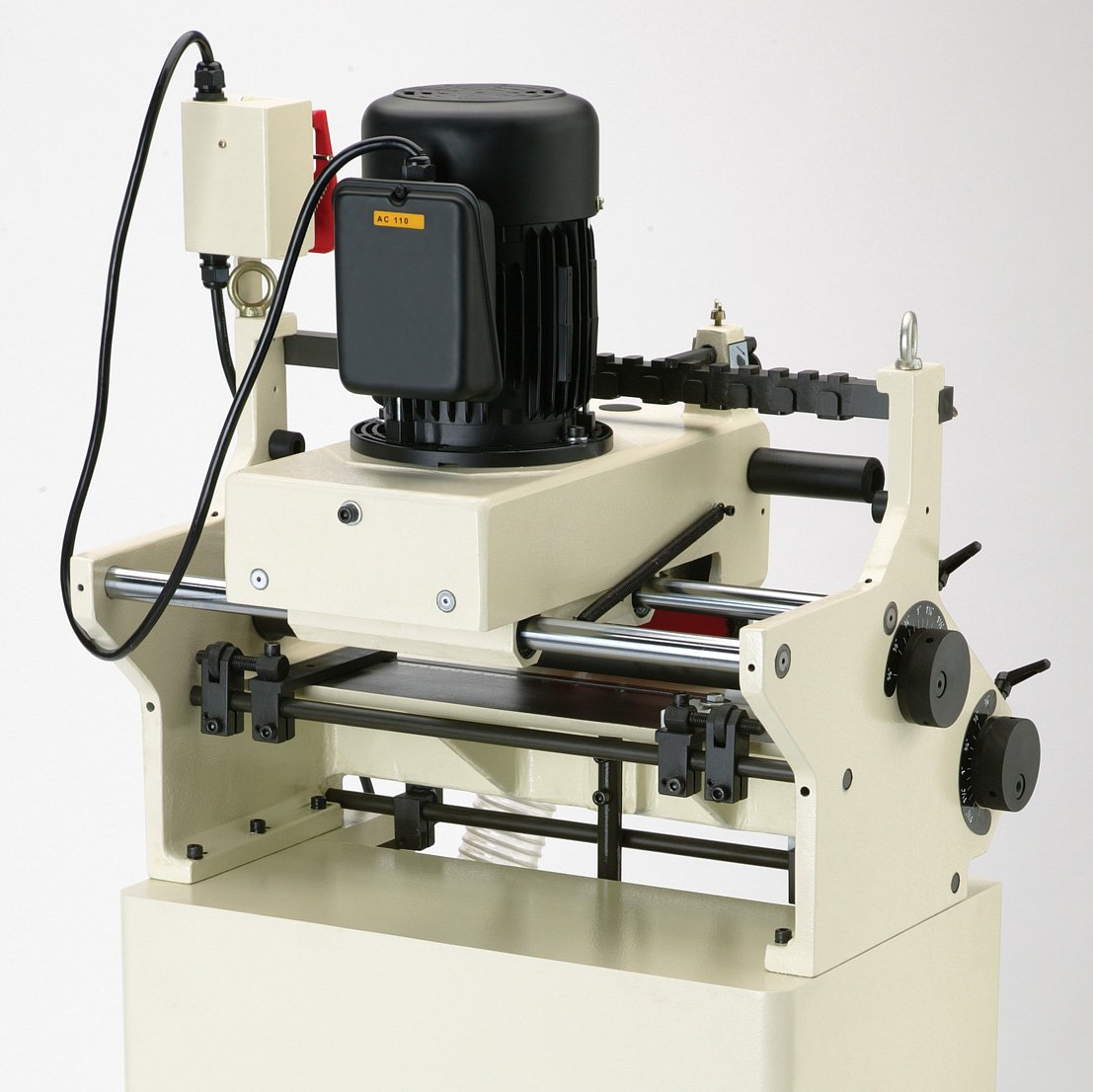

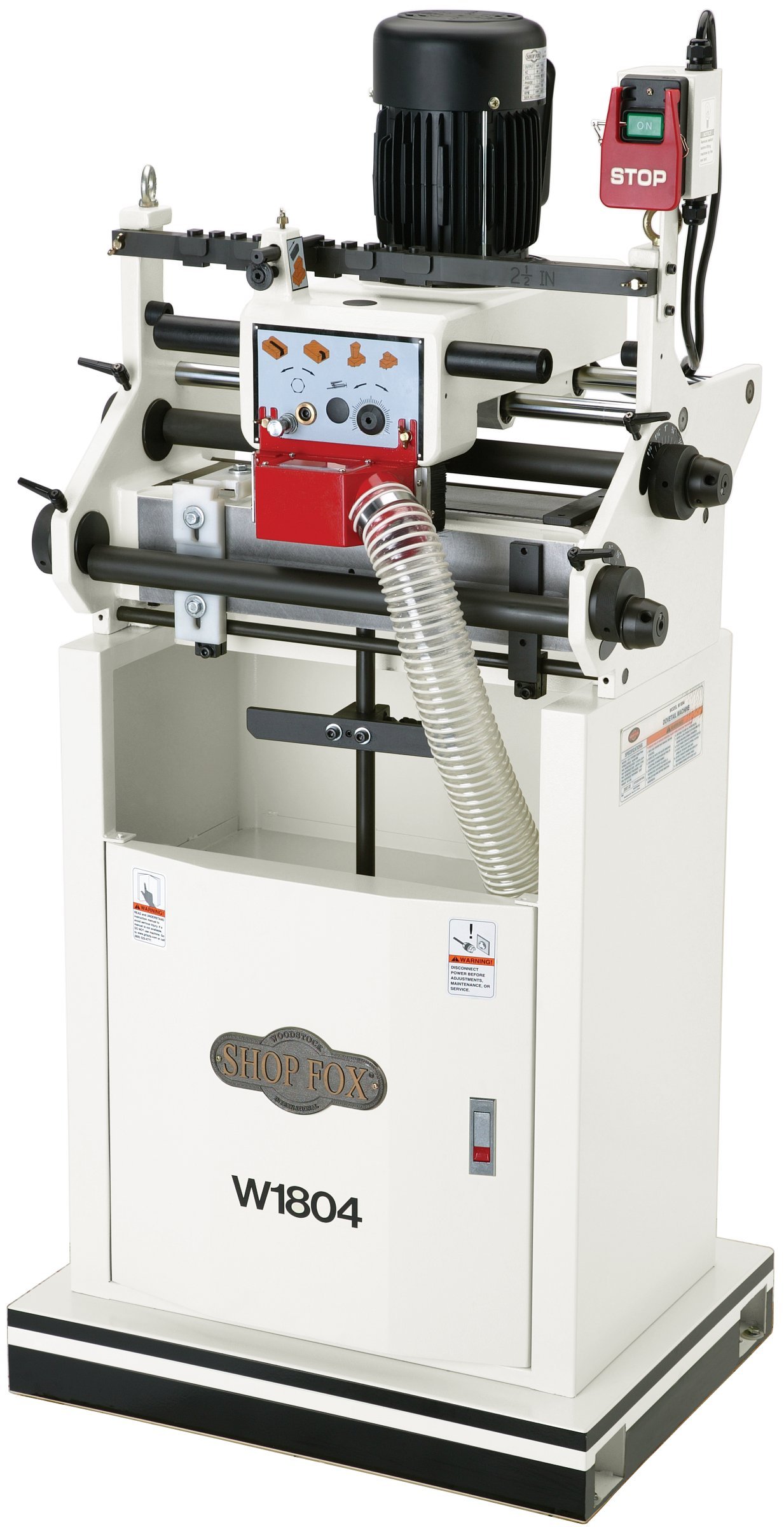

Shop Fox 11-Inch Dovetail Machine
View larger

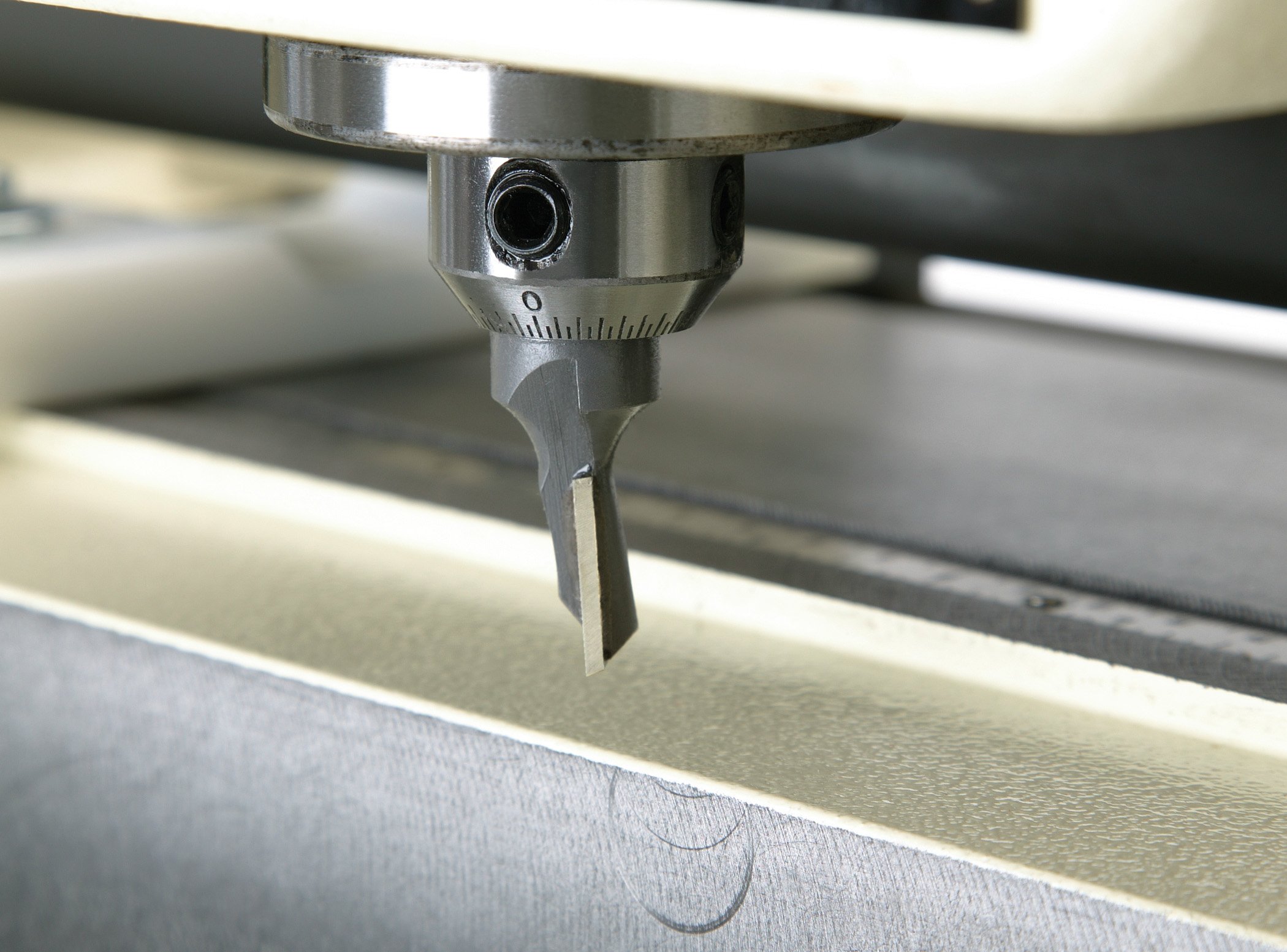

Cutter Height Adjustment
View larger
Adjustment Hubs
View larger
Shop Fox W1804 11-inch Dovetail Machine

Making dovetail joints has never been so easy. Simply set up the machine to match the stock width and thickness, make a few adjustments to get a glove-like fit, and then crank out dozens of perfect dovetail joints every hour. Accepts workpieces as large as 11-1/4 wide x 28-inches long and as small as 2-3/8 wide x 7-7/8-inches long. Includes templates for four different dovetail sizes.

Control Panel Functions

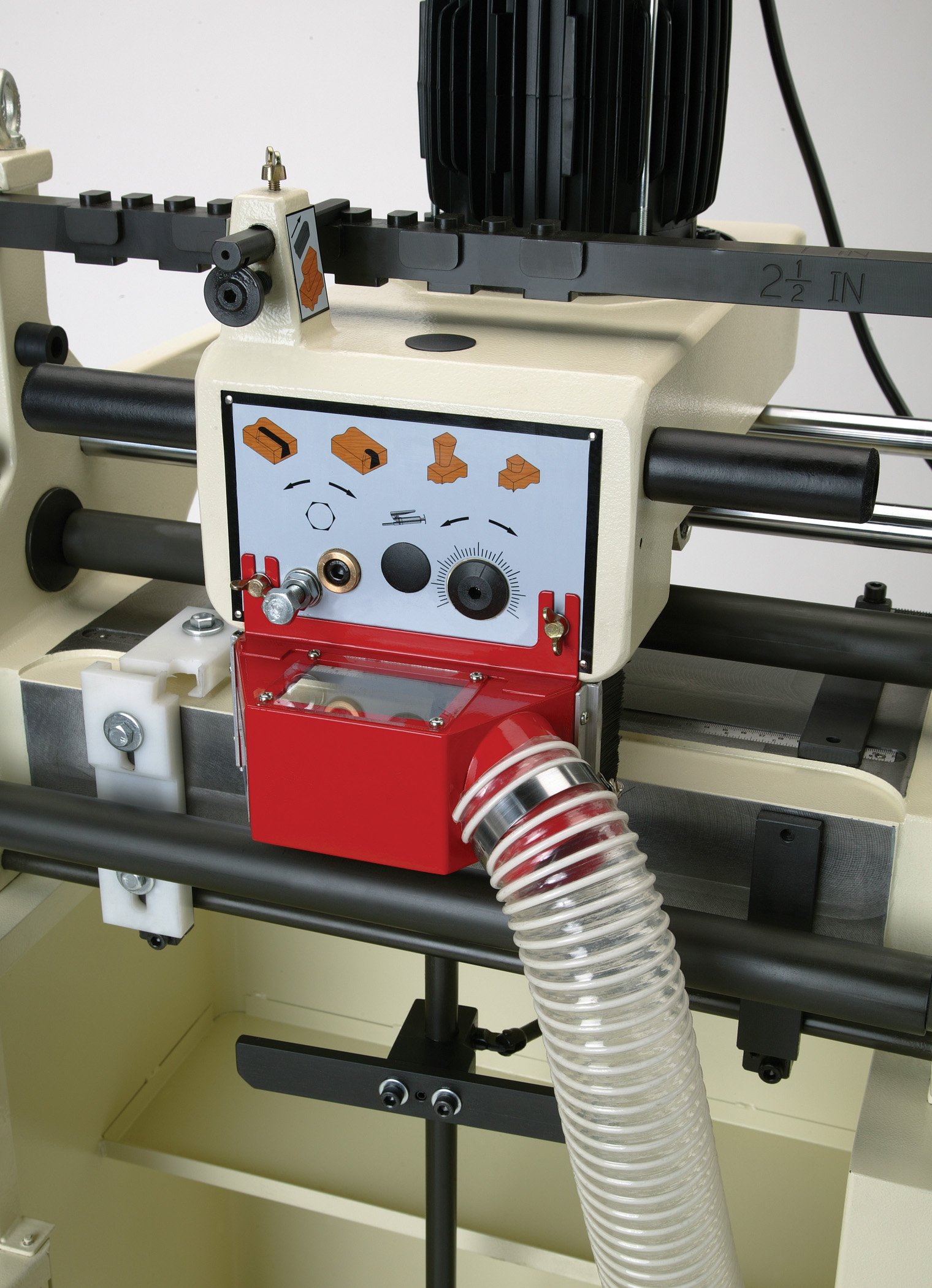

Choosing the perfect tail height and socket height for your project is a snap with cutter height adjustment controls located right up front on the easily accessible control panel. The dust collection port attached to the guard aids in dust management. Simply attach a 4-inch dust collection hose to the port on rear of the cabinet and run the hose to your dust collector.

Adjustment Hubs

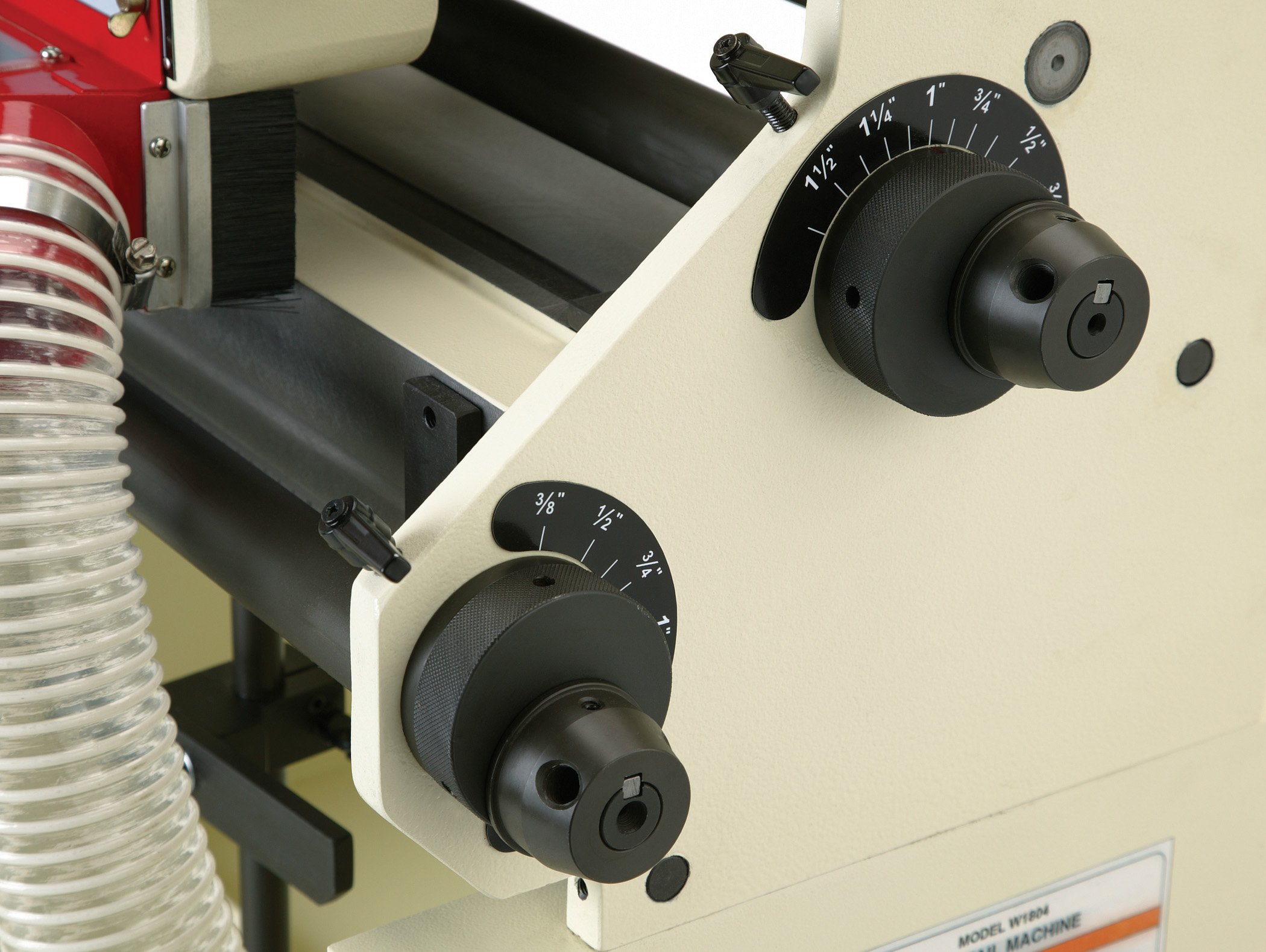

Setting the workpiece thickness is just as easily accomplished with the adjustment hubs and workpiece clamps. Use the easy-to-read scale to set the clamps anywhere from 13/32-inch to 1-3/4-inch thickness and set the lock handles to ensure your workpieces are held securely during cutting.

Built to Last

The W1804 11-Inch Dovetail Machine has been specially designed to provide many years of trouble-free service. Close attention to detail, ruggedly built parts and a rigid quality control program assure safe and reliable operation.

Specifications and Features
  • Motor: 1 HP, 110V/220V,single-phase, prewired 110V
  • Table size: 19-1/2-by-7-inches
  • Floor to table height: 38-5/16-inches
  • Overall size: 28 W x 23 D x 57-inches H
  • Number of spindles: 1
  • Spindle speed: 18,500 RPM
  • Dovetail bit: 10-degree angle x 5/8-inch long
  • Dovetail templates: 1, 1-1/2, 2 and 2-1/2-inches
  • Dovetail shank: 12mm
  • Maximum dovetail height: 3/4-inch
  • Minimum dovetail height: 3/16-inch
  • Maximum thickness: 1-3/4-inch
  • Minimum thickness: 13/32-inch
  • Maximum stock size: 11-1/4 W x 28-inch L
  • Minimum stock size: 2-3/8 W x 7-7/8-inch L
  • 4-inch and 2-1/2-inch dust ports
  • Features Precision milled cast iron table frame
  • Cast aluminum carriage
  • Steel stand
  • Hardened and ground chrome steel slide ways
  • Ball bearing linear guides
  • Four sided dovetail template bar
  • Micro adjustable spindle head
  • Workpiece stops
  • Quick cam clamp
  • Spring loaded carriage for smooth operation
  • On/Off push button switch with oversized stop paddle
  • 2 cam-lock bar clamps
  • Approximate shipping wt.: 366 lbs
