Shop Fox M1112 12-Inch by 36-Inch Gunsmithing Lathe

Be the first to review this item

ASIN B001R23SLS

Specifications for this item
Number of Items
1
Part Number
M1112
UPC
754001511125
Brand Name
Shop Fox
EAN
0754001511125
Warranty
Two-year warranty
UNSPSC Code
23240000

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Spindle Bore: 1-5/8-Inch, D1-5 Camlock Mount

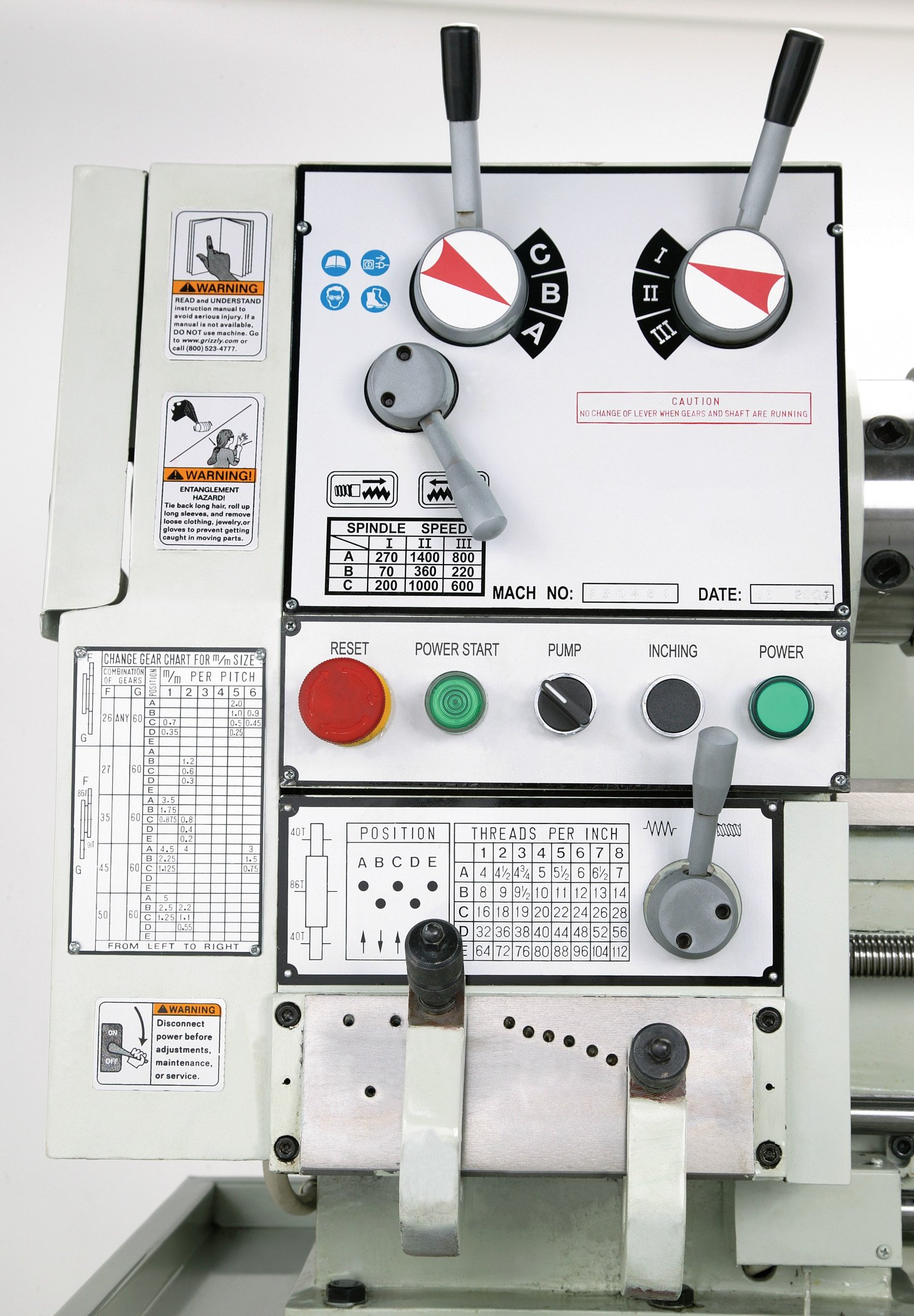

  • Range of speeds: 70, 200, 220, 270, 360, 600, 800, 1000 and 1400 RPM

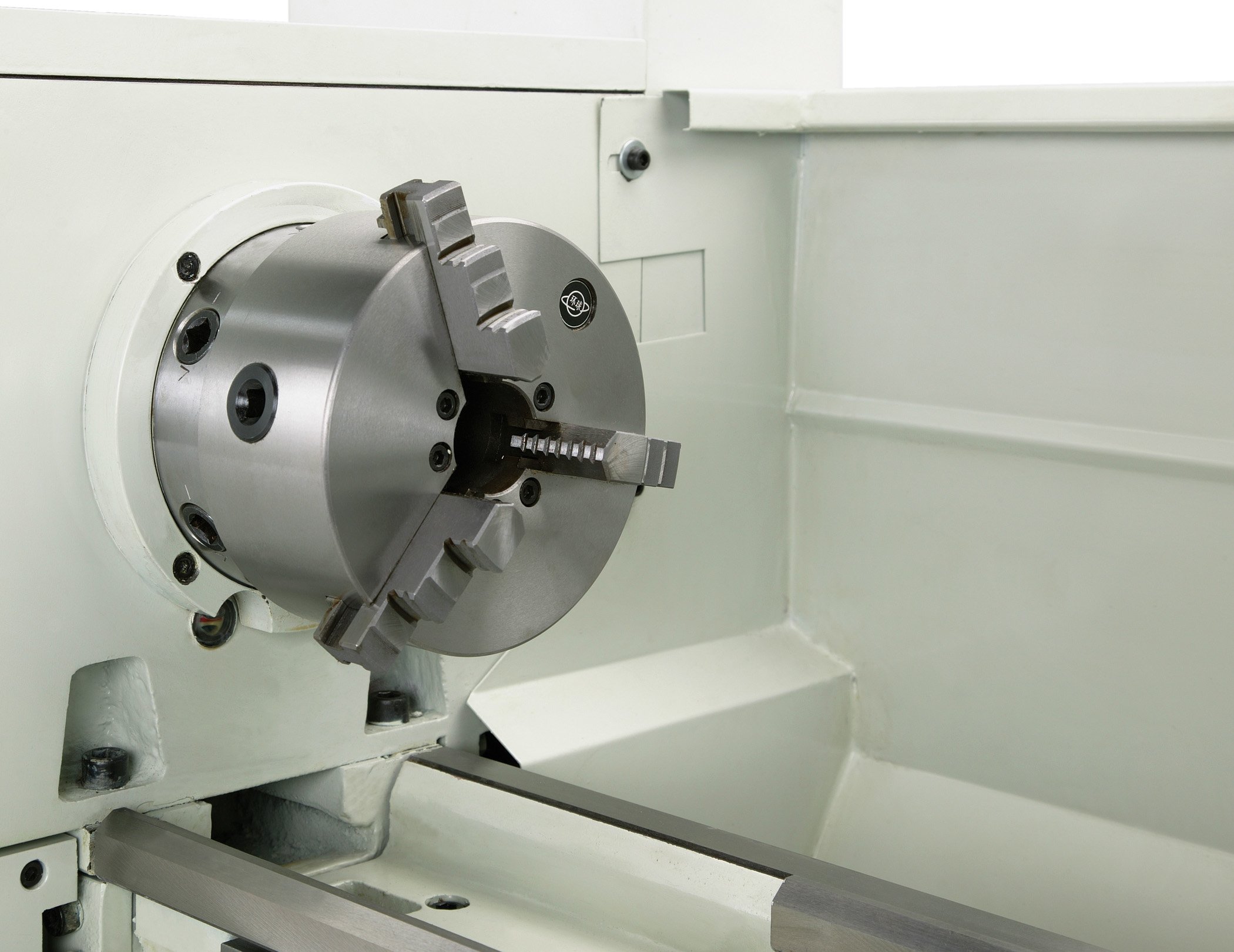

  • Includes: 6-Inch 3-Jaw chuck with two sets of jaws, 8-Inch 4-Jaw chuck with reversible jaws, 10-Inch faceplate, set of six change gears, 1/2-Inch chuck w/ MT3 arbor
  • Halogen work light, coolant system, ball bearing steady and follow rests, quick-change tool post included
  • Cast iron stand with extended base, cast aluminum gear cover, ground gears and high precision bearings, hardened and bround V-ways

Package Details

Shipping Weight: 1377 pounds
Package Size: 66 x 50 x 30 inches

Product Description

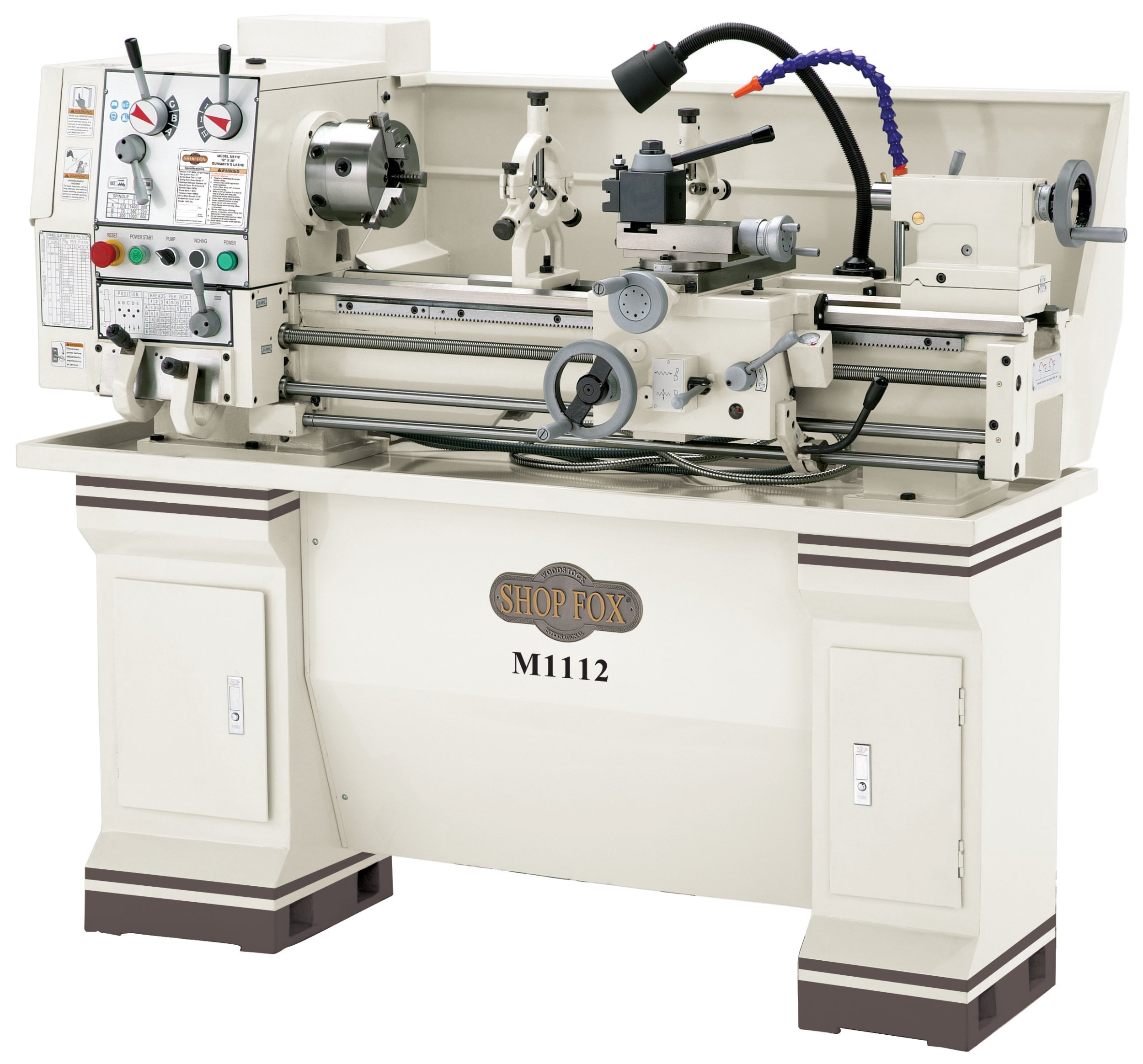

Shop Fox M1112 12-Inch by 36-Inch Gunsmithing Lathe

Feature-packed with Gunsmiths in Mind
View larger

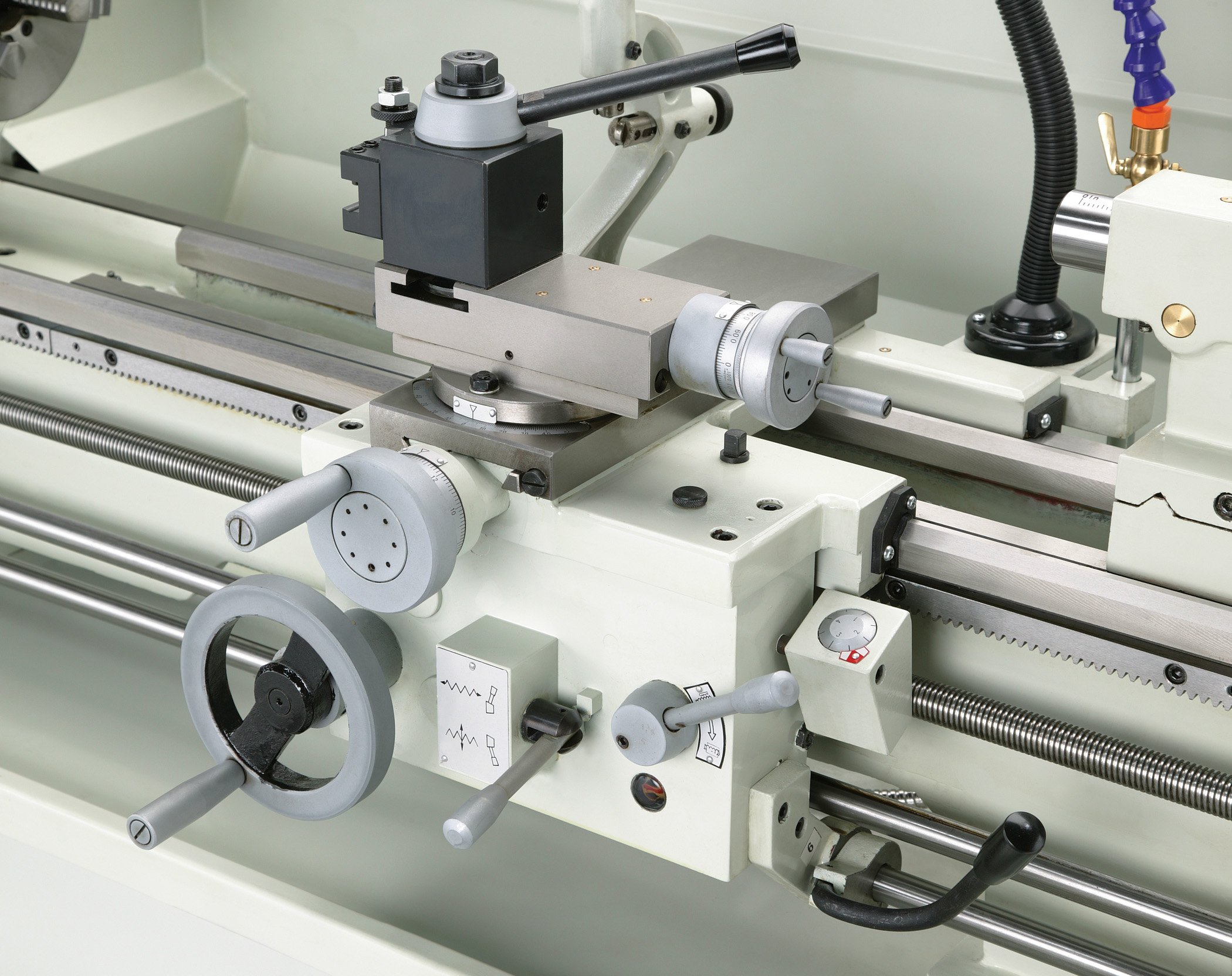

Carriage Controls & Cross Slide
View larger

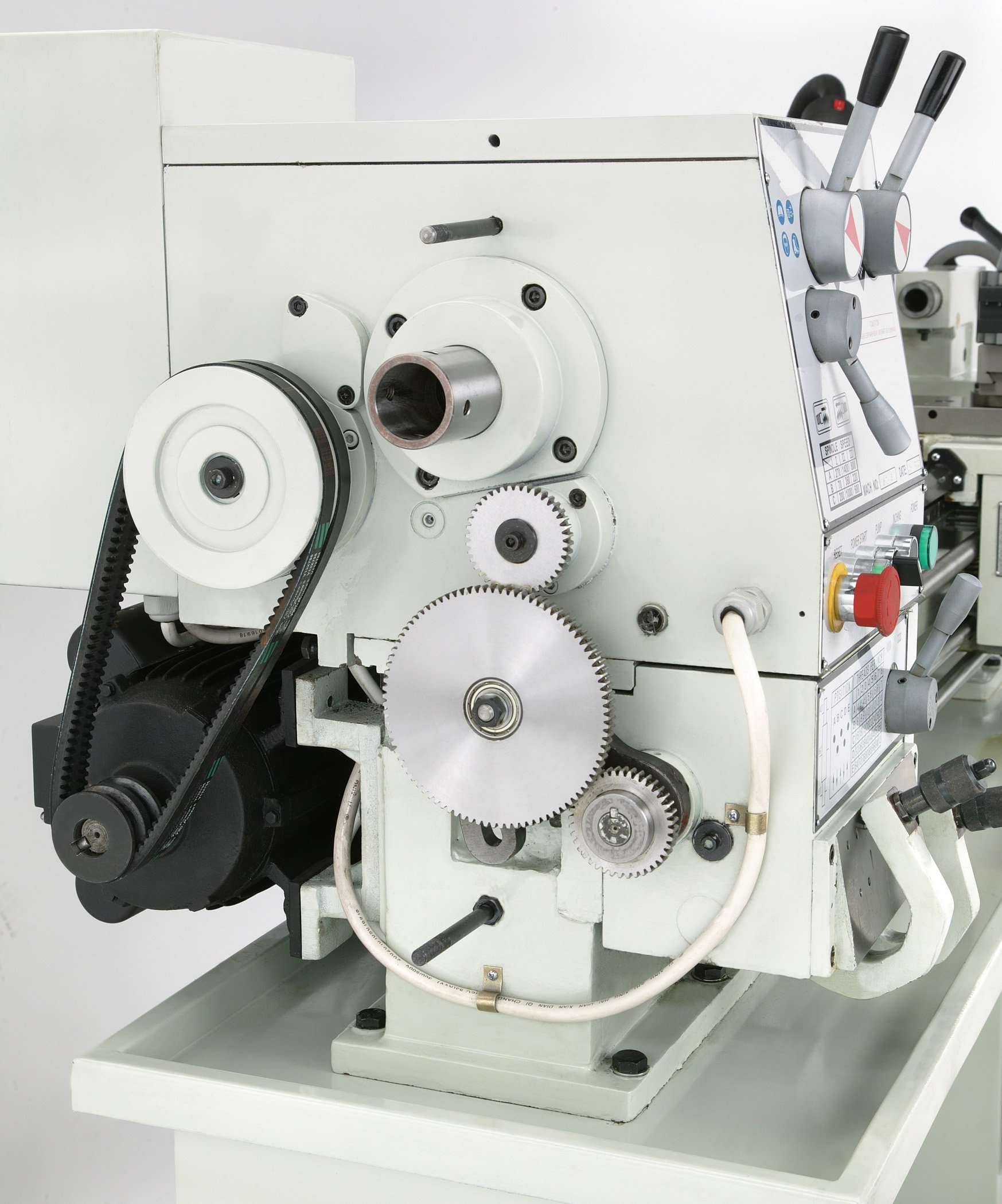

Ground gears & high Precision bearings inside
View larger

This superb gearhead lathe is in the "bull's eye" with its high-tolerance bearings, D1-5 camlock spindle, outboard spindle bore supports, quick change gearbox, induction-hardened bed ways, and its extra fine longitudinal feed rate of 0.0011 inches/r and cross feed rate of 0.0004 inches/r. Other features include a heavy-duty vibration dampening stand, ball bearing tipped follow rest and steady rest, and a tailstock that can be tightened with a torque wrench to maintain precise chuck-to-tailstock alignment every time the tailstock is locked down. Even if you are not a gunsmith, you'll appreciate all the precision and features this lathe offers.

Quick Change Toolpost

The included quick change tool post allows you to increase the speed of your lathe operation. The Tool post features a piston type mechanism and comes with one tool holder.

Ground Gears & High Precision Bearings Inside

The M1112 has been specifically designed to provide many years of trouble-free service. With close attention to detail and precision built parts such as the ground gears and high precision bearings, you can look forward to many years of reliable operation.

Standard Equipment:

6 inch 3-Jaw chuck with two sets of jaws, 8 inch 4-Jaw chuck with reversible jaws, 10 inch faceplate, steady rest, follow rest, quick change toolpost with one tool holder, two MT #3 dead centers (one carbide-tipped), one MT #3 live center, set of six change gears and 1/2 inch drill chuck with MT #3 arbor.

Specifications & Features
  • Swing over bed: 12 inches
  • Distance between centers: 36 inches
  • Swing over gap: 17 inches
  • Swing over cross slide: 7 inches
  • Swing over saddle: 11-11/32 inches
  • Cross slide travel: 6-1/4 inches
  • Compound travel: 3-1/4 inches
  • Carriage travel: 24 inches
  • Spindle speeds: 9 at 70, 200, 220, 270, 360, 600, 800, 1000 and 1400 RPM
  • Spindle bore: 1-5/8 inches
  • Spindle nose: D1-5 camlock
  • Spindle taper: MT #5
  • Motor: 2 HP, 220V, single-phase, 12A, 1725 RPM
  • Bed width: 7-1/4 inches
  • Tailstock barrel taper: MT #3
  • Tailstock barrel travel: 4 inches
  • Leadscrew: 8 TPI
  • Longitudinal feed range: 40 at 0.0011 inches - 0.0311 inches
  • Cross feed range: 40 at 0.0004 inches - 0.0105 inches in./rev.
  • Thread range (inch): 40 at 4-112 TPI
  • Thread range (metric): 29 at 0.2-4.5mm
  • Maximum tool size: 5/8 inches
  • Overall dimensions: 61 inches L x 26 inches W x 54-1/2 inches H
  • Approximate shipping weight: 1410 lbs.
  • Removable gap bed allows turnings up to 17 inch diameter
  • Easy to use lever controls
  • Hardened and ground cast iron bed
  • Full length splash guard
  • ON/OFF reverse switch on carriage
  • Halogen work light
  • Ball bearing steady/follow rest

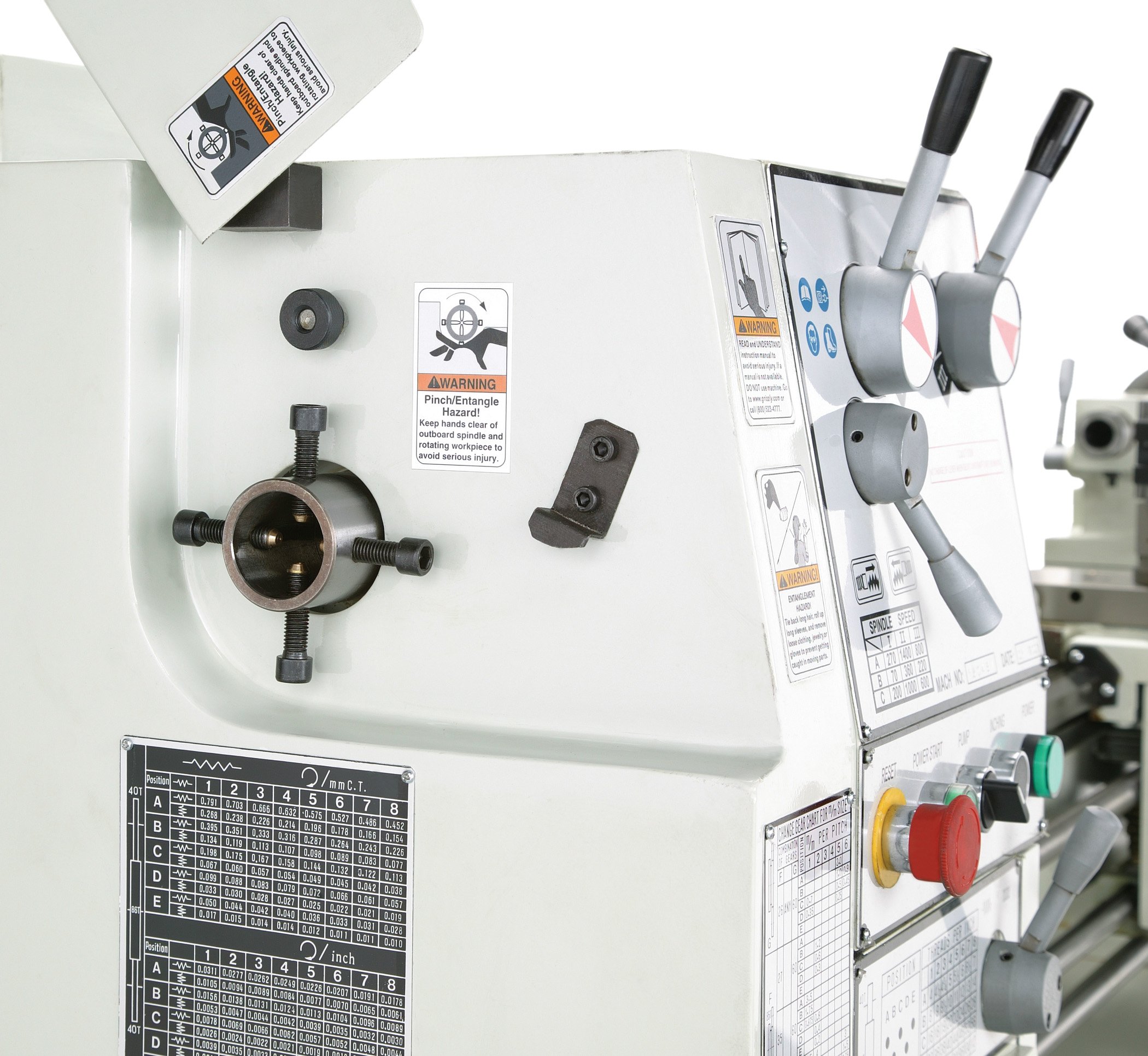

  • Outboard end support screws
  • Socket for tailstock lock
  • Cast iron stand with extended base
  • Cast aluminum gear cover
