SHOP FOX M1044 52-Inch Shear

Be the first to review this item

ASIN B001R23SEK

Specifications for this item
Part Number
M1044
Item Weight
1024 pounds
UPC
754001510449
Brand Name
Shop Fox
EAN
0754001510449

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Cutting capacity (full width): 18 gauge mild steel
  • Cutting capacity (half width): 16 gauge mild steel
  • Front gauge range: 0 to 12-1/2inch
  • Back gauge range: 0 to 35-inch
  • Precision-ground cast iron shear

Package Details

Shipping Weight: 1134 pounds
Package Size: 65.2 x 46 x 29.5 inches

Product Description

Shop Fox 52-Inch Shear
View larger
Micro Adjuster
View larger
Rear Extension Arms
View larger

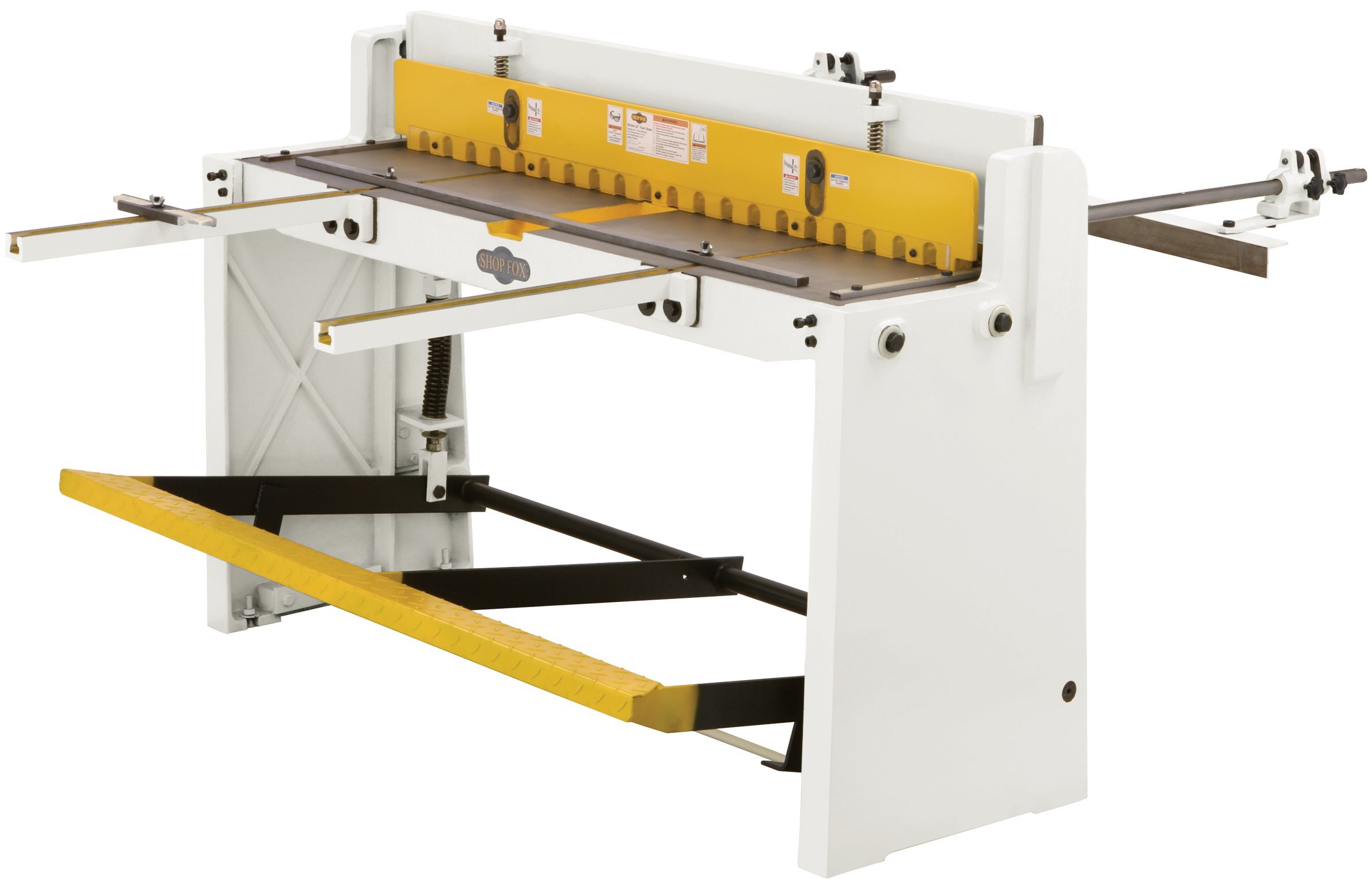

Shop Fox M1044 52-Inch Shear

Cut your work down to size with this heavy-duty Shear. Cut up to 52-inch wide, 16 gauge mild steel with all the precision you’d expect from a machine this size. Features a heavy cast iron body with foot control, precision ground blade, spring activated hold down, safety guard & two micro-adjustable rear stop gauges. Also includes table gauges & front extension arms for those really large sheet metal jobs.

Micro Adjusting Stops

The M1044 rear extension arms feature micro-adjusting stops that allow you to fine tune your cut length for perfect cuts. Simply square one edge against the stop and use the micro adjust feature for the perfect workpiece placement.

Rear Extension Arms with Adjustable Stops

The front and rear extension arms offer work support for large sheet metal jobs. The front extension arms feature stops and an angle guide that are easily adjusted by wing nuts on the top of the stops.

Built to Last

The M1044 52-inch Foot Shear has been specially designed to provide many years of trouble-free service. Close attention to detail, ruggedly built parts and a rigid quality control program assure safe and reliable operation.

Specifications and Features
  • 52-inch wide maximum capacity
  • Front gauge range: 0 - 12-1/2-inches
  • Back gauge range: 0 - 35-inches
  • Footprint: 59-by-21-1/4-inch
  • Height with handle in center position: 41-inch
  • Cutting capacity (full width): 18 gauge mild steel
  • Cutting capacity (half width): 16 gauge mild steel
  • Precision-ground cast iron shear
  • Foot control
  • Front stops & micro-adjustable rear stops
  • Heavy cast iron hold-down clamp
  • Approximate shipping weight: 1,150 lbs
