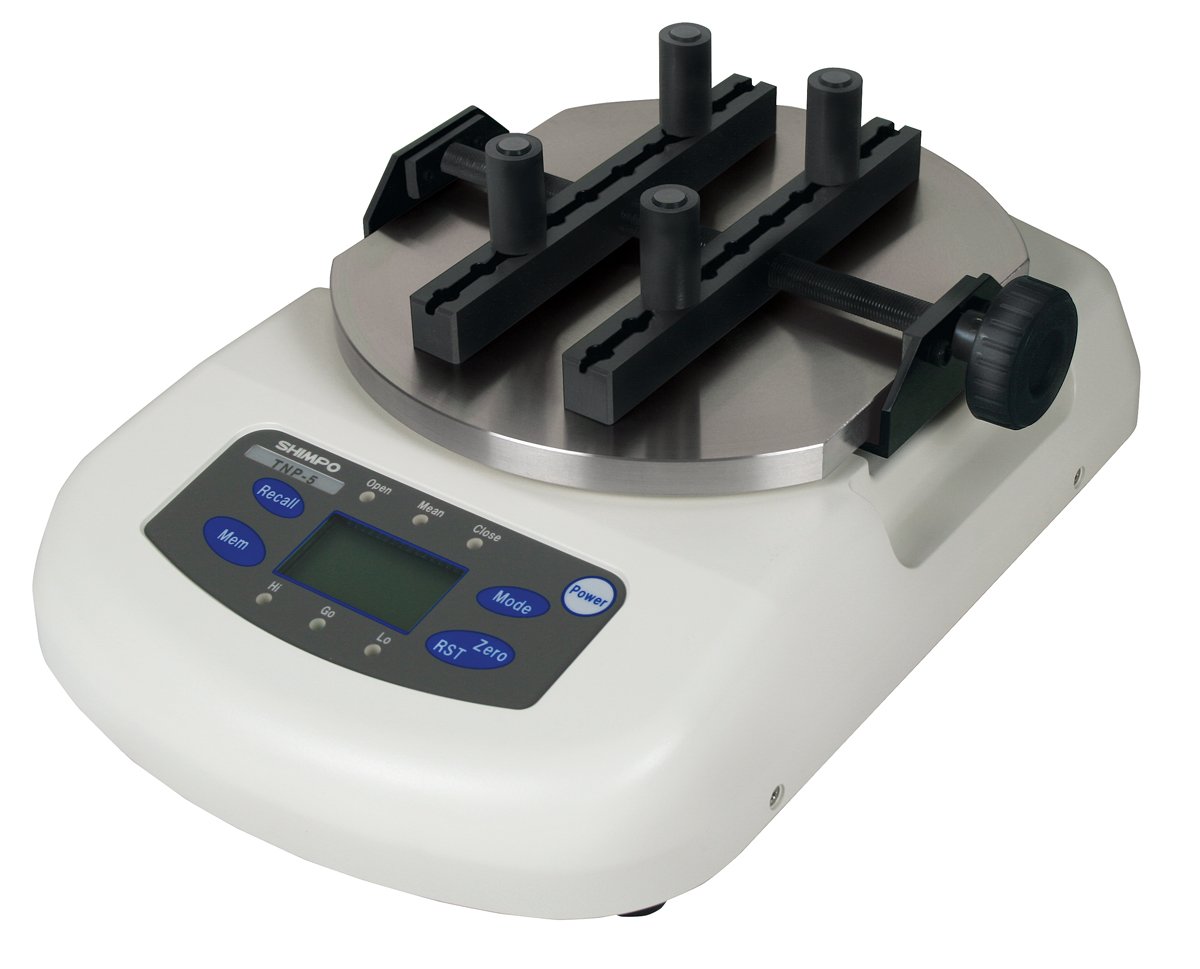

Shimpo TNP-0.5 Digital Torque Meter Tester, 0-50.00Ncm Range, LCD Display

Be the first to review this item

ASIN B006C2OC54

Specifications for this item
Number of Items
1
Range
0-50.00Ncm
Part Number
TNP-0.5
Item Weight
17 pounds
Brand Name
Shimpo
Maximum Measurement
0-50.00Ncm
UNSPSC Code
41111600
Style Name
LCD

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Sep 4? Order in-stock items in the next 13 hrs 18 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Adjustable sample size offers quick and easy set-up takes seconds.
  • Test memory allows one touch operation, retains up to 1000 measurements
  • Variable units of measures includes displays torque values: Nm, Ncm, Kgcm, Lbin
  • Easy to read L.C.D. with large digital display
  • PC output USB interface with add in software (Digitorq)

Package Details

Shipping Weight: 17.15 pounds
Package Size: 16.5 x 12.3 x 6.1 inches

Product Description

The new Shimpo TNP torque meter is a precision instrument that measures Open and close torque values for various applications. As a cap torque analyzer, the TNP repeatedly determines bottle closure and breakaway torque. It has a wide memory capacity capable of storing 1000 data points in addition to average, maximum and minimum values. A hi,low comparator feature can be utilized for large batch testing to ensure overall product quality. The TNP torque meter is USB capable for computer testing. Combined with the free digitorq software, additional analysis and testing can be performed. The TNP is a portable device powered with internal rechargeable batteries or thru an AC adapter/charger. Designed with a small footprint it can easily be transferred to maximize use around the shop floor or the laboratory. High accuracy: +/- 0.5 percent F.S. Wide torque: 2Nm. Adjustable sample size offers quick and easy set-up takes seconds. Test memory allows one touch operation, retains up to 1000 measurements. Variable units of measures includes displays torque values: Nm, Ncm, Kgcm, Lbin. Easy to read L.C.D. with large digital display. PC output USB interface with add in software (Digitorq). Flexible power that allows rechargeable NiMH batteries and / or Universal AC adapter. Selectable measuring modes captures peak opening, closing and average torque values (CCW, CW). Portable, small foot print, compact, space saver design. 2 Year warranty.
