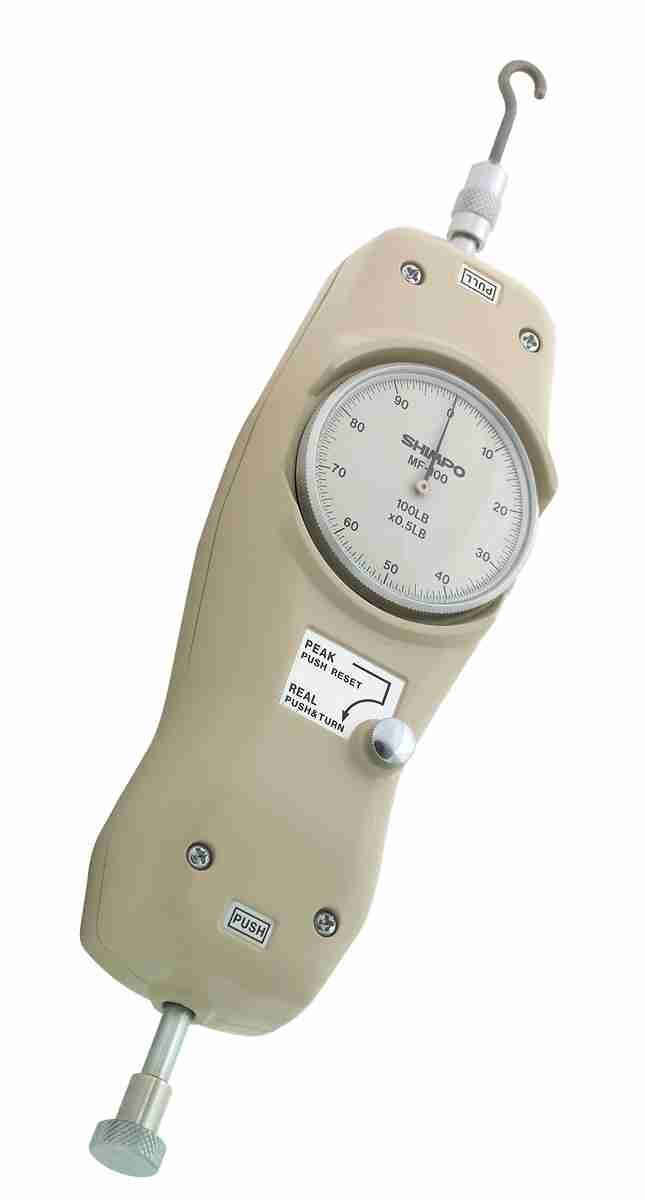

Shimpo MF Series Peak Hold Analog Mechanical Force Gauge, Inch

Be the first to review this item

Product Specifications
Manufacturer Series Number
MF Series
UNSPSC Code
41111934
Specifications
-
Brand Name
Shimpo

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 1 day 5 hrs 24 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-4 of 4
Measuring Range Graduation Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-4 of 4
5 pounds 0.025 pounds MF-5 B006C2ND8G Usually ships in 1 to 2 months $417.35 Buy Options
10 pounds 0.05 pounds MF-10 B006C2G2TS Usually ships in 1 to 2 months $450.00 Buy Options
20 pounds 0.1 pounds MF-20 B006C2MWEM yes $393.75 Buy Options
100 pounds 0.5 pounds MF-100 B005T7XH2W yes $393.75 Buy Options

Key Features

  • Measures tensile (pull) or compression (push) forces
  • Analog gauge shows measurements in pounds (lb.)
  • Displays present force or maximum (peak) force
  • Measurement accuracy of + or - 0.2 percent of full scale
  • Overload capacity of 165 lb.

Product Description

The Shimpo MF series peak-hold analog force gauge measures tensile (pull) or compression (push) forces in quality control and process control applications. This analog gauge shows measurements in pounds (lb.) and can display the present force measured in real time or the maximum (peak) force measured over the course of a test. It has a measurement accuracy of + or - 0.2 percent of full scale. The gauge has an overload capacity of 165 lb. A push button on the gauge resets the peak reading for repetitive testing applications. The gauge comes with one hook, one chisel, one flat head, one notched head, one cone head, one large hook, and one large V-hook attachment that screw onto the sensor shaft for conducting tests on a variety of devices. It also comes with an extension rod for increasing the reach of the gauge's sensor. The gauge's body is constructed from die-cast aluminum, which resists wear. The meter measures 9.06 x 2.36 x 2.5 inches (230 x 60 x 52 mm, H x W x D, where H is height, the vertical distance from lowest to highest point; W is the width, the horizontal distance from left to right; and D is depth, the horizontal distance from front to back) and can be held in one hand during use. It comes with a carrying case that helps protect the gauge during transport and storage.

Force gauges, also called push-pull gauges or tension gauges, measure the tensile (pull) or compression (push) force applied to an object. They are used to test the strength and functionality of a variety of machines, electronic components, cables, wires, and consumer products in scientific, medical, automotive, quality assurance, and manufacturing applications. A digital force gauge shows the amount of force in digits on the gauge's display. Response time varies among digital force gauges depending on the speed of the processor. An analog (or mechanical) force gauge shows measurements on a calibrated dial. Analog force gauges are not as precise as digital force gauges, but they provide instantaneous measurements and can be used in a wider range of environmental conditions than digital force gauges. Hooks, compression plates, levers, handles, test stands, and other accessories can be used with the gauge for taking measurements on objects with a range of shapes and sizes.

Shimpo Instruments manufactures force, torque, and speed evaluation instruments. The company, founded in 1974 and headquartered in Itasca, IL, meets International Organization for Standardization (ISO) standard 9001.
