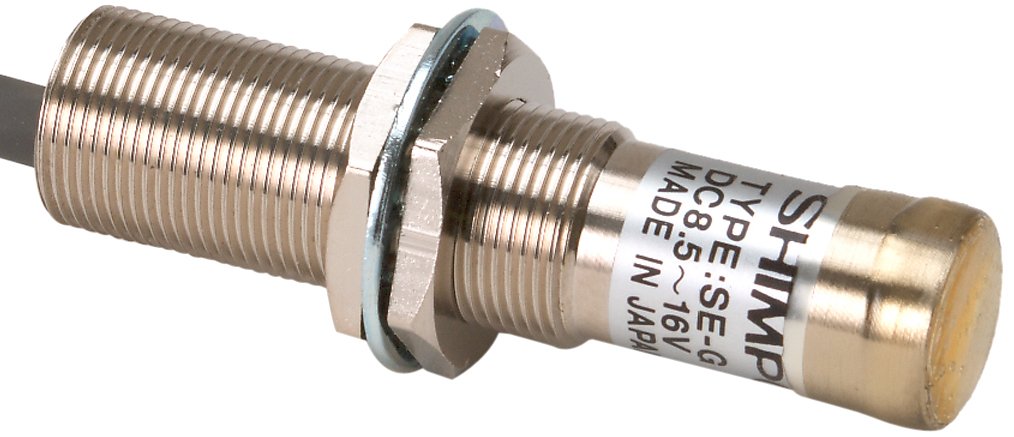

Shimpo SE-G Proximity Sensor with Cable, 16VDC, 8khz Switching Frequency, 1mm Sensing Distance

Be the first to review this item

ASIN B006C2O9FC

Specifications for this item
Number of Items
1
Minimum Storage Temperature
70  Degrees Celsius
Part Number
SE-G
Terminal Type
-20 degrees_celsius
Brand Name
Shimpo
UNSPSC Code
41111926
System of Measurement
Metric

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 21? Order in-stock items in the next 13 hrs 5 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • It is a solid state 3 wire proximity sensor specially designed for gear sensing
  • The unit provides a square wave output signal and indicates detection via LED indicator, mounted on the rear of the unit
  • Gear pitch must be between 16.93 and 2525.4
  • 1.5' cable included
  • Pack of 1

Package Details

Shipping Weight: 0.2 pounds
Package Size: 4.5 x 4.4 x 0.8 inches

Product Description

It is a solid state 3 wire proximity (switching) sensor specially designed for gear sensing. The unit provides a square wave output signal and indicates detection via LED indicator, mounted on the rear of the unit. (Gear pitch must be between 16.93 and 2525.4). Sensing range : 1 mm. Voltage input : 16VDC(50mA). Maximum frequency : 8 KHz. Output impedance : 2.2 kiloohm. Operating temperature : -20 degree C to 70 degree C (-4 degree Fto l58 degree F). Cable length : .5M (1.5 feet). Dimensions: (M14 x 1) x 65 mm (2.56").
