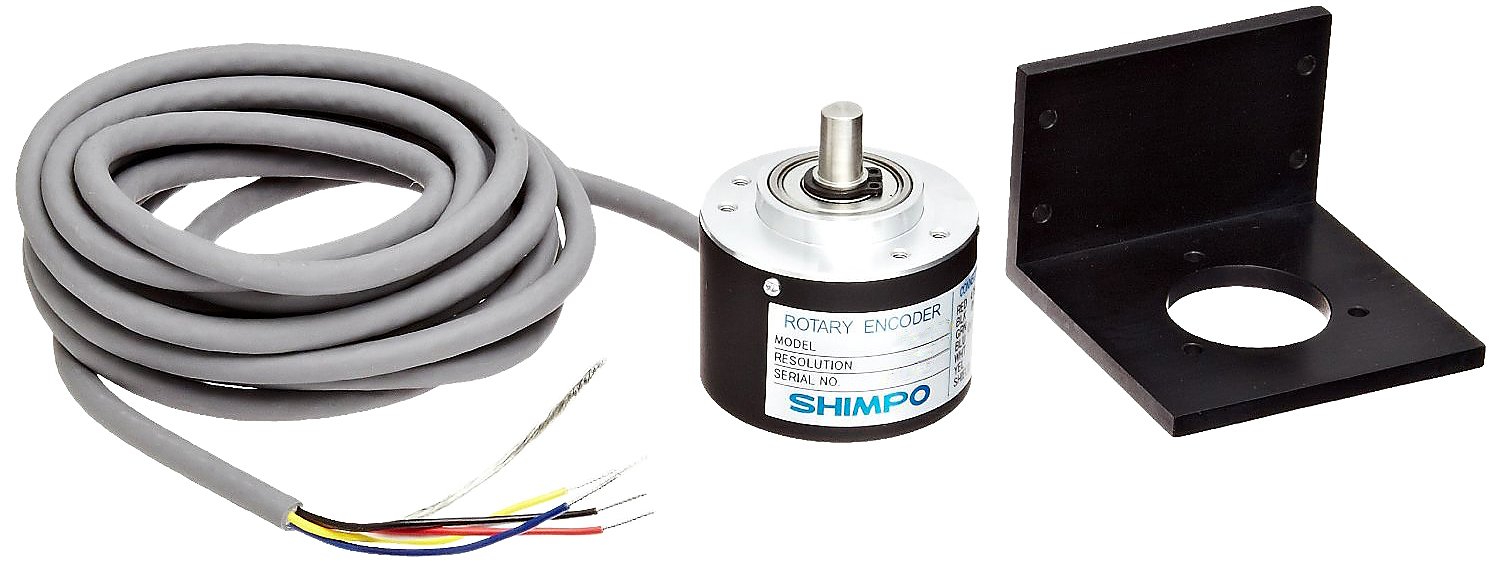

Shimpo RE2B-600C Aluminum Rotary Pulse Generator, 4.75-30VDC, 5000RPM Max Speed, 600PPR Graduation
Be the first to review this item
ASIN B006C2O4FM
Specifications for this item
- Brand Name
- Shimpo
- Minimum Storage Temperature
- 50 Degrees Celsius
- Number of Items
- 1
- Part Number
- RE2B-600C
- Terminal Type
- -10 degrees_celsius
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Thursday, June 20? Order in-stock items in the next 4 hours 11 minutes and choose One-Day Shipping at checkout.
Key Features
- Dual (90 degree out of phase) digital pulses for quadrature applications
- Also a zero position (third output) is available to mark the reference position of the shaft
- Maximum speed: 5000RPM
- 1.6' cable included
- Pack of 1
Package Details
Shipping Weight:
0.65 pounds
Package Size:
4.3 x 3.5 x 2.4 inches
Product Description
Dual (90 degree out of phase) digital pulses for quadrature applications. Also a zero position (third output) is available to mark the reference position of the shaft. Resolution: 600 Pulses per shaft revolution Power supply: 4.75-30VDC, 60mA (max). Output voltage: logic "1".. .supply voltage minus 2.5 V or more, 10mA (max) / Logic "0"... less the 0.4V, 30mA (max). Duty cycle : 50 percent (+/-25 percent). Quadrature output phase:90 degree +/- 45 degree . Zero signal width: 50-150 percent of the signal cycle. Shaft torque : 0.41 oz-in, 30 g-cm (max). Shaft allowable load: Overhung load 11 lbs. (5Kg) / Thrust load 6.8 lbs. (3Kg). Cable length: 1.6 feet. Operating temperature: -10 degree C to 50 degree C (14 degree F to l22 degree F) . Weight: 8.8 oz (250g) . Construction: Aluminum housing. Mounting: base or face mounting, "L" bracket within mounting screws included
