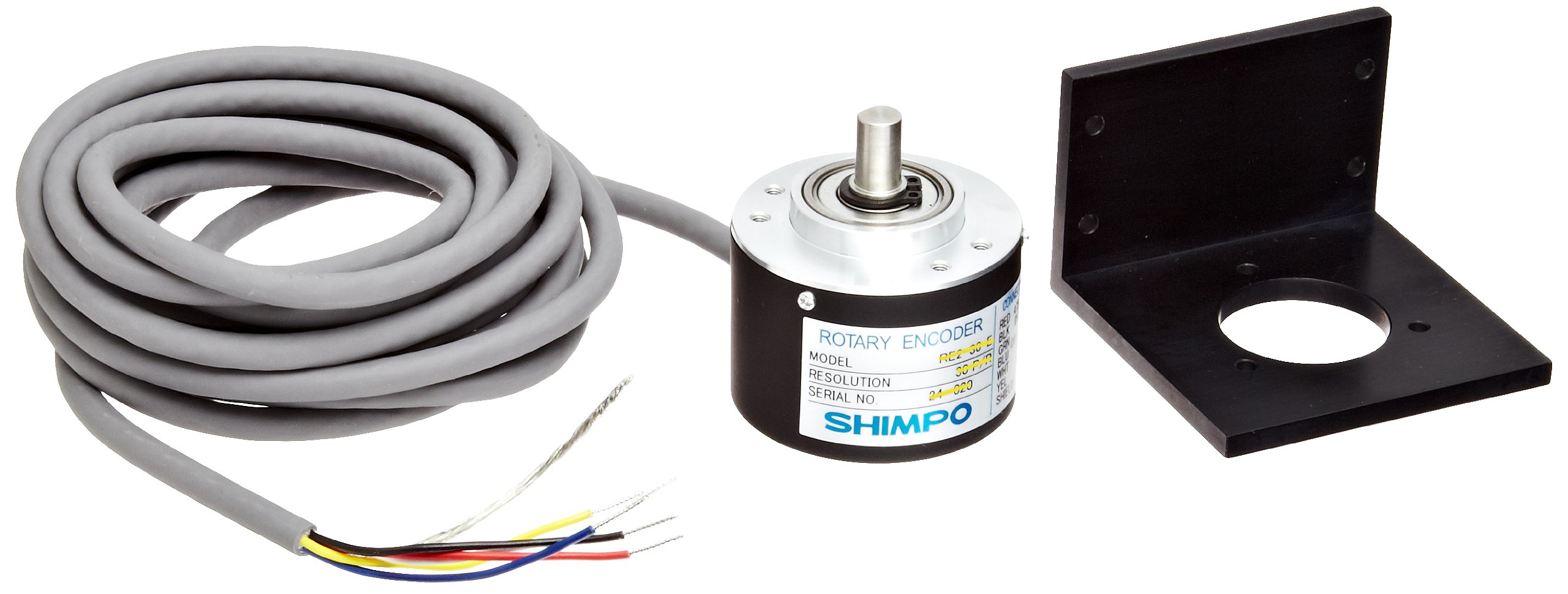

Shimpo RE2B-30C Aluminum Rotary Pulse Generator with Cable, 4.75-30VDC, 5000RPM Max Speed, 30PPR Graduation

Be the first to review this item

ASIN B006C2O1KU

Specifications for this item
Number of Items
1
Minimum Storage Temperature
50  Degrees Celsius
Part Number
RE2B-30C
Terminal Type
-10 degrees_celsius
Brand Name
Shimpo
UNSPSC Code
41113600

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Dec 23? Order in-stock items in the next 14 hrs 5 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Dual (90 degree out of phase) digital pulses for quadrature applications
  • Also a zero position (third output) is available to mark the reference position of the shaft
  • Maximum speed: 5000 RPM
  • 1.6' cable included
  • Pack of 1

Package Details

Shipping Weight: 0.95 pounds
Package Size: 4.3 x 3.6 x 3.5 inches

Product Description

Dual (90 degree out of phase) digital pulses for quadrature applications. Also a zero position (third output) is available to mark the reference position of the shaft. Resolution: 30 Pulses per shaft revolution Power supply: 4.75-30VDC, 60mA (max). Output voltage: logic "1".. .supply voltage minus 2.5 V or more, 10mA (max) / Logic "0"... less the 0.4V, 30mA (max). Duty cycle : 50 percent (+/-25 percent). Quadrature output phase:90 degree +/- 45 degree . Zero signal width: 50-150 percent of the signal cycle. Shaft torque : 0.41 oz-in, 30 g-cm (max). Shaft allowable load: Overhung load 11 lbs. (5Kg) / Thrust load 6.8 lbs. (3Kg). Cable length: 1.6 feet. Operating temperature: -10 degree C to 50 degree C (14 degree F to l22 degree F) . Weight: 8.8 oz (250g) . Construction: Aluminum housing. Mounting: base or face mounting, "L" bracket within mounting screws included
